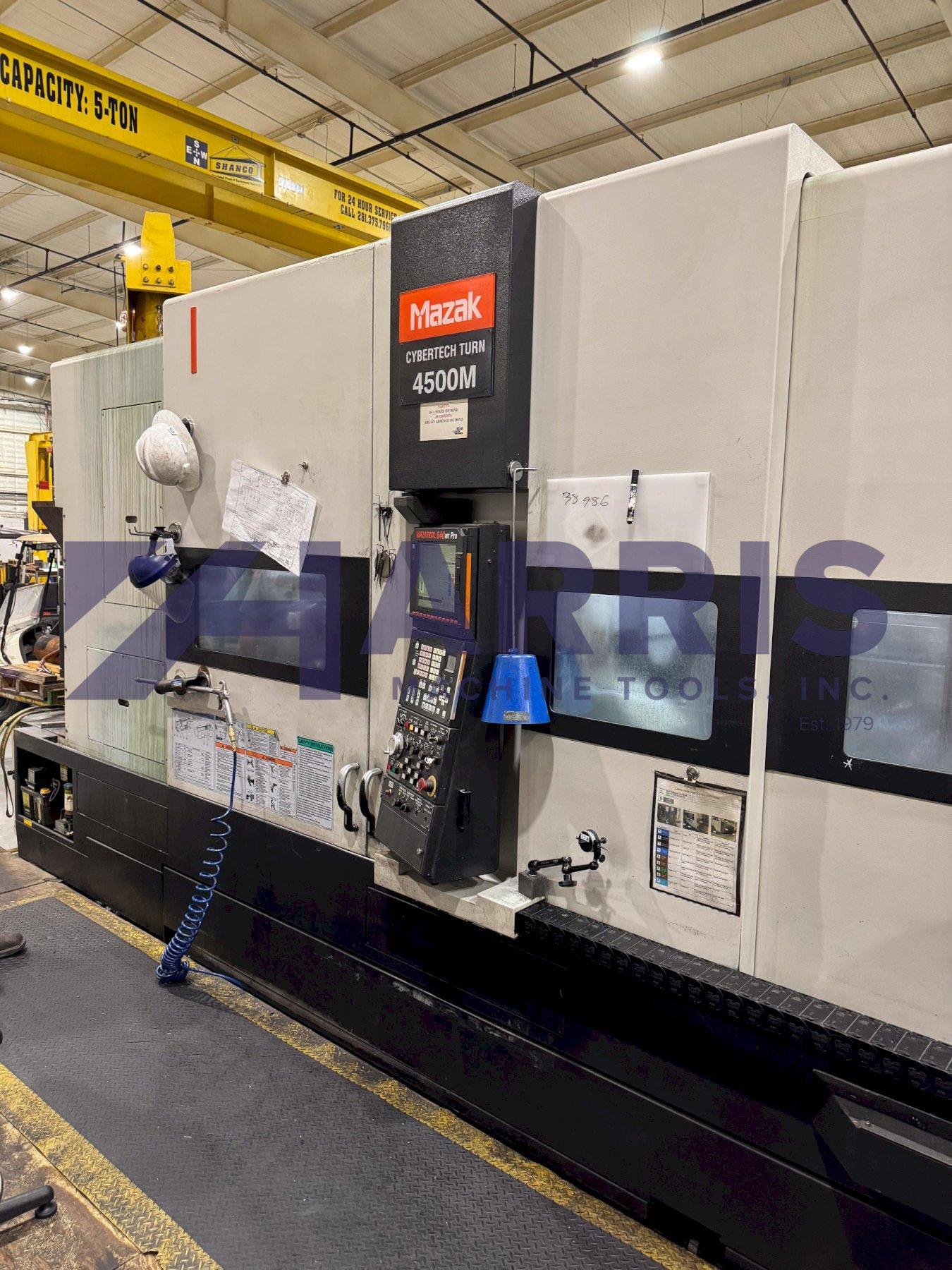

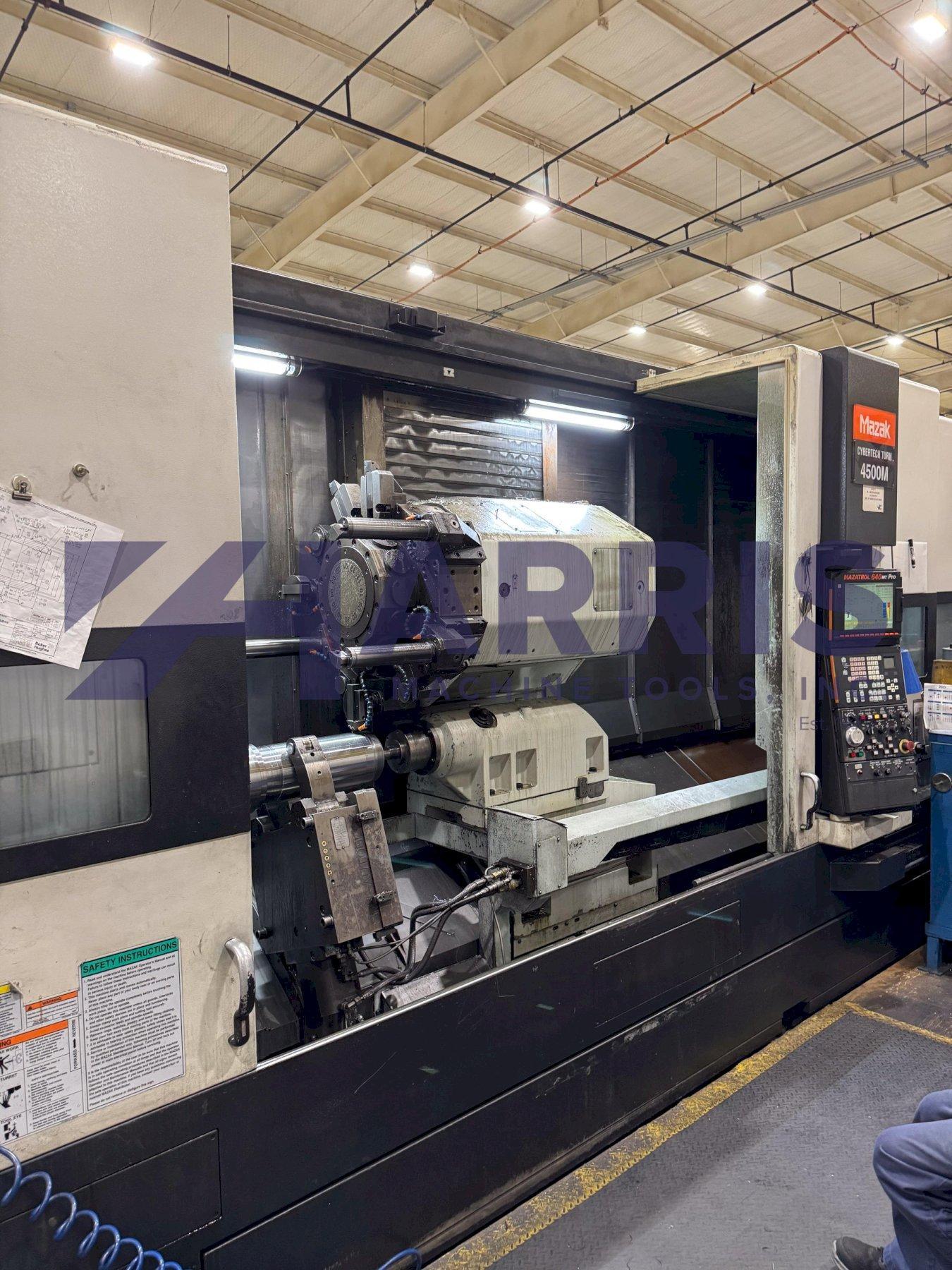

2006 Mazak Cybertech Turn 4500M CNC Lathe
Brand
MAZAK
Model
CYBERTECH TURN 4500M
Type
Lathes, CNC (3-Axis or More)
Stock #
20852
Condition
Used
Year
2006
Location
Houston, Texas
United States
Specifications
| CNC Control | yes |

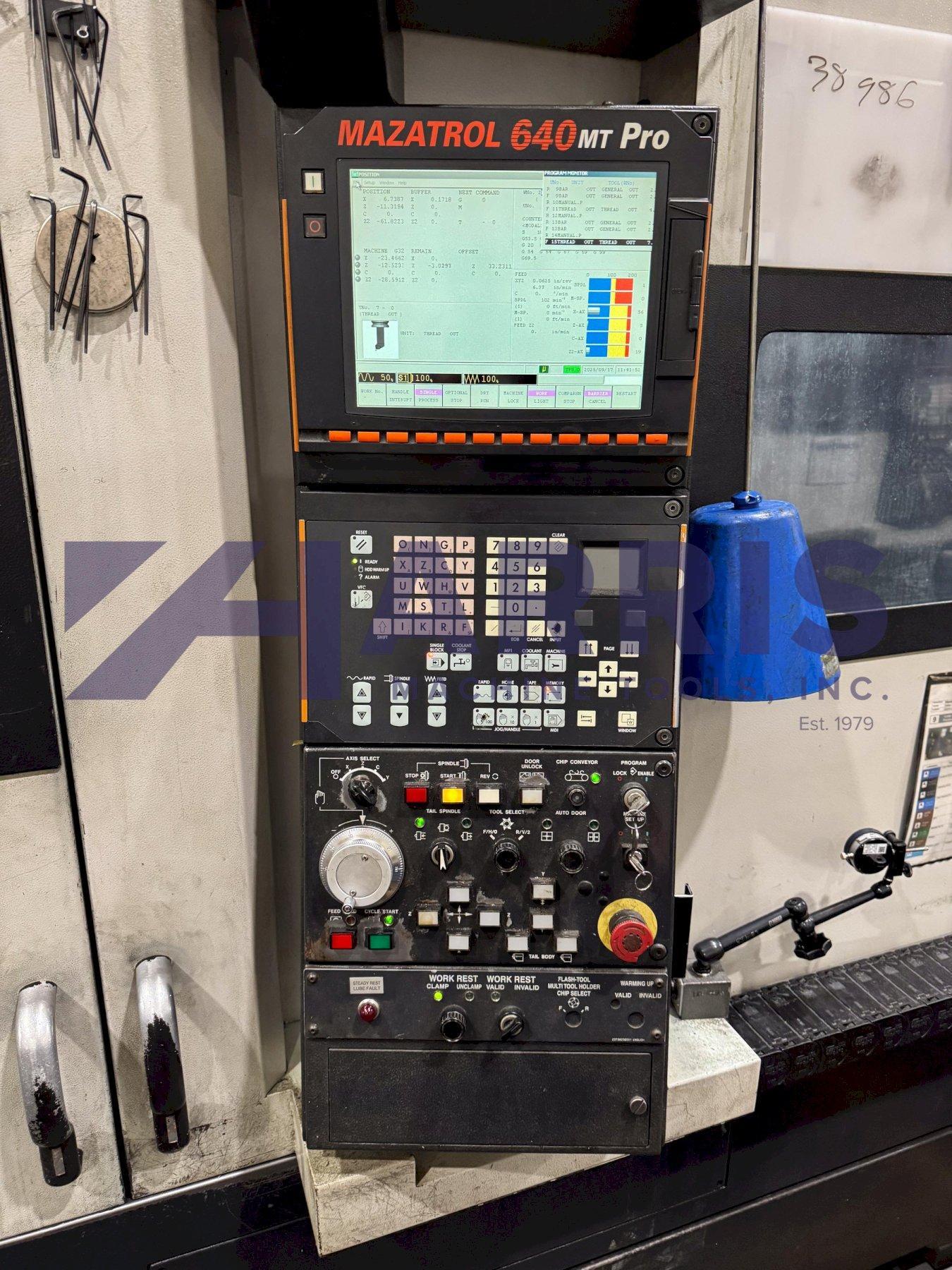

| Type of CNC Control | Mazatrol 640T Pro CNC Control |
| Chuck Size | 21 inches |
| Swing | 33.8 inches |
| Turning Diameter | 31.9 inches |
| Center Distance | 120 inches |
| Bar Capacity | 6.5 inches |
| Spindle Bore | 7 inches |
| X Axis Travel | 21.5 inches |
| Z Axis Travel | 132.2 inches |
| Rapid Traverse (X/Z) | 945/1181 IPM |
| Spindle Speed (RPM) | 1600 |
| Main Motor | 50 HP |
| Live Milling (Yes / No) | yes |
| Tailstock (Yes/No) | yes |
| Steady Rest Capacity | 12 inches |

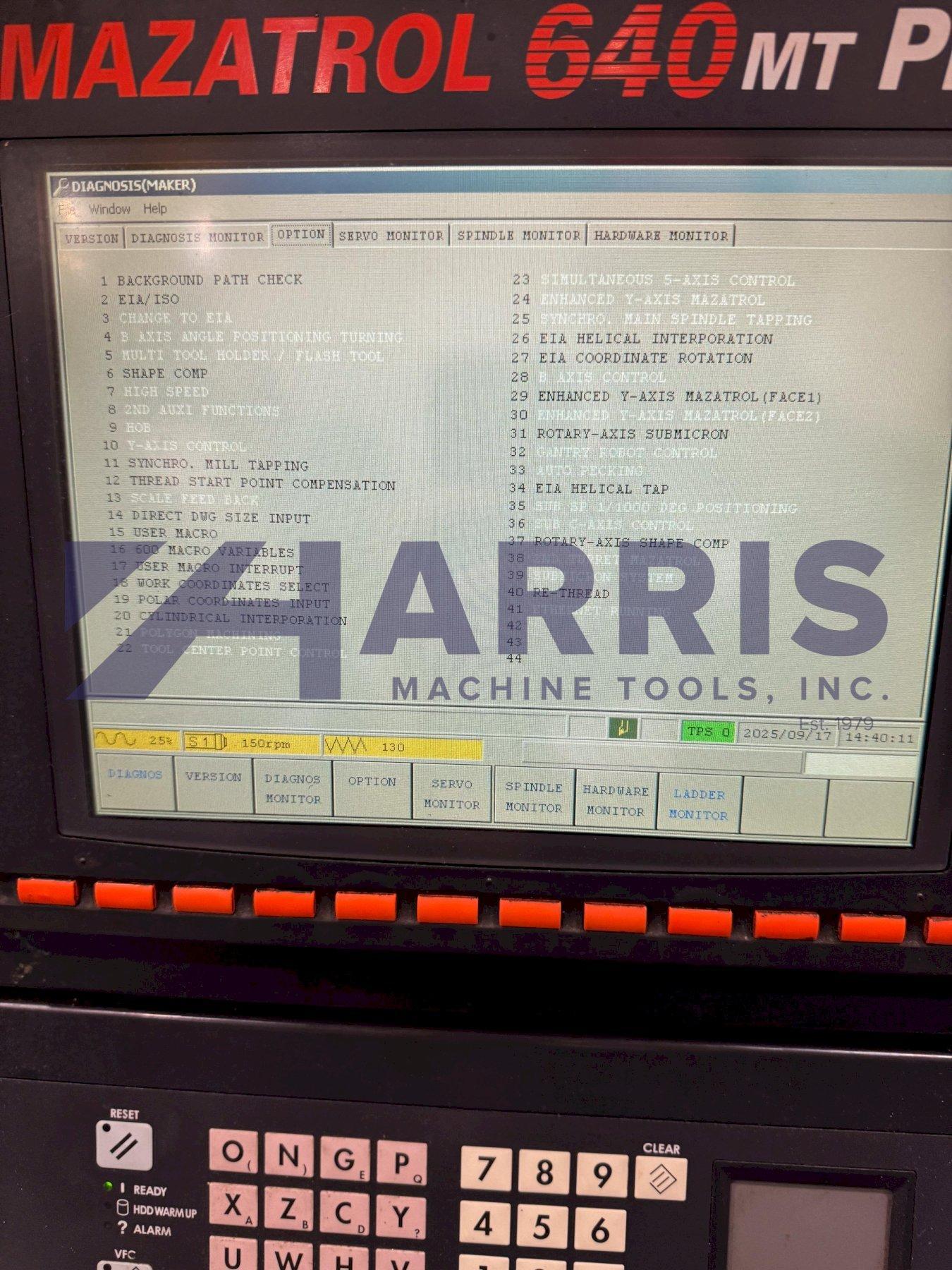

Equipped With
Shape Comp
Synchro. Mill Tapping
Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
Cylindrical Interporation
EIA Coordinate Rotation
Enhanced Y-Axis Mazatrol (Face1)
Rotary-Axis Submicron
EIA Helical Tap
Rotary-Axis Shape Comp
Re-Thread
Additional Spec:
Additional Spec:

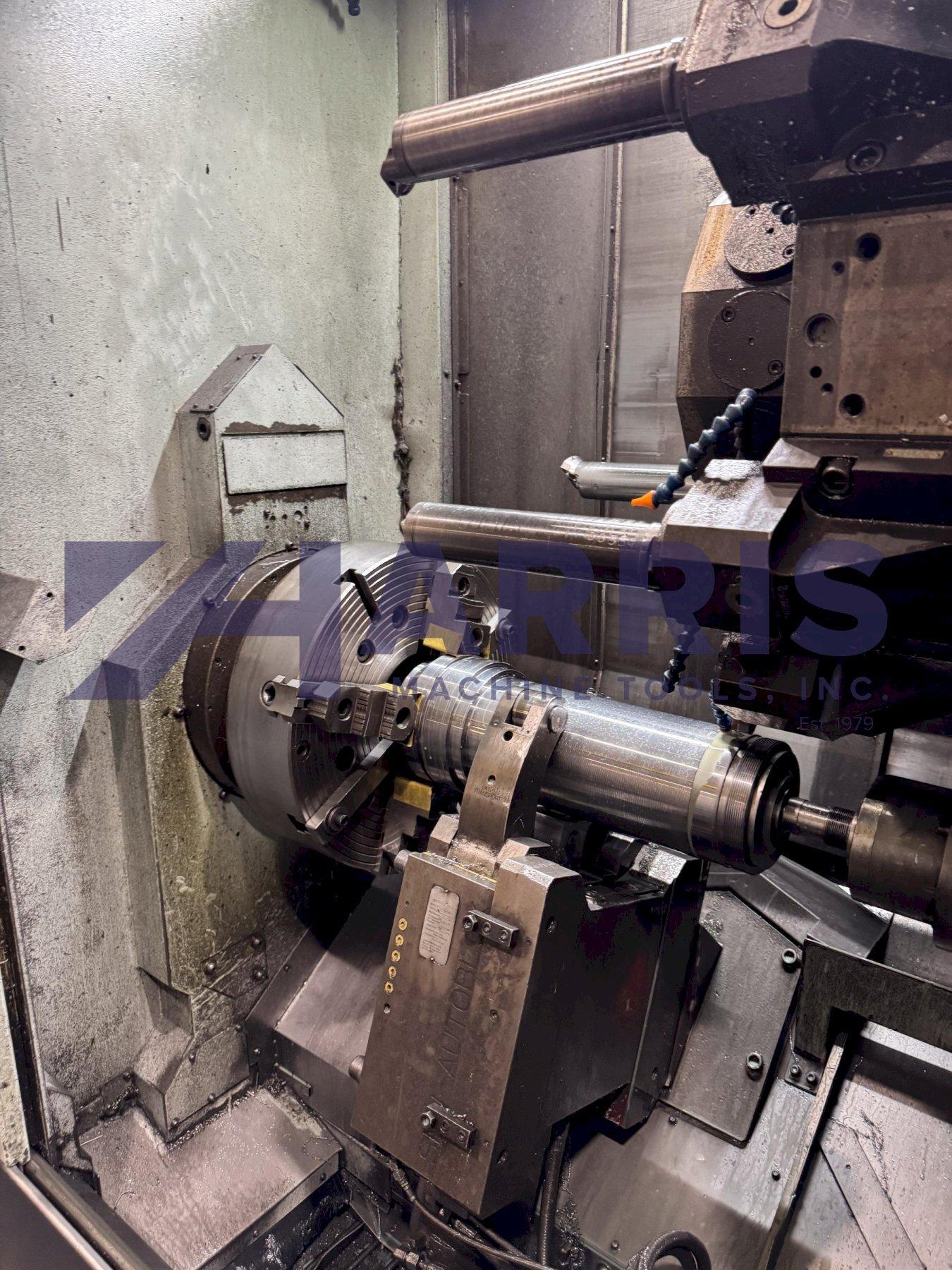

4 Jaw Chuck Front and Rear
Spindle Torque: 4273 Ft-Lbs.
C-axis: 0.001 Degrees
Includes:

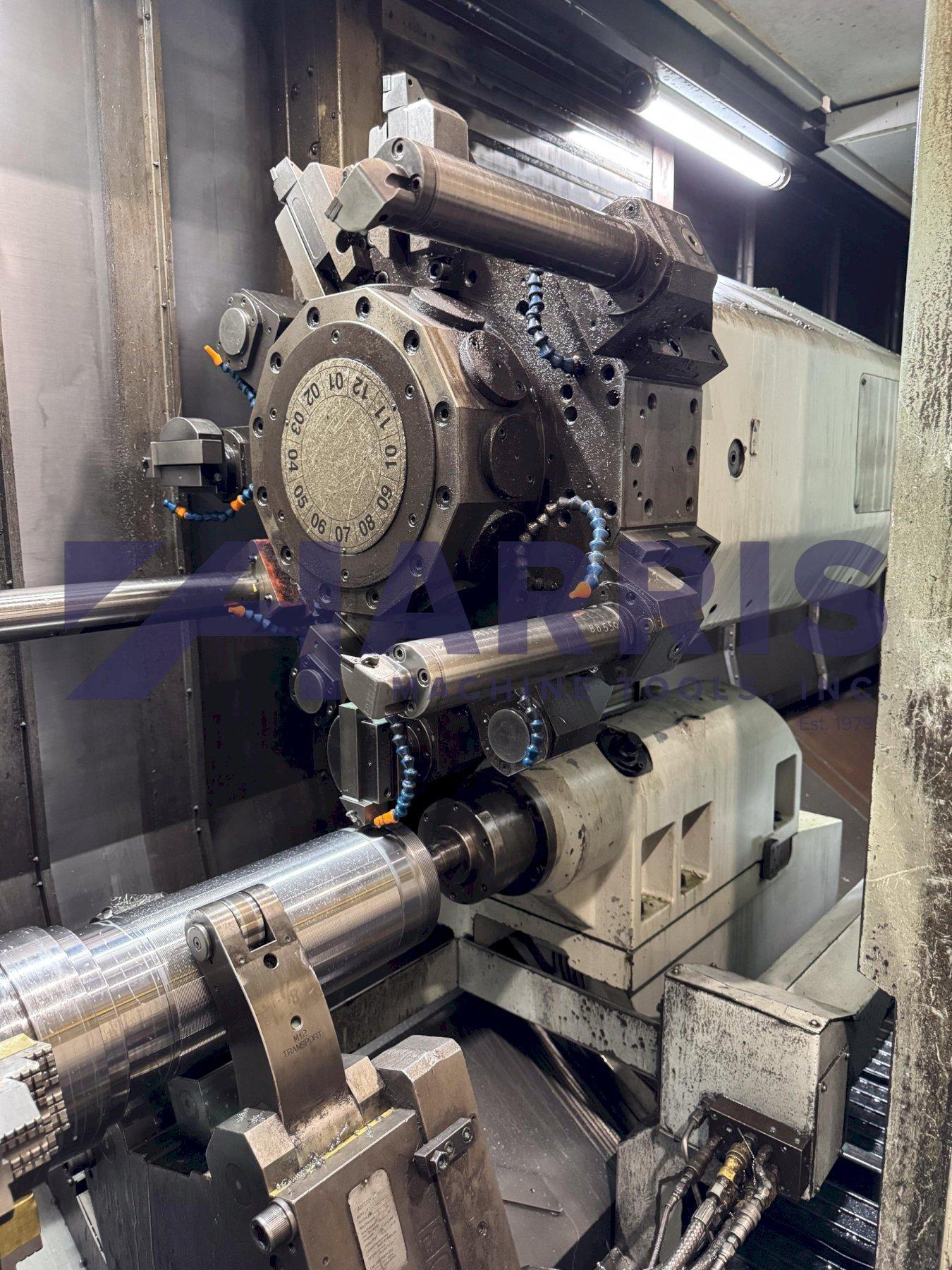

Live Turret
Long Boring Bar Stocker
Chip Conveyor
Coolant
*All specs are subject to buyer review
