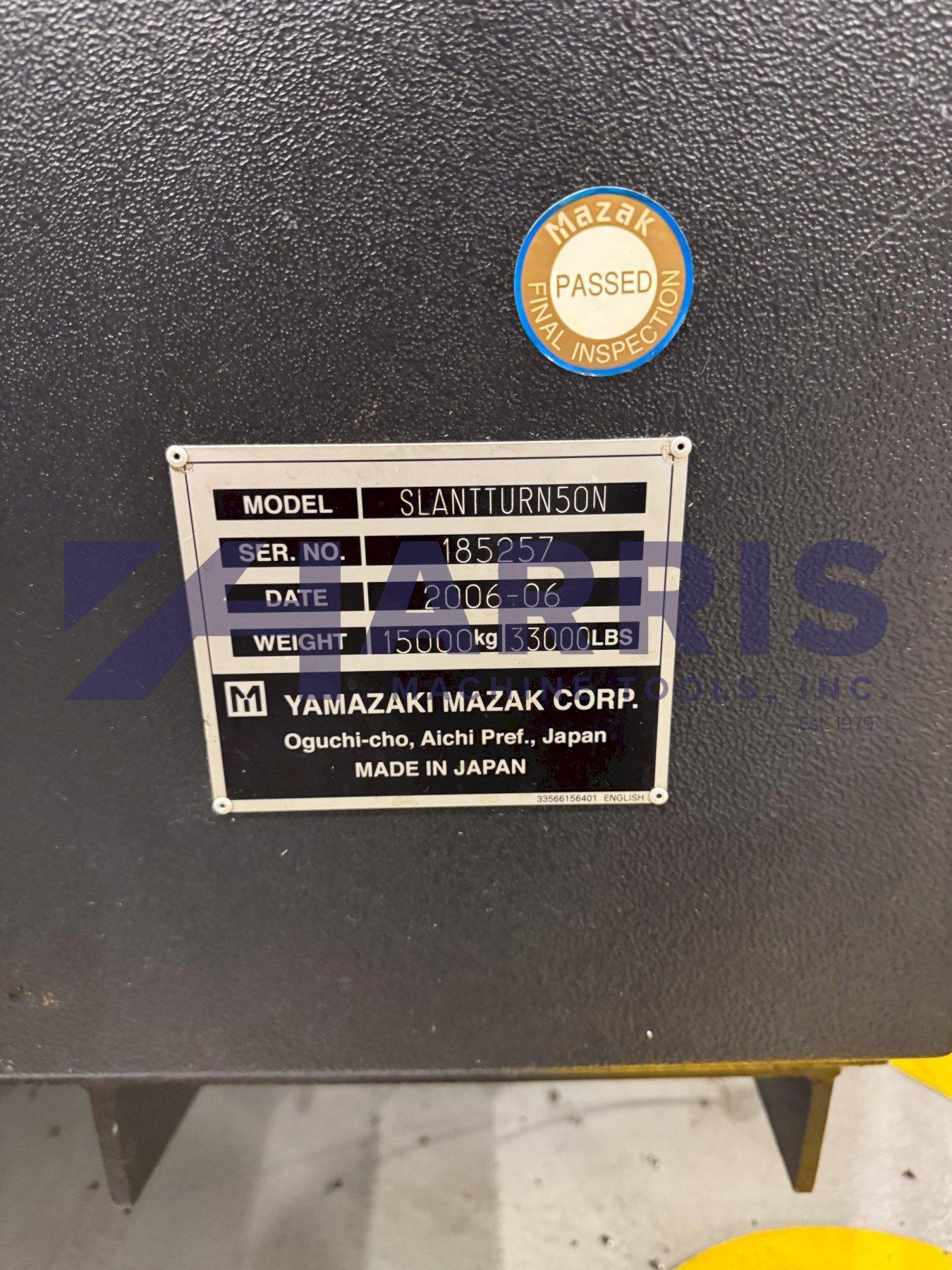

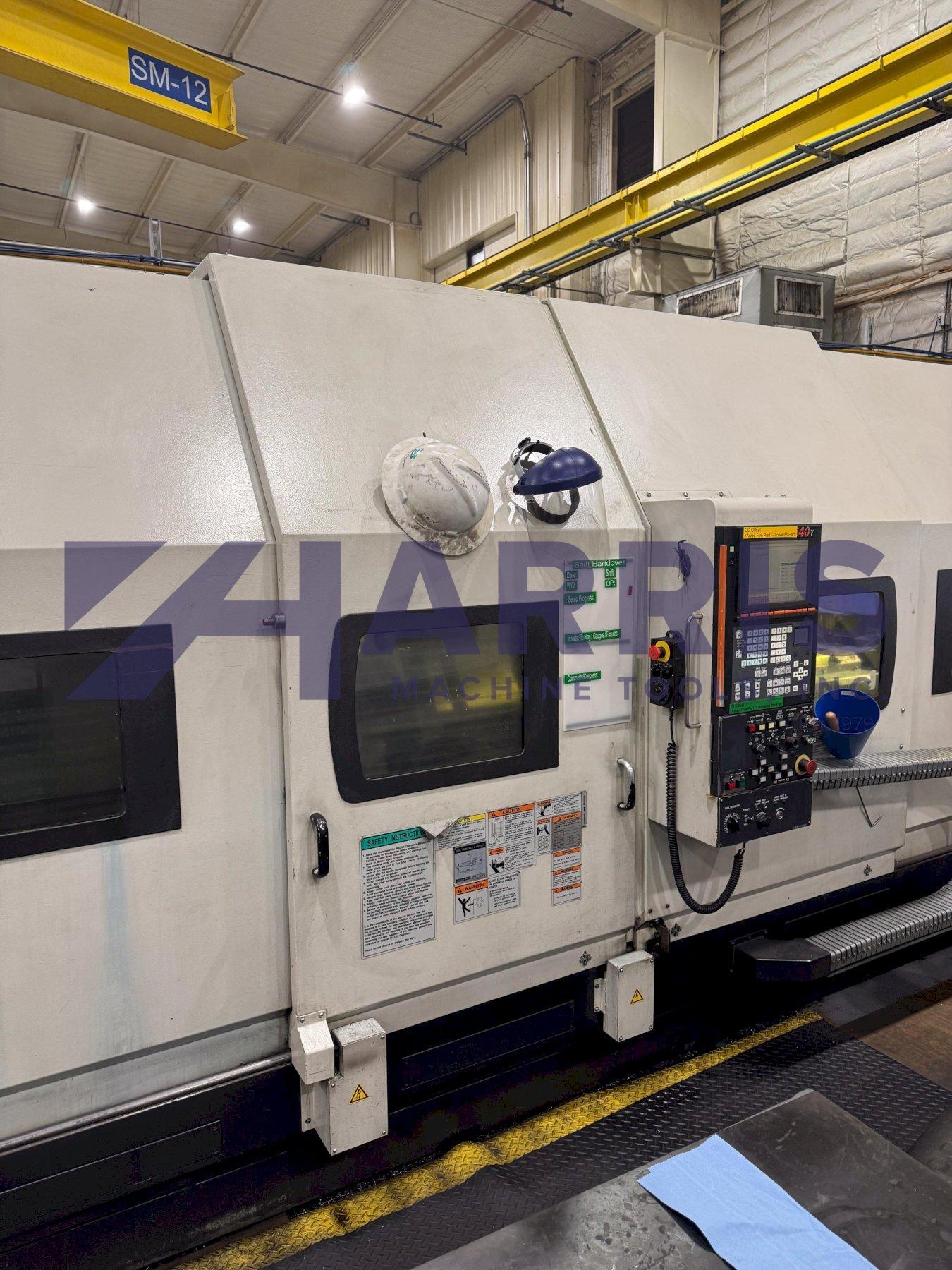

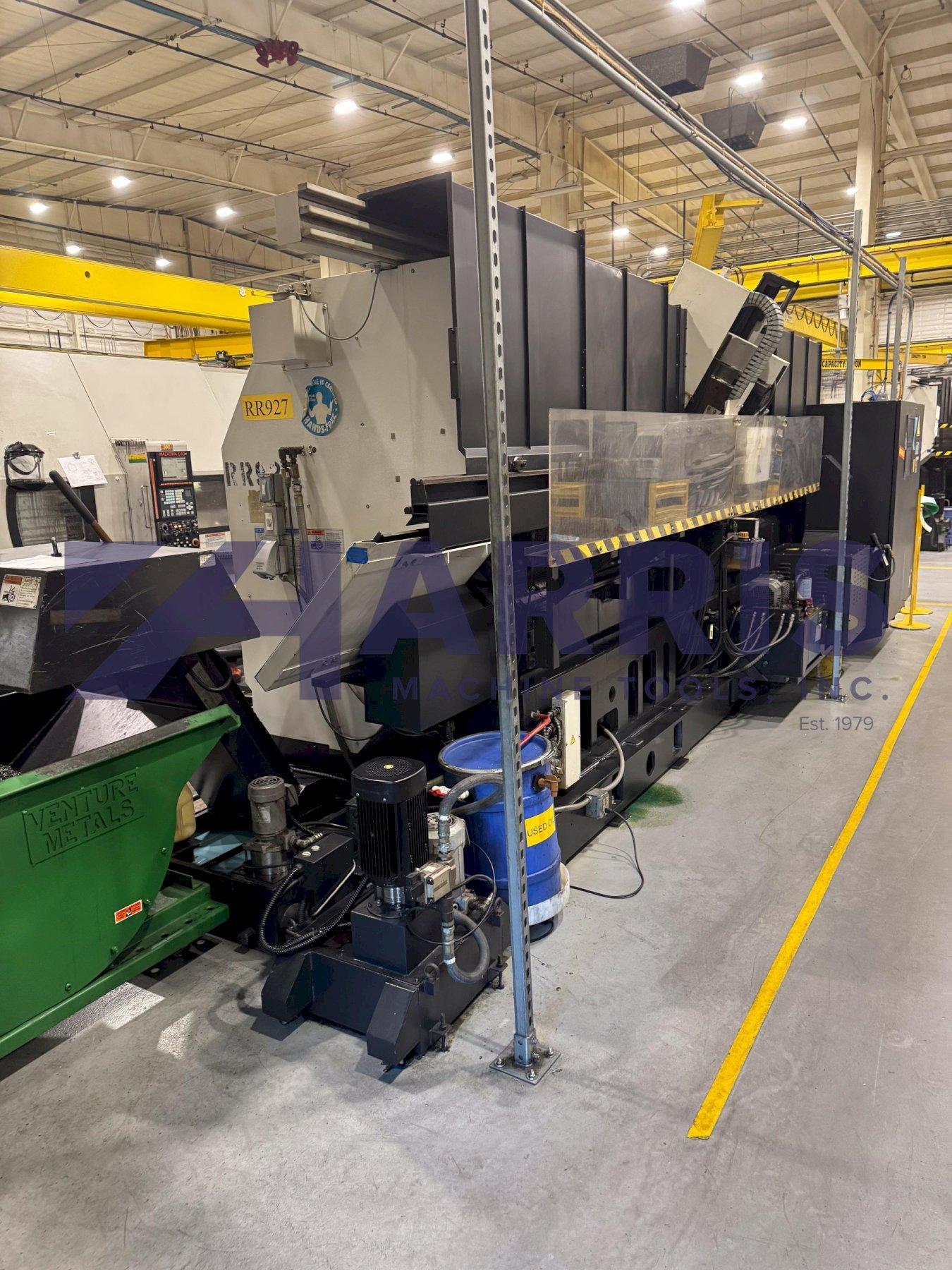

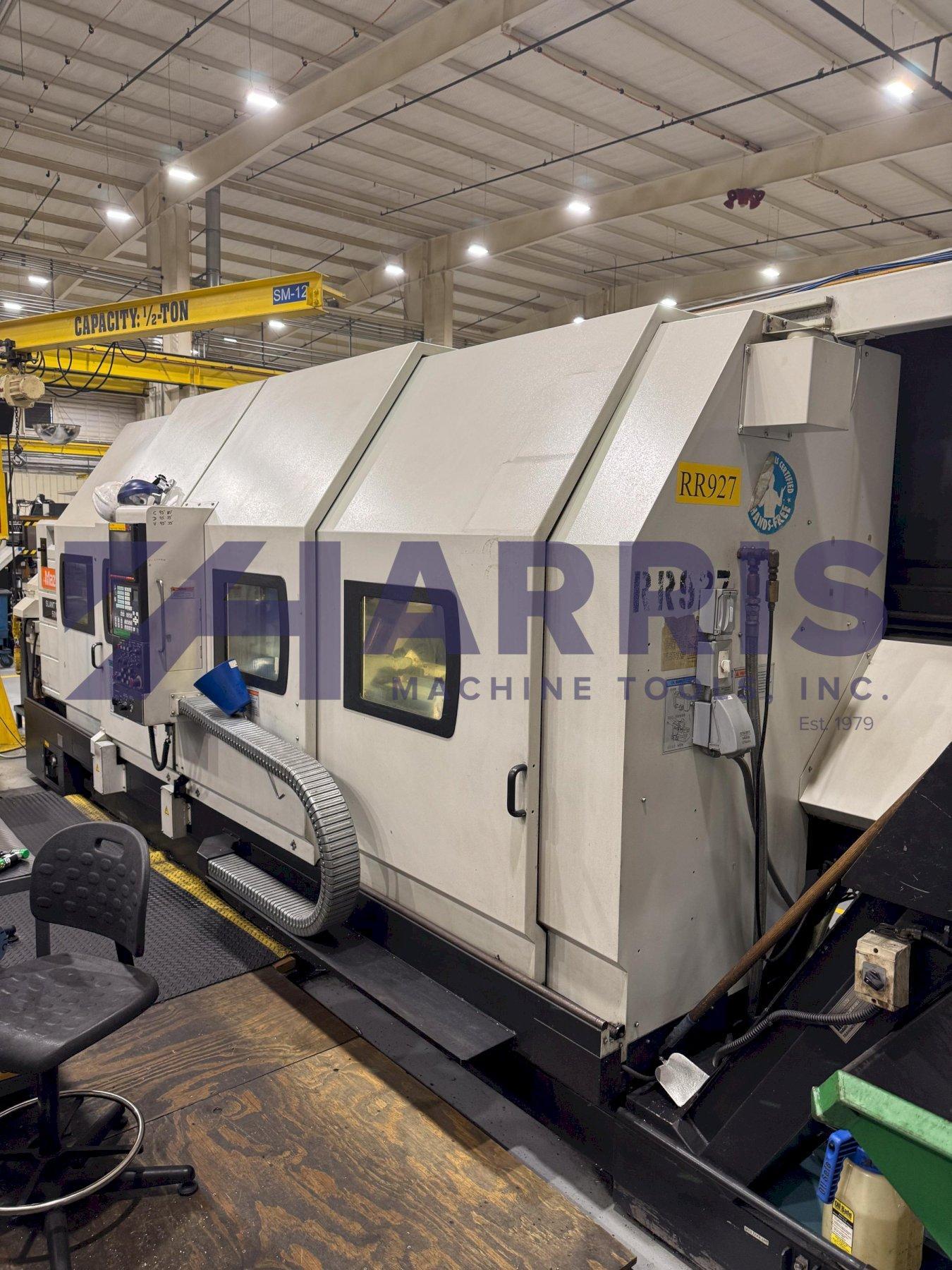

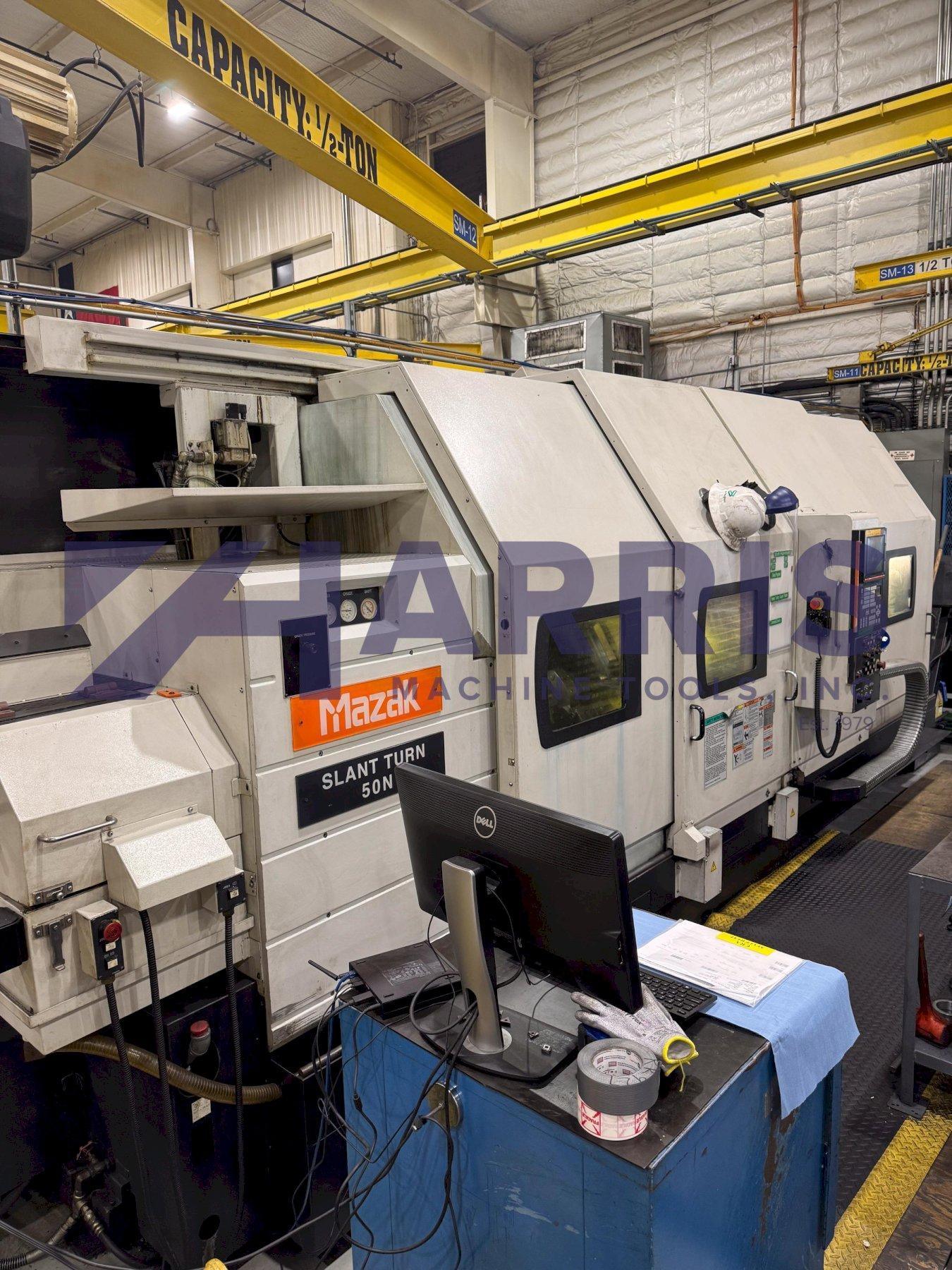

2006 Mazak Slant Turn 50N CNC Lathe
Brand
MAZAK
Model
Slant Turn 50N
Type
Lathes, CNC
Stock #
20857
Condition
Used
Year
2006
Location
City Not Specified,
Specifications
| CNC Control | yes |

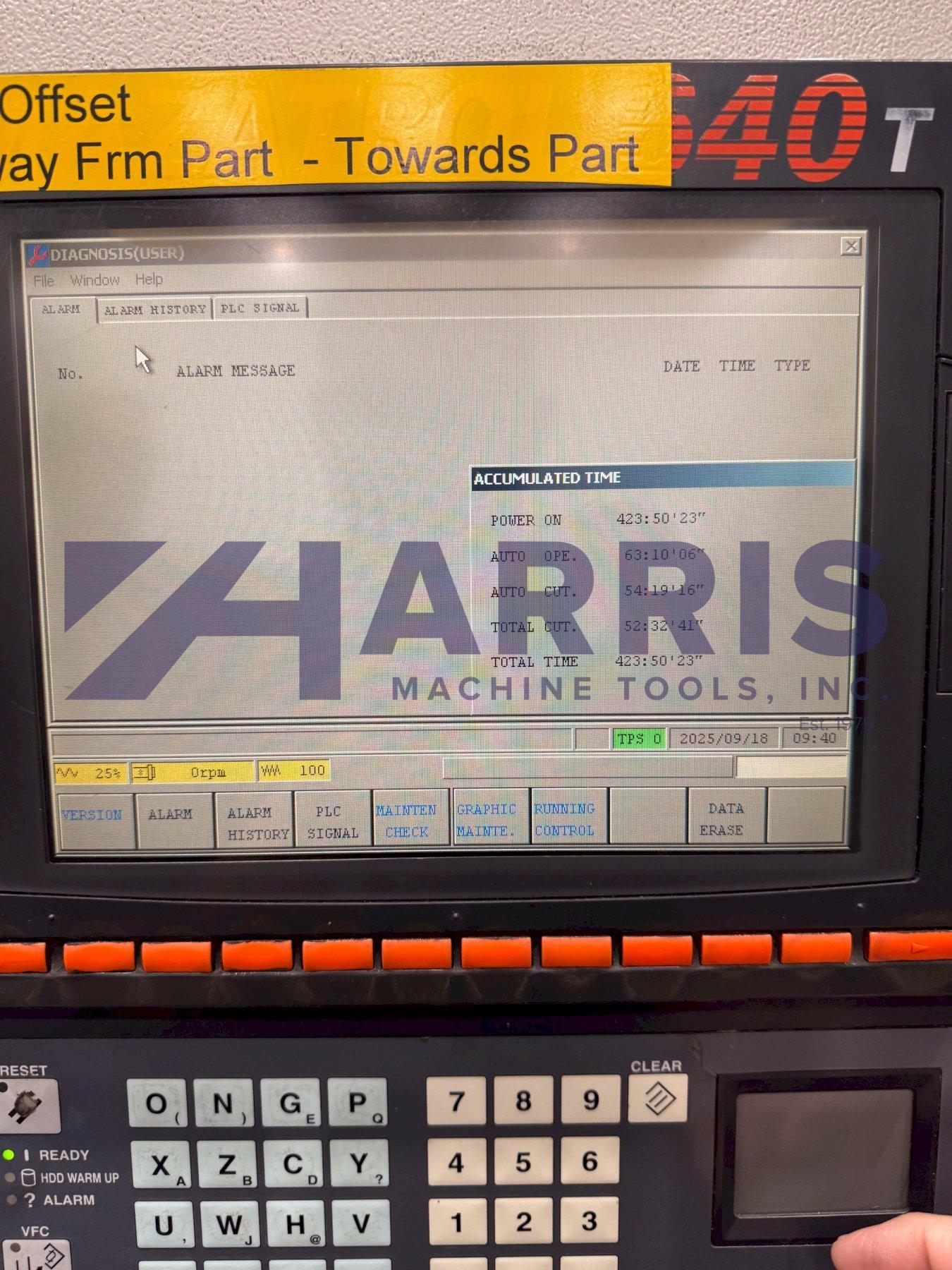

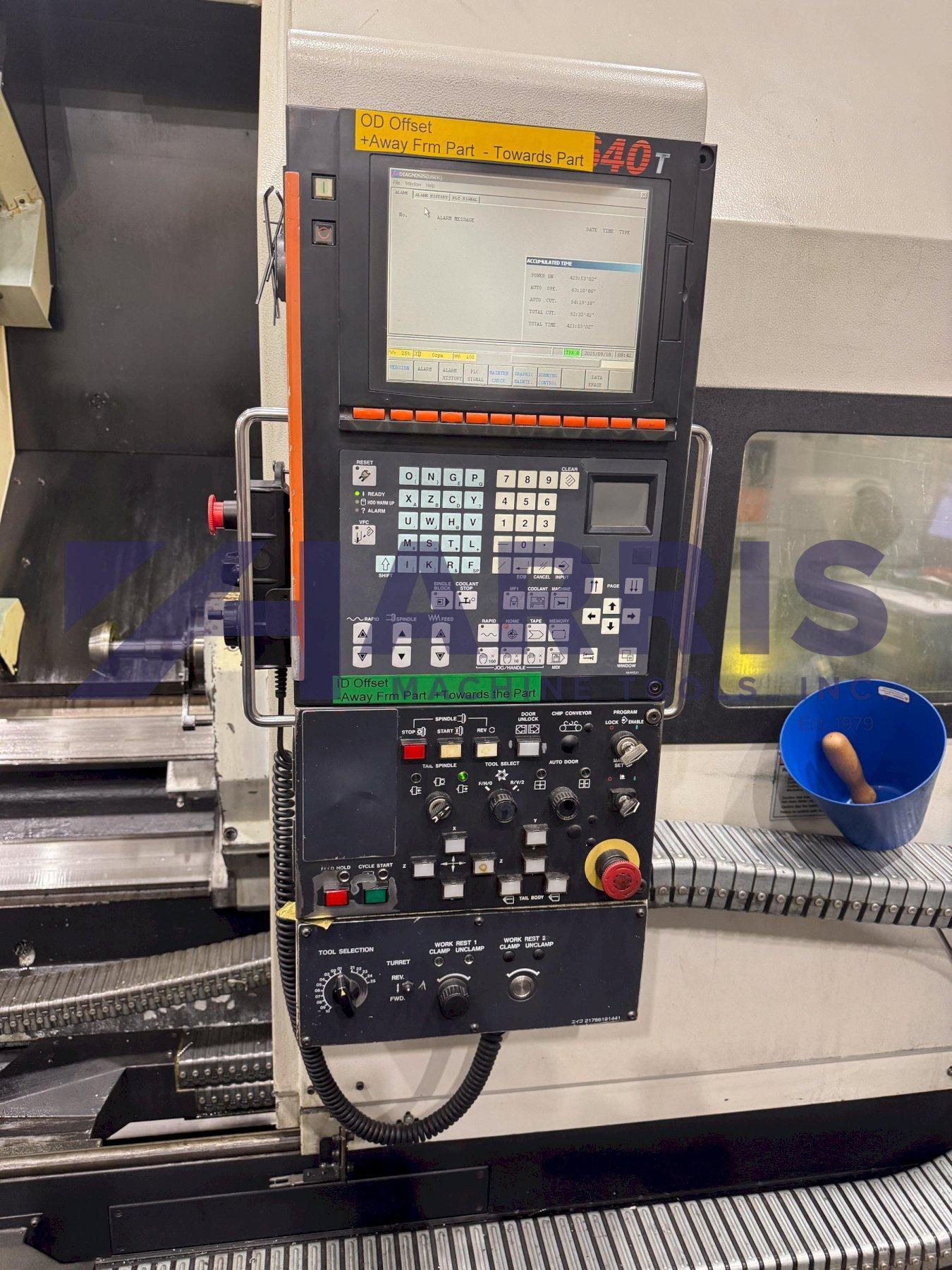

| Type of CNC Control | Mazatrol 640T CNC Control |
| Chuck Size | 24 inches |
| Swing | 31.7 inches |
| Turning Diameter | 28 inches |
| Center Distance | 120 inches |
| Bar Capacity | 3.5 inches |
| Spindle Bore | 10.8 inches |
| X Axis Travel | 22.6 inches |
| Z Axis Travel | 123 inches |
| Rapid Traverse (X/Z) | 473/552 IPM |
| Spindle Speed (RPM) | 750 |
| Main Motor | 50 |
| Tailstock | yes |
| Steady Rest Capacity | 10.8 inches |
| Chuck Size - Rear | 24 inches |
Equipped With
See it in action on our YouTube channel!

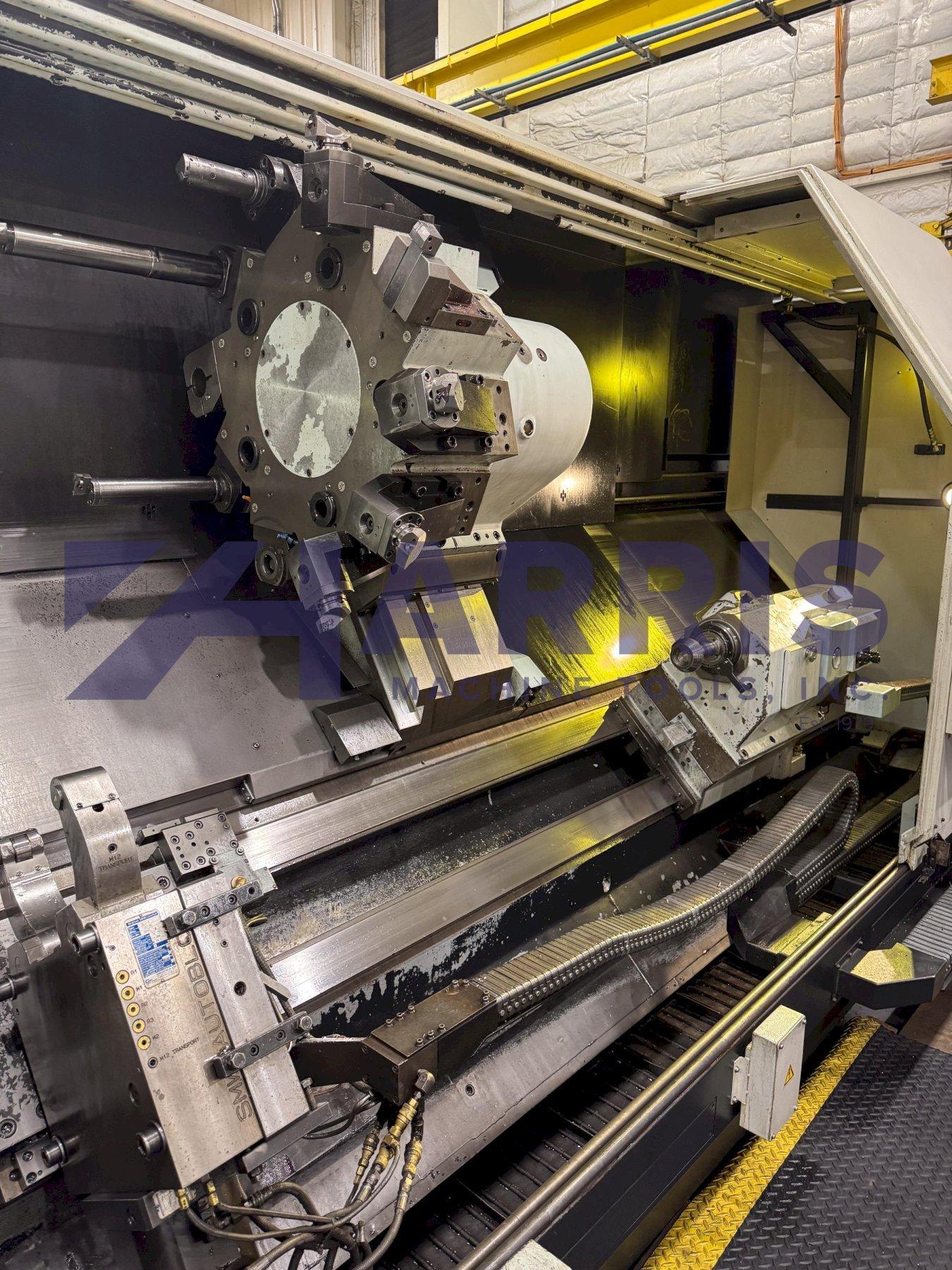

4-Jaw Chucks on Front & Rear

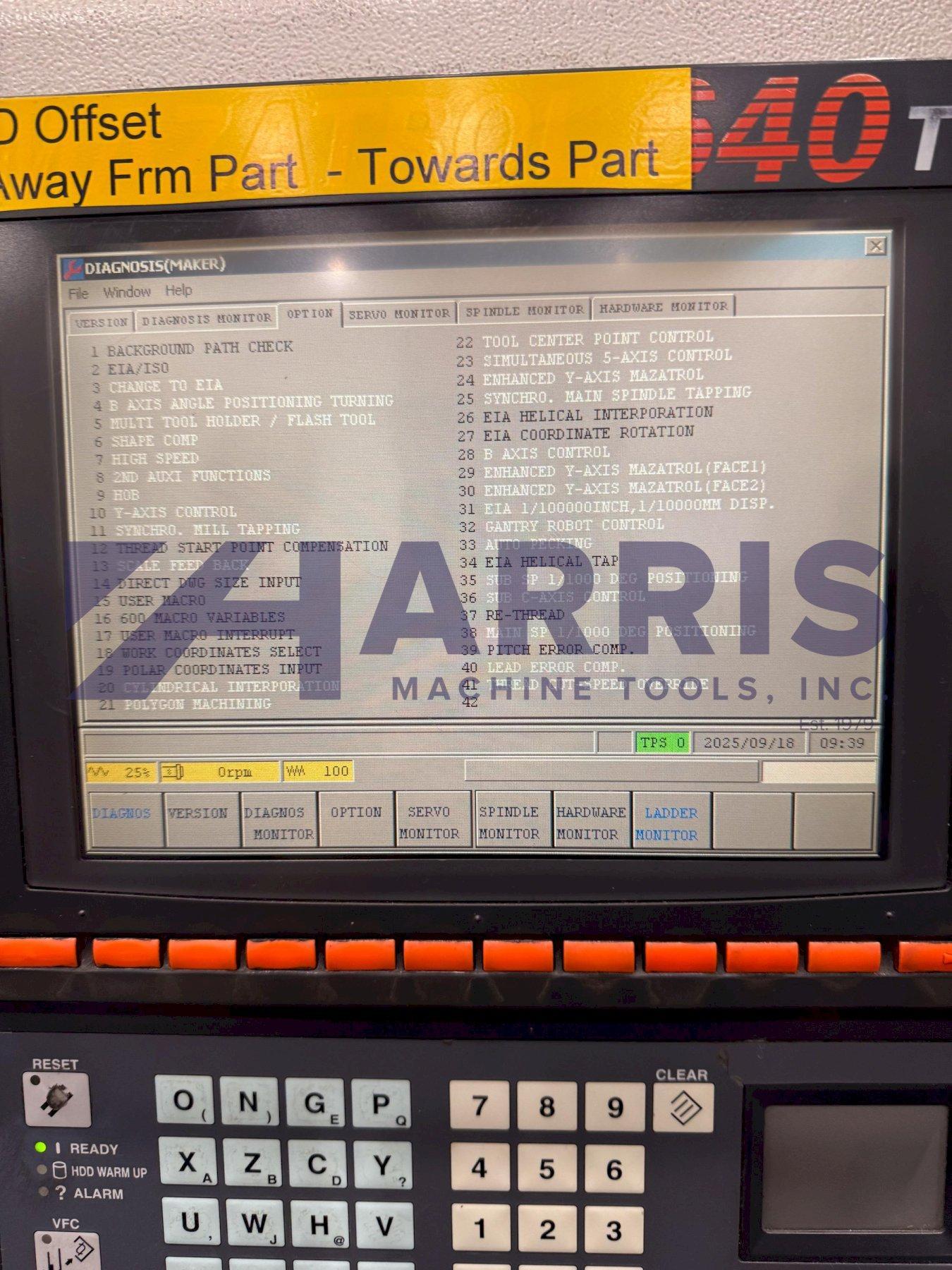

Control Options:
Coordinate Rotation and Scaling
Helical Interpolation
Macros
EIA/ISO Code Input Function
4-Jaw Chucks on Front & Rear
Control Options:
Coordinate Rotation and Scaling
Helical Interpolation
Macros
EIA/ISO Code Input Function
Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check
Equipped With:

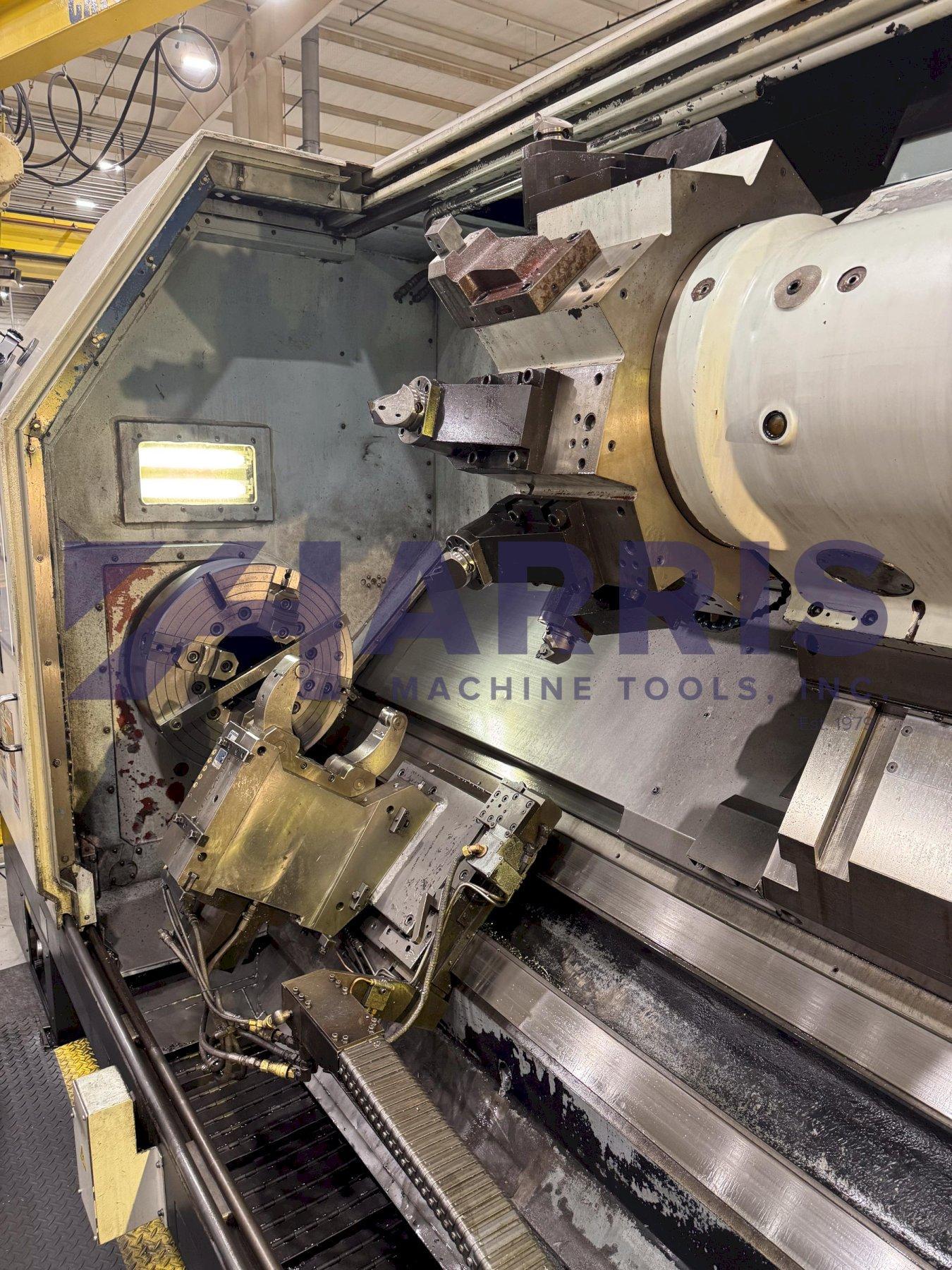

Hydraulic Steadyrest
Pitch Error Comp.
Equipped With:
Hydraulic Steadyrest
Work Holding Type: Scroll Chuck
Tooling Included: No
Chip Conveyor
*All specs are subject to buyer review
Chip Conveyor
*All specs are subject to buyer review
