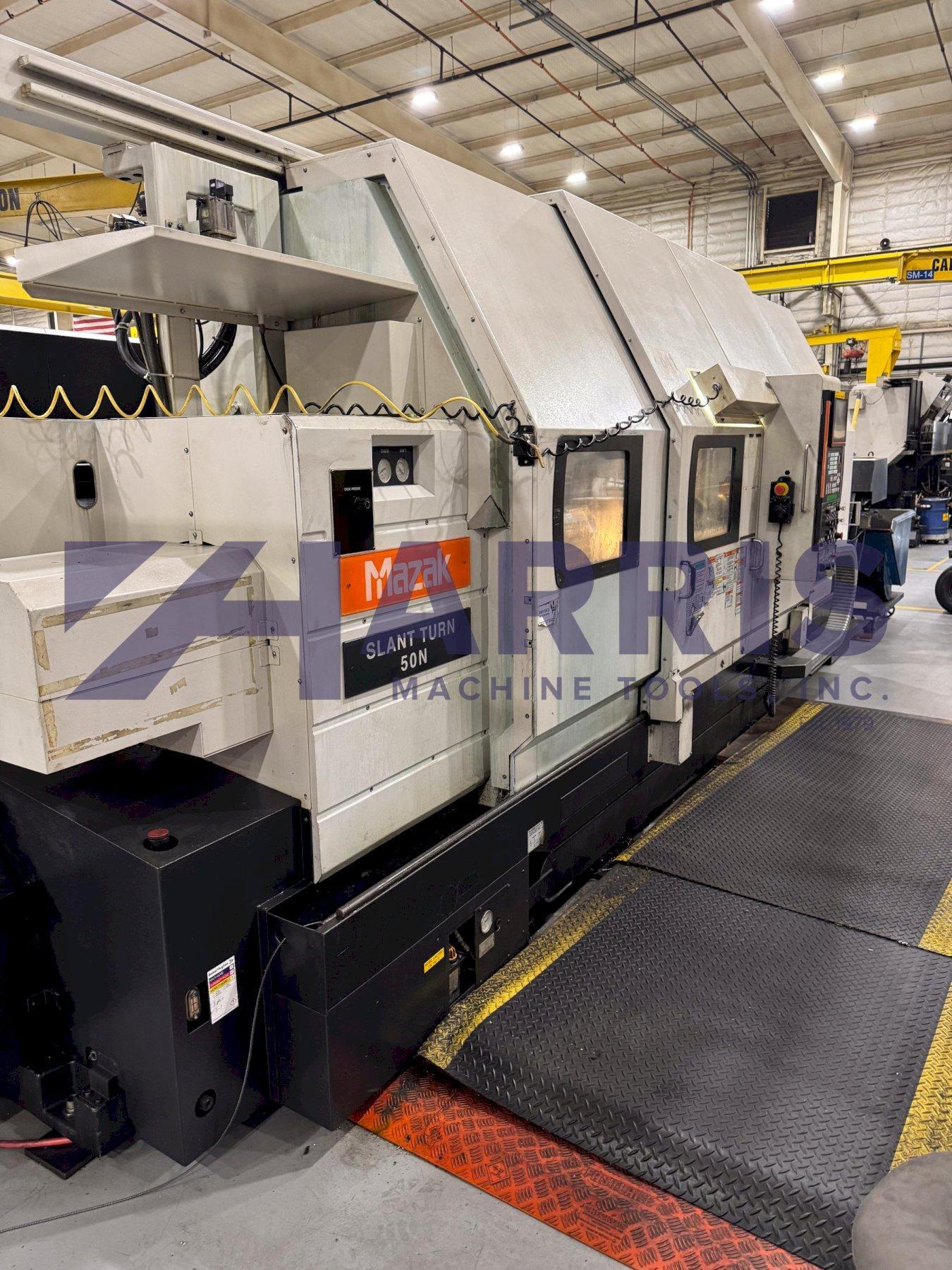

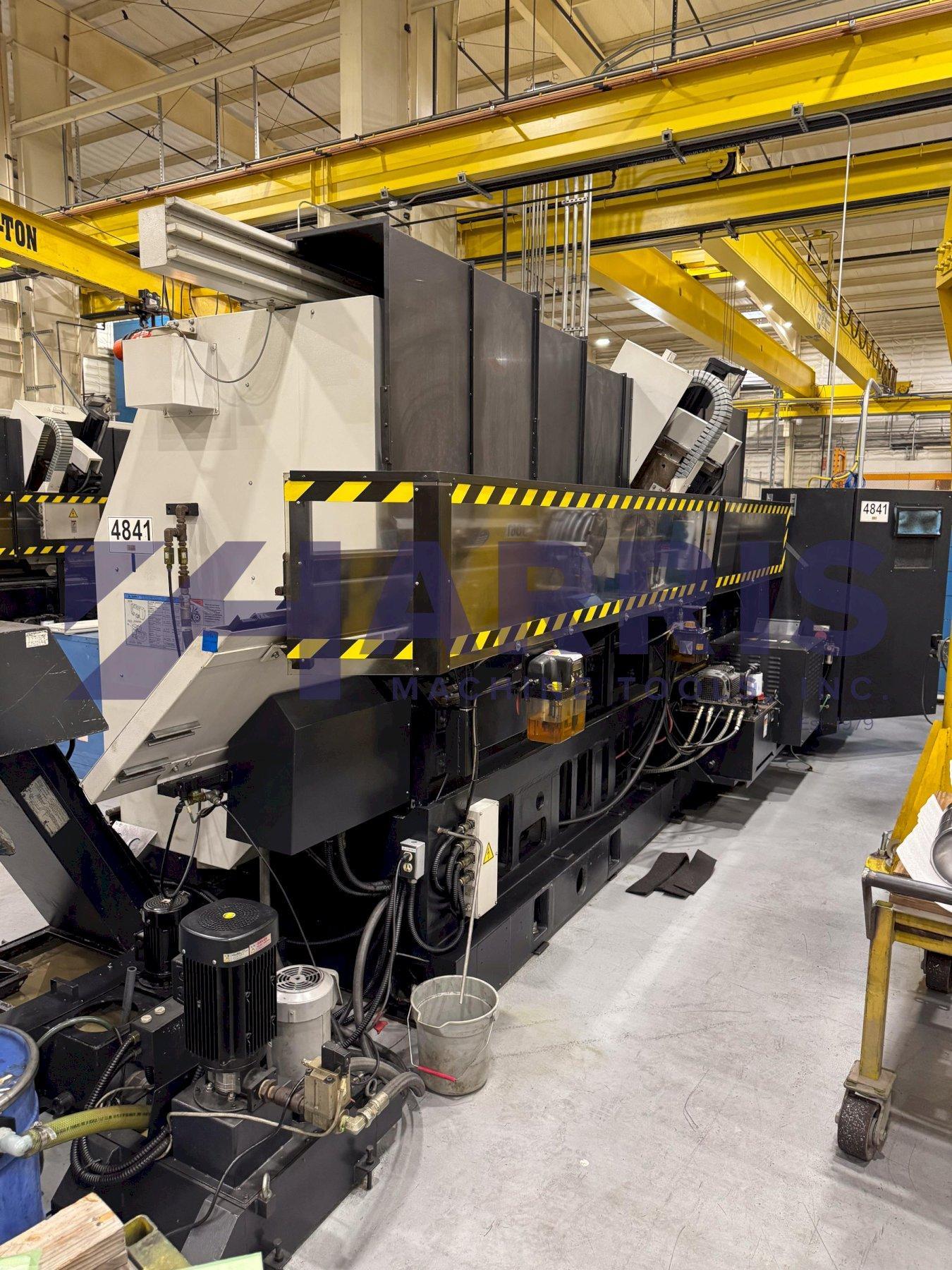

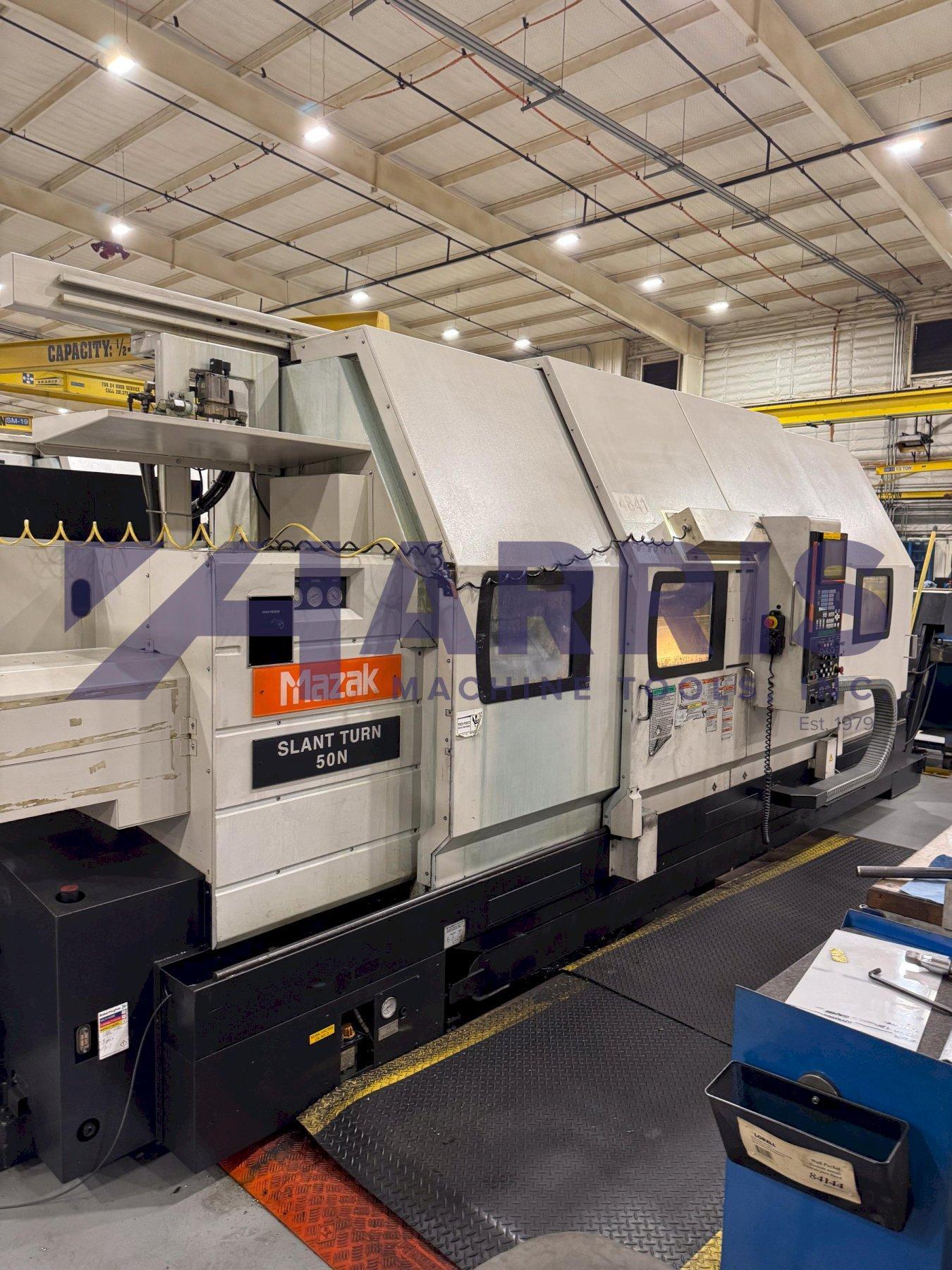

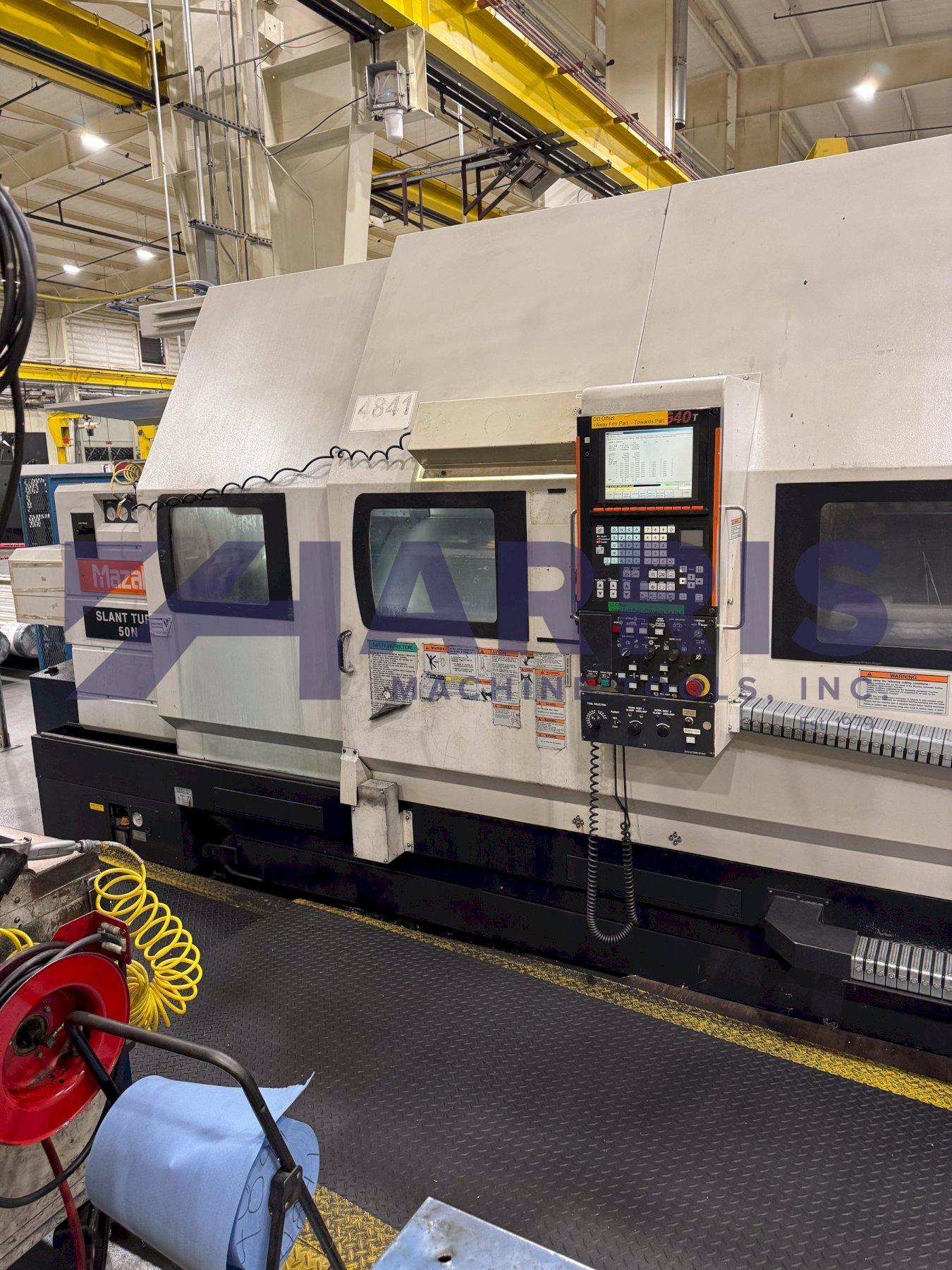

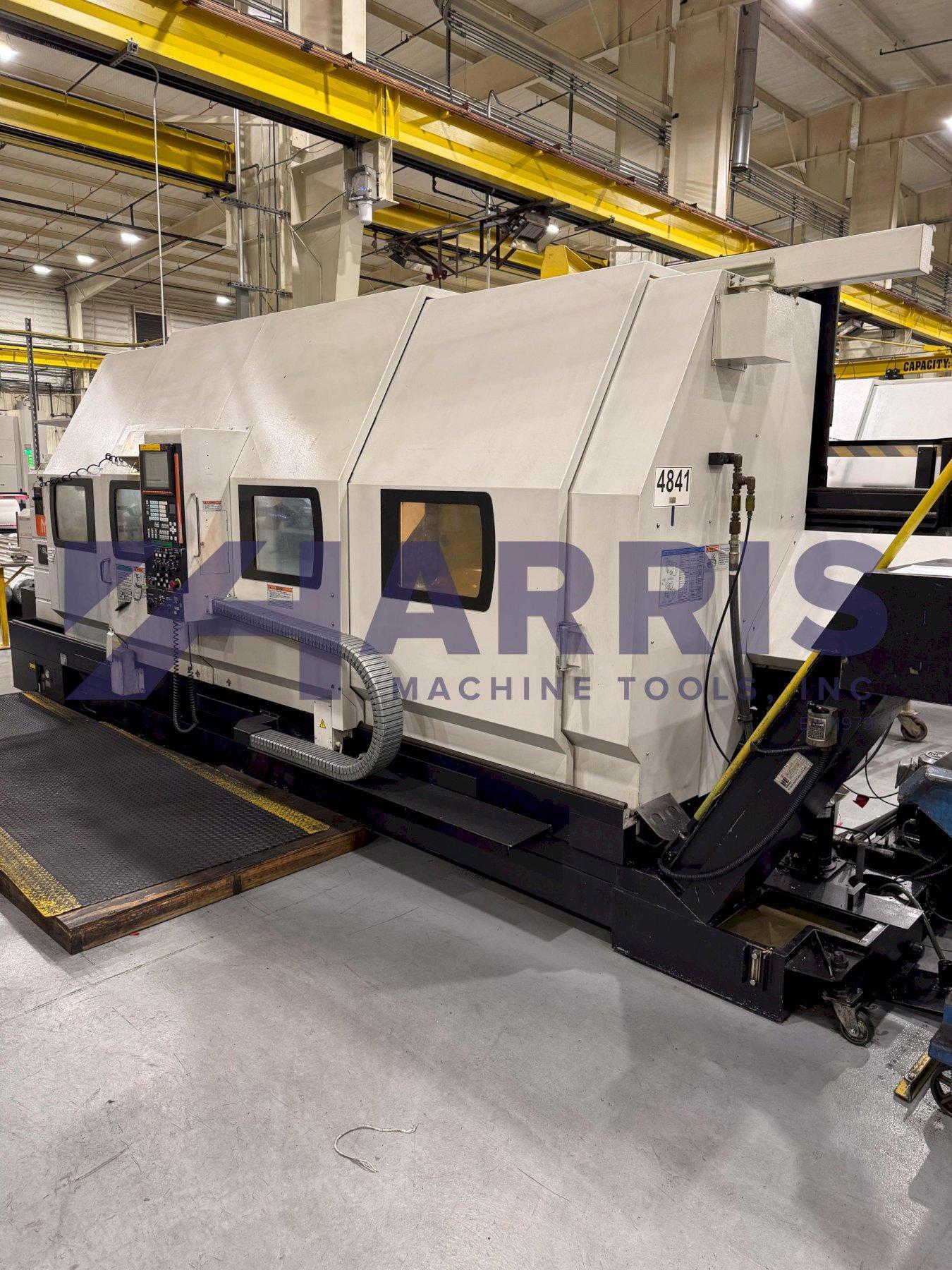

2006 Mazak Slant Turn 50N CNC Lathe
Brand
MAZAK
Model
Slant Turn 50N
Type
Lathes, CNC
Stock #
20854
Condition
Used
Year
2006
Location
Houston, Texas
United States
Specifications
| CNC Control | yes |

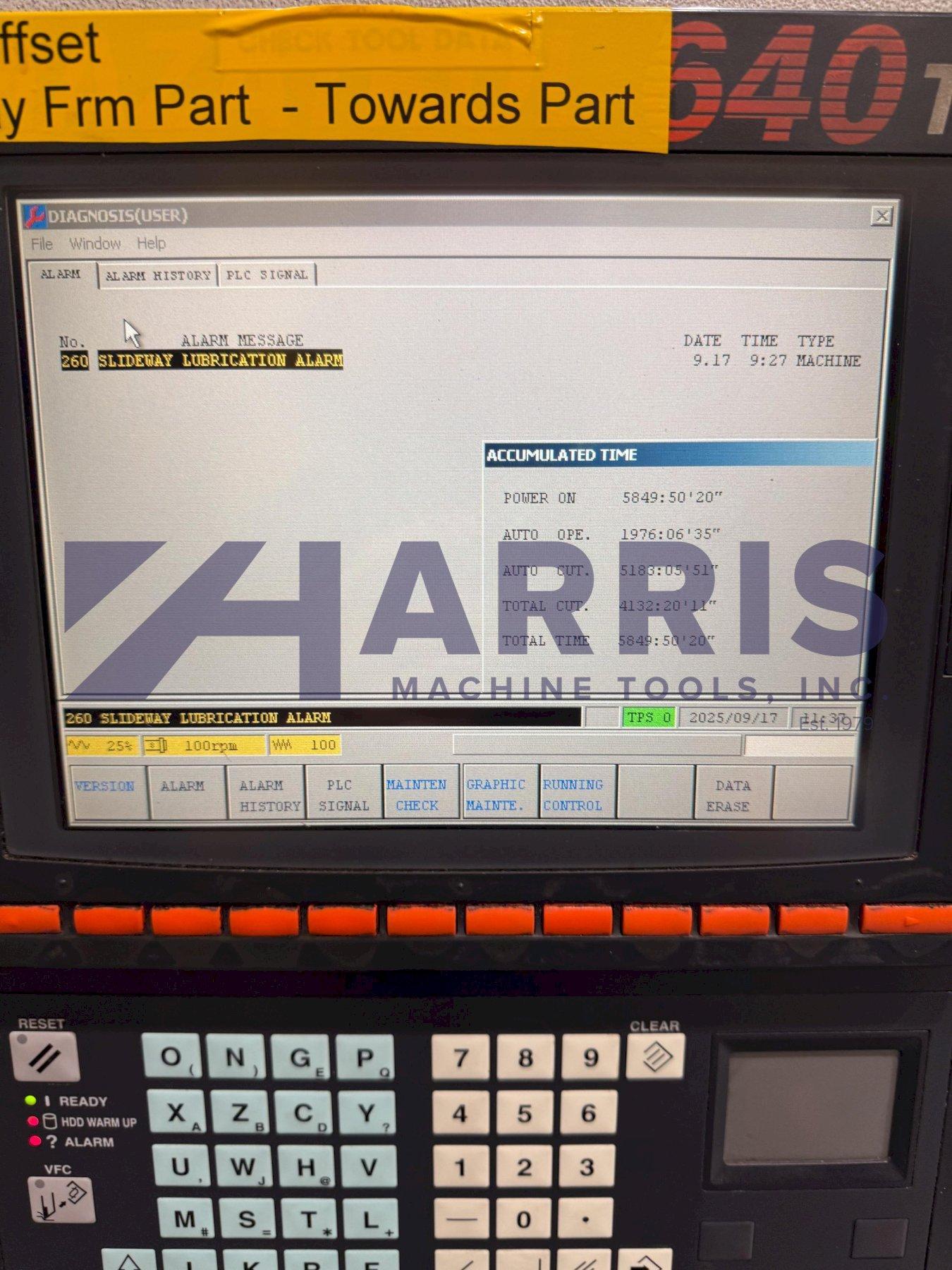

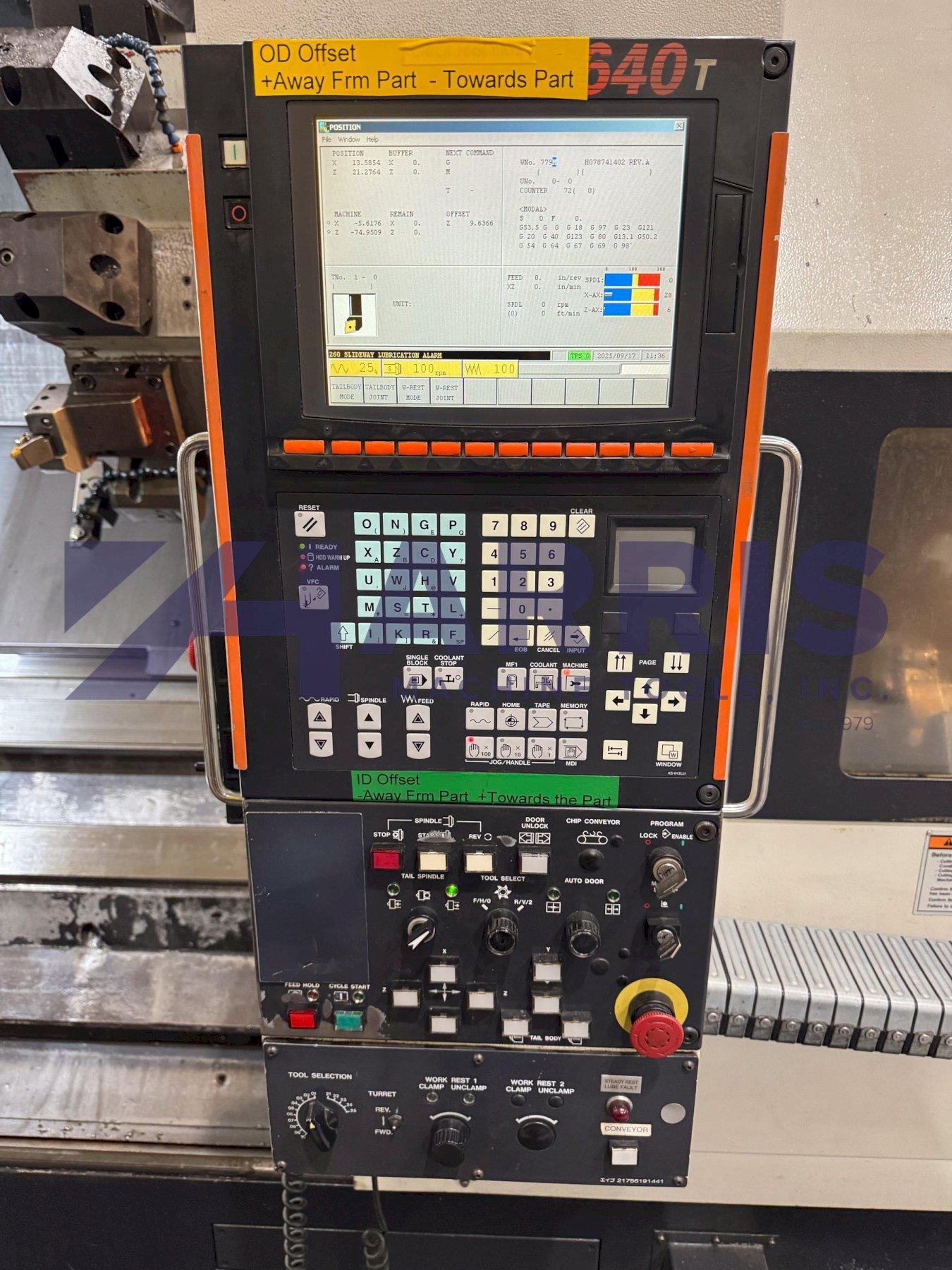

| Type of CNC Control | Mazatrol 640T CNC Control |
| Chuck Size | 20 inches |
| Swing | 31.7 inches |
| Turning Diameter | 28 inches |
| Center Distance | 120 inches |
| Bar Capacity | 3.5 inches |
| Spindle Bore | 4 inches |
| X Axis Travel | 22.6 inches |
| Z Axis Travel | 123 inches |
| Rapid Traverse (X/Z) | 473/552 IPM |
| Spindle Speed (RPM) | 750 |
| Main Motor | 50 |
| Tailstock | yes |
| Steady Rest Capacity | 10 inches |
Equipped With
See it in action on our YouTube channel!

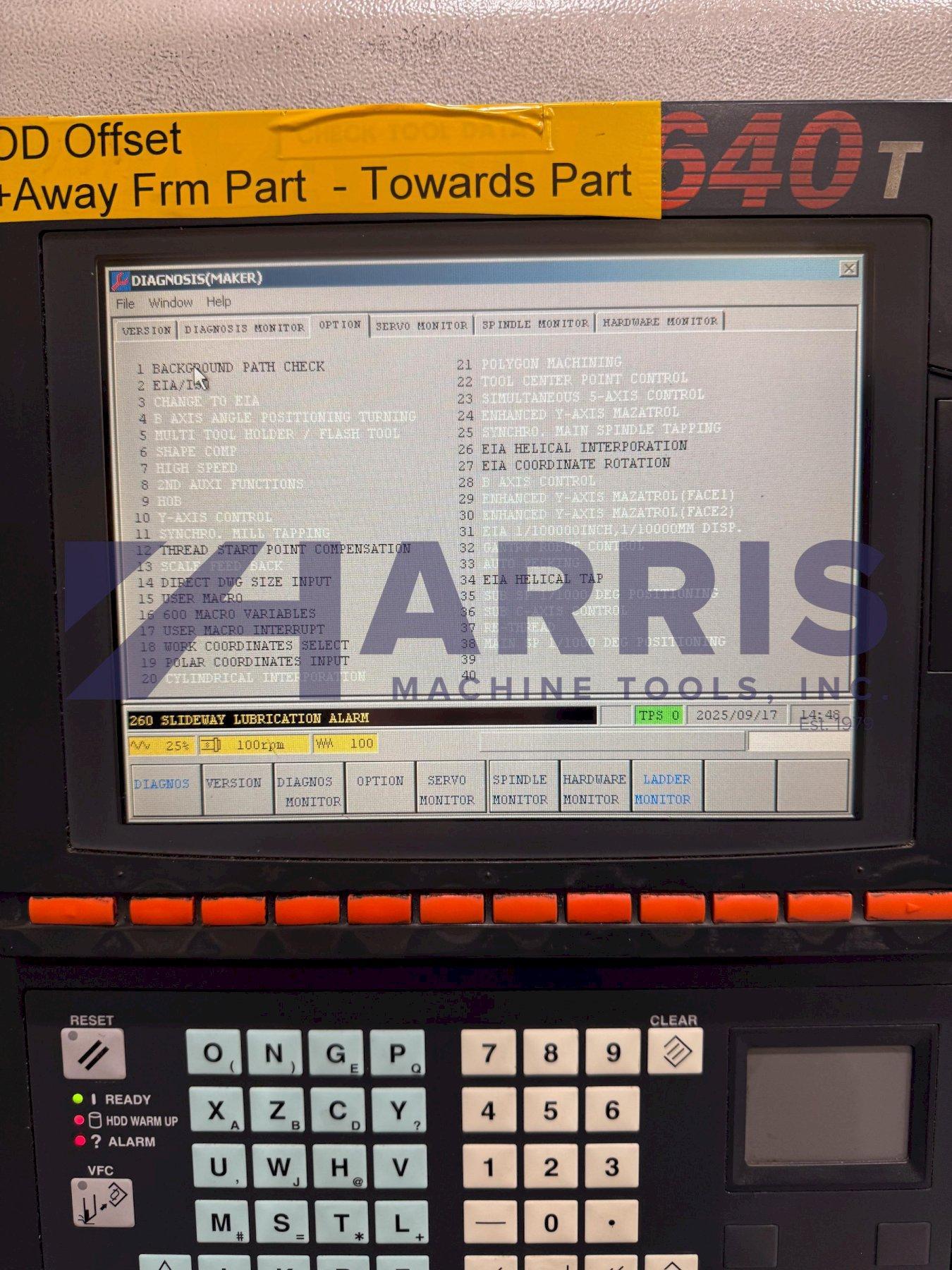

Control Options:
Coordinate Rotation and Scaling
Helical Interpolation
Macros
EIA/ISO Code Input Function
Control Options:
Coordinate Rotation and Scaling
Helical Interpolation
Macros
EIA/ISO Code Input Function
Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check
Equipped With:
Hydraulic Steadyrest
Equipped With:
Hydraulic Steadyrest

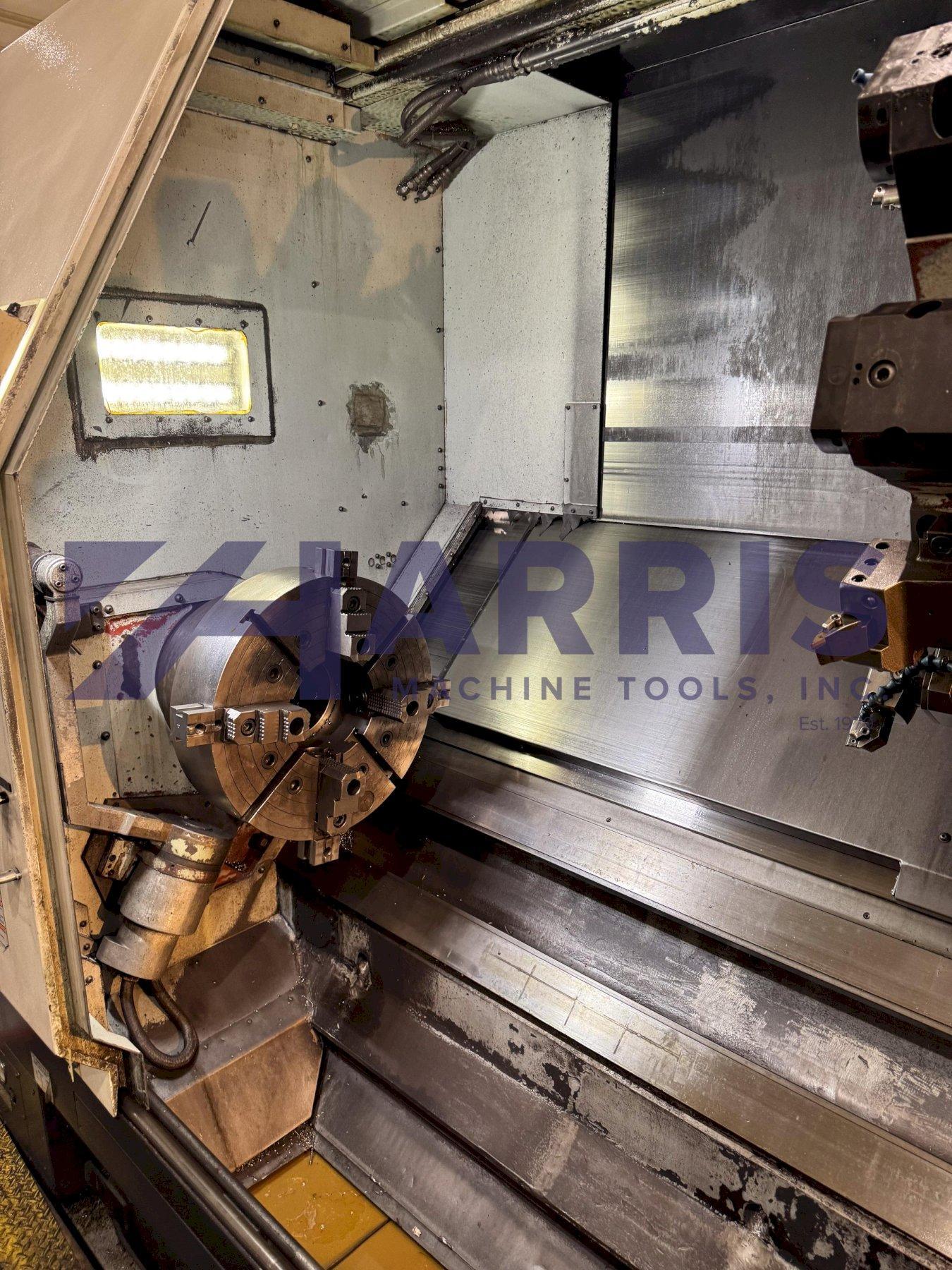

20" 4 Jaw Chuck
Chip Conveyor
*All specs are subject to buyer reveiw
Chip Conveyor
*All specs are subject to buyer reveiw
