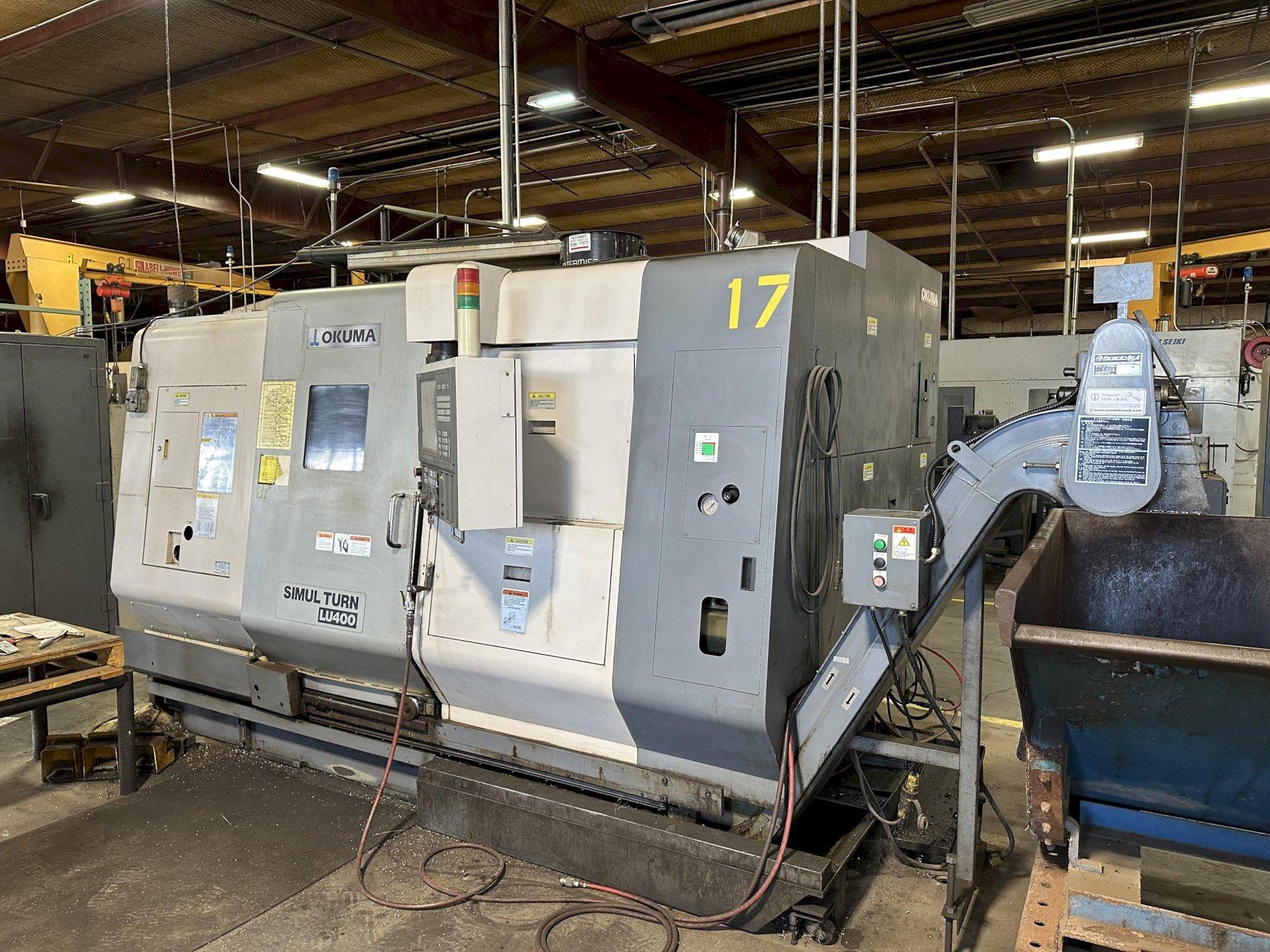

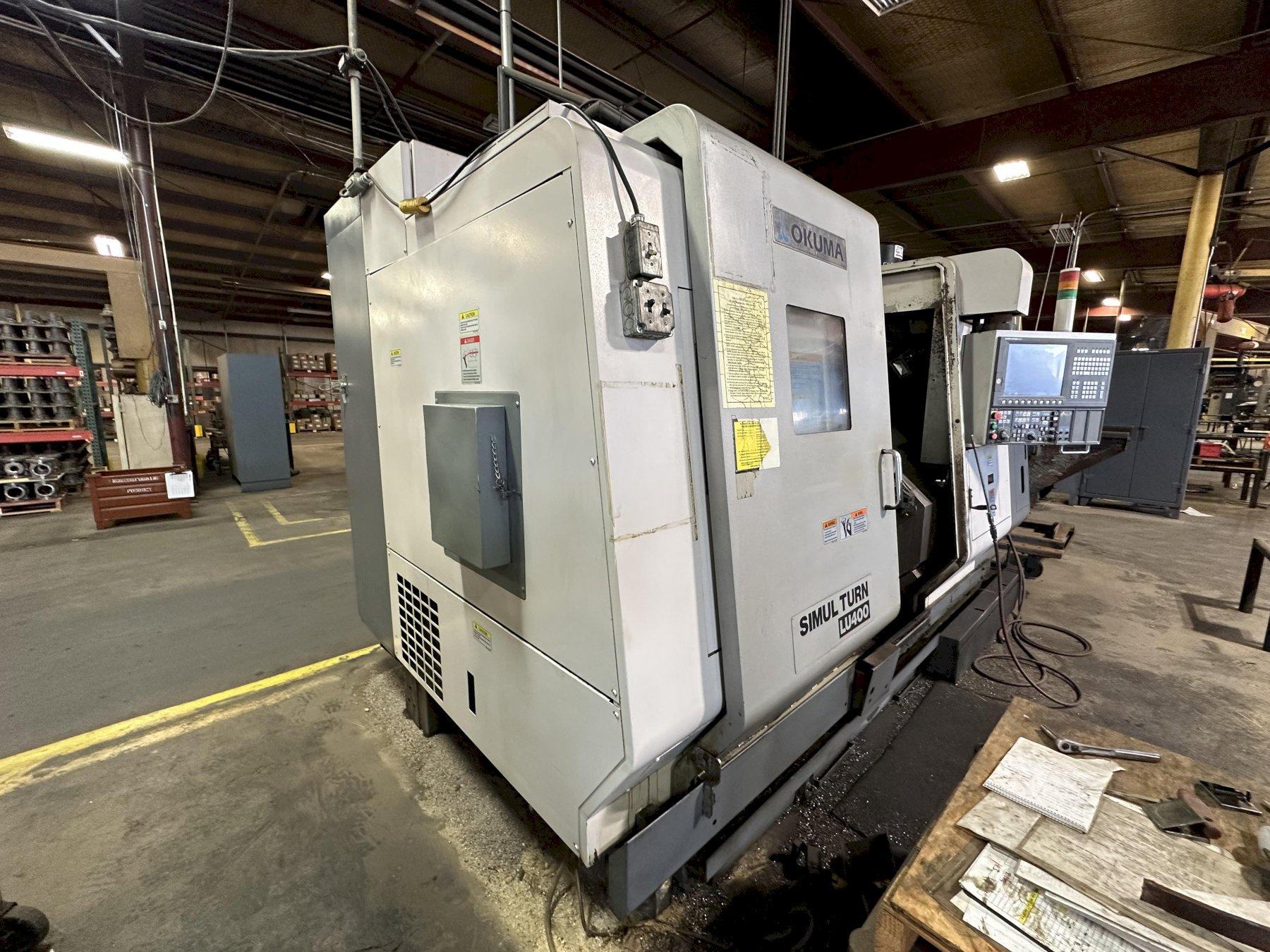

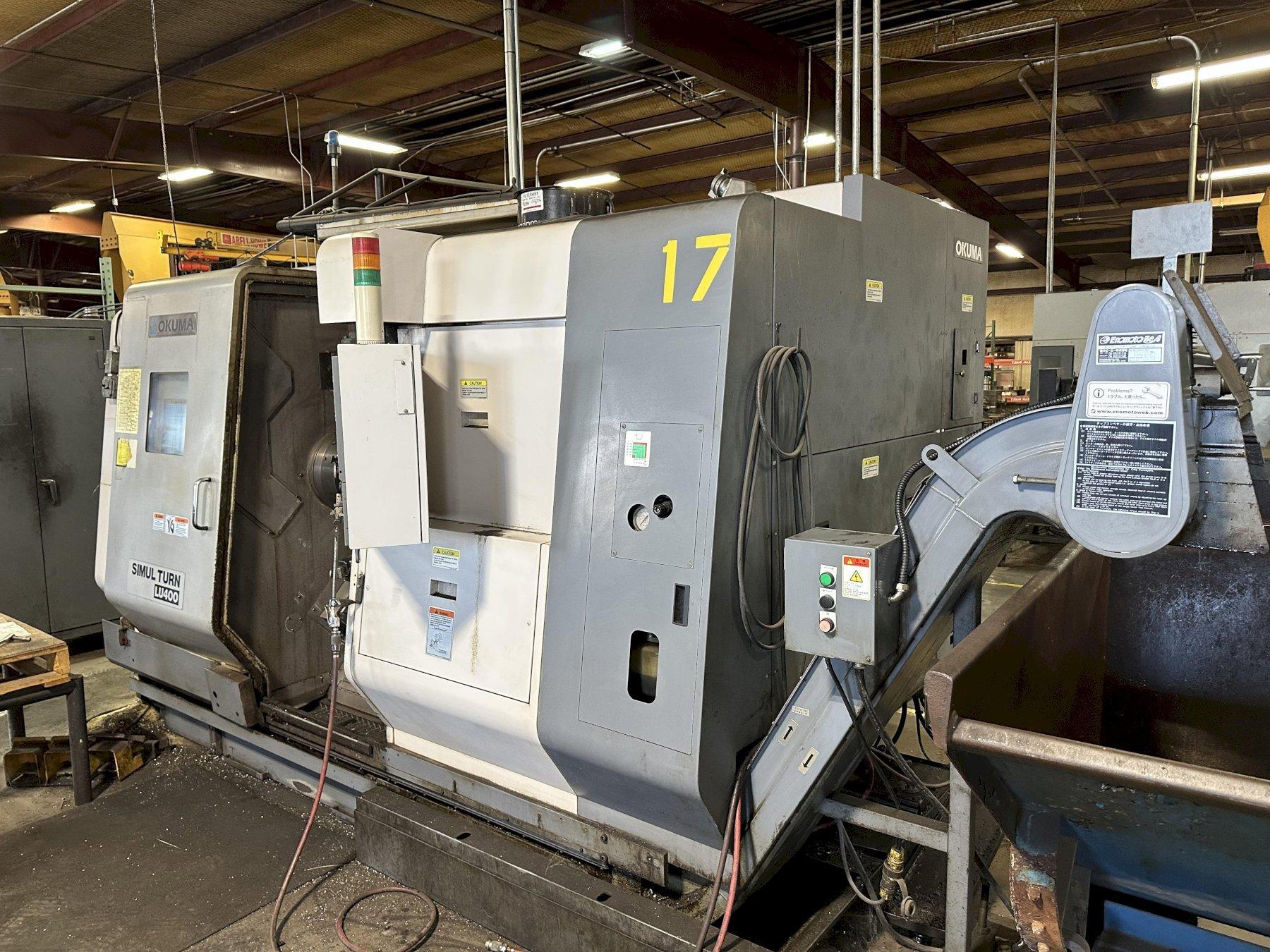

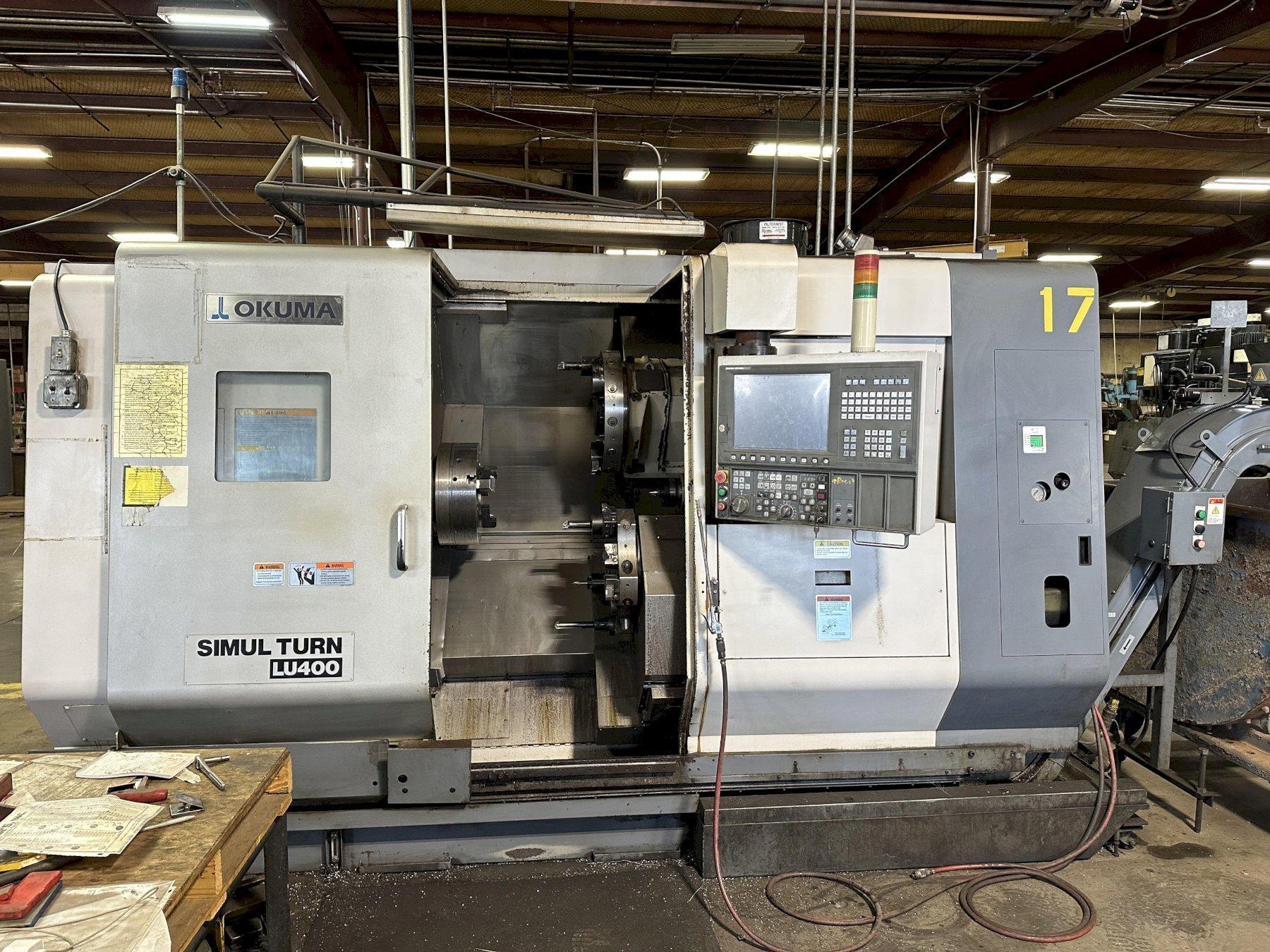

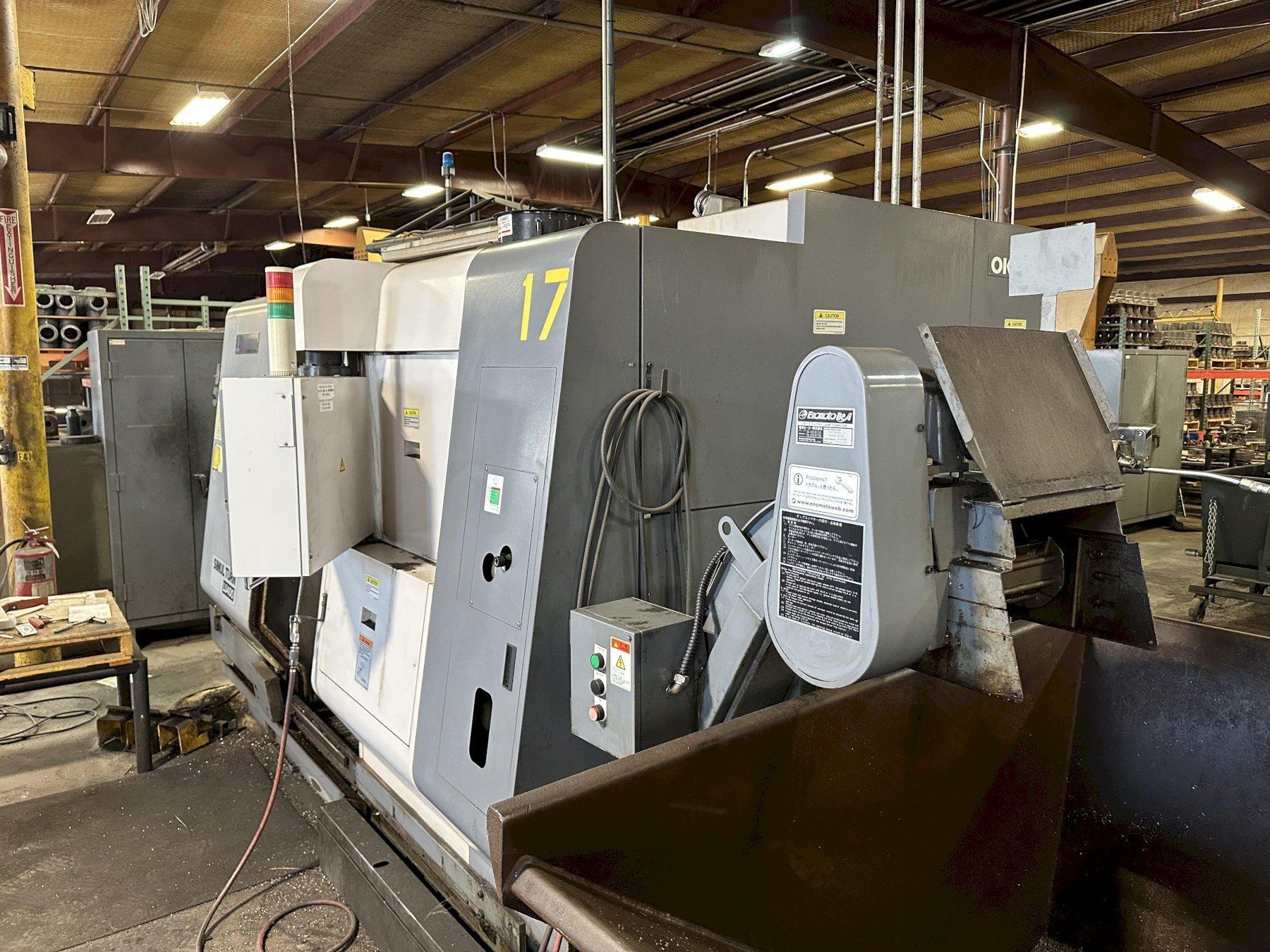

2006 OKUMA LU400 2SC650 4 Axis CNC Lathe
Brand
OKUMA
Model
LU400
Type
Lathes, CNC (3-Axis or More)
Stock #
20736
Condition
Not specified
Year
2006
Location
Current Location,
United States
Specifications
| Type of CNC Control | OSP 200L |
| # Axis | 4 |

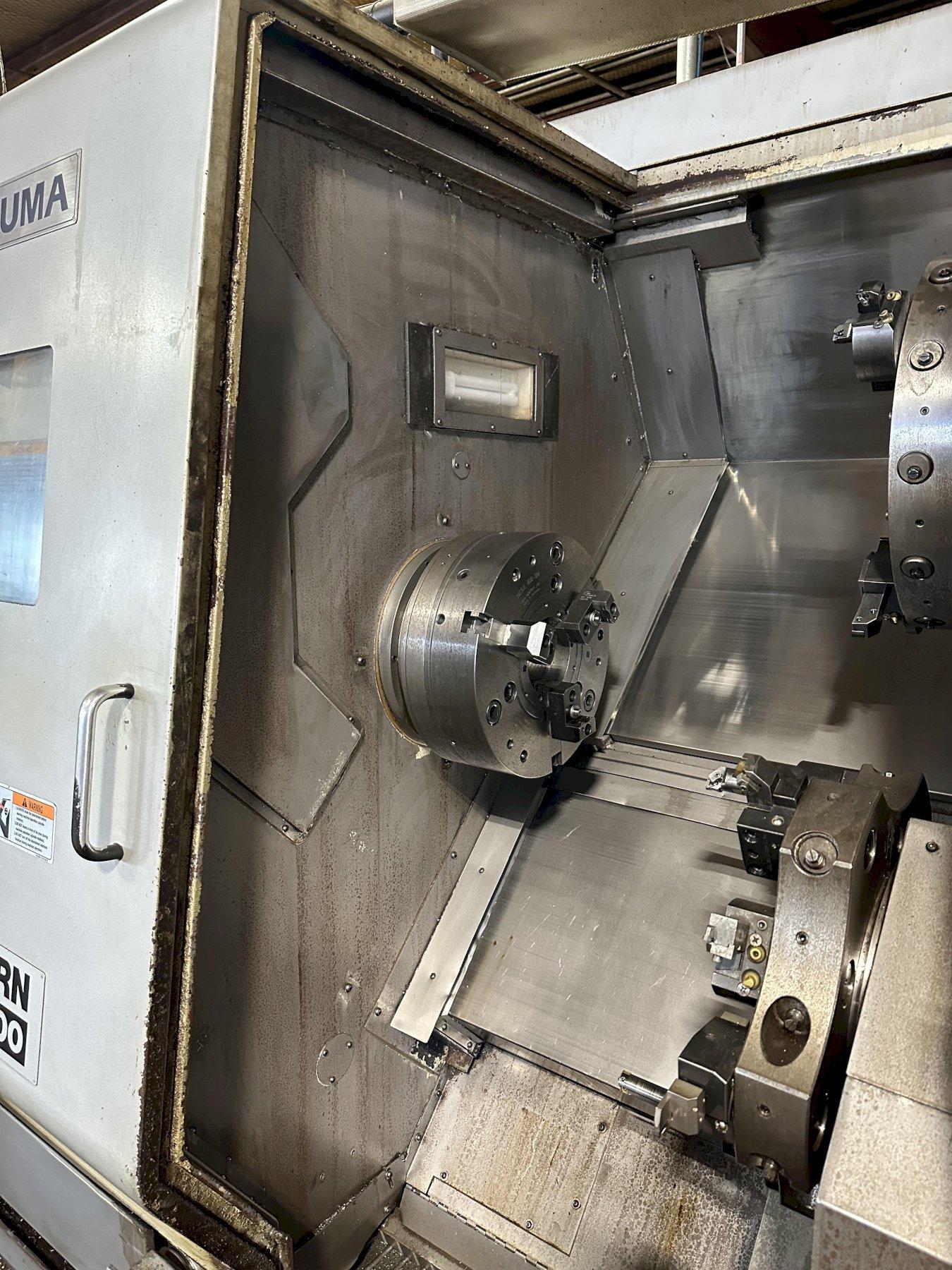

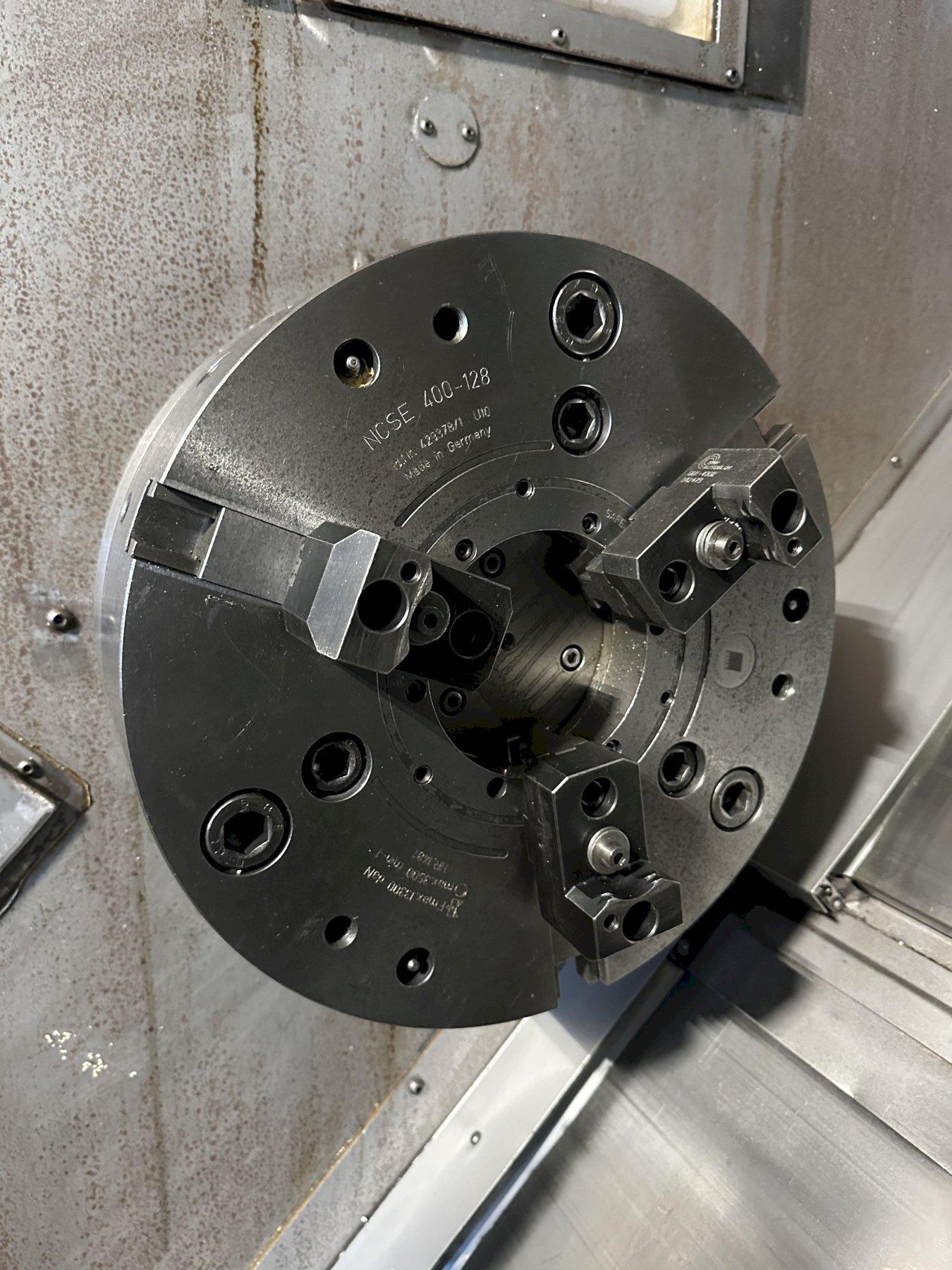

| Chuck Size | 16 inches |
| Swing | 25 inches |
| Turning Diameter | 18 inches |
| Center Distance | 25 inches |
| Bar Capacity | 4.3 inches |
| Spindle Bore | 5.0 inches |
| Spindle Speed (RPM) | 3800 |
| Main Motor | 35 HP |
Equipped With
- Capacity:
- Max Turning Diameter: 16.54″
- Max Turning Length: 25.59″
- Max Bar Capacity: 3.15/4.33″?
- Max Swing over bed: 25.59″
- Max Swing over carriage: 16.54″
- Distance between Centers:26.59″
- Max Weight between Centers: 1320 lbs
- Travels:
- X Axis Travel Upper: 11.73″
- X Axis Travel Lower: 7.67″
- Z Axis Travel Upper: 26.57″
- Z Axis Travel Lower: 26.38″
- Rapid Traverse X Axis: 984 IPM
- Rapid Traverse Z Axis: 984 IPM
- Spindle:
- Spindle Bore: 3.5″
- Spindle Nose: A2-8
- Spindle Speed: 45-3800 RPM
- Main Spindle Power: 35 HP

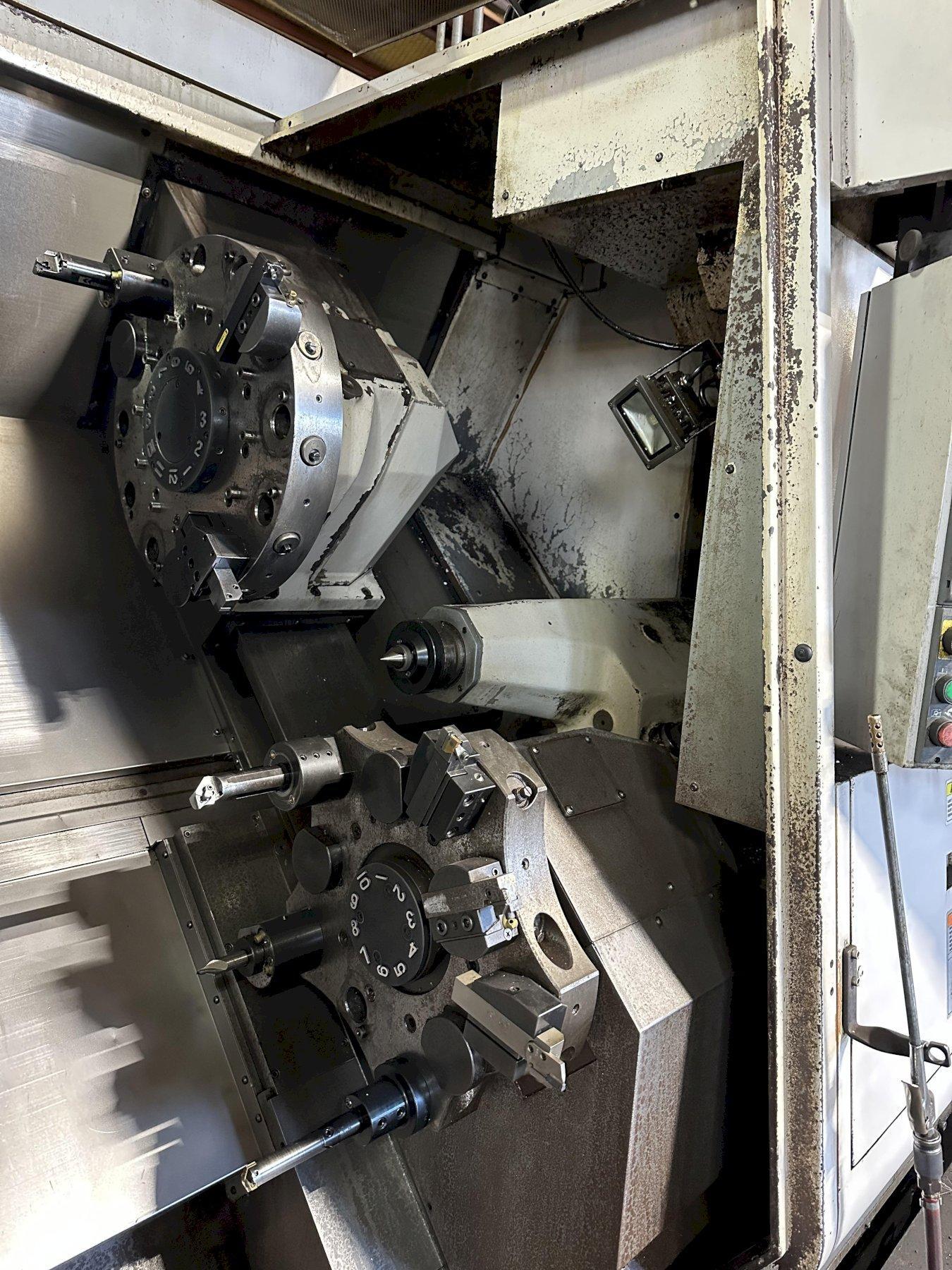

- Turret:
- Upper Turret Capacity: 12 Stations
- Lower Turret Capacity: 10 Stations
- Turret Index Time: 0.2 Second
- Tailstock:
- Taper: MT 5
- Tailstock Quill Dia: 3.94
- Tailstock Quill Travel: 5.91
- General:
- Power: 40 kva, 220/480v 3-Phase
- Overall Dimensions: 137 X 85 X 86″ High
- Overall Dimensions: 169 X 85 X 86″ with Chip Conveyor
- Weight: 19,800 lbs
