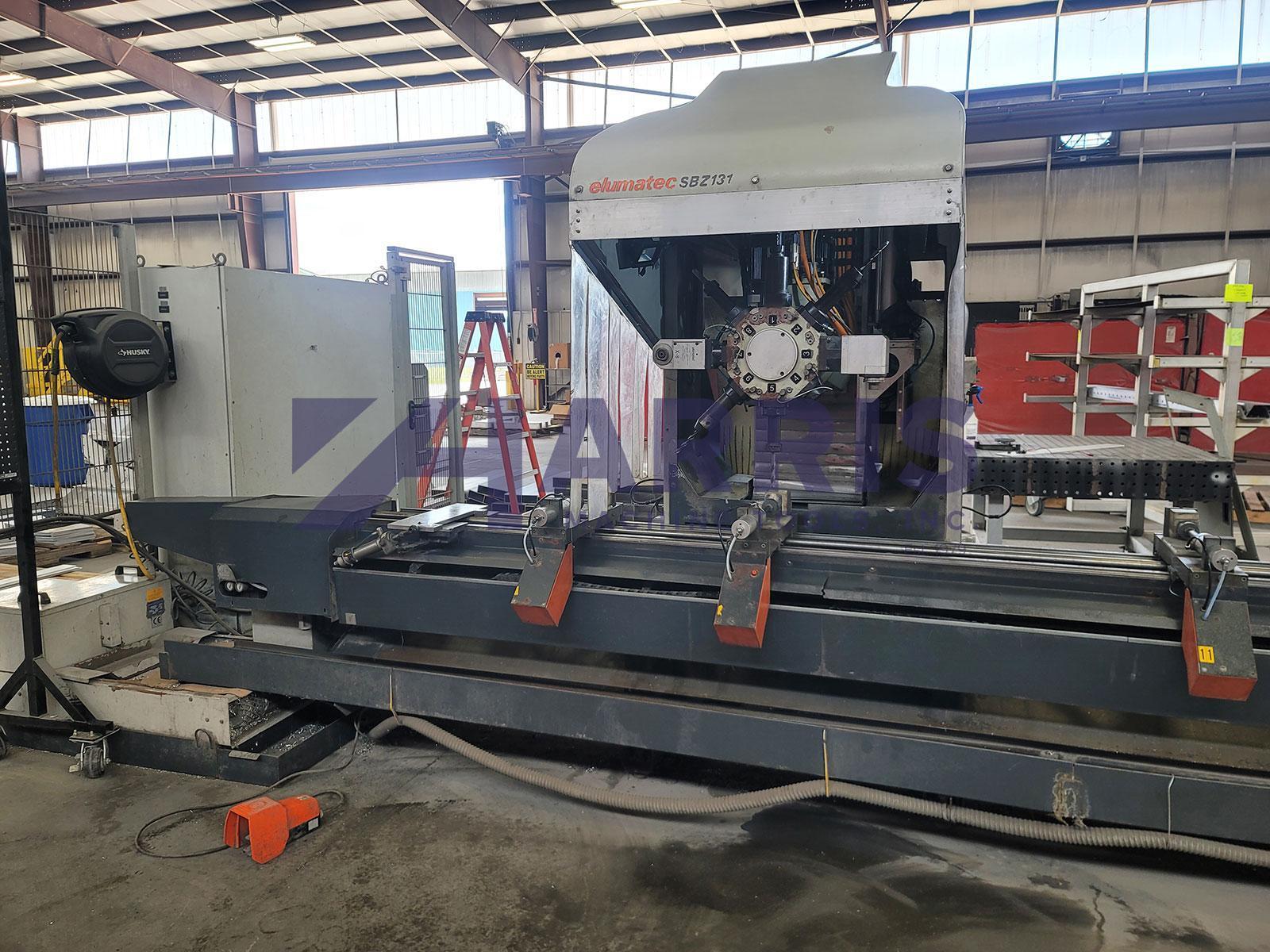

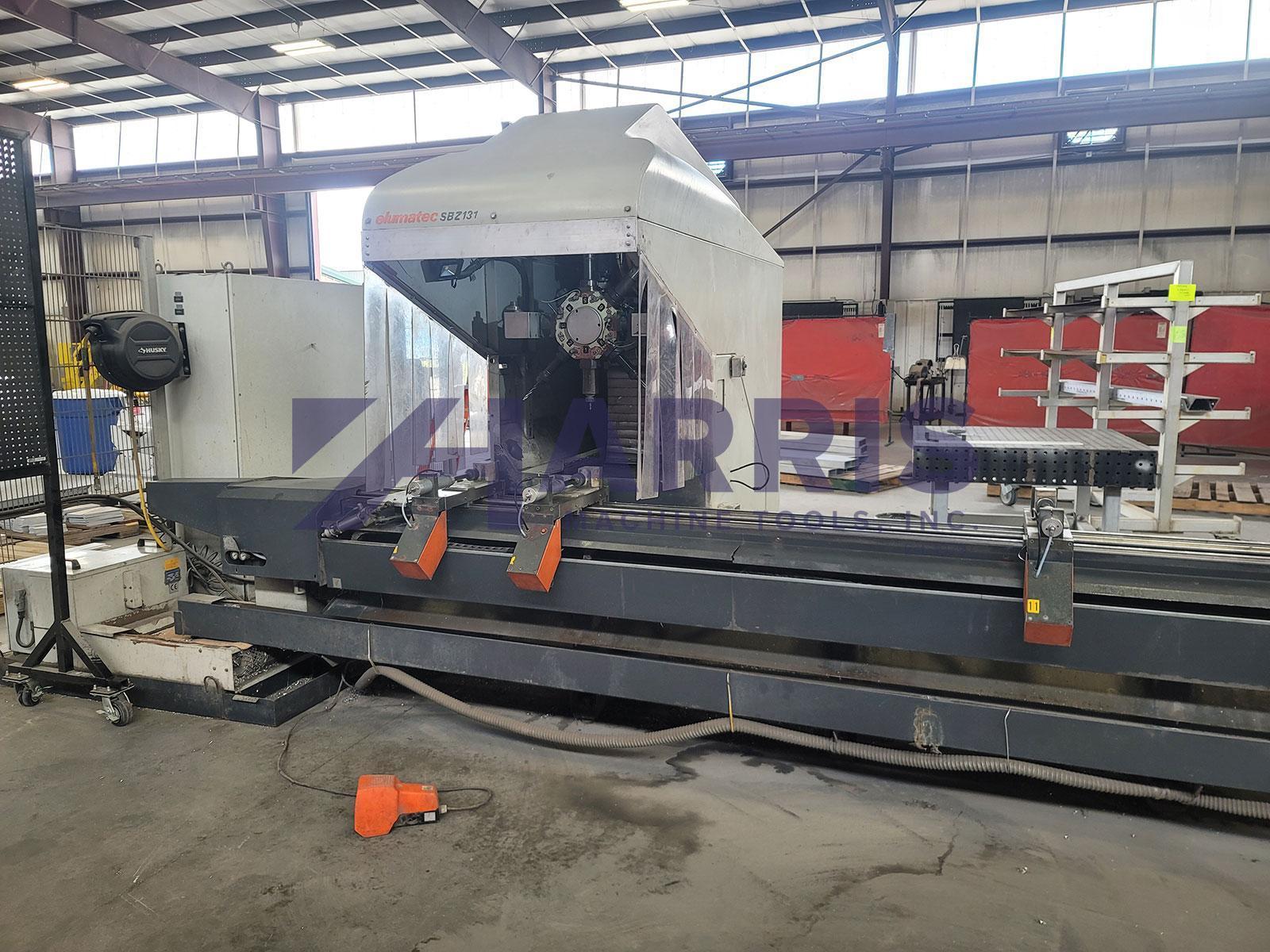

2012 Elumatec Profile Machining Center, SBZ-131-V2 WITH 40’ length capacity and saw option

Brand
ELUMATEC

Model
SBZ-131-V2

Type
Machining Centers, Profile

Stock #
20375

Condition
Used

Year
2012

Location
Houston, Texas
United States

Specifications

X Axis Travel 4200, 7200, 8500, 10200, 11500 mm
X-Axis Rapid Traverse Rate 60m/min.
Y Axis Travel 485mm
Y-Axis Rapid Traverse Rate 60m/min.
Z Axis Travel 340 mm
Z-Axis Rapid Traverse Rate 60m/min.
Spindle Speed 6000 RPM
Spindle Output 5.5 kW max
Tool Changer Capacity 8 Tools on Turret
Compressed Air Supply 7 Bar

Equipped With

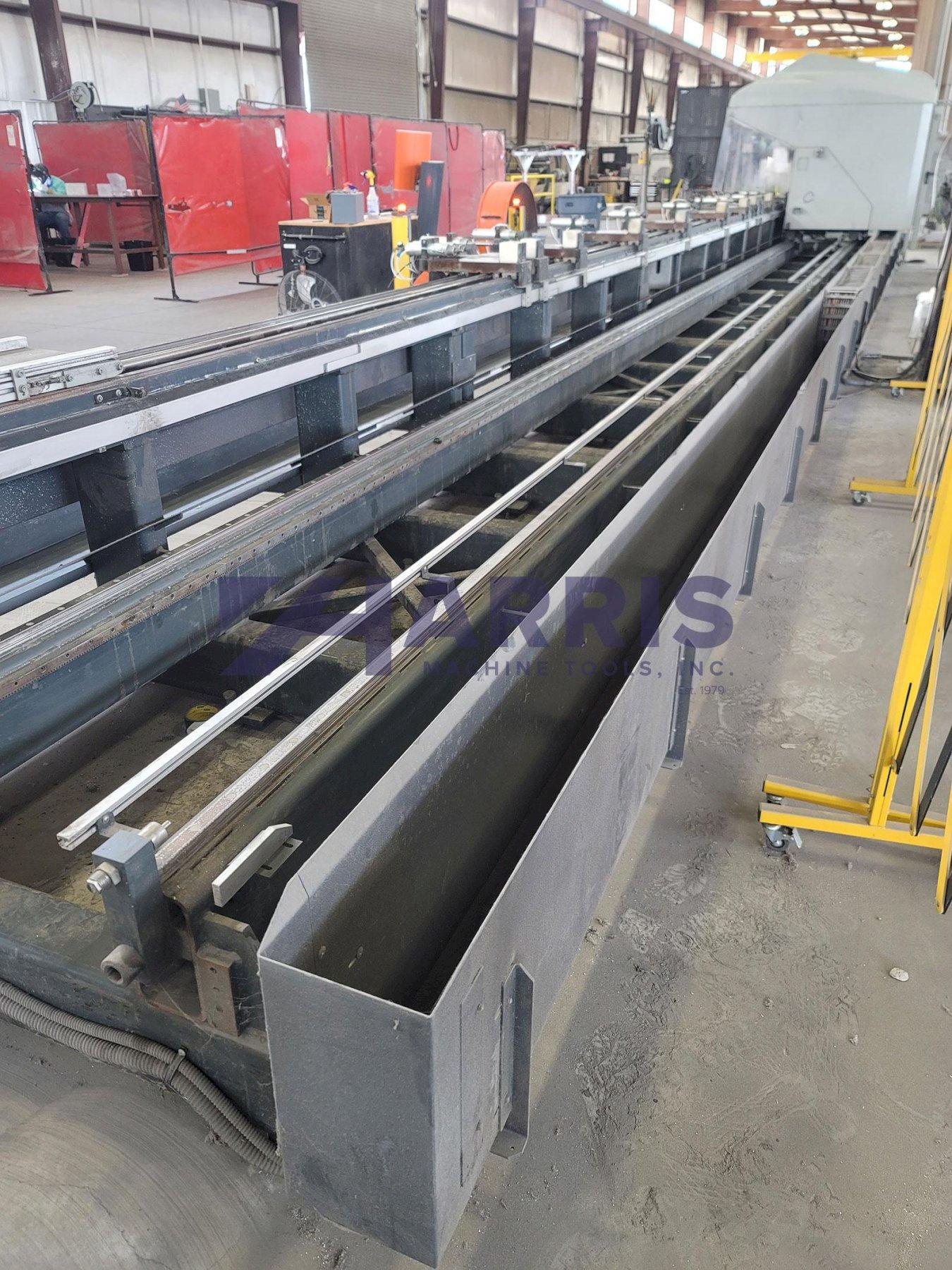

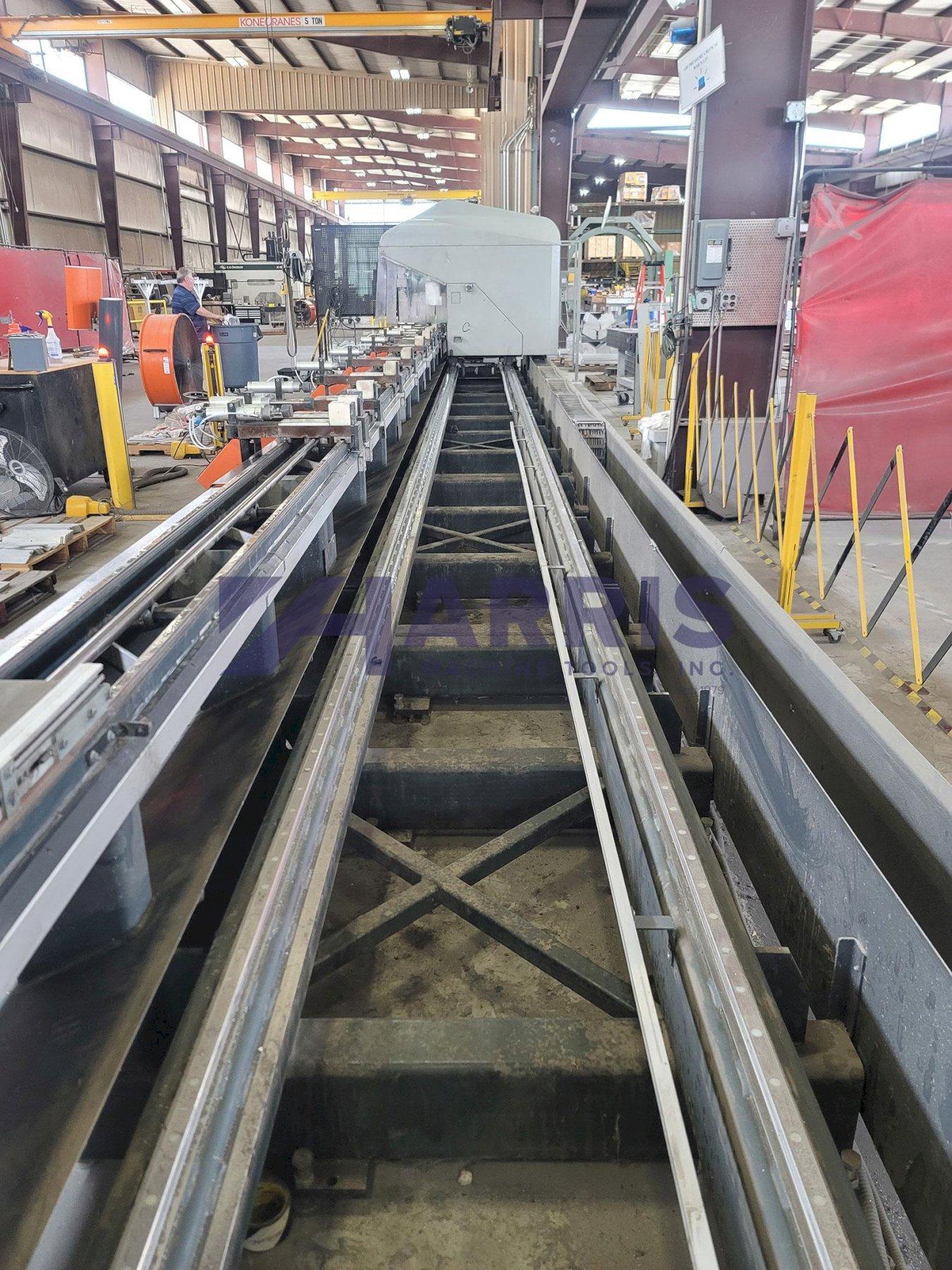

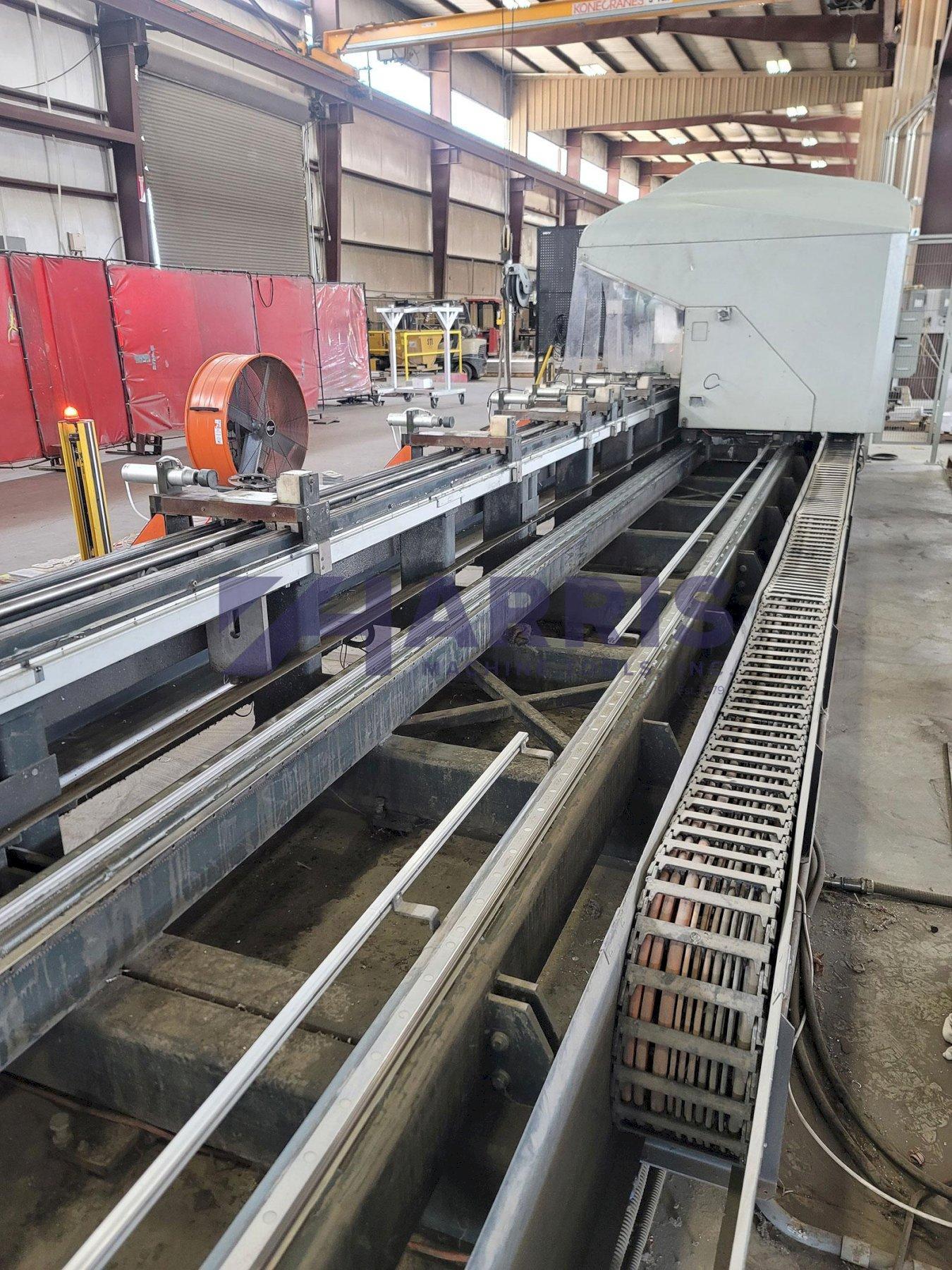

40’ length capacity
Saw option

Additional Information from the Manufacturer:

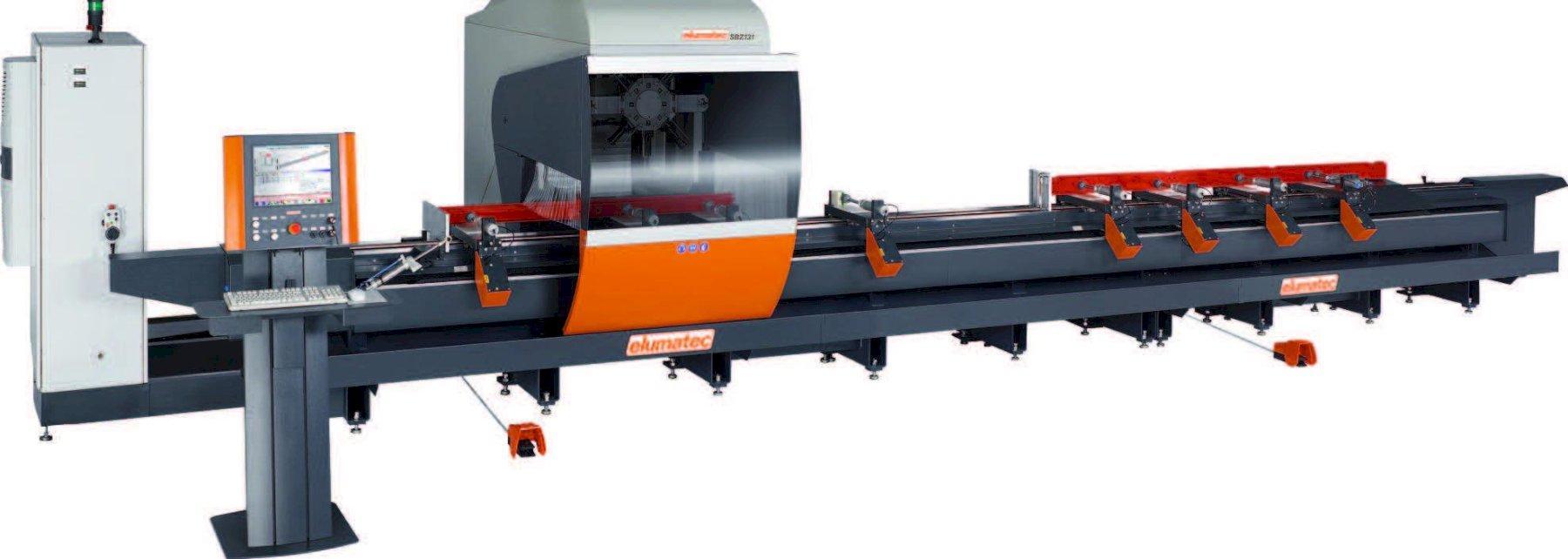

  • 3-axis profile machining centre SBZ 131
  • For the economical and efficient processing of aluminium, steel, and special steel profiles
  • All operations like routing, drilling, and tapping are carried out with the profile stationary to avoid scratches and damages on the profile surface

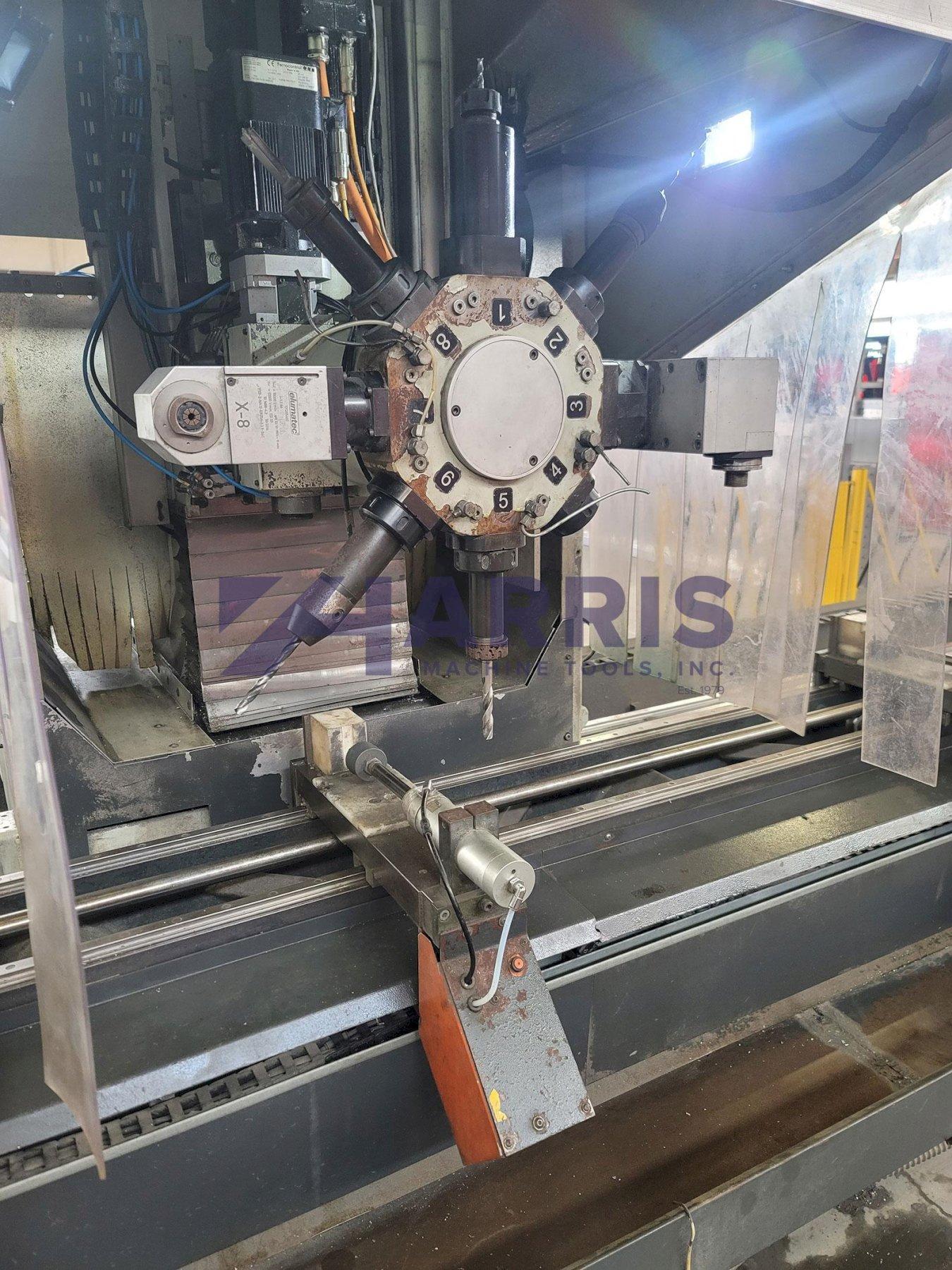

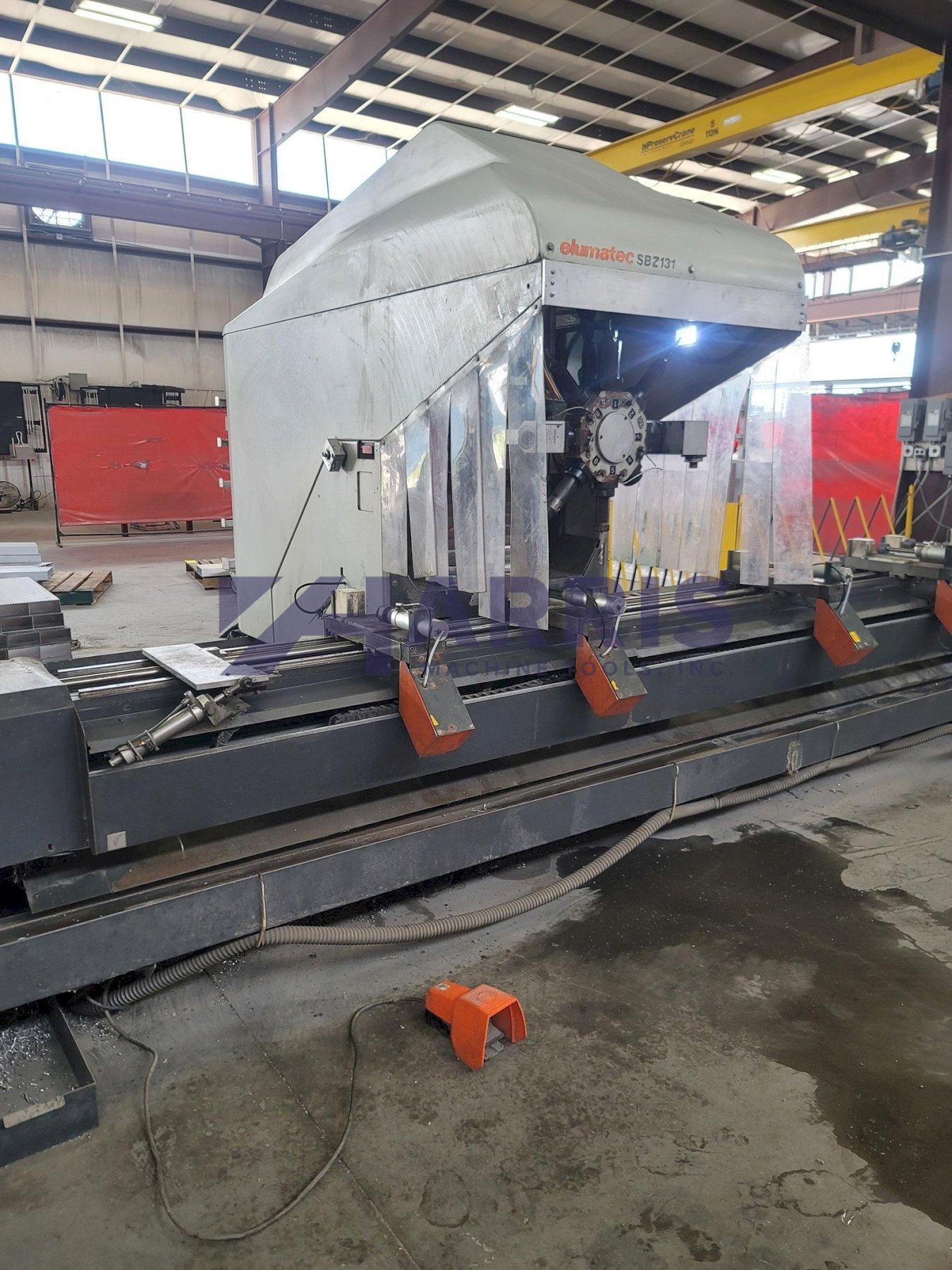

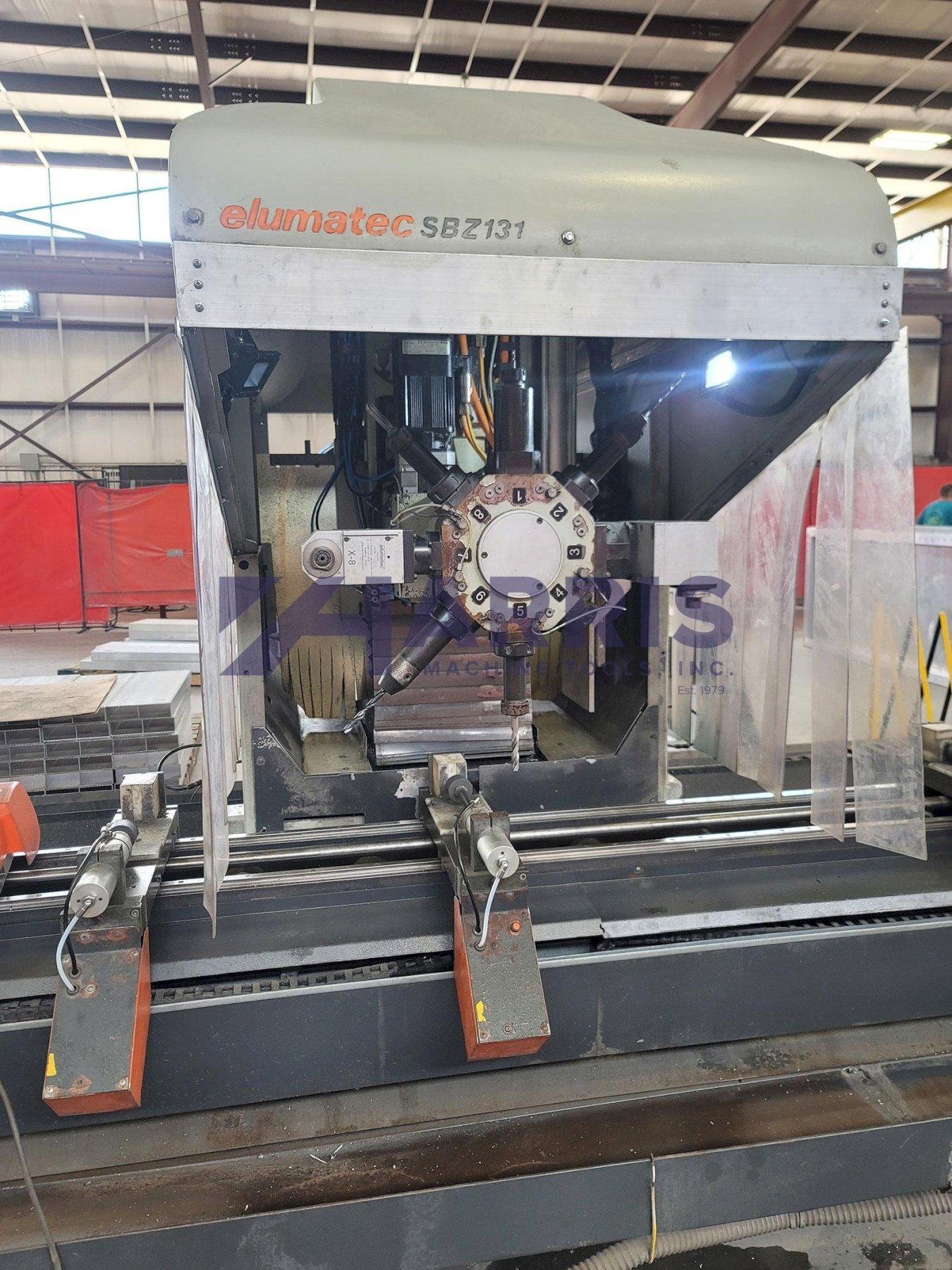

  • The travelling turret head provides rapid tool changes with optimum processing cycles
  • The turret head can be equipped with 8 standard tools or angle routing heads
  • 2 separate working zones allow profile processing in oscillating mode

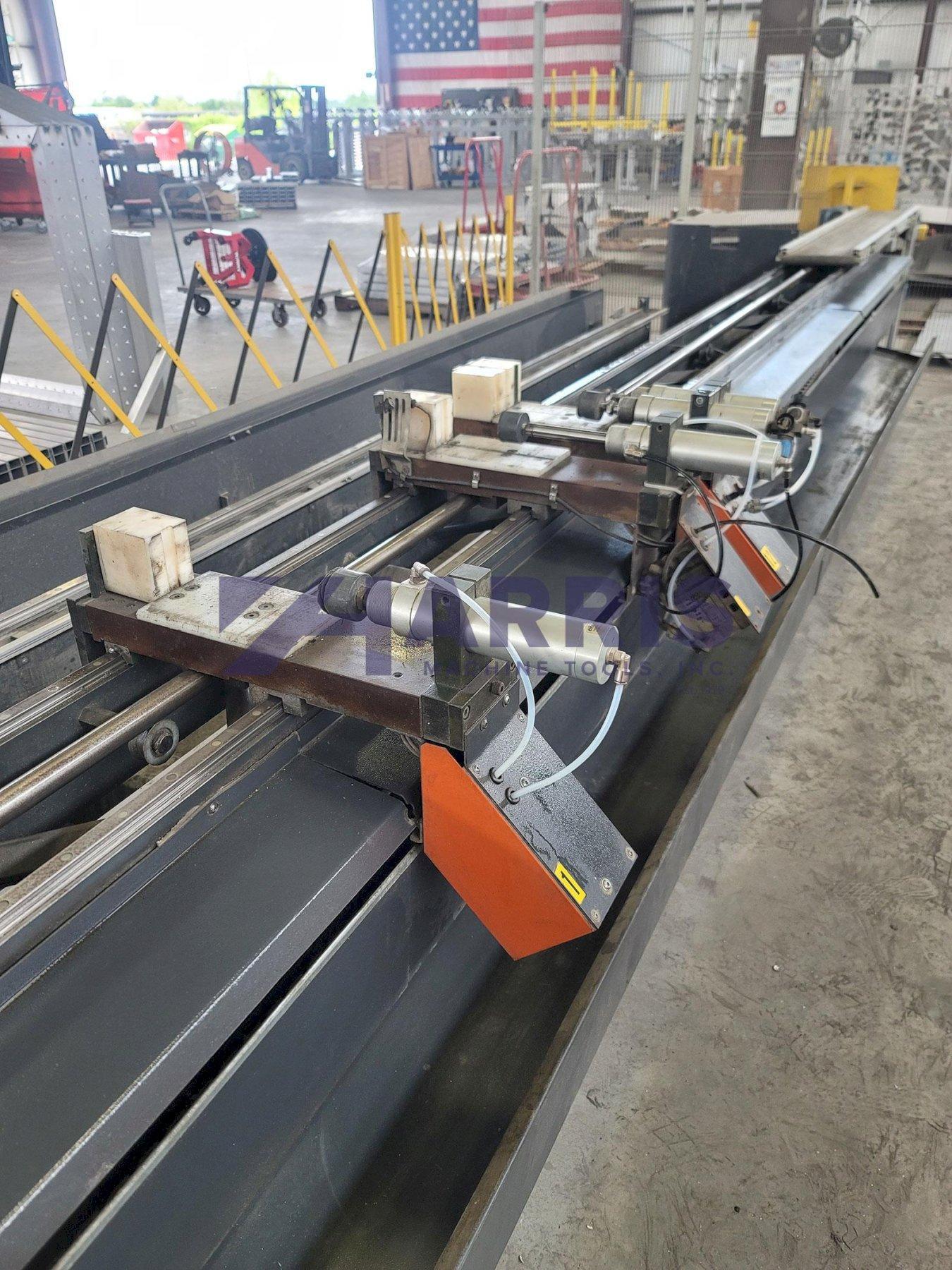

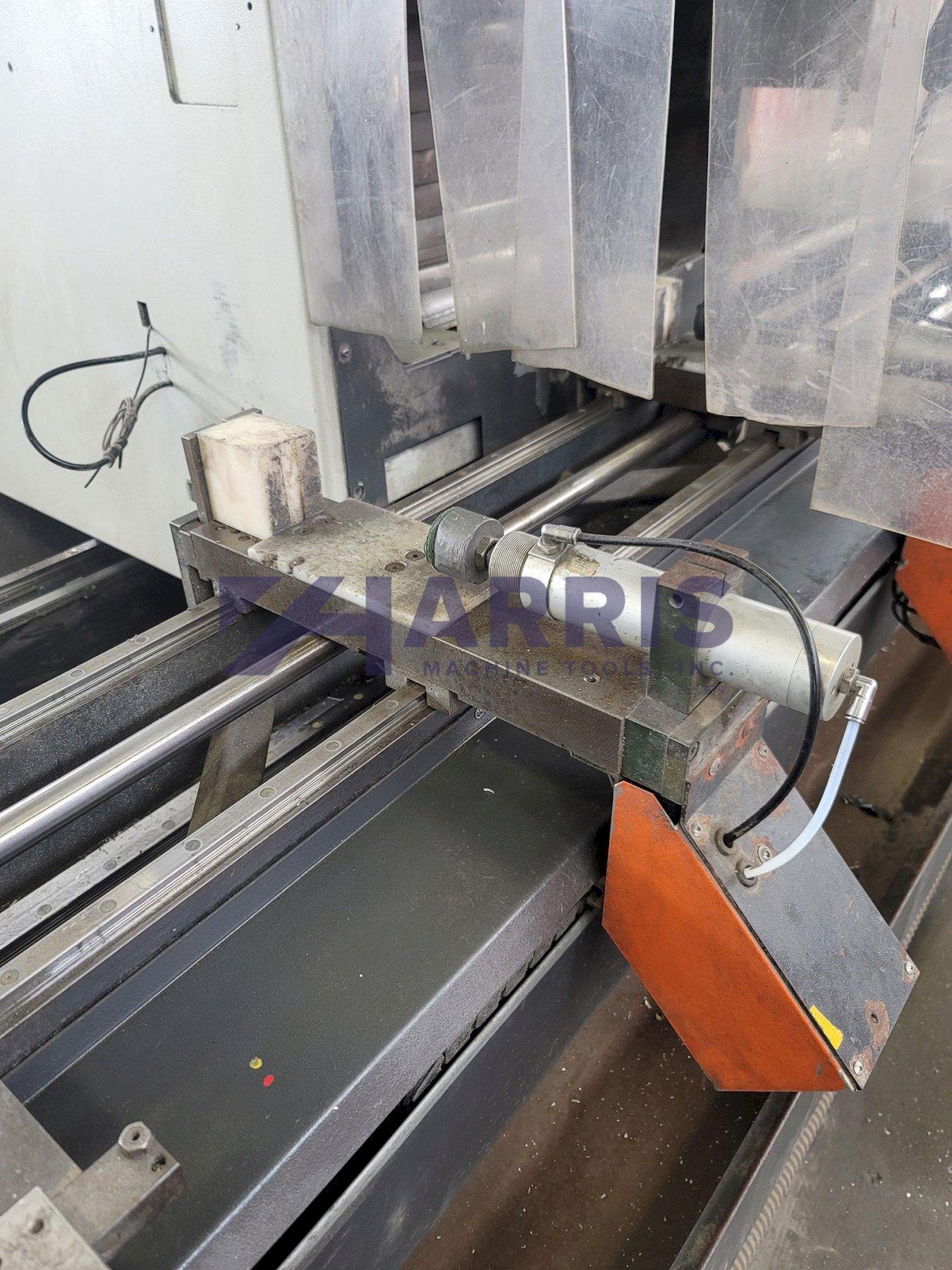

  • The autonomous clamping adjustment enables clamp positioning during secondary time
  • Electronic 4-axis industrial PC control
  • Tool spindle is designed as an additional axis

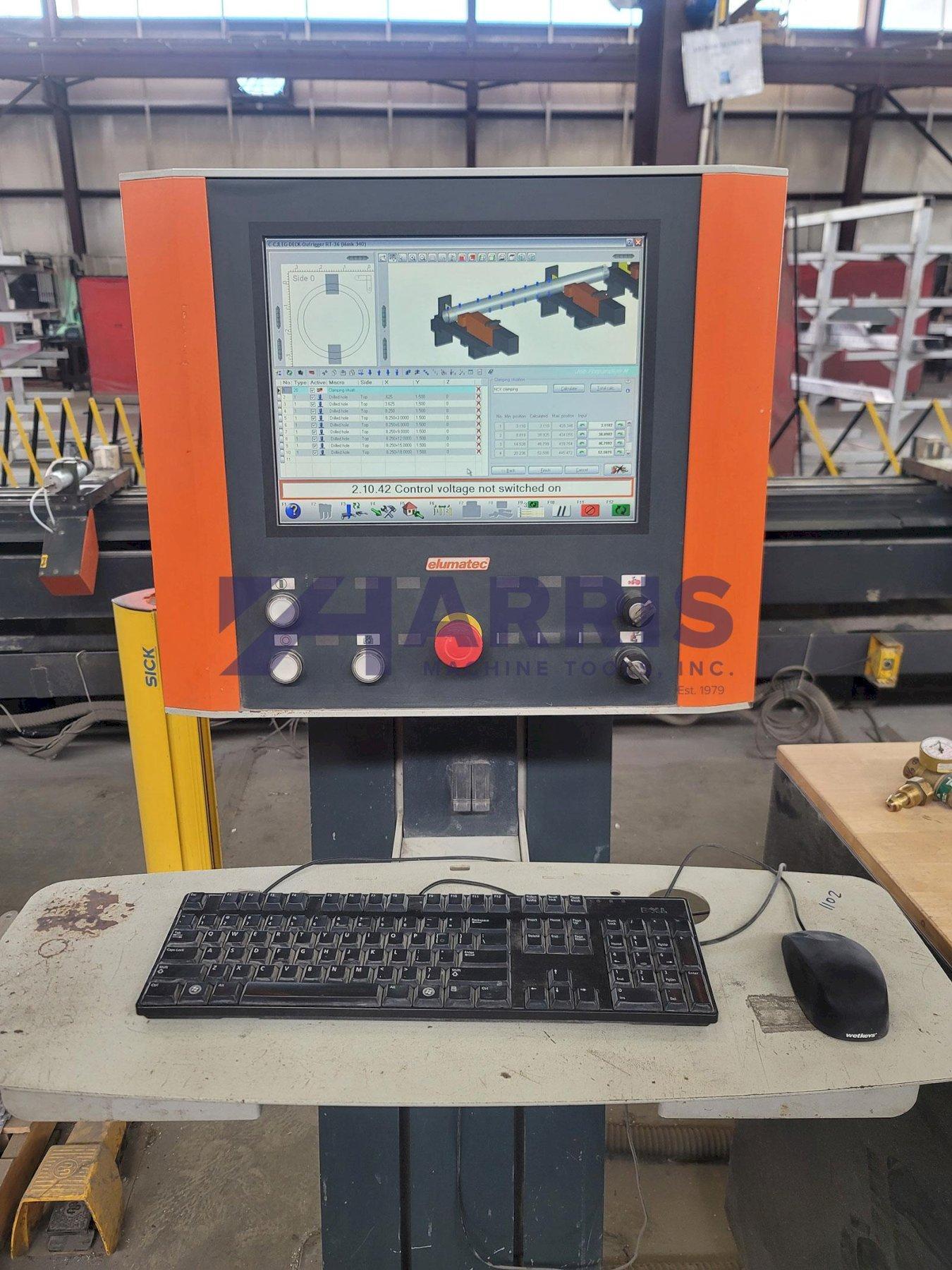

  • 15" colour monitor
  • RJ 45 10/100 MBit network connection
  • Serial and parallel interfaces (extendable) for online connection, barcode scanner and label printer

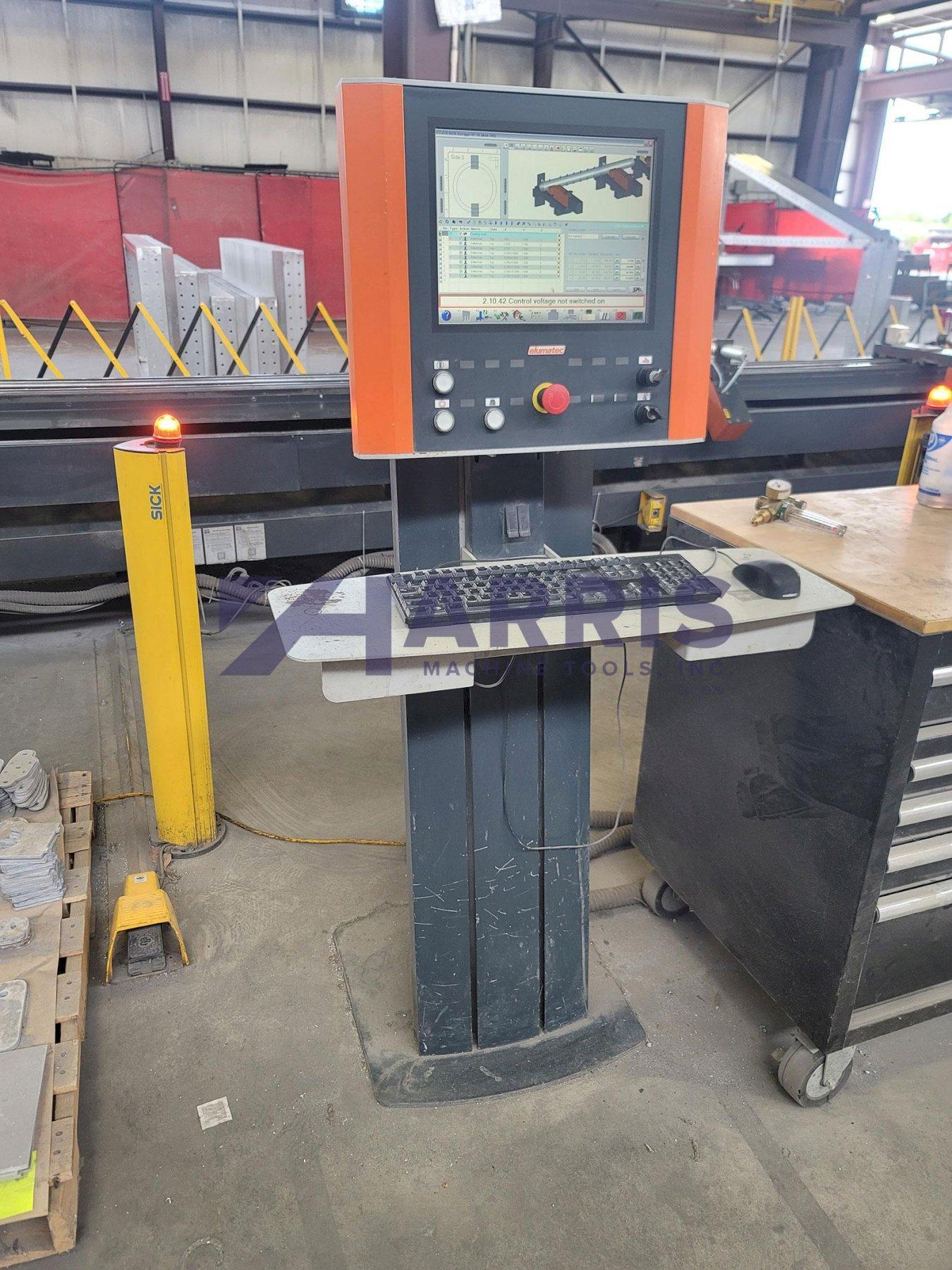

  • Mobile operation terminal
  • eluCam (Easy and direct programming on the machine)
