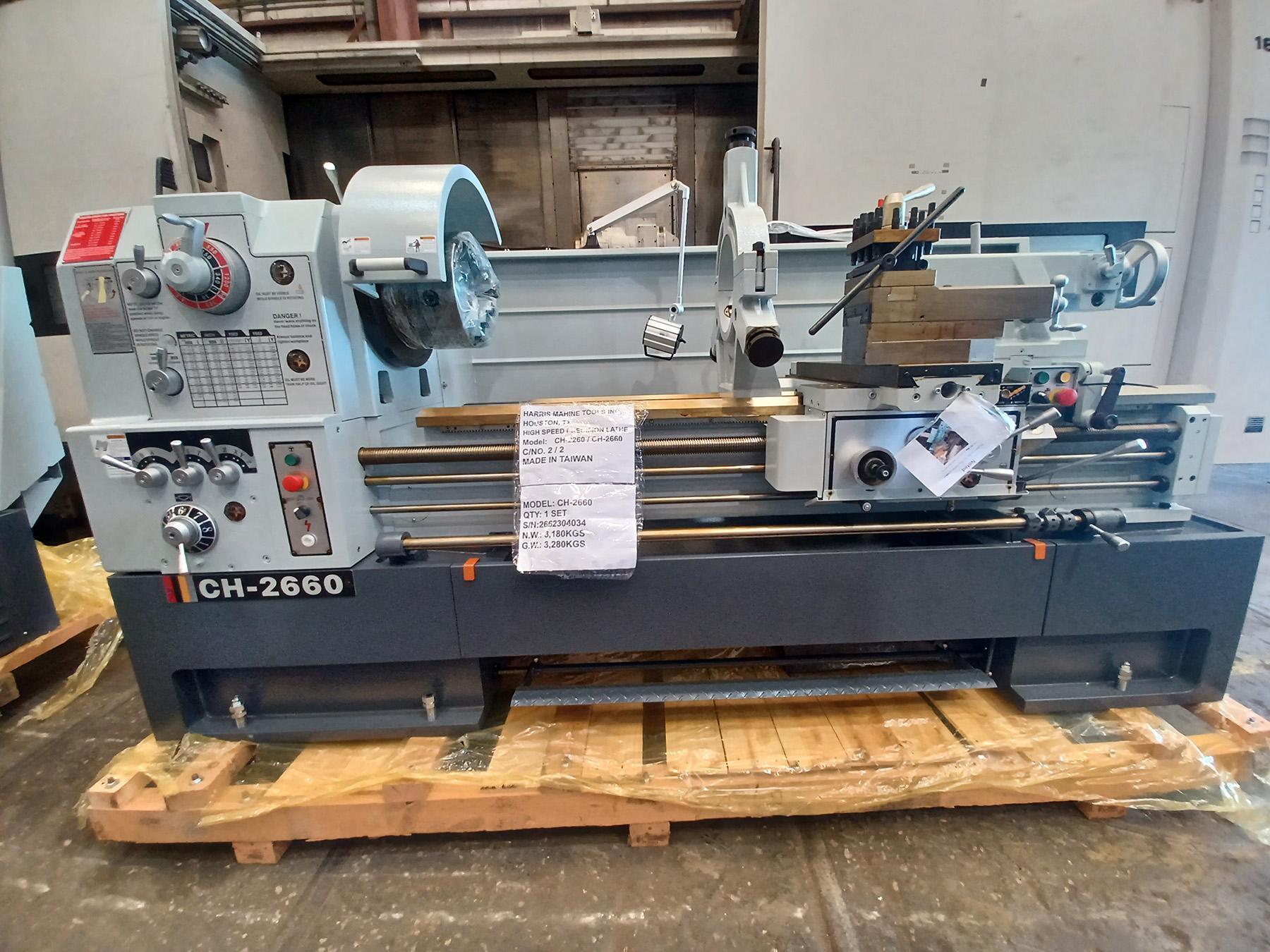

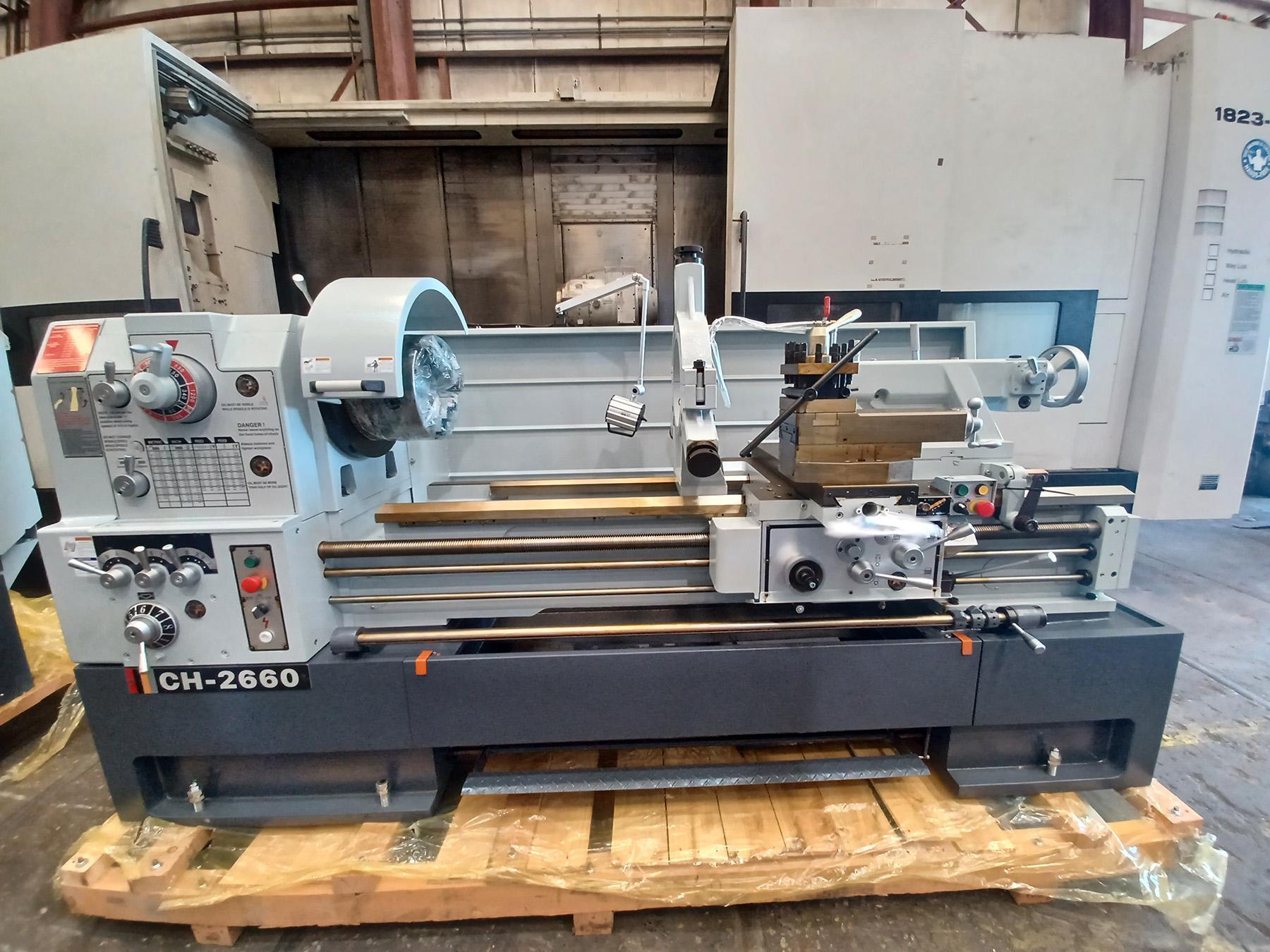

22" x 60" SunMaster Model CH-2260 Engine Lathe, New
Brand
Not Specified
Model
CH-2260
Type
Lathes, Engine
Stock #
20514
Condition
Not specified
Year
Location
Houston, Texas
United States
Specifications
Equipped With
Swing Over Bed: 22"
Swing Over Cross Slide: 13.38"
Swing in Gap: 31.37"
Gap Width: 10.6"
Distance Between Centers: 60"
Bed Width: 15.7"
Center Height: 42"
Spindle Speeds: (12) 13 - 1200 RPM
Spindle Motor: 15 HP
Spindle Bore: 4-1/16"
Spindle Taper and Center: MT-7 / MT-5
Spindle Nose: D1-11
Feed Ranges: 16
Longitudinal Feeds: 0.0012 - 0.039
Cross Feeds: 0.0004 - 0.0117
Leadscrew Diameter / Pitch: 1.77" / 4
Inch Threads: (44) 2 - 72 TPI
Metric Threads: (39) 0.2 - 14 MM
Compound Travel: 9"
Cross Slide Travel: 15.8"
Tailstock Quill Travel: 10"
Tailstock Quill Diameter: 3.15"
Tailstock Taper: MT-5
Coolant Pump Motor: 1/8 HP
OAD (Approximate): 128" x 45" x 67"
Weight (Approximate): 6490 Lbs.
Note: All Specifications Subject to Verification
Stock Machines Equipped with the Following Options:
Swing Over Cross Slide: 13.38"
Swing in Gap: 31.37"
Gap Width: 10.6"
Distance Between Centers: 60"
Bed Width: 15.7"
Center Height: 42"
Spindle Speeds: (12) 13 - 1200 RPM
Spindle Motor: 15 HP
Spindle Bore: 4-1/16"
Spindle Taper and Center: MT-7 / MT-5
Spindle Nose: D1-11
Feed Ranges: 16
Longitudinal Feeds: 0.0012 - 0.039
Cross Feeds: 0.0004 - 0.0117
Leadscrew Diameter / Pitch: 1.77" / 4
Inch Threads: (44) 2 - 72 TPI
Metric Threads: (39) 0.2 - 14 MM
Compound Travel: 9"
Cross Slide Travel: 15.8"
Tailstock Quill Travel: 10"
Tailstock Quill Diameter: 3.15"
Tailstock Taper: MT-5
Coolant Pump Motor: 1/8 HP
OAD (Approximate): 128" x 45" x 67"
Weight (Approximate): 6490 Lbs.
Note: All Specifications Subject to Verification
Stock Machines Equipped with the Following Options:
- Taper Turning Attachment - 10 Deg., 12" Travel
- Newall DRO System
- 12" 3-Jaw Chuck
- Longitudinal Rapid Traverse
- Carriage Micro Stop
- 12" Back Plate
- MT-7 to MT-5 Headstock Spindle Center Adaptor
- Chuck Guard
- 4-Way Tool Post
- Automatic Longitudinal Feed Stop Bar
- Thread Chasing Dial
- LED Work Light
- Two-Speed Drive Tailstock Spindle
- Foot Brake System
- Coolant System with Pump and Piping
- Pull Drawer Chip Pan
- Full Length Splash Guard

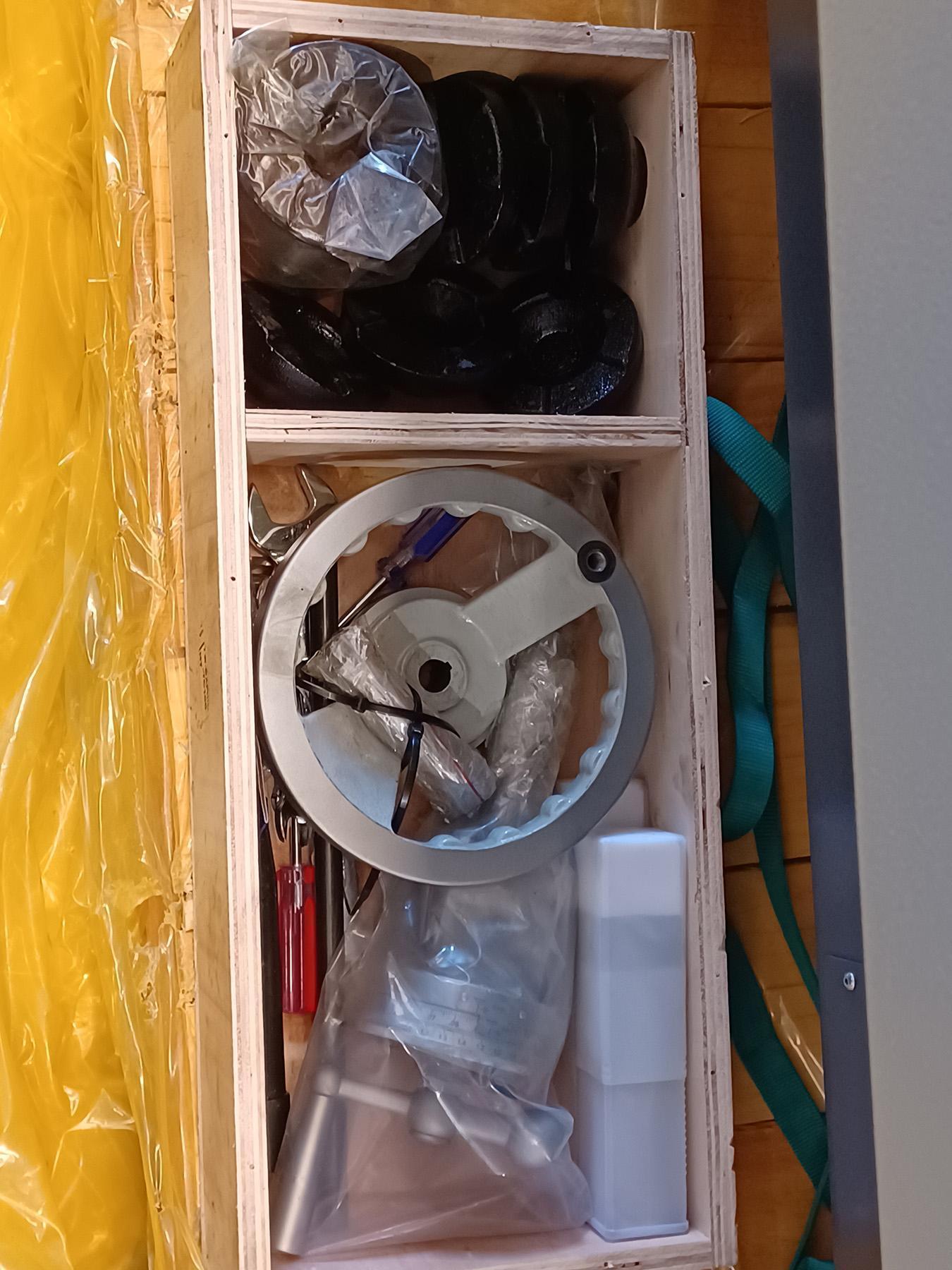

- Tool Box with Tools
