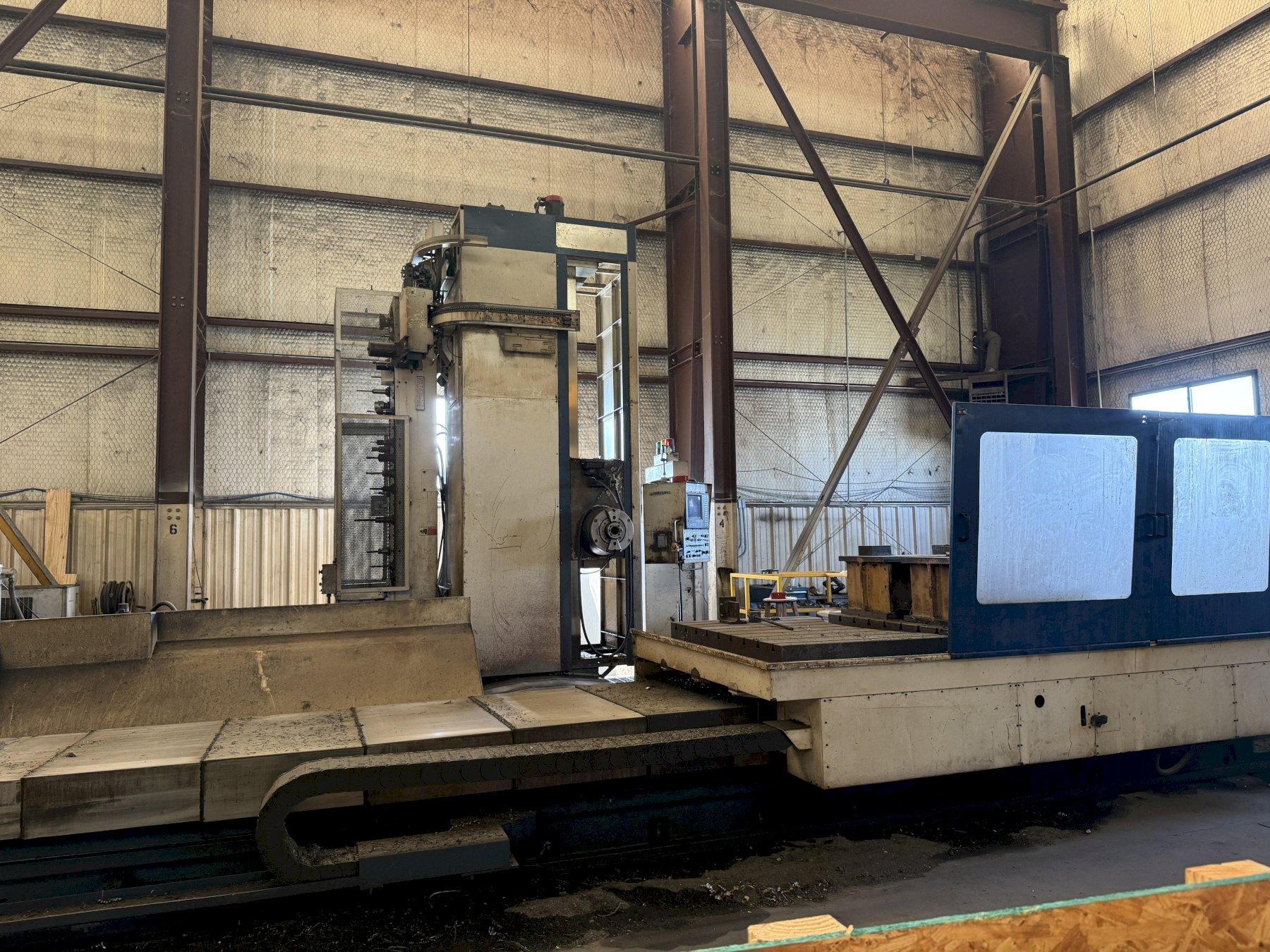

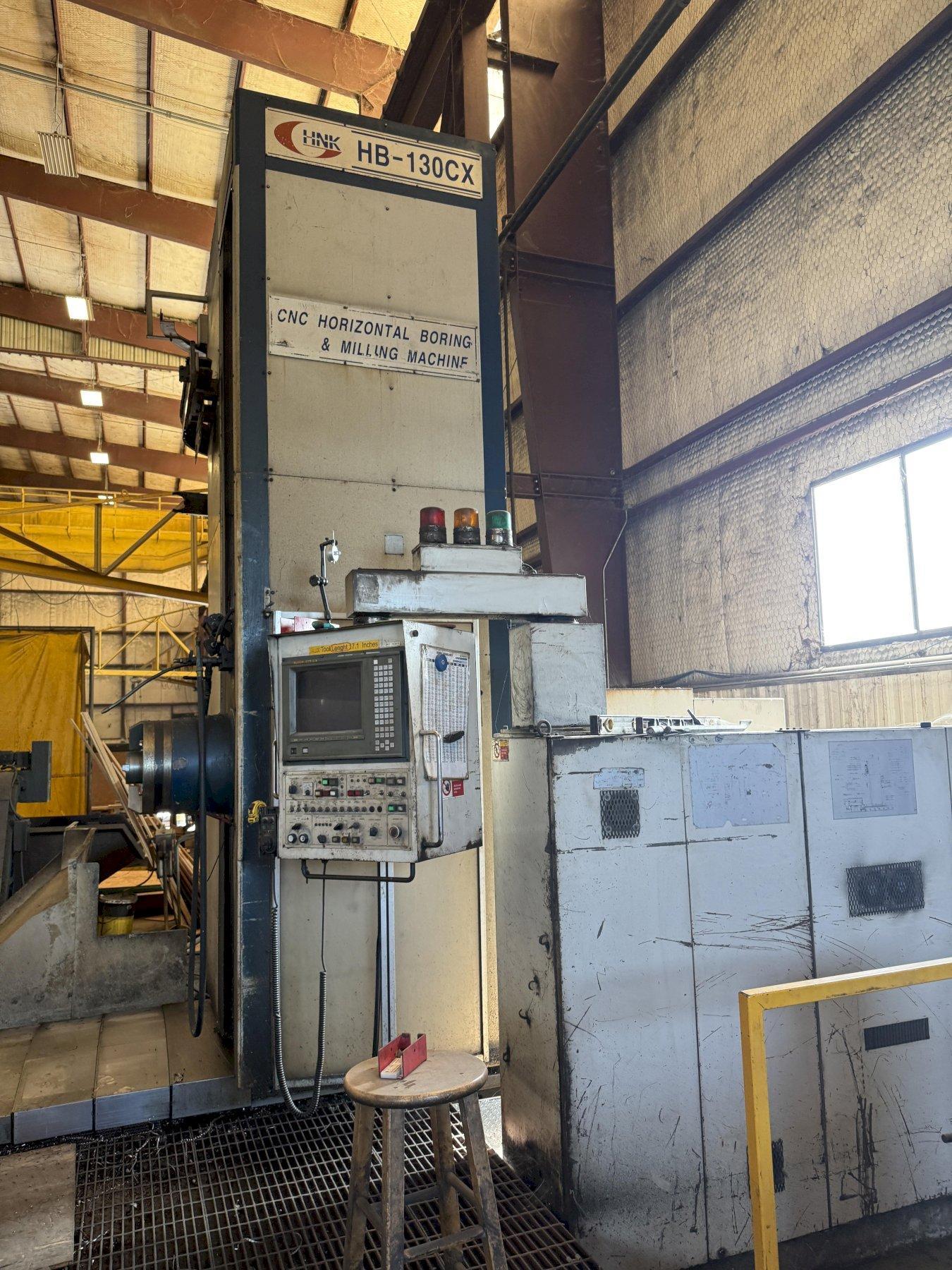

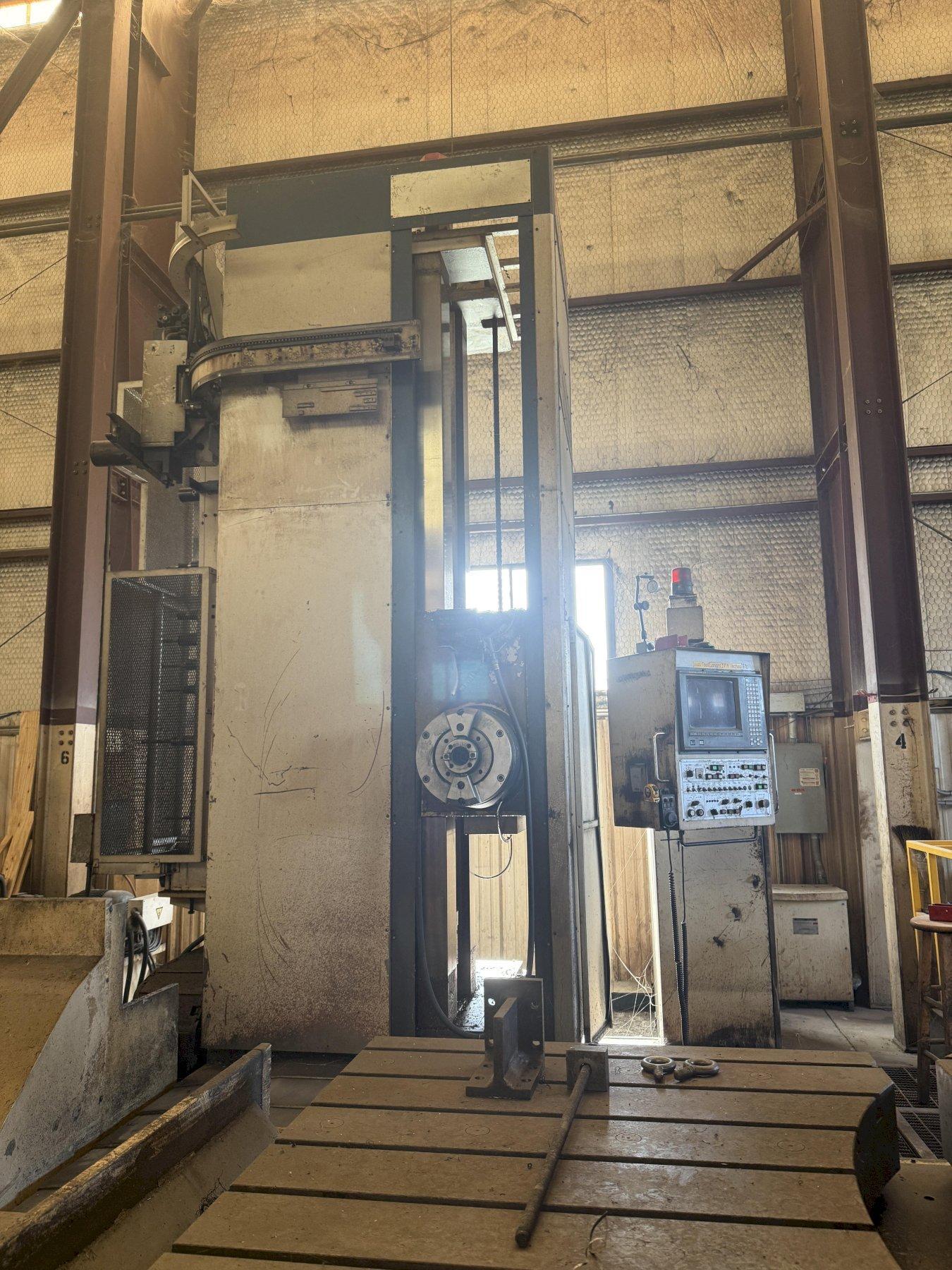

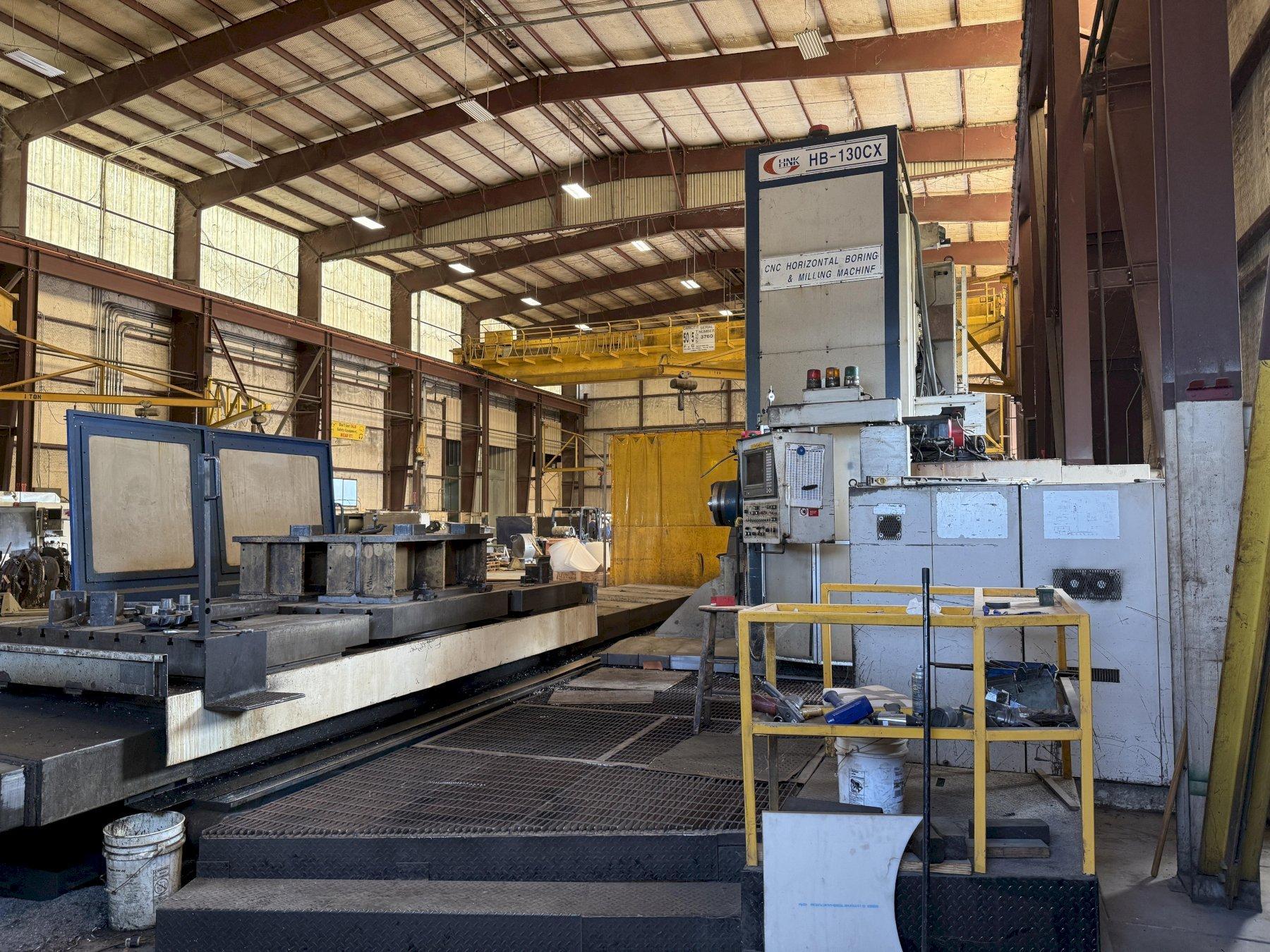

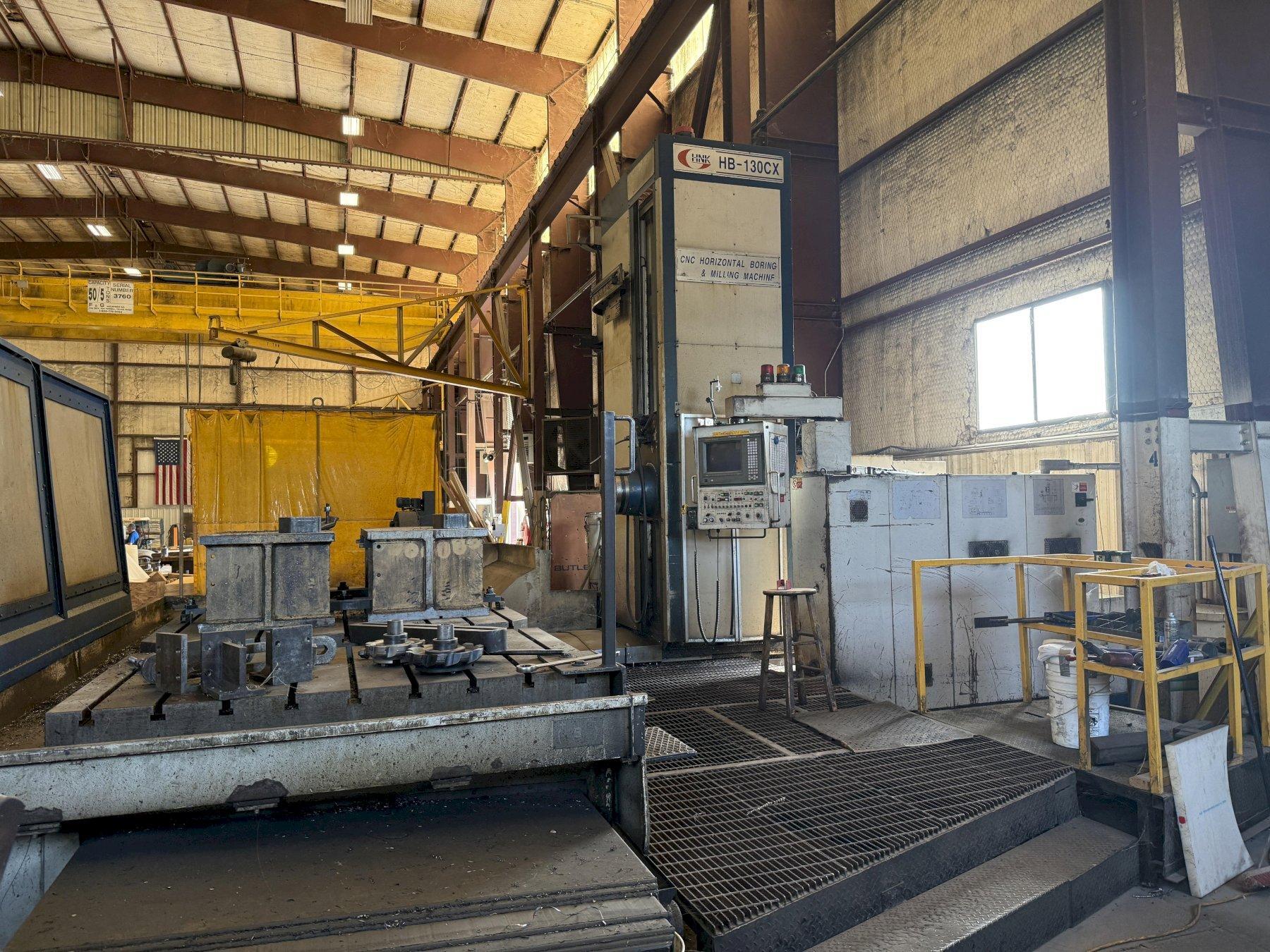

5.1" HNK CNC HORIZONTAL BORING MILL, HBM, 63 x 160 table with built in rotary, FANUC CNC, 40 ATC, CTS
Brand
HNK

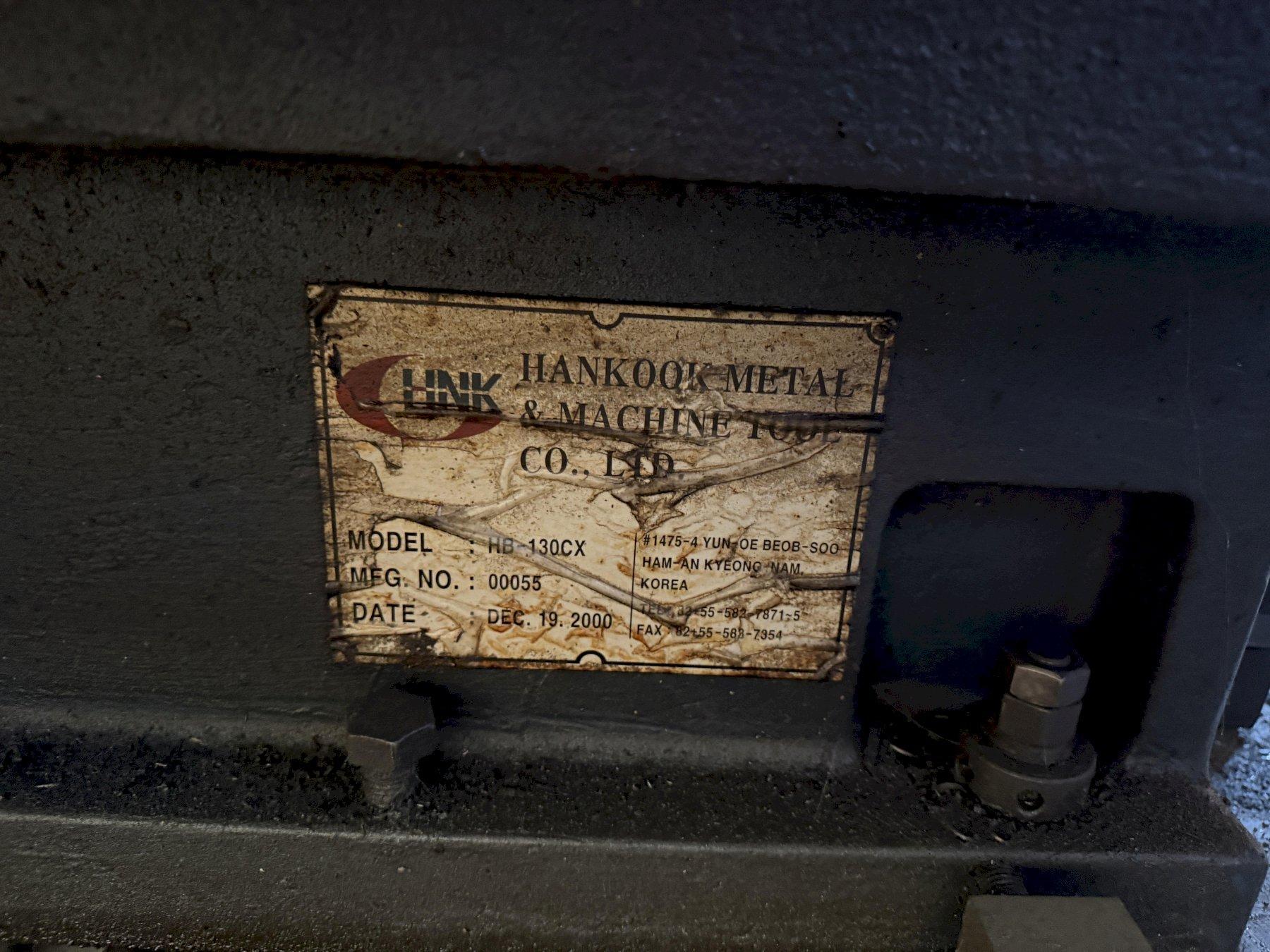

Model
HB-130CX
Type
Boring Mills, Horizontal, Table Type, CNC
Stock #
20829
Condition
Not specified
Year
2000
Location
Houston, Texas
United States
Specifications
Equipped With
BORING SPINDLE DIAMETER: 5.1"
STROKE:
X AXIS: 157"
Y AXIS: 90"
Z AXIS: 51"
W AXIS: 27.5"
DISTANCE FROM SPINDLE NOSE TO CENTER OF TABLE: 30" - 80"
DISTANCE SPINDLE CENTER TO TOP OF TABLE: 0 - 90"

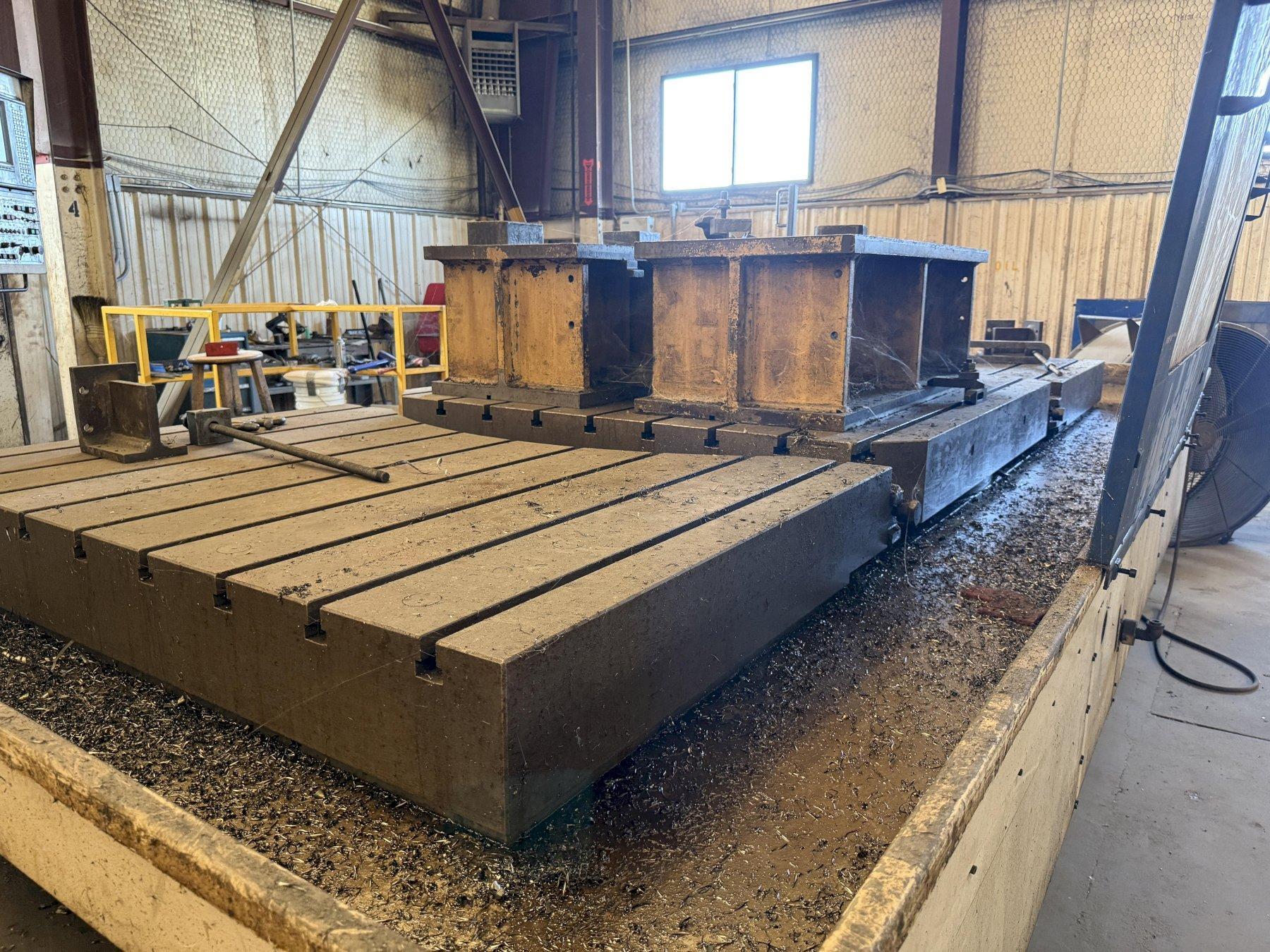

TABLE:
DIMENSION: 63" X 157"
ROTARY TABLE DIMENSION: 63" X 63"
ALLOWABLE LOAD: 33,000 LBS.
ROTARY TABLE ALONE: 22,000 LBS.
ROTARY INDEX: .001 DEGREE WITH 90 DEGREE SHOT PINS
SPINDLE HEAD:
POWER: 35 HP
SPEEDS: 5 - 2500 (3 GEAR RANGES)
SPINDLE TAPER: ISO #50, 7/24 TAPER
MACHINE WEIGHT: 108,000 LBS.
MACHINE DIMENSIONS: 397" X 291" X 193" HIGH

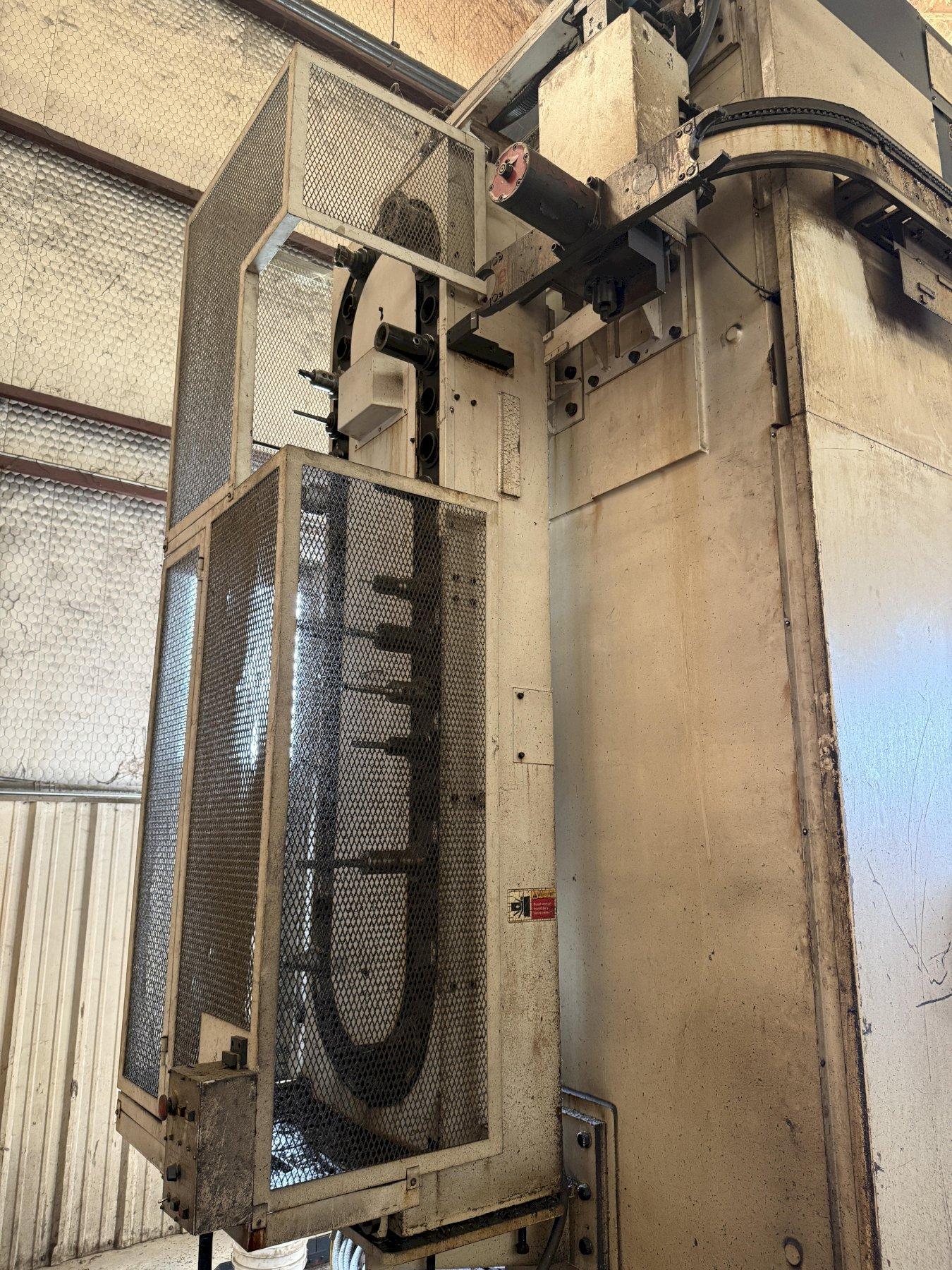

TOOL CHANGER:
40 TOOLS CAPACITY
TOOL SHANK / PULL STUD: CAT 50 / MAX 403 B50T
MAX TOOL WEIGHT: 55 LBS.
MAX TOOL LENGTH IN ATC: 16"
EQUIPPED WITH:
COOLANT THROUGH THE SPINDLE

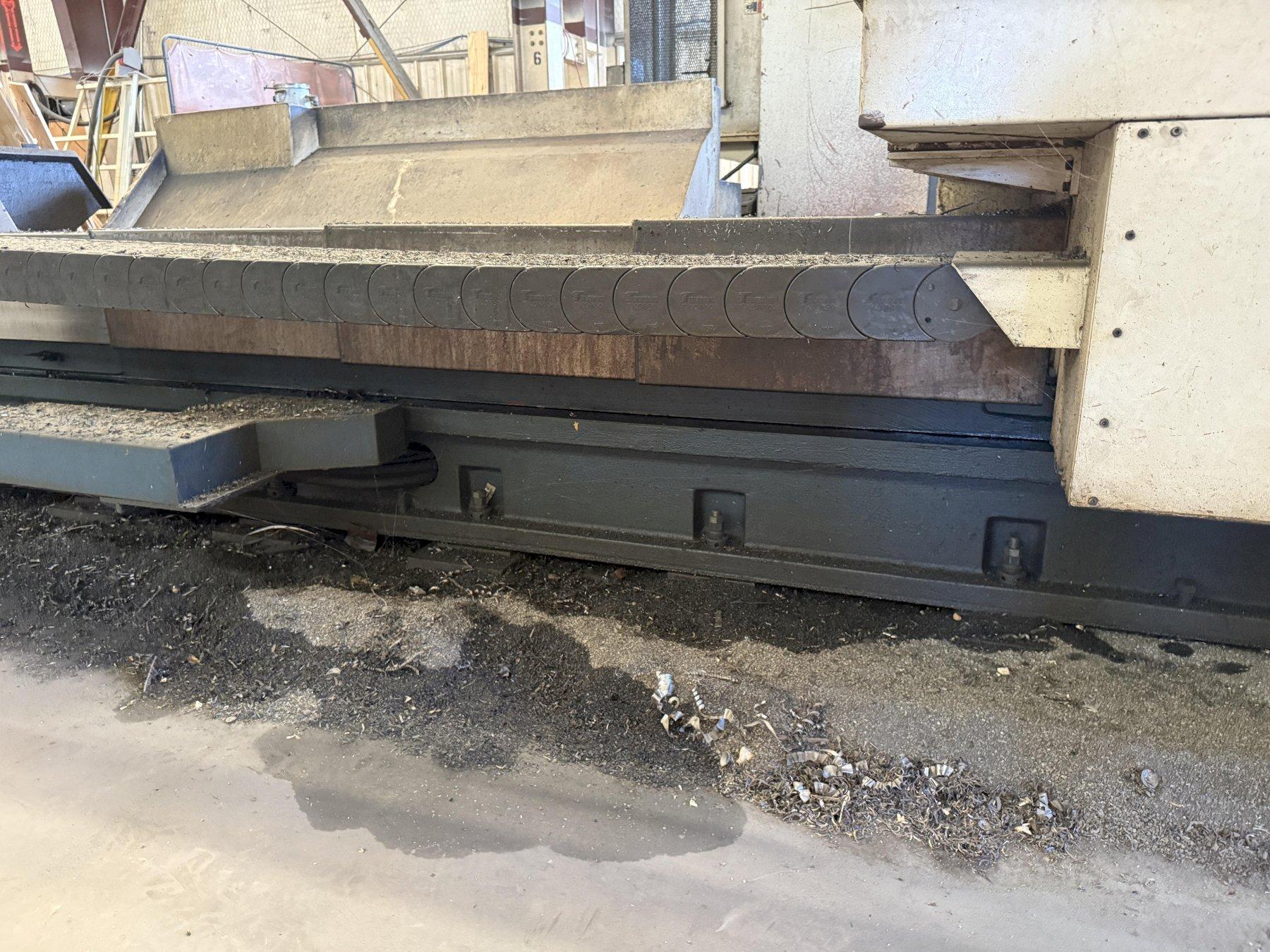

CHIP CONVEYOR

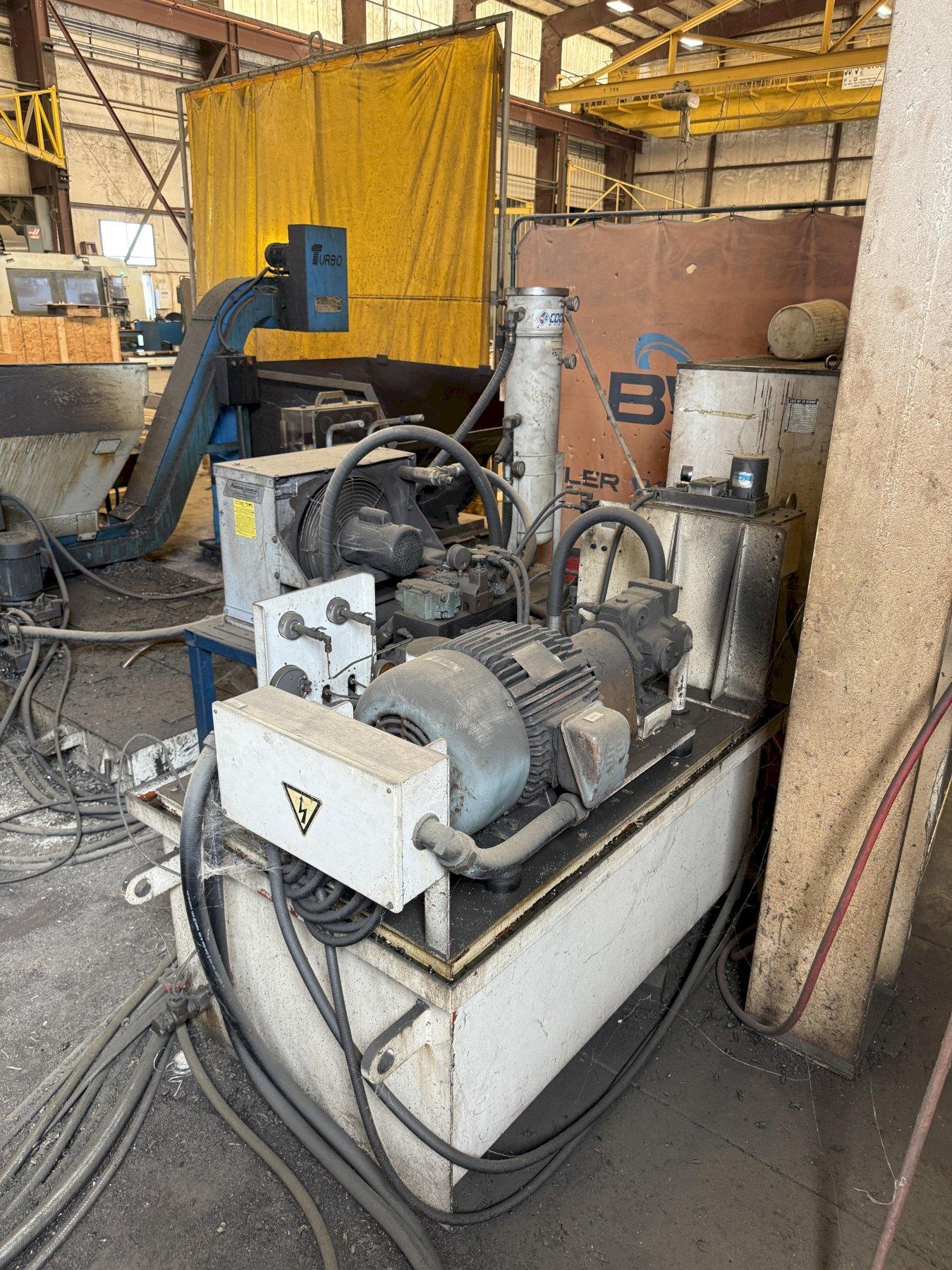

SPINDLE OIL CHILLER

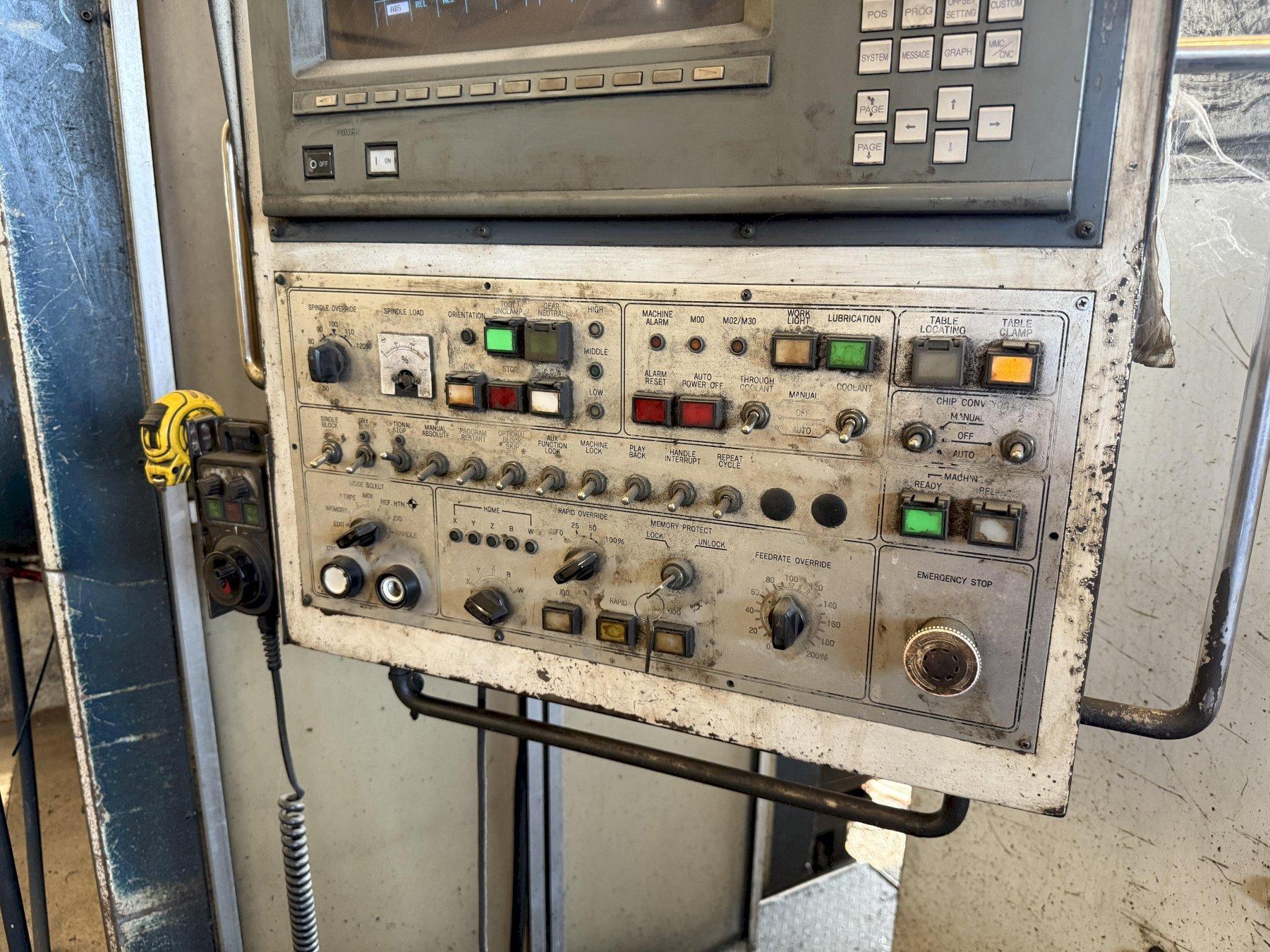

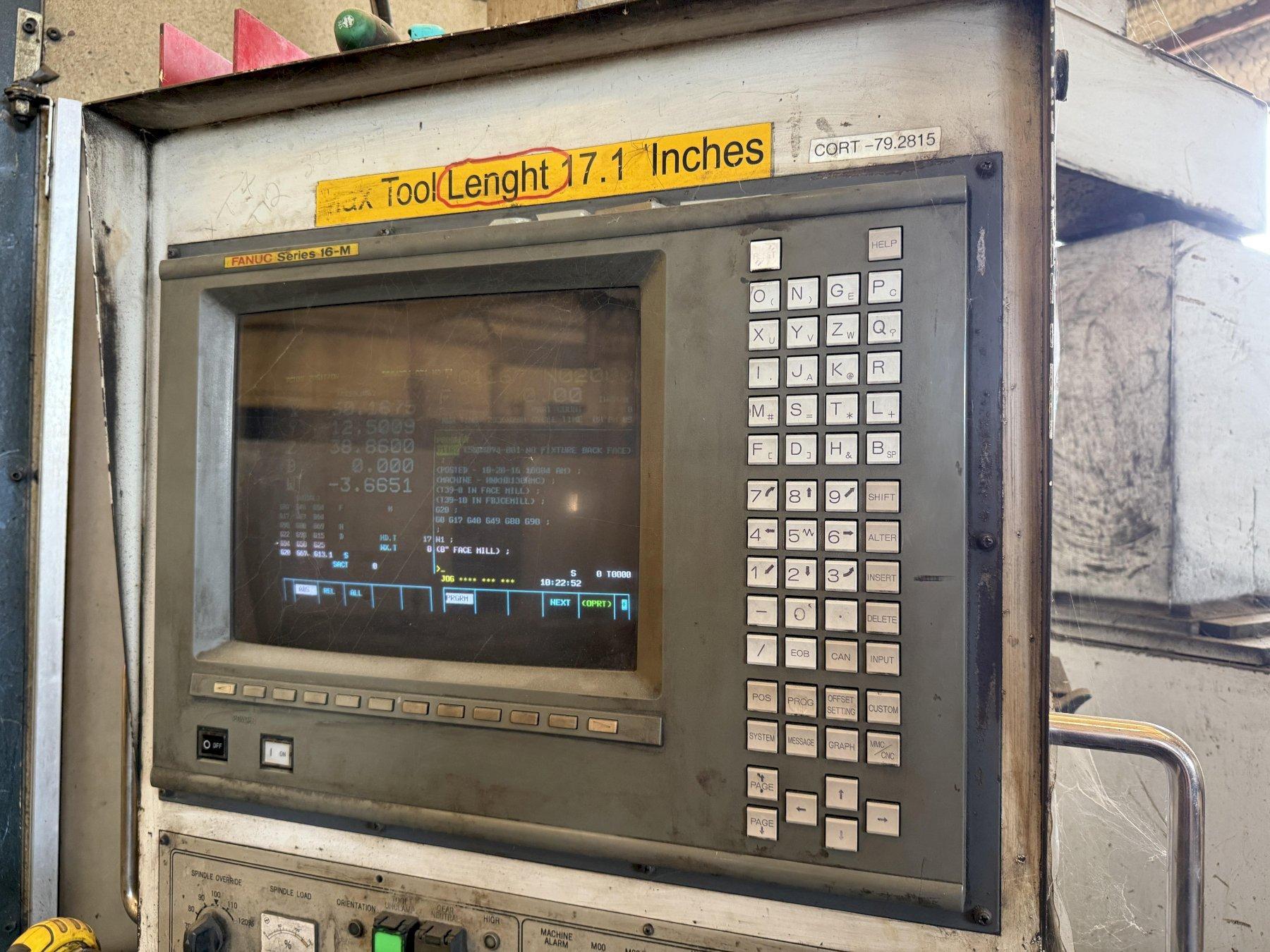

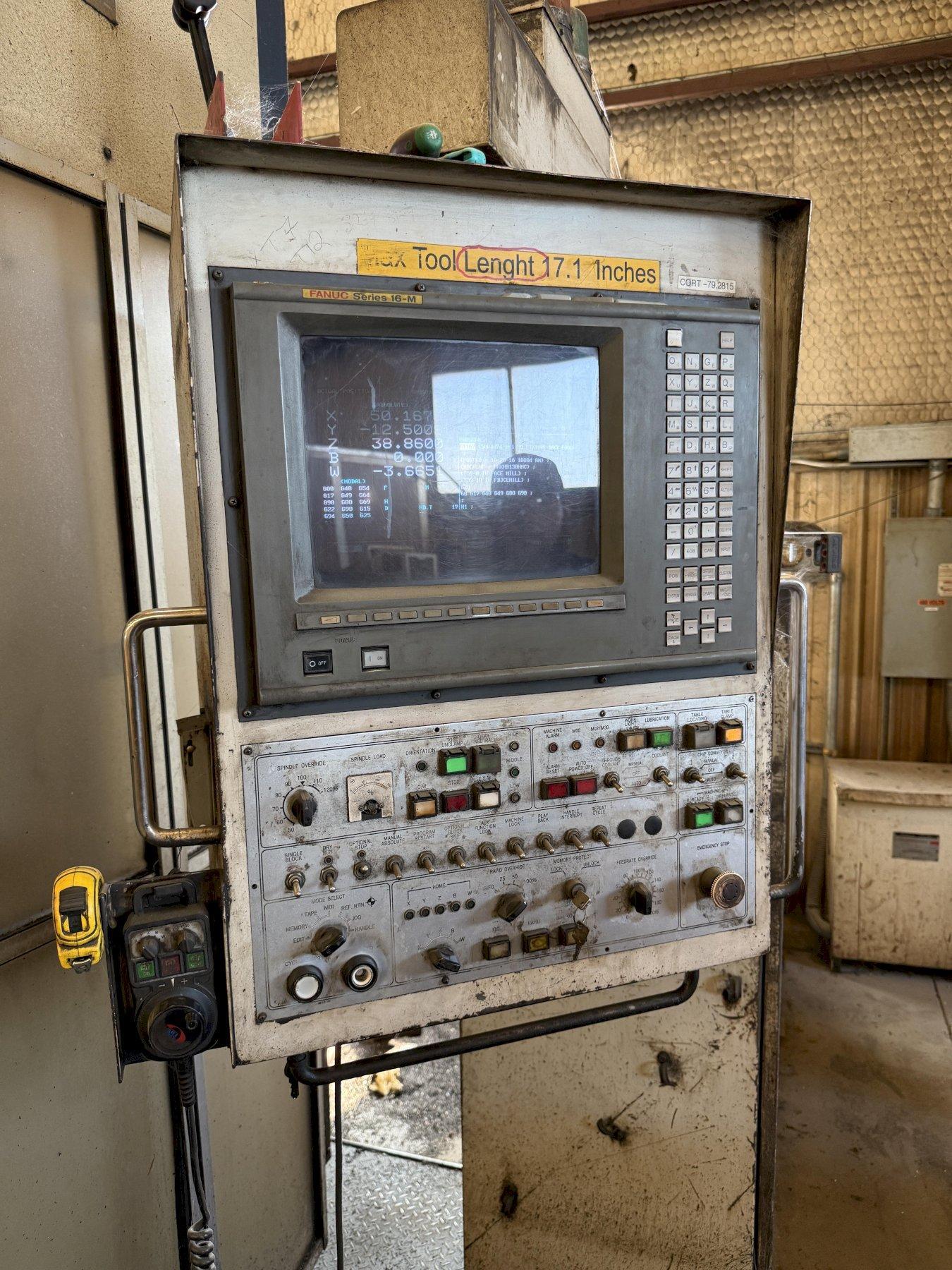

FANUC 16 CNC CONTROL WITHPORTABLE MPG

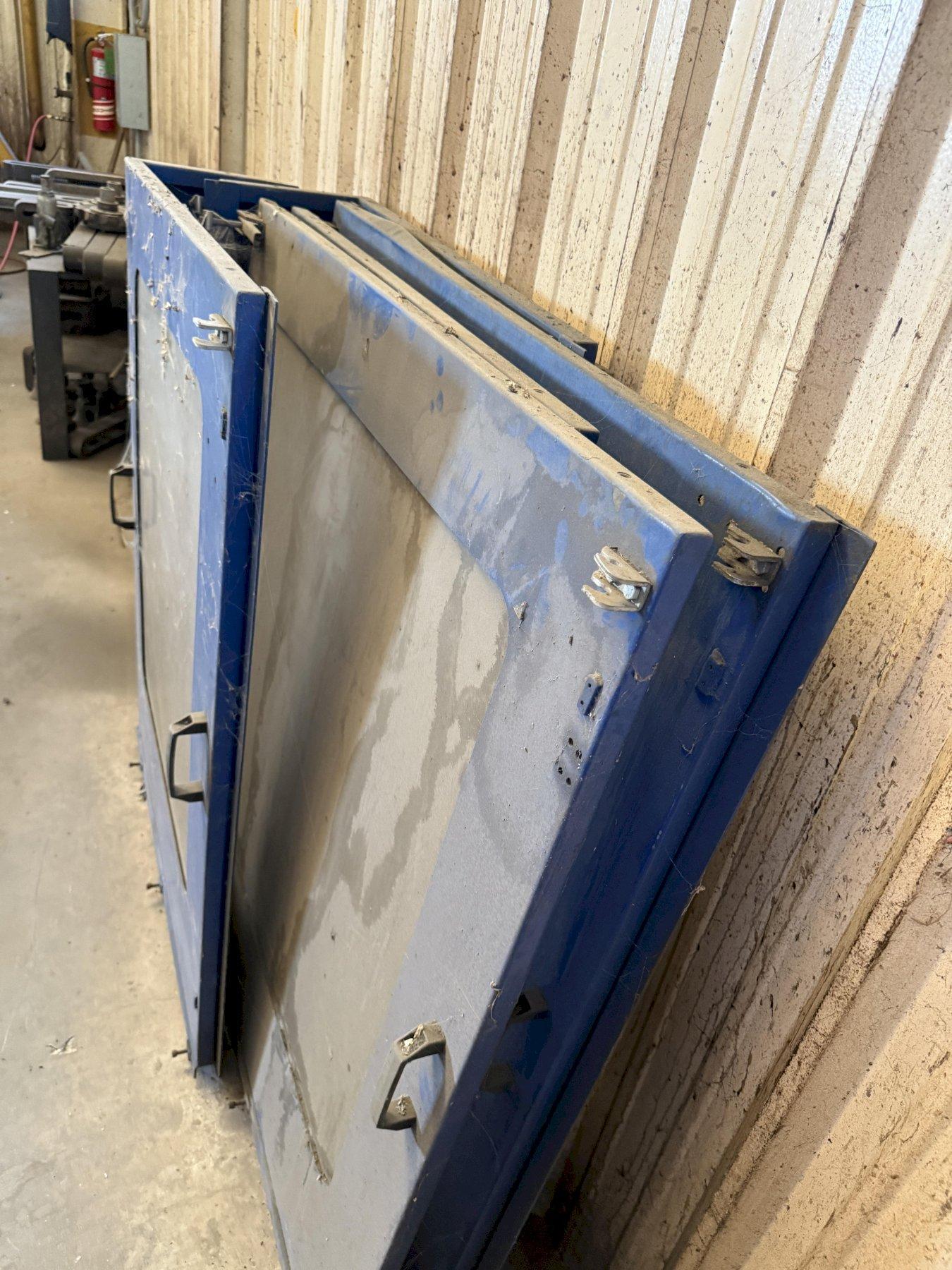

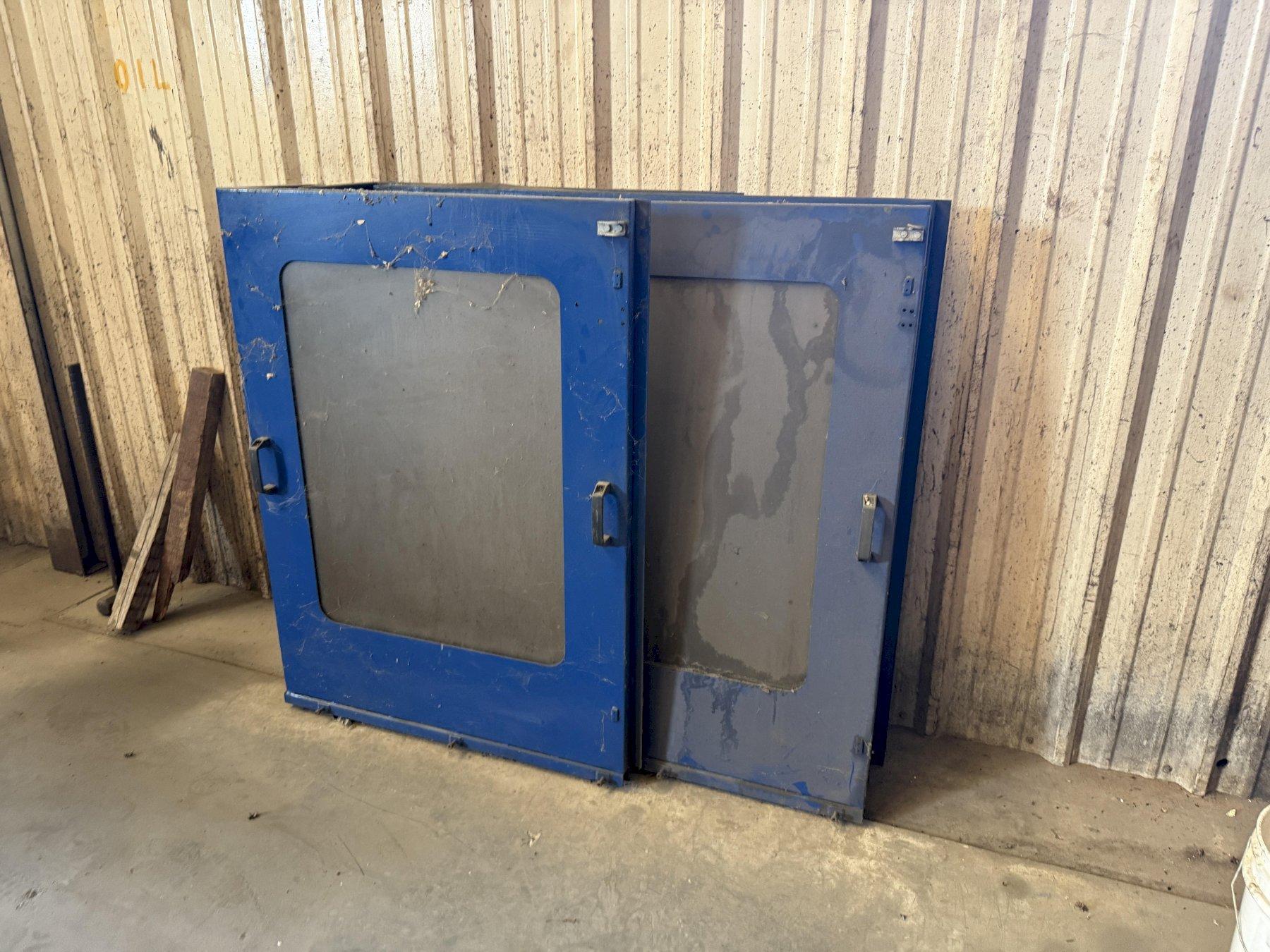

TABLE GUARDING - CURRENTLY REMOVED
** MACHINE SITS FLOOR FLUSH - NO PIT REQUIRED **
