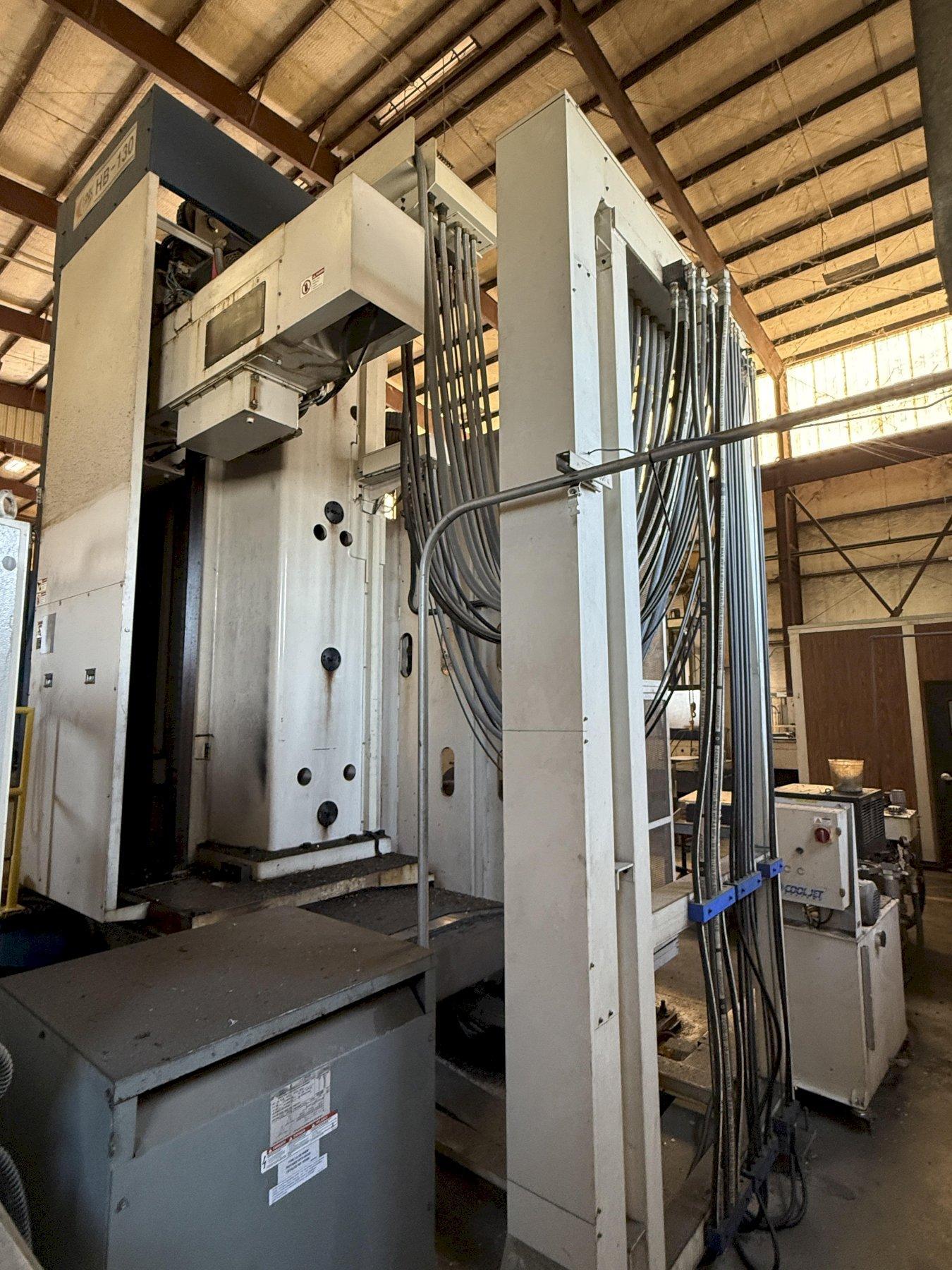

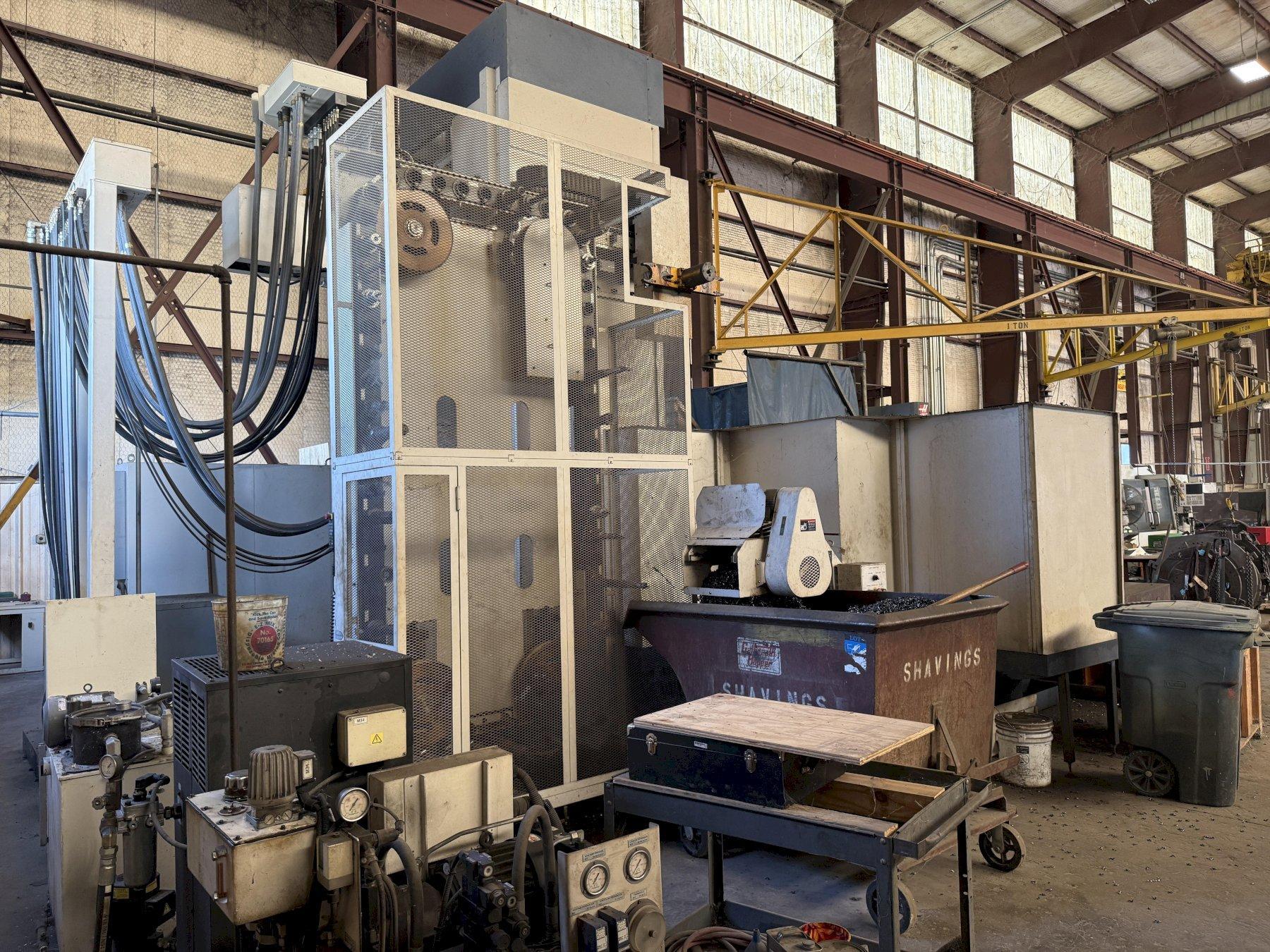

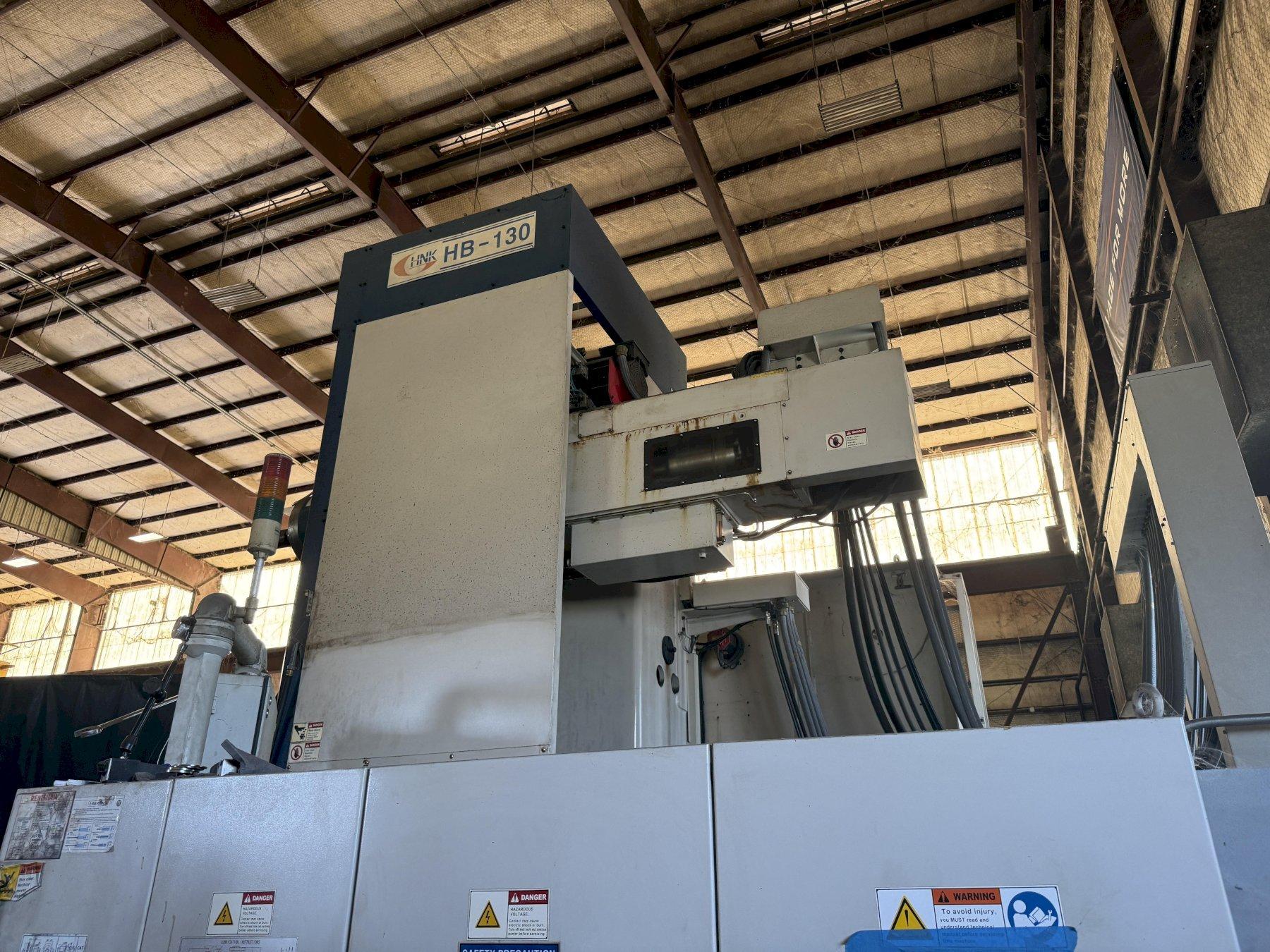

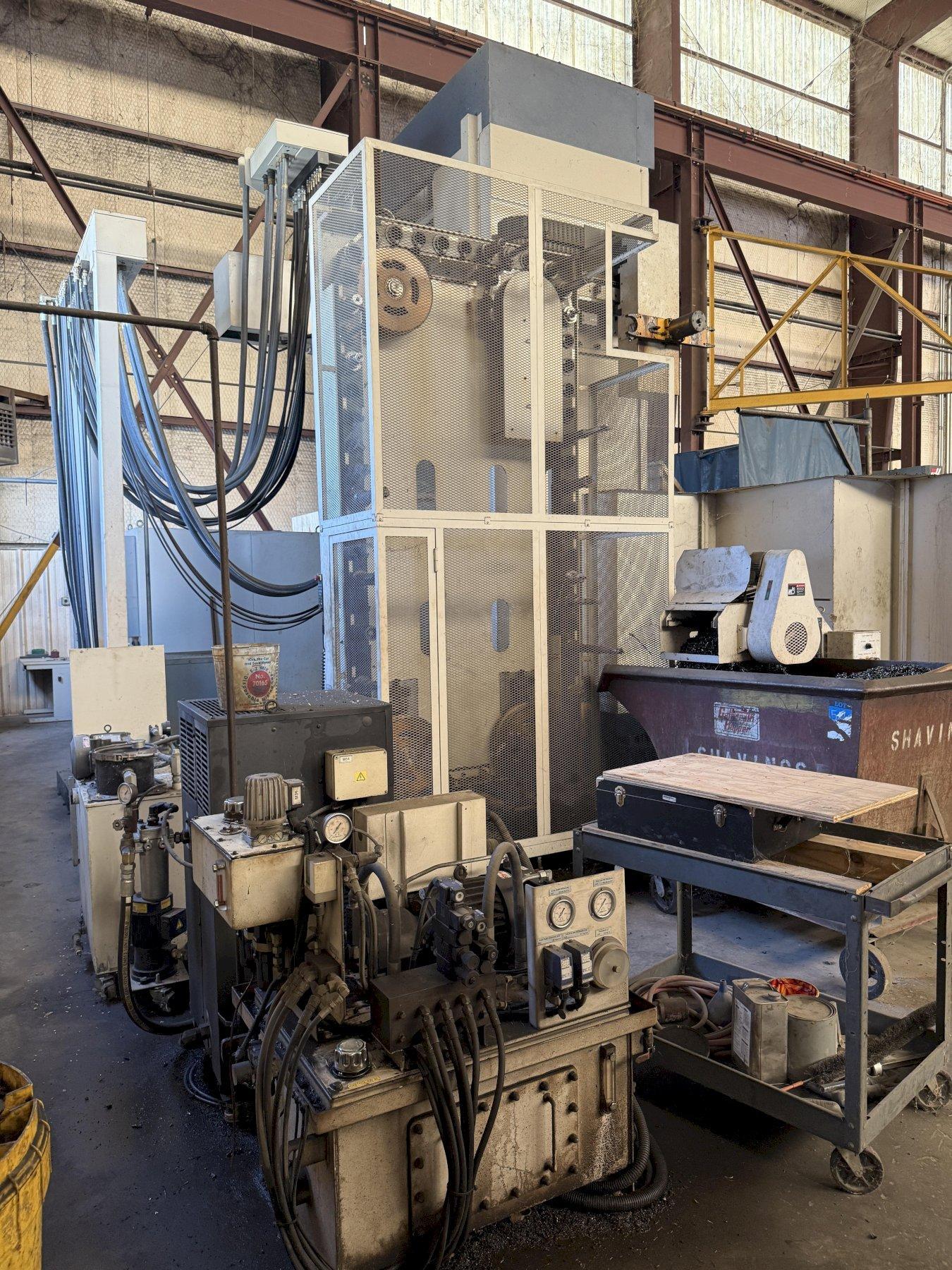

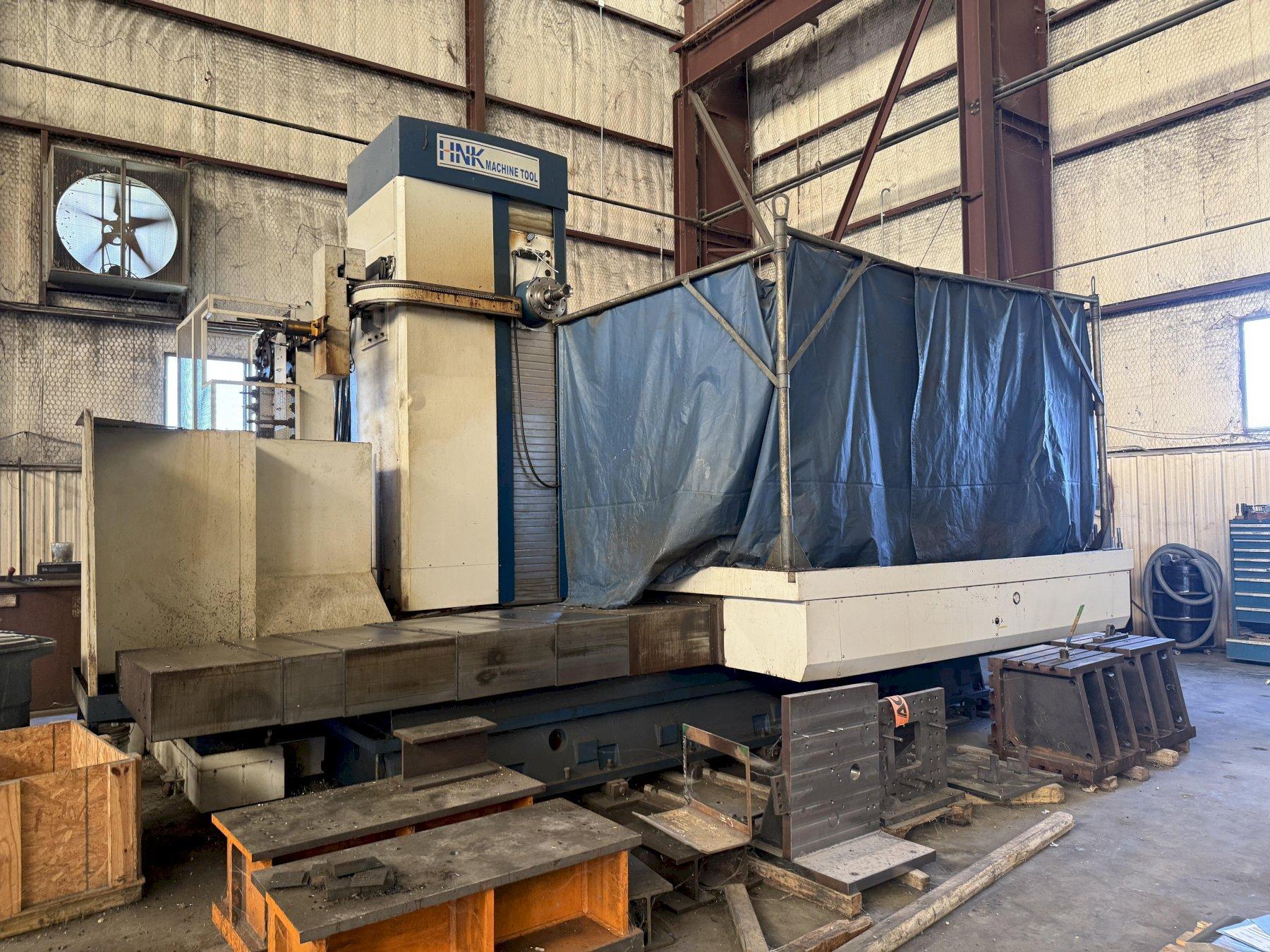

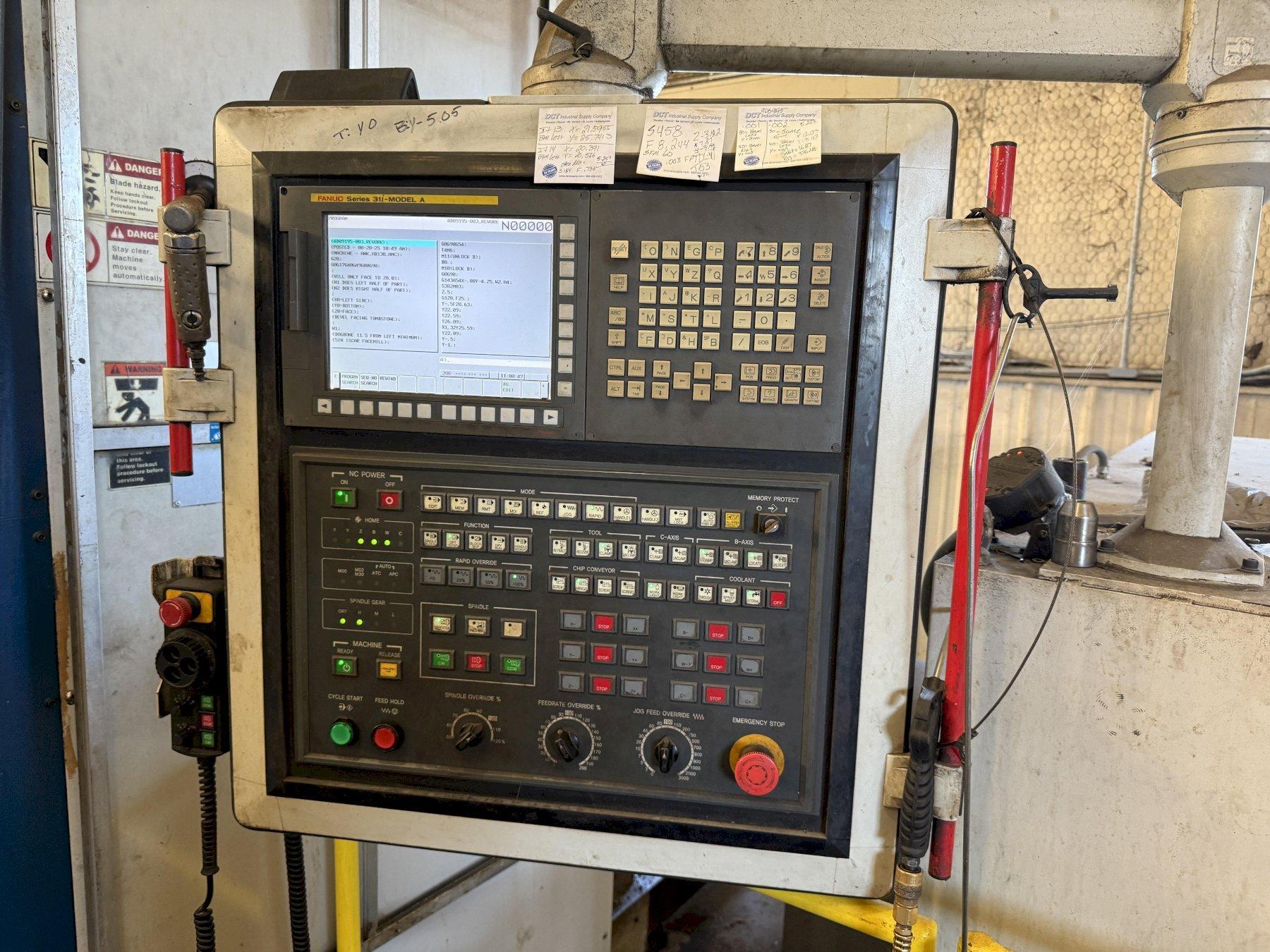

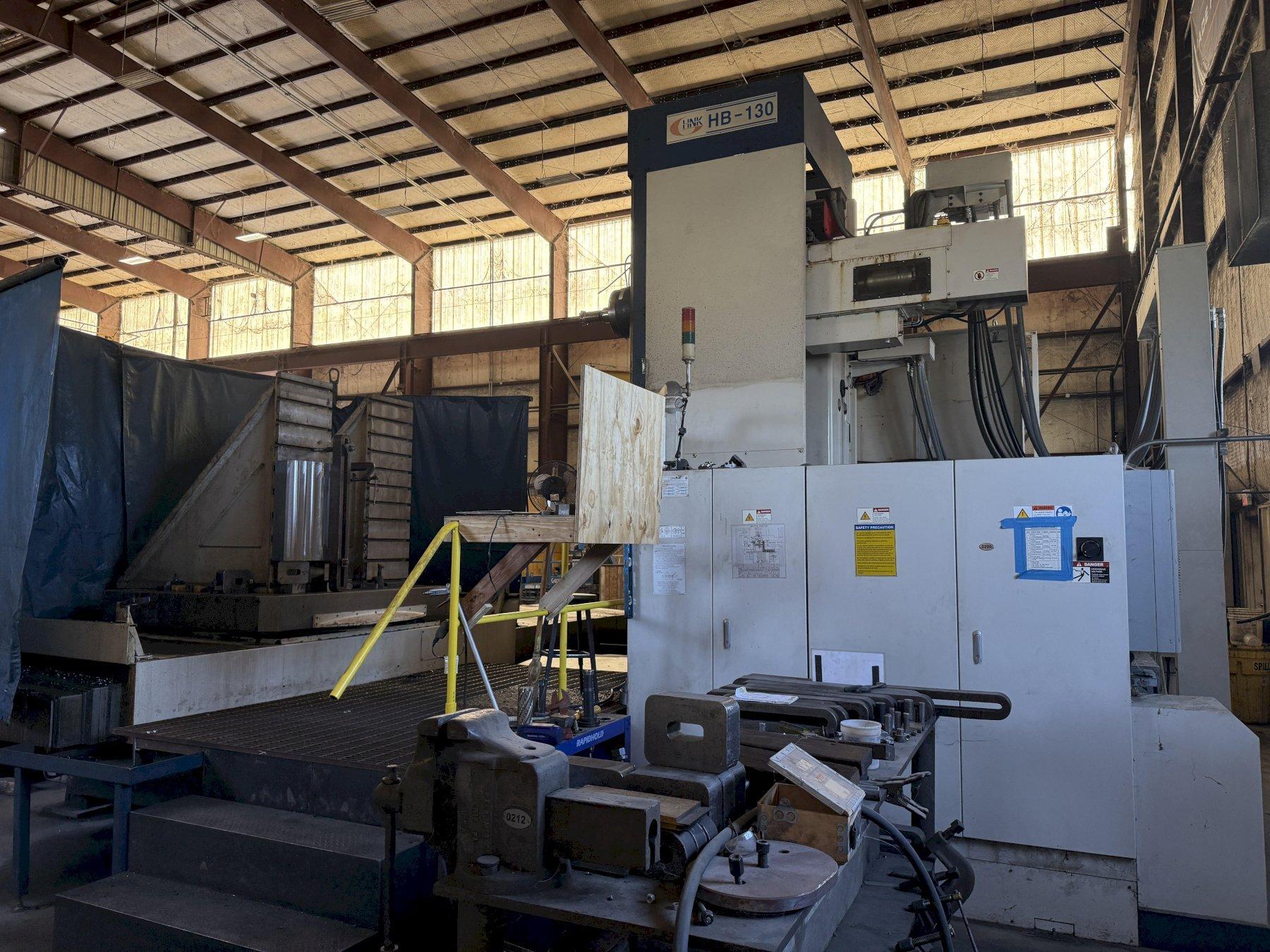

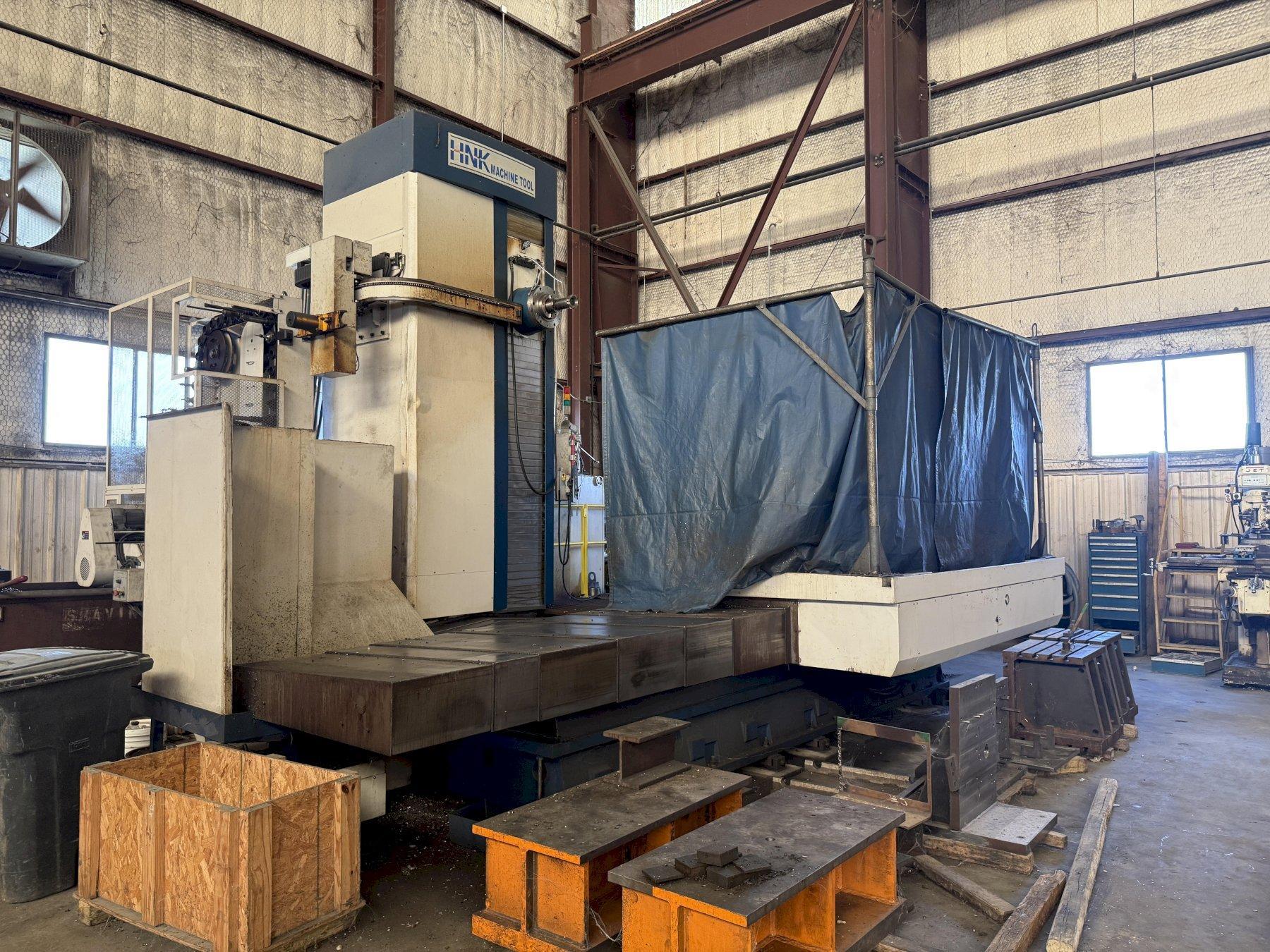

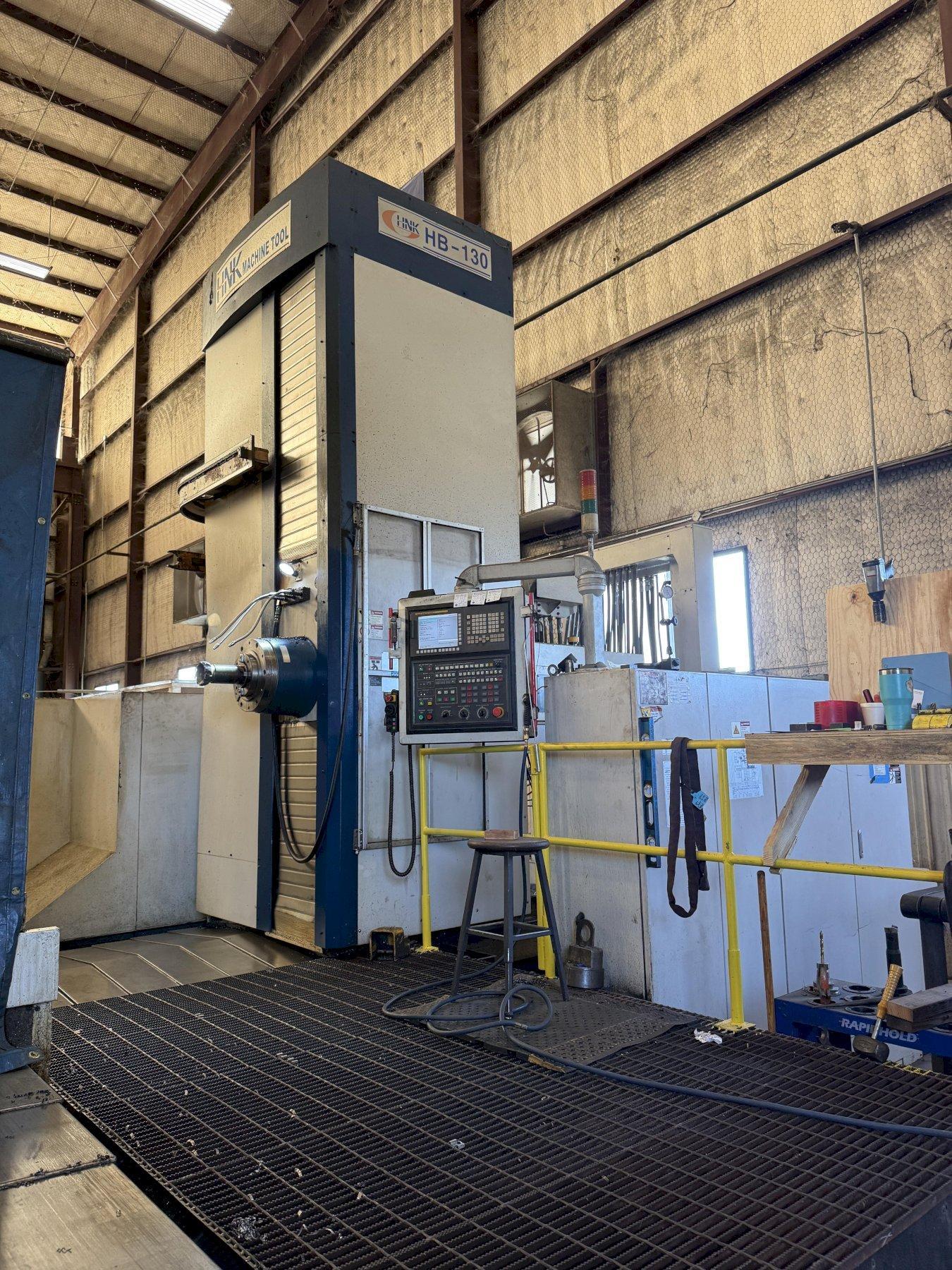

5.1" HNK CNC HORIZONTAL BORING MILL, HBM, BUILT IN ROTARY, 120" CROSS, 90" Y, FANUC 31i, 2014/2016
Brand
HNK
Model
HB-130
Type
Boring Mills, Horizontal, Table Type, CNC
Stock #
20830
Condition
Not specified
Year
2014
Location
Houston, Texas
United States
Specifications
Equipped With
BORING SPINDLE DIAMETER: 5.1"
STROKE:
X AXIS: 118"
Y AXIS: 90"
Z AXIS: 63"
W AXIS: 27.5"
DISTANCE FROM TABLE CENTER TO SPINDLE NOSE: 29.5 - 92.5"
DISTANCE FROM SPINDLE CENTER TO TABLE SURFACE: 0 - 90.5

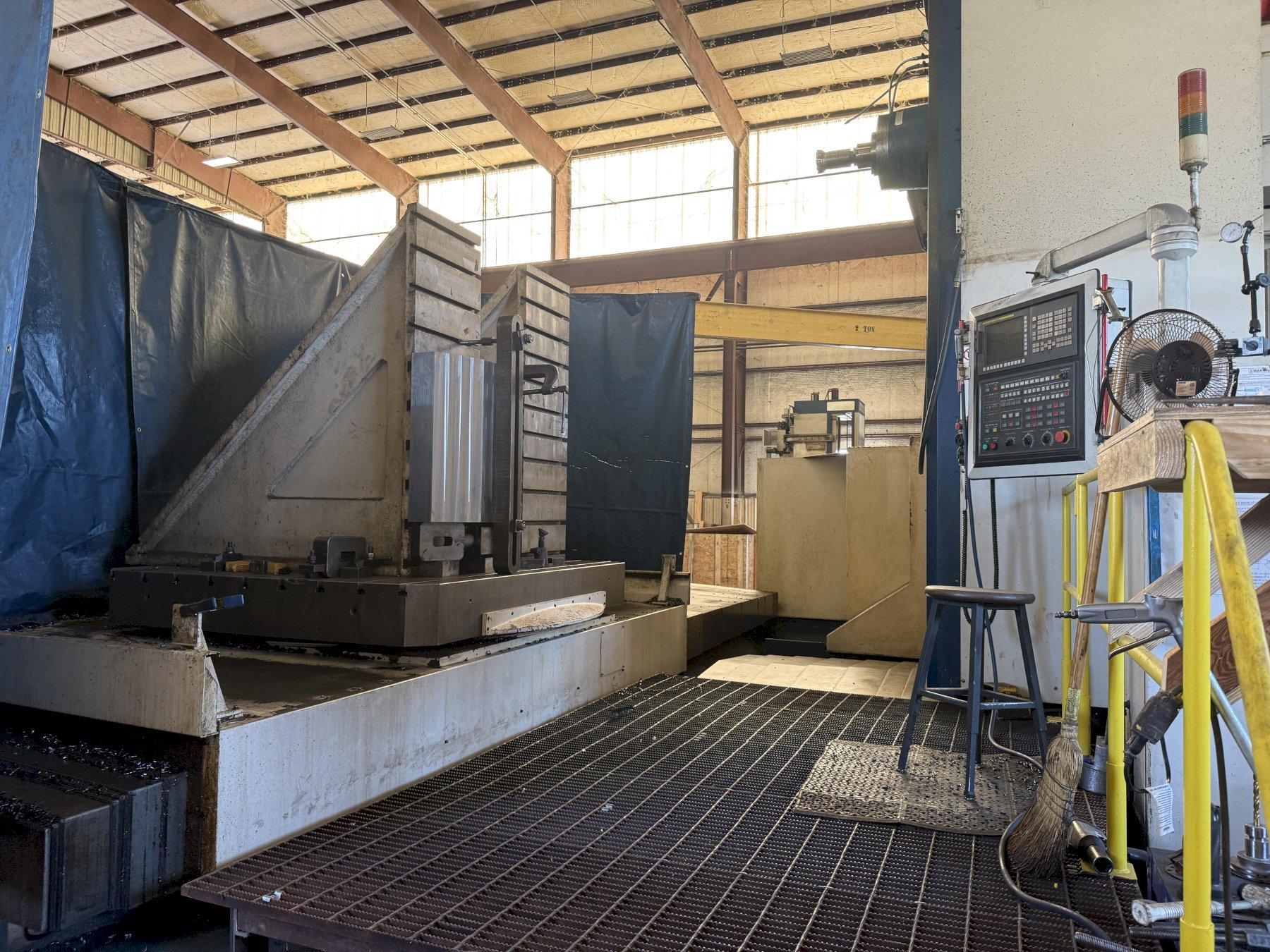

TABLE:
ROTARY TABLE SIZE: 63" X 70"
TABLE INDEXING: .001 DEGREE (SHOT PIN EVERY 90 DEGREE)
MAX LOAD ON ROTARY TABLE: 33,000 LBS.

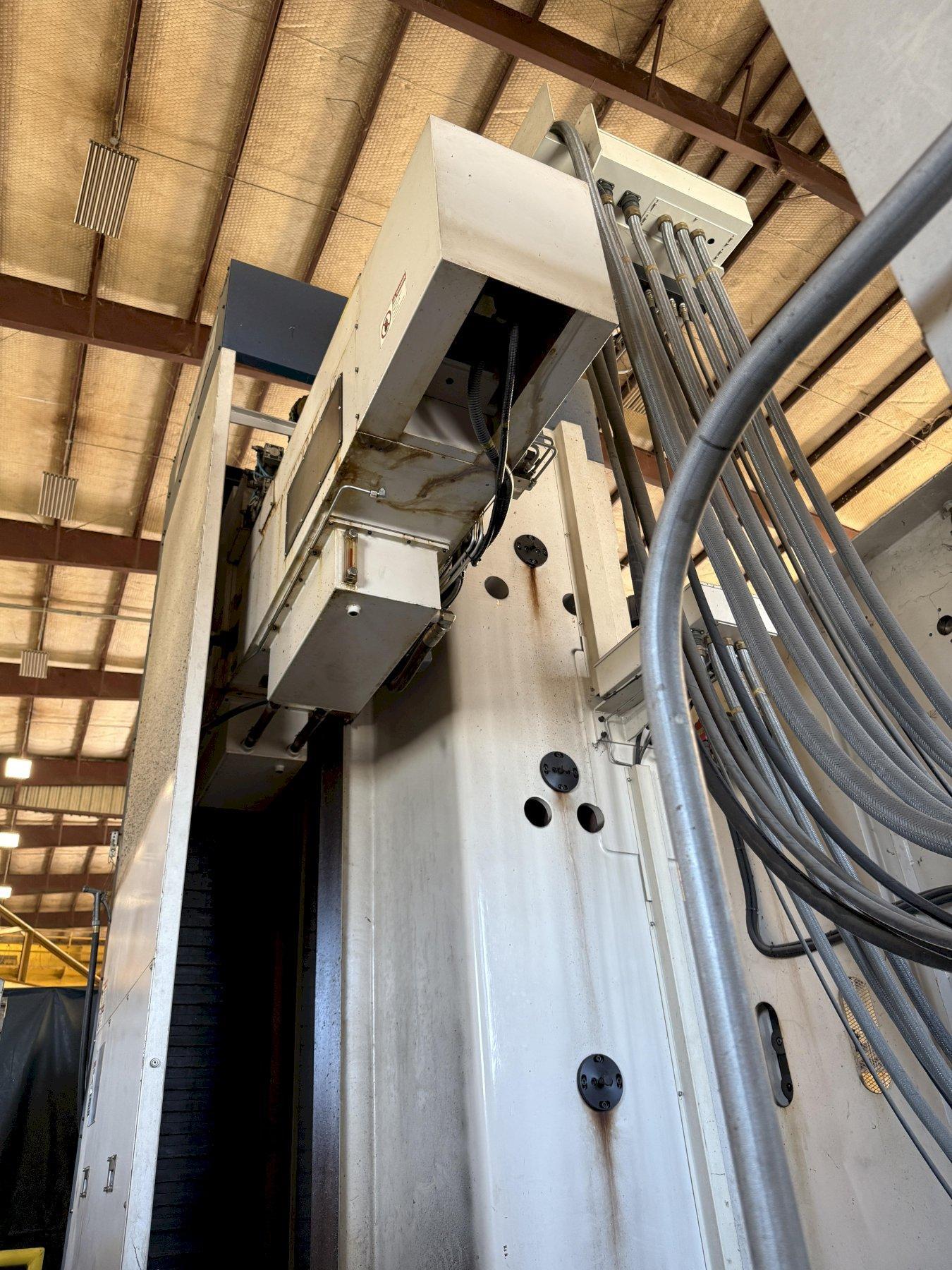

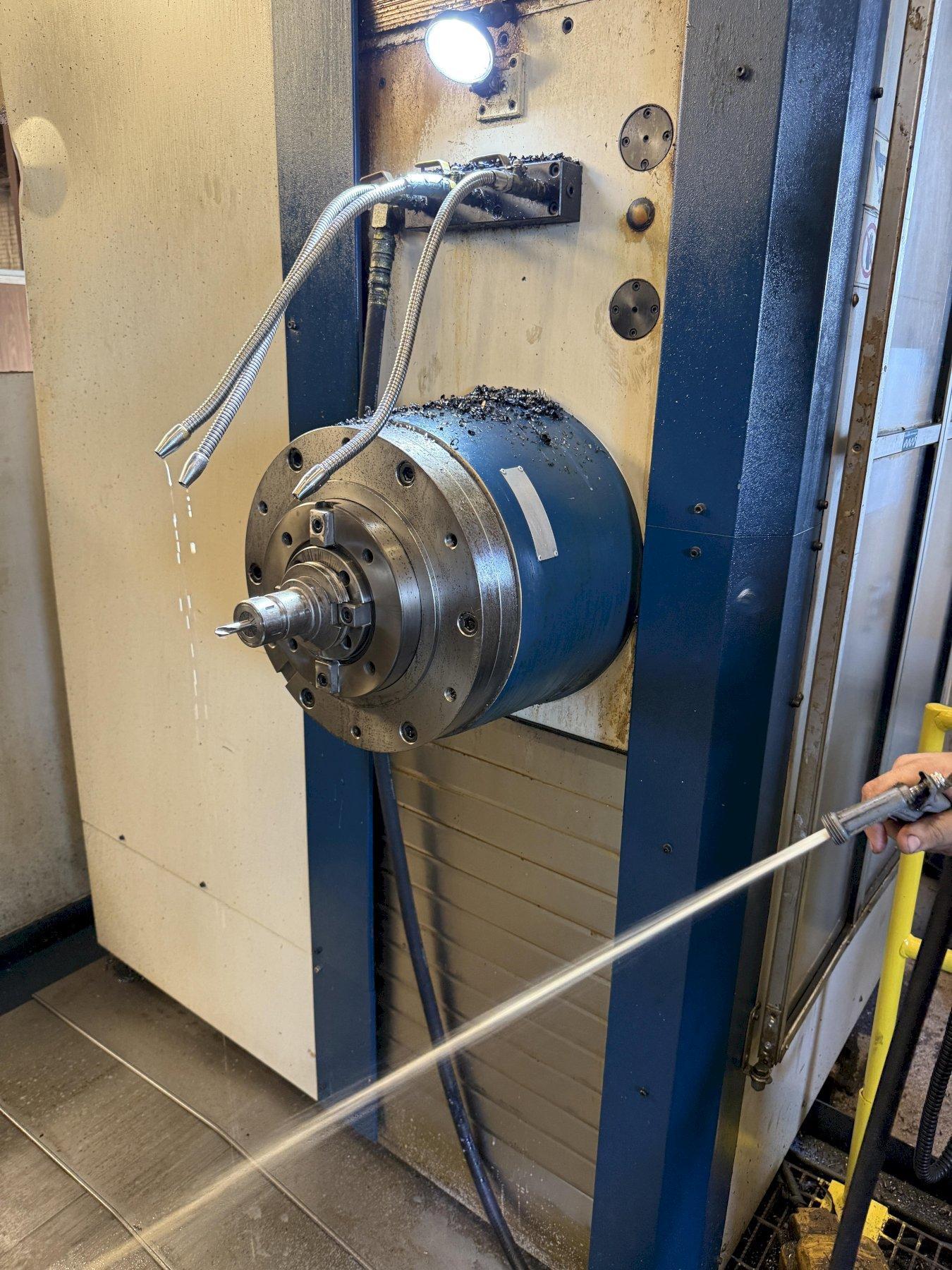

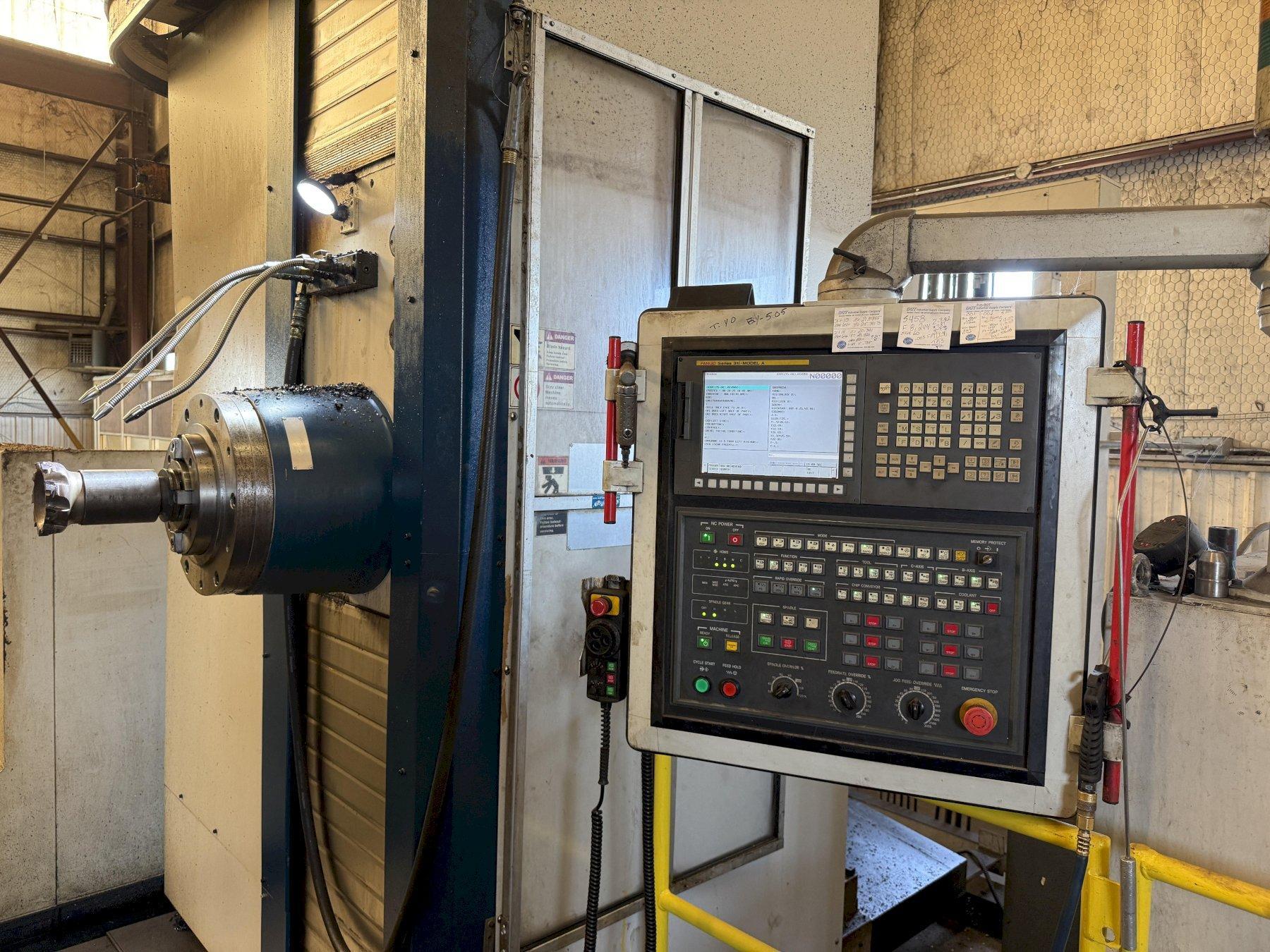

SPINDLE HEAD:
SPINDLE DIAMETER: 5.1"
SPINDLE SPEED: 5 - 2500 (3 RANGES)
SPINDLE TAPER: ISO 50
SPINDLE POWER: 35 HP

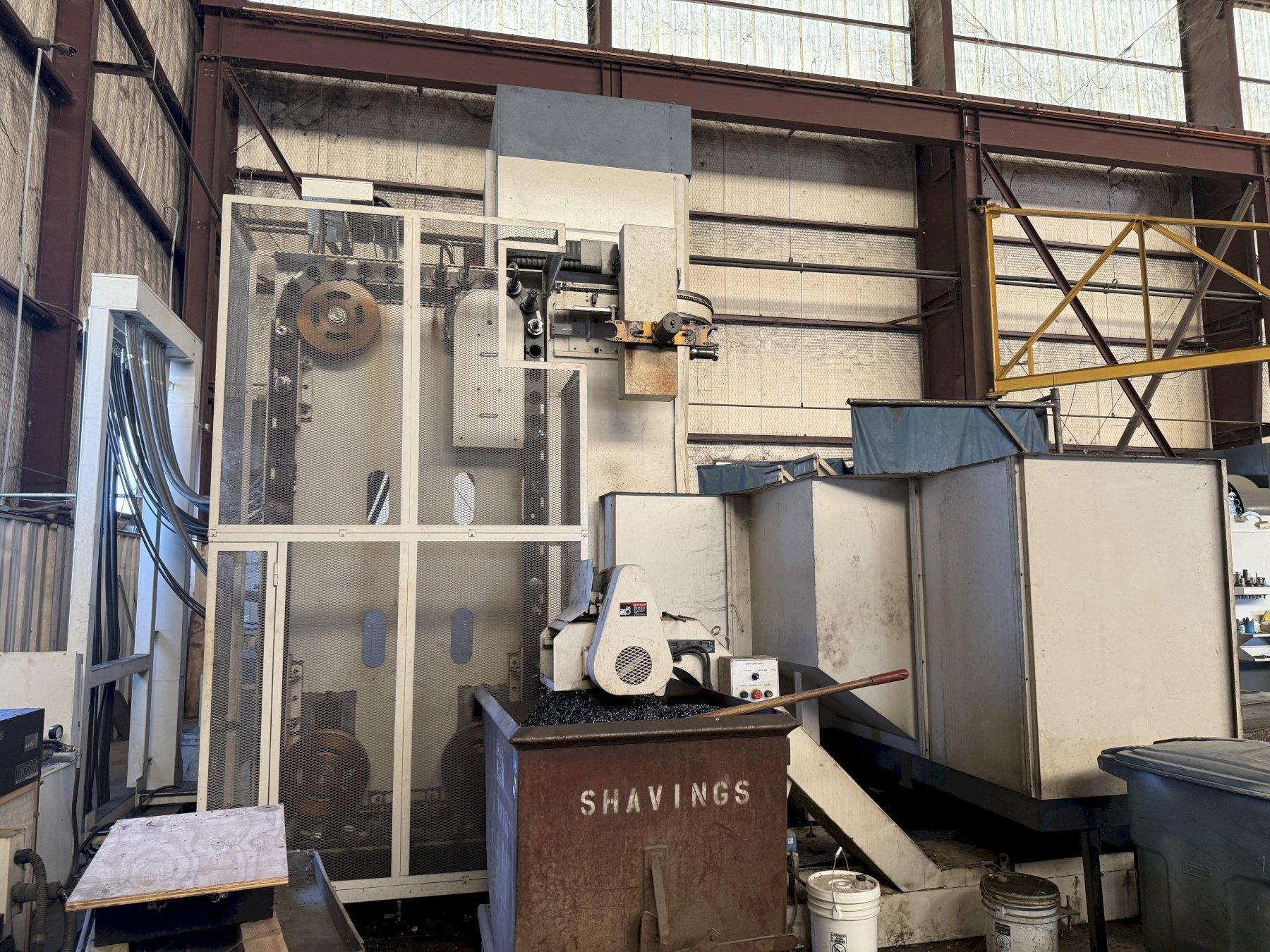

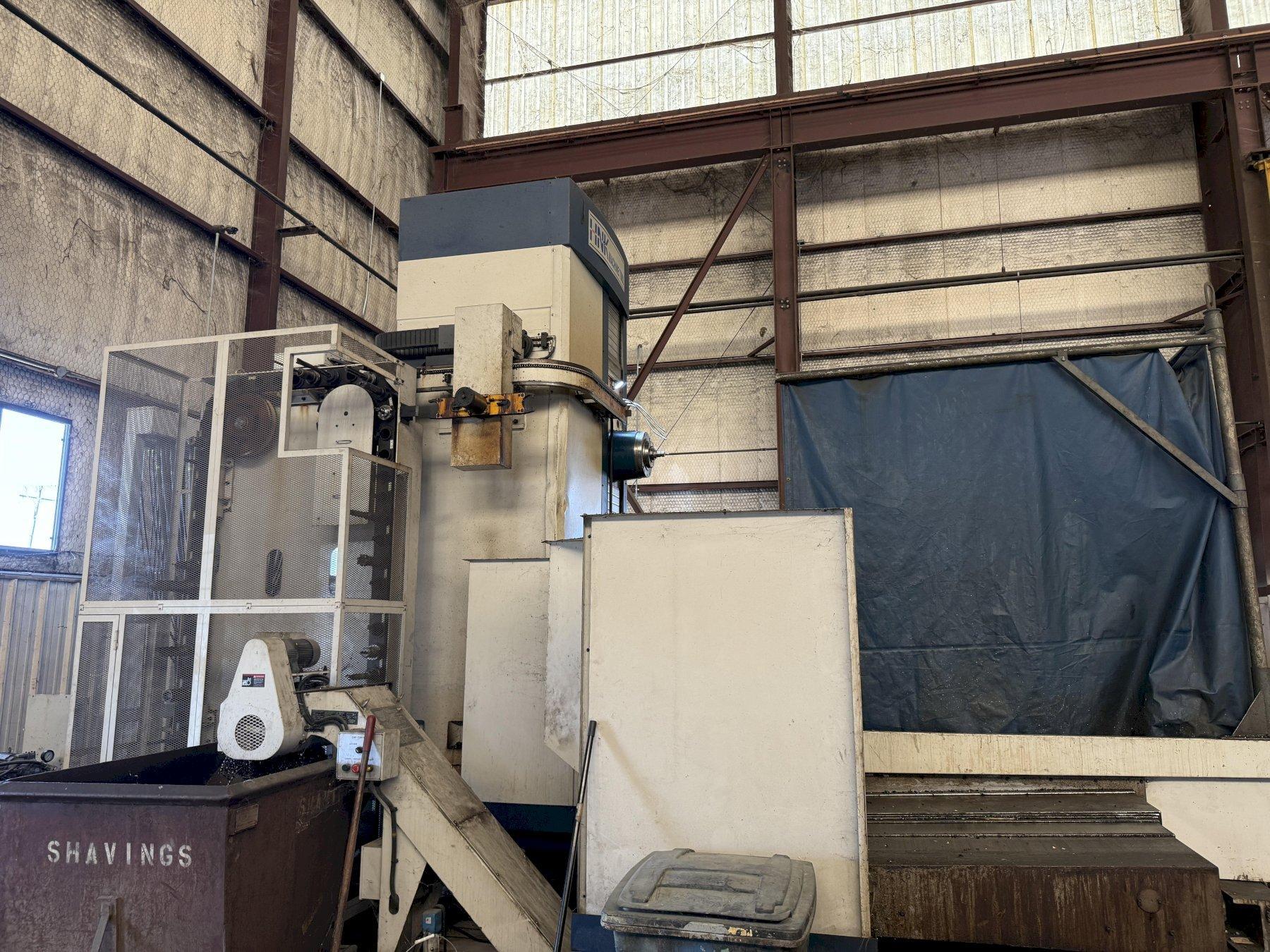

AUTOMATIC TOOL CHANGER:
POSITIONS: 60
MAX TOOL WEIGHT: 55 LBS.
MAX TOOL LENGTH IN CAROUSEL: 16"
MACHINE DIMENSIONS: 285" X 307" X 197" HIGH
MACHINE WEIGHT: 96,000 LBS.
EQUIPPED WITH:

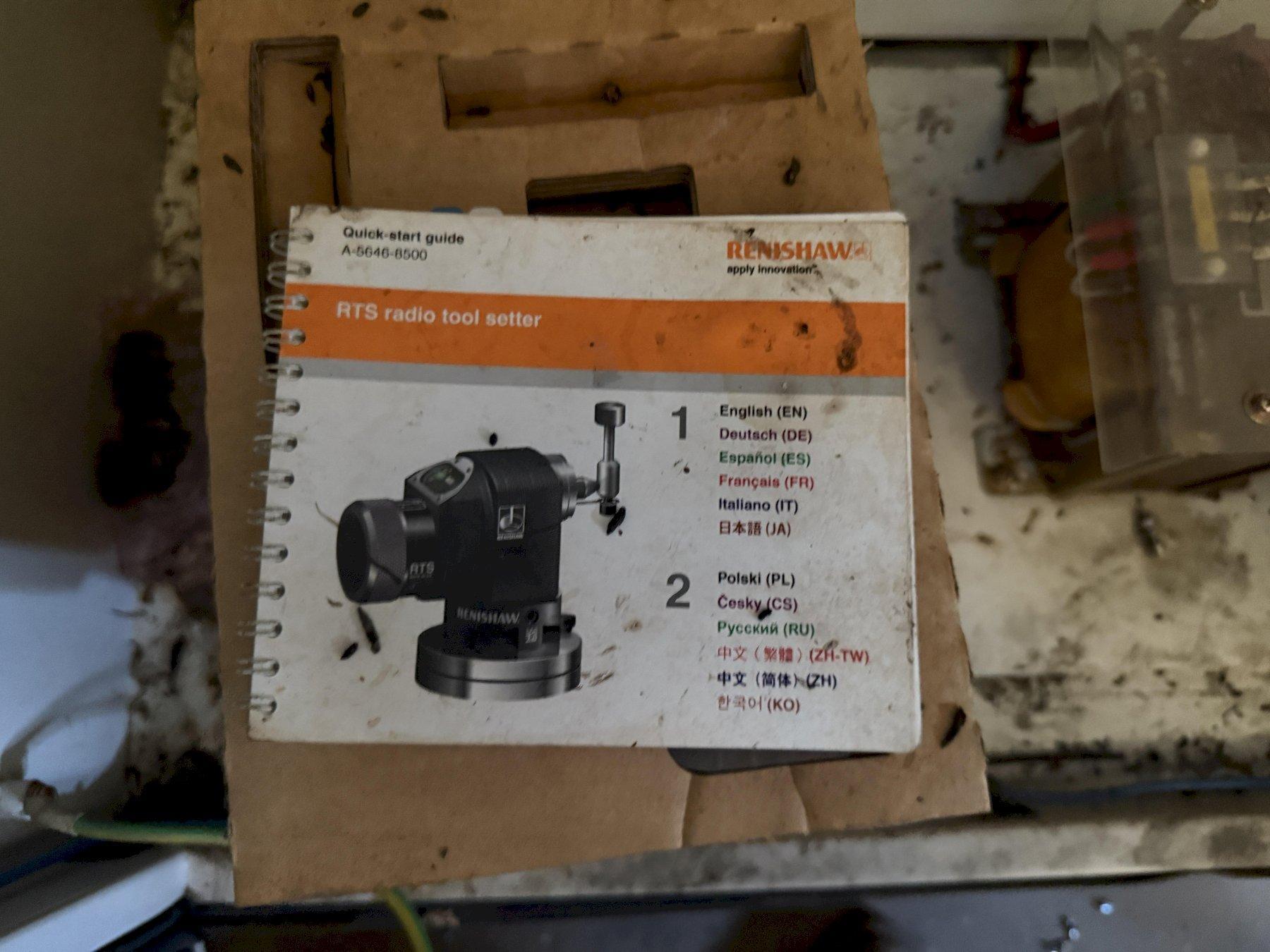

RENISHAW TOOL TOUCH PROBE
RENISHAW PART PROBE

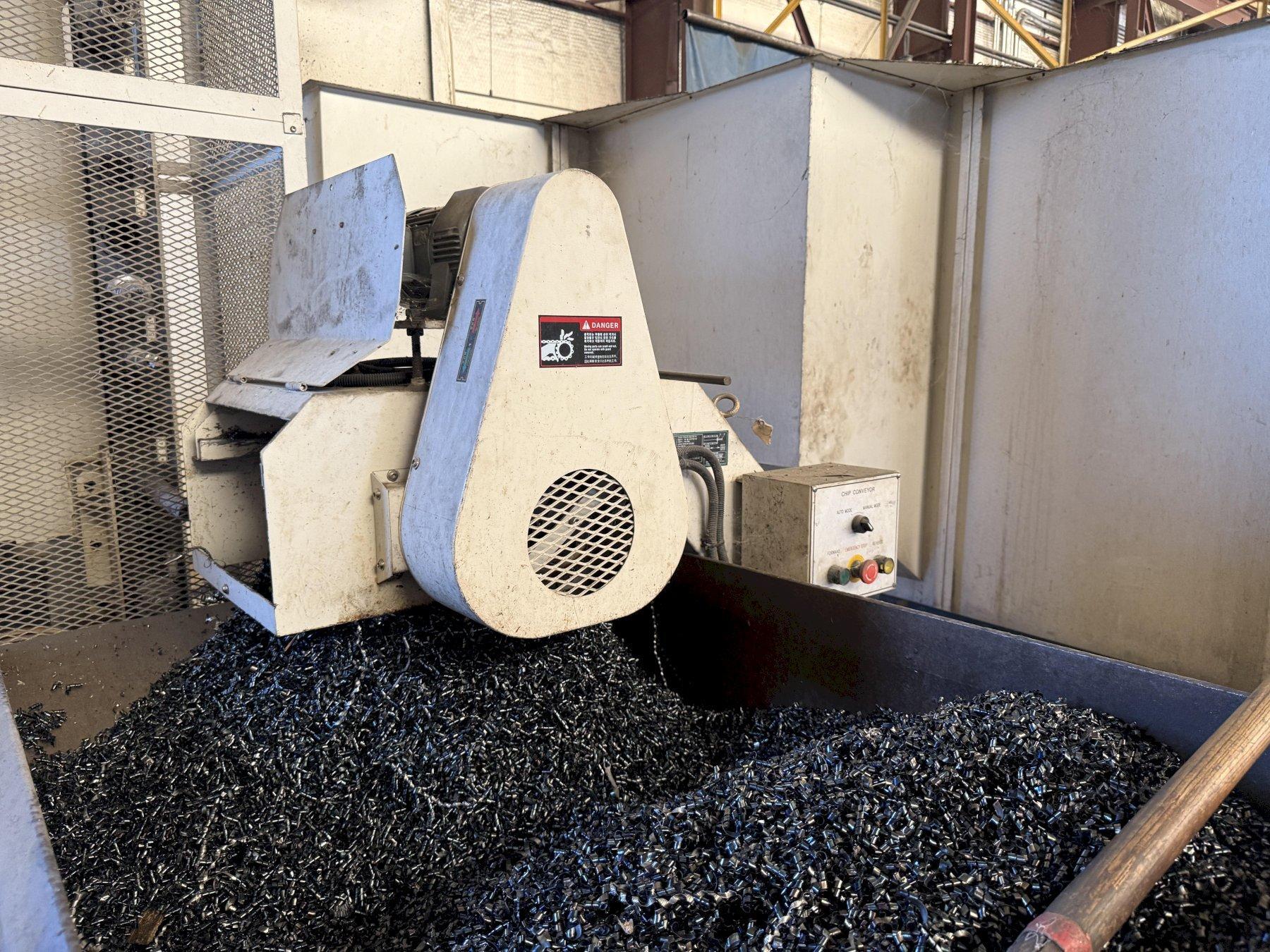

CHIP CONVEYOR

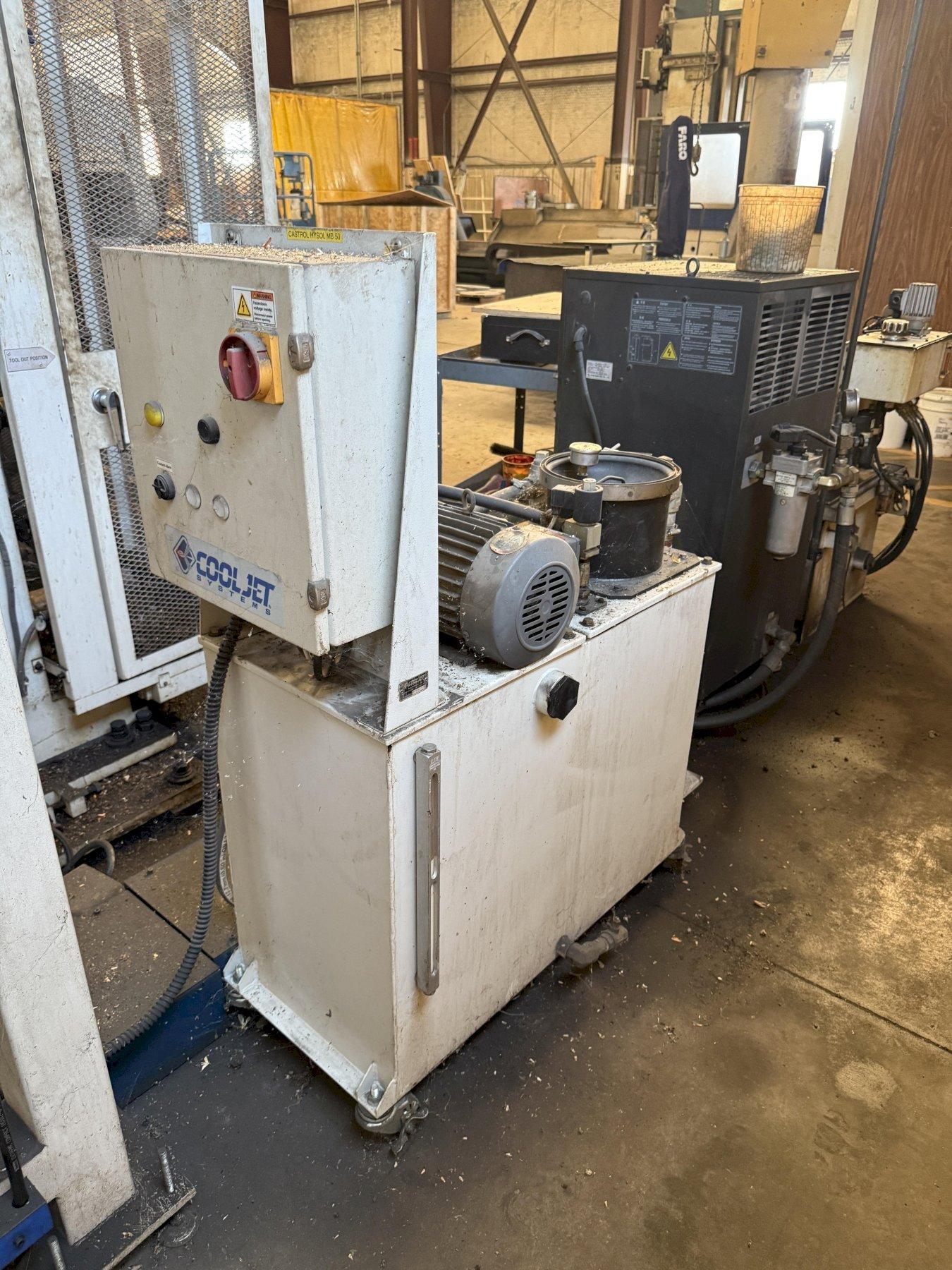

COOLANT THROUGH THE SPINDLE
TABLE GUARDS (CURRENTLY NOT INSTALLED)

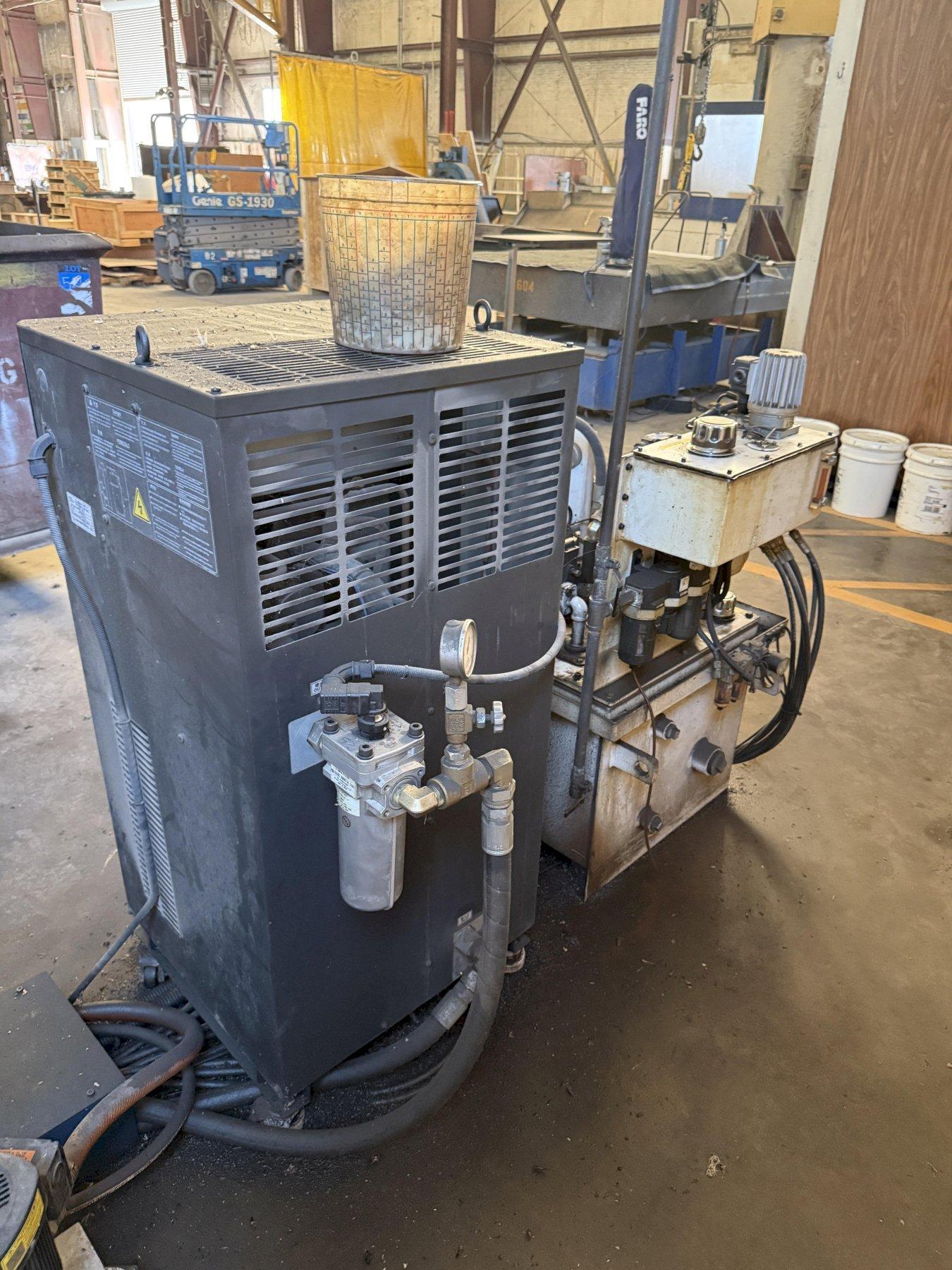

SPINDLE OIL CHILLER
HEIDENHAIN SCALES
