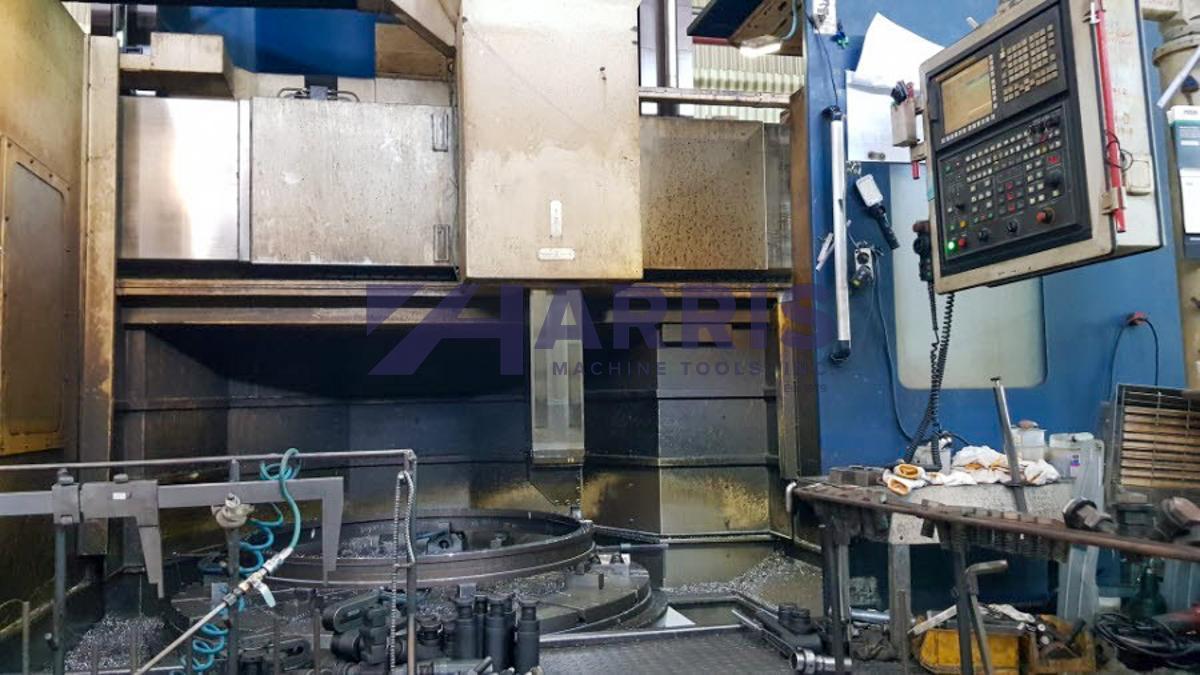

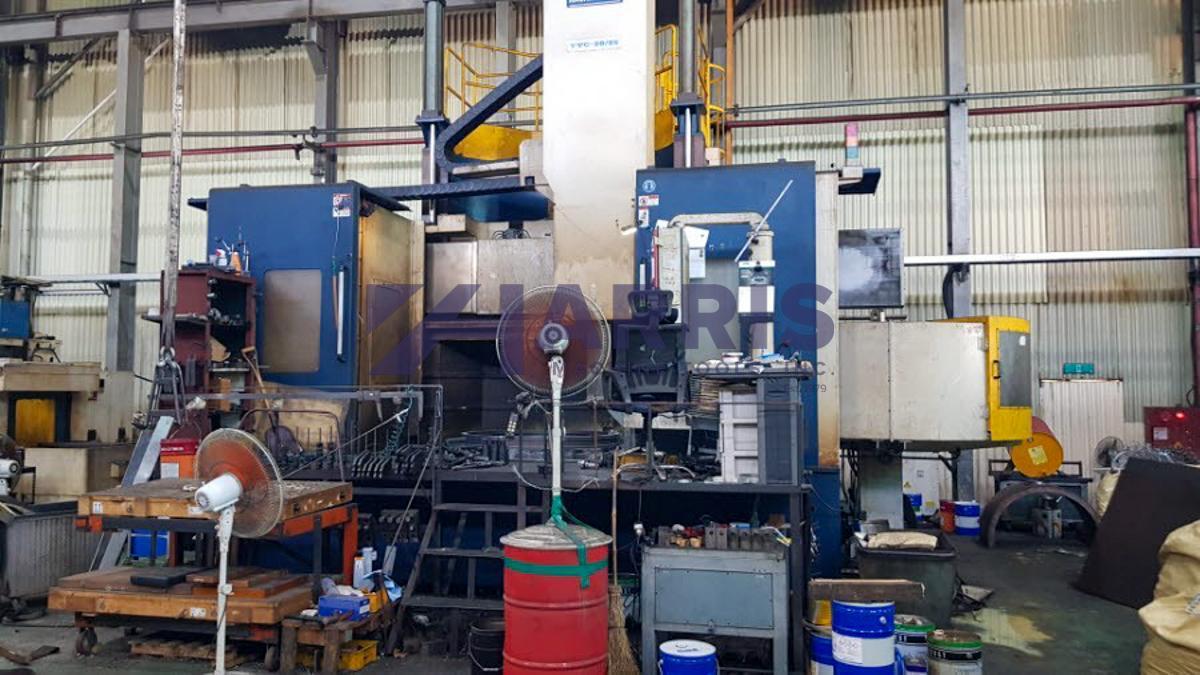

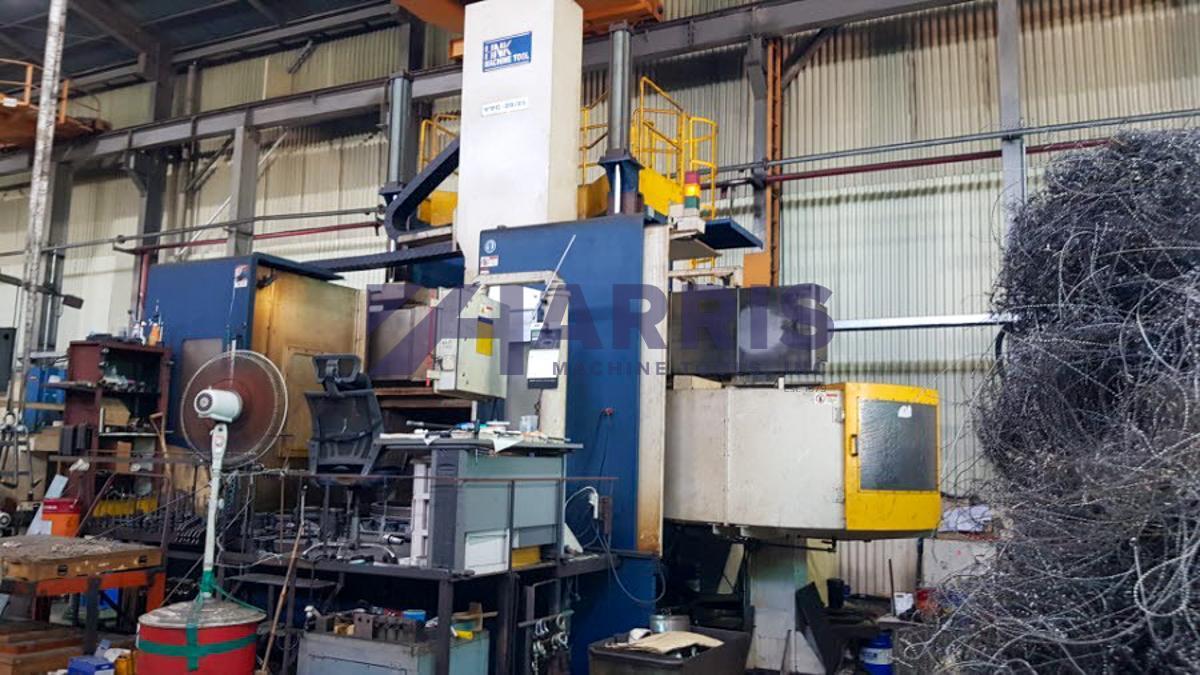

78" HNK HIGH COLUMN CNC VERTICAL BORING MILL WITH 78" TURNING HEIGHT, LIVE MILLING, FANUC 32i, 2014
Brand
HNK
Model
VTC-20/25
Type
Lathes, Vertical, CNC
Stock #
20770
Condition
Not specified
Year
2014
Location
Houston, Texas
United States
Specifications
| Table Dia | 78.7 inches |
| Work Ht-U/R | 78.7 inches |
| Max Swing | 98.4 inches |
| Table Speed | 1-200 RPM |
| Max Milling Spindle Speed (RPM) | 3000 |
| Table Capacity | 12 tons |
| X Axis Travel | -7.87" - 84.6" |
| Z Axis Travel | 39.37" |
| W Axis Travel | 29.52 |
Equipped With
Table dia : 78.7”
Max swing : 98.4”
Max cutting height : 78.7”
Load capacity on table : 12 ton
Ram size : 9.44” x 9.44”
X-Axis Travel : -7.87”~ 84.6”
Z-Axis Travel: 39.37
W-Axis Travel: 29.52”
Table speed : 1-200 rpm
Milling spindle speed : 3000 rpm
ATC: (12 for turning, 12 for milling)

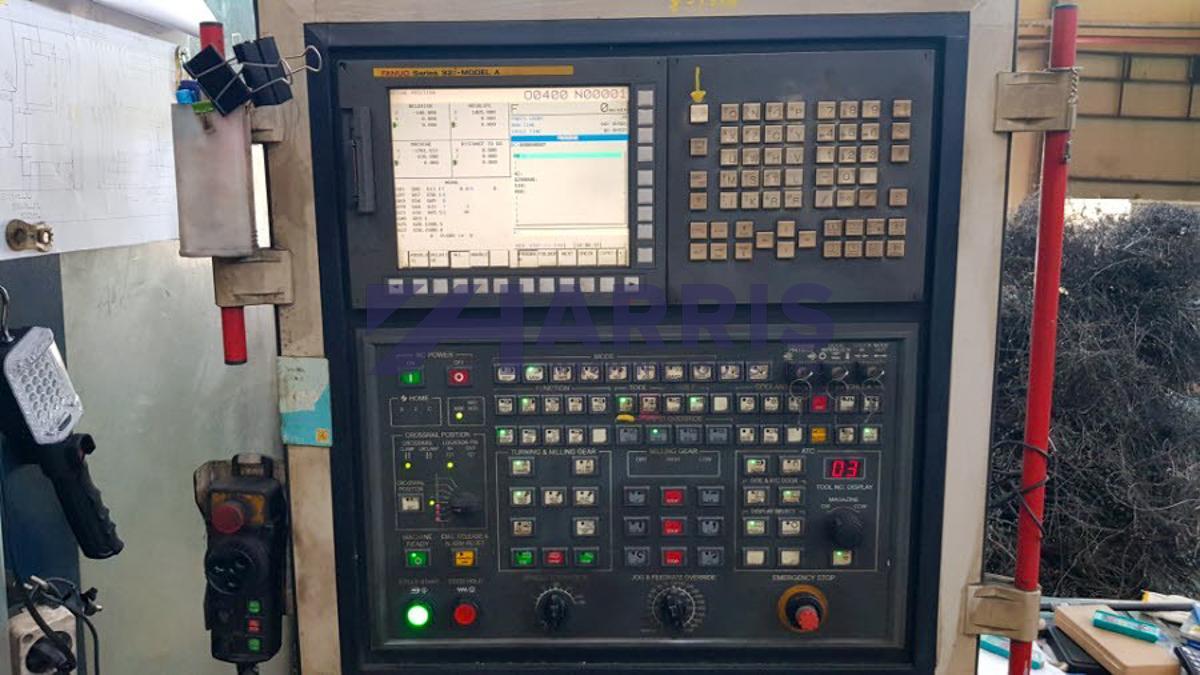

Fanuc 32iA controller
Spindle thru coolant

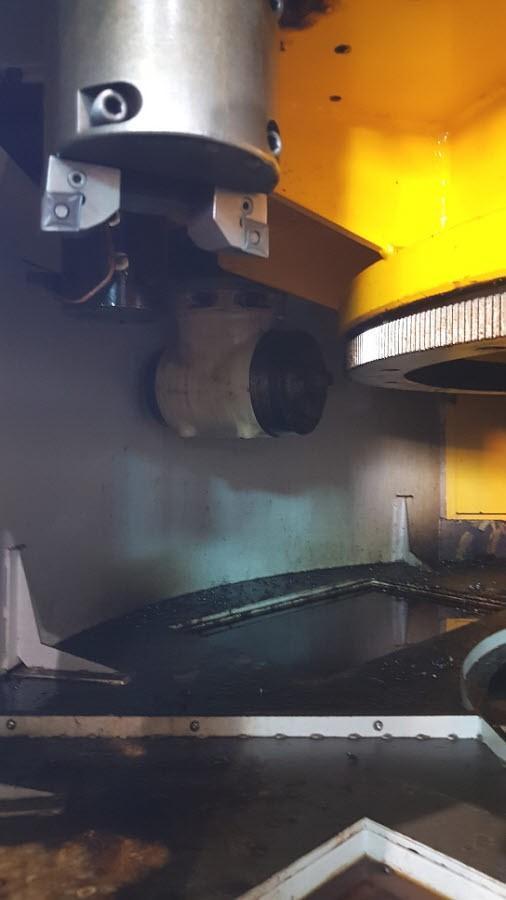

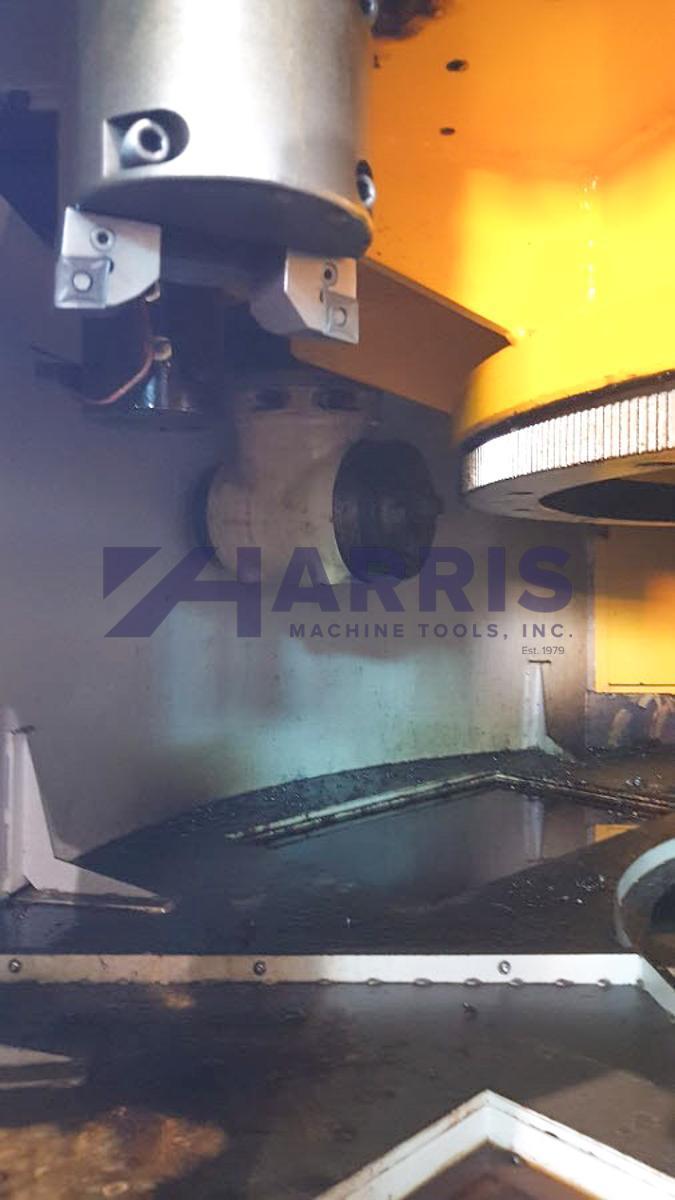

Angle head
Chip conveyor
EQUIPPED WITH:
Fanuc 31iA CNC Controls

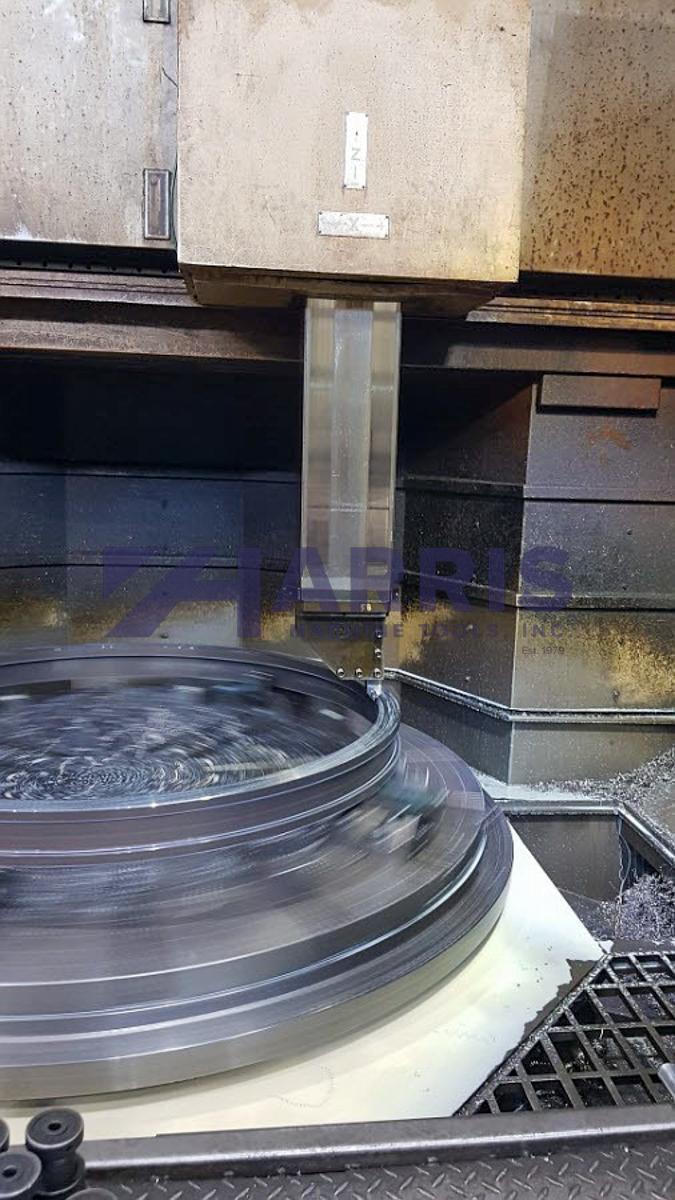

78.74" Face Plate Chuck With 4-Jaws
24-Station Automatic Tool Changer
C-Axis Table
Live Milling Spindle
Through Spindle Coolant
Scales on X,Z & C Axis
Full Chip and Splash Enclosure
Chip Conveyor
