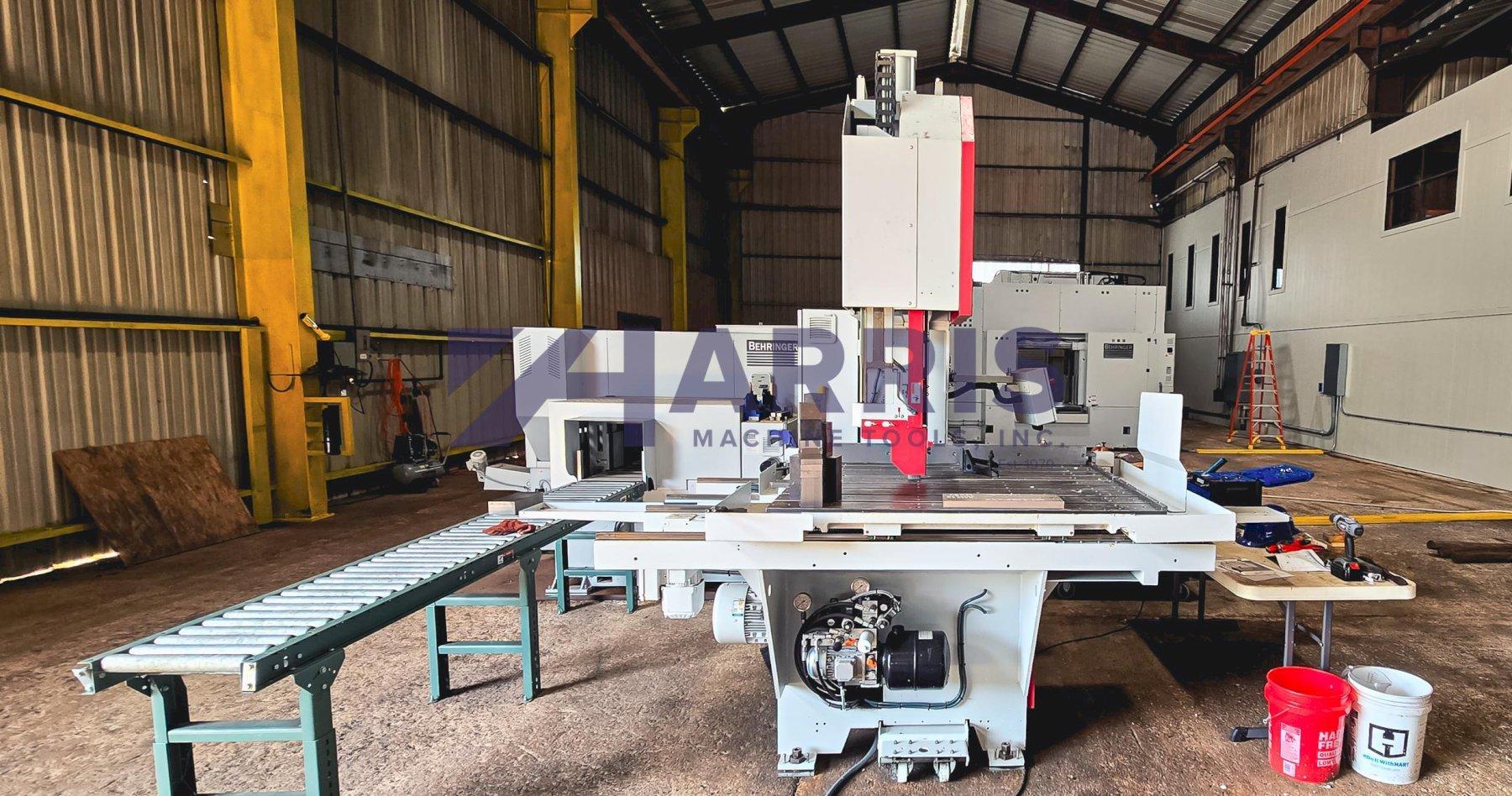

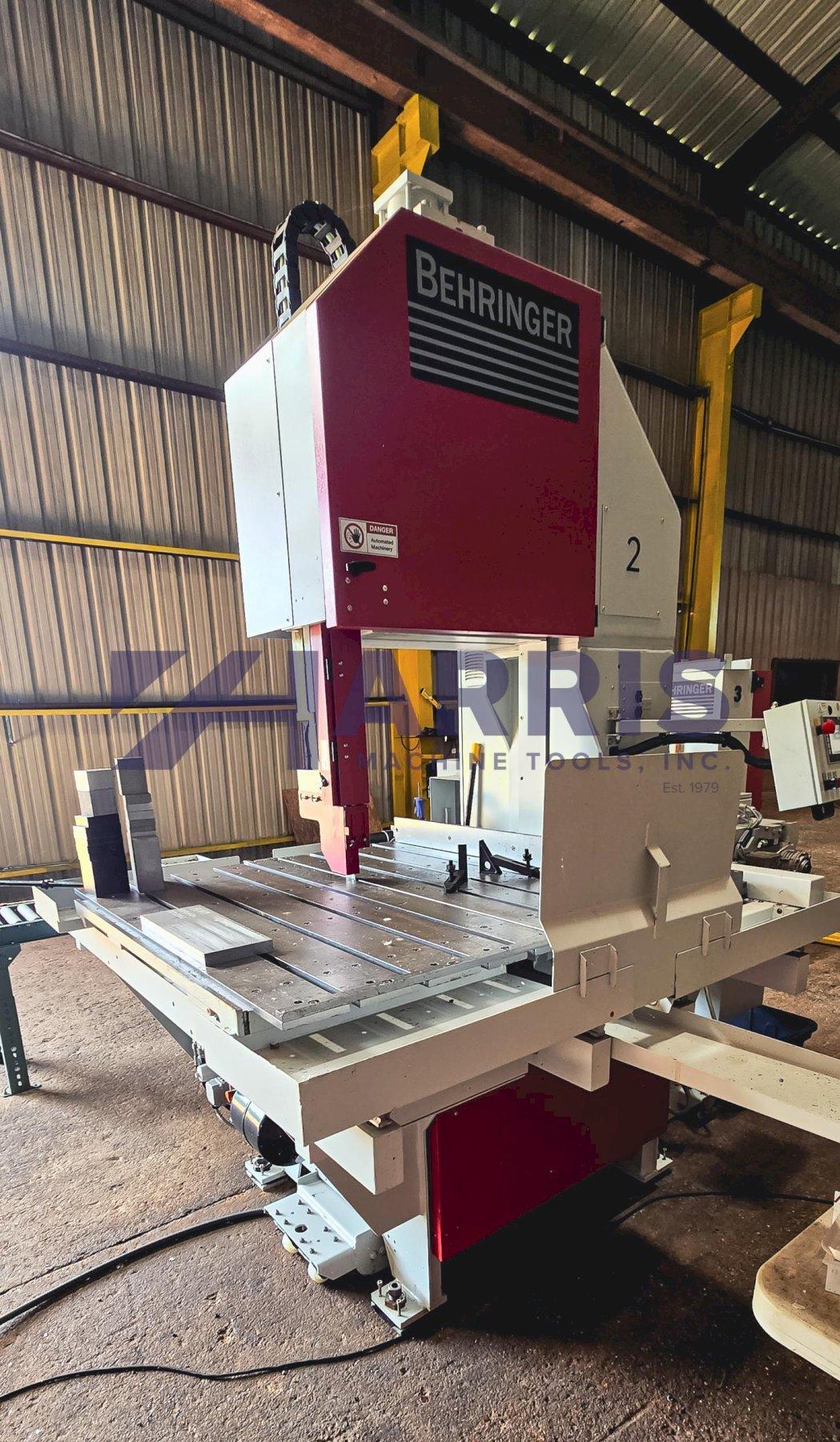

BEHRINGER Table Band Saw LPS-T, Low Hours
Brand
BEHRINGER
Model
LPS-T
Type
Saws, Bandsaws
Stock #
20860
Condition
Like New
Year
2022
Location
Houston, Texas
United States
Specifications
| Power | 8 HP |
| Blade Width | 1.5" |
| Blade Length | 18' 10" |
| Blade Thickness | .050 inches |
| Dimensions | 114.17" L x 108.26" W x 122.8" H |
| Weight | 7054.8 pounds |
| Max Cutting Length | 50 inches |
| Rect-Cap (H) | 24.49 inches |
| Rect-Cap (W) | 23.62 inches |
| Min Cutting Width | 0.2 inches |
| Min Cutting Height | 0.4 inches |
| Blade Speed | Adjustable 49 - 492 ft/min |
| Table Size | 49.6" x 25.2" Supporting Area Inside Table |
| Max Weight of Workpiece | 4409.24 pounds |
| Machine Hours | 26 Hours as of 5/2/2025 |
Equipped With
Cutting Capacity Length: 1,270 mm - 50 inches
Cutting Capacity Rectangle: 620 x 600 mm - 24.49 x 23.62inches
Minimum: Cutting Width: 10 mm - .3937 inches
Minimum: Height: 10 mm - .3937inches
Saw Blade Dimension: 5,730x 54 x 1.6 mm or 18' 10" X 1-1/2" X .050"
Saw Drive: 7,5 kW
Total Power: 9,5 kW
Electric Equipment:
Machine Width: 2,750 mm-108.26inches
Machine Height: 3,120 mm -122.8 inches
Weight: approx. 3,200 kg - 7,054. 79 pounds
Max. weight of workpiece: 2,000 kg - 4409.24 pounds
Hydraulic
Quantity delivered: 40 I/min by lifting height 2.5 m
Hydraulic Guide Arm Adjustment:
Saw Band Tensioning:
Down Feed Control:
Cutting depth adjustment:
Material support:
*All specs are subject to buyer review.
Cutting Capacity Rectangle: 620 x 600 mm - 24.49 x 23.62inches
Minimum: Cutting Width: 10 mm - .3937 inches
Minimum: Height: 10 mm - .3937inches
Saw Blade Dimension: 5,730x 54 x 1.6 mm or 18' 10" X 1-1/2" X .050"
Saw Drive: 7,5 kW
Total Power: 9,5 kW
Electric Equipment:
- Voltage: 460 V ± 10 %, 60 Hz with neutral wire
- Control and valve voltage: 24 Volt DC
- PLC control and control terminal with LCD display Electrical
- cabinet fix mounted at the machine
- Operators control panel swivelling
Machine Width: 2,750 mm-108.26inches
Machine Height: 3,120 mm -122.8 inches
Weight: approx. 3,200 kg - 7,054. 79 pounds
Max. weight of workpiece: 2,000 kg - 4409.24 pounds
Coolant Container: hydraulic, electrically controlled
Coolant Pump: Capacity of the container: 100 L or 10.56 gallons
Hydraulic
Quantity delivered: 40 I/min by lifting height 2.5 m
Power: 115 W
Tank content approx. 181 or 4.75 gallons Power 0.
75 kW
Saw Frame:
Rigid, torsion-resistant and low-vibration saw frame of C-construction.
Saw Band Wheels:
2 saw band wheels with wear resisting tread of wheels
Saw Band Guides:
Blade guiding by double roller bearings and hydraulic tensioned carbide guides. Both saw band guides are fixed.
Hydraulic Guide Arm Adjustment:
Hydraulic adjustment of the upper guide arm, controlled by buttons on the operator's panel to reduce the distance to the material.
Saw Band Tensioning:
Hydraulic blade tensioning, and automatic tension relief when machine is stopped. Automatic shutdown in case of blade breakage and electronic control of minimum speed of rotation.
Saw Band Drive:
Speed of saw blade is adjusted and displayed on operators control panel.
Down Feed Control:
The saw downfeed is performed electronically controlled via ball screw. This results in a constant chip load and short non-productive times. The BEHRINGER cutting pressure control system increases the cutting performance when cutting pipes and profiles, as it automatically adjusts the saw feed to the changing material cross sections. By arranging directly at the back of the saw blade, the system regulates responsive and precise.
Cutting depth adjustment:
Cutting depth pre-selection in the operators control panel.
Saw Blade Cleaning with BEHRINGER Quick-Change Device:
Machine base:
Electric control:
Saw band change:
After opening of the doors, the change of the saw can be made easily, without any assistance, by one person. Time for the change is approx. 2 minutes.
Saw Blade Cleaning with BEHRINGER Quick-Change Device:
Band saw blade cleaning by a rotating chip brush with electric drive. The cleaning performance is synchronously adjusted to the cutting speed. By the special angle of engagement, the teeth of the saw blade are protected. With the standard quick-change device, the chip brush can be easily changed, without tools in very short time.
Precision of cut:
Given perfect conditions and tools, deviation in cuts is, for steels with normal cutting difficulty, within 0, 1 mm per 100 of cutting height, which corresponds, for example, to the straightness and evenness specifications given in DIN ISO 2768 Part 2-K over a nominal size of 30 mm.
Machine base:
Heavy duty non deforming machine tool table in box design with separate coolant container. The hydraulic oil container is flanged at the machine wall.

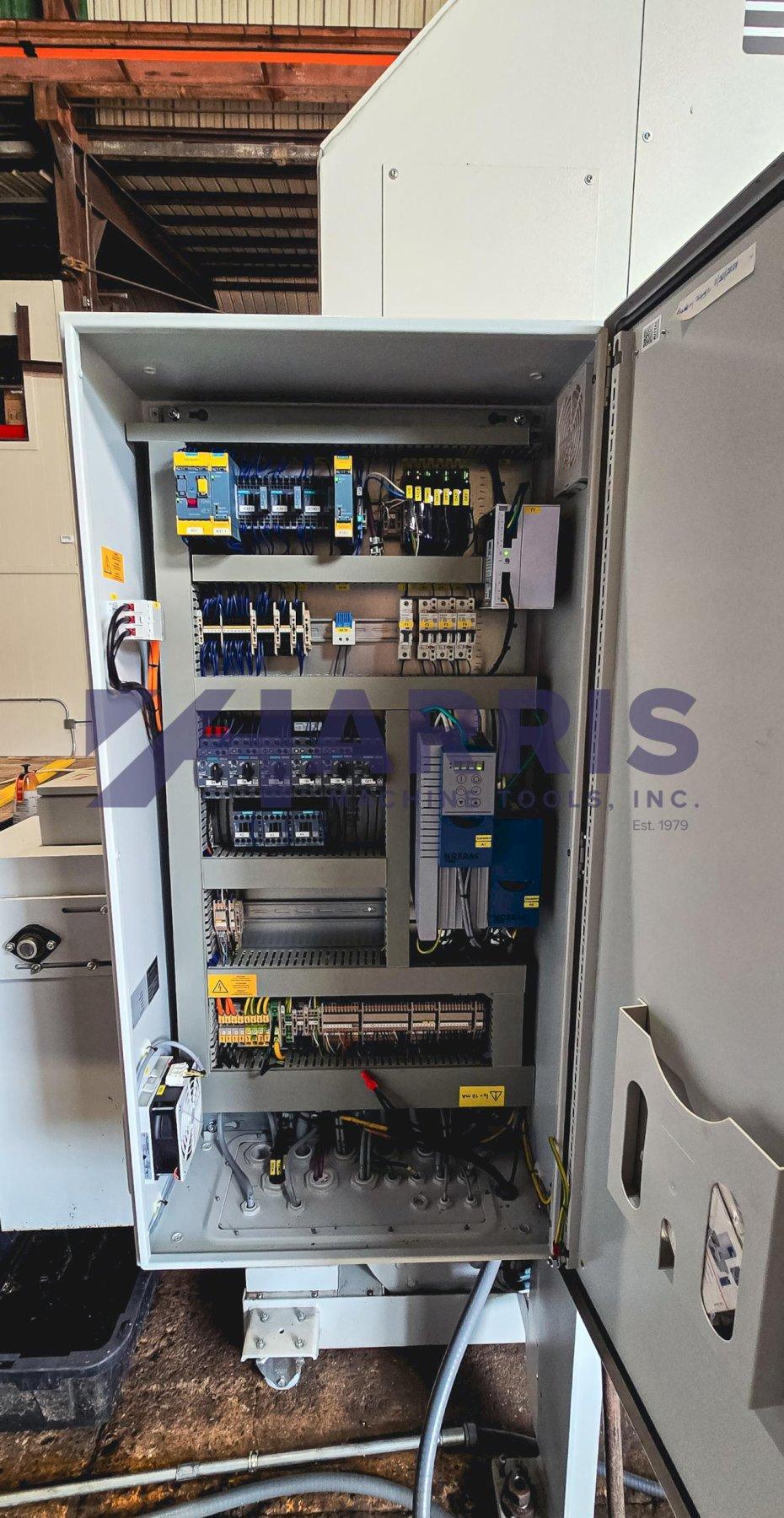

Electric control:
The control is placed in a control cabinet fix mounted. All control elements are arranged ergonomically on a swivelling control panel.
BEHRINGER BT65 Touch Panel with Auto-Feed Control:
The intuitive touch PLC with clear user interface will change working with the BEHRINGER bandsaws fundamentally. It provides at a glance information about the sawing parameters used - changing jobs and single cuts can be processed as efficiently.
Other features include:
The control includes a freely editable material database containing the most important technology parameters. The standard Auto-Feed-Control automatically adjusts the cutting rates to the cross section of the material.
The BT65 PLC with s.r QVGA display with resistive touch screen is designed to operate even with gloves.
Other features include:
- Operation commands and axis motions are easily given via joystick operation
- Online language selection
- Extensive, freely editable AFC technology database
- Fault / alarm history with detailed information in plain text
- Service page for troubleshooting
Swarf Disposal:
Through a standard swarf conveyor equipped with separate electric drive. Height of ejection: 700 mm.
Hydraulic Equipment:
The hydraulic unit is built in modular construction, thus ensuring minimum down time on routine maintenance. The hydraulic tank with motor-pumping set is mounted at the machine. The valves are in groups near the consumers in protected locations.
Cooling System:
The coolant is supplied over a nozzle to the cutting point. The container for coolant is integrated in the swart conveyor. It is removable for the sanitation of the coolant.

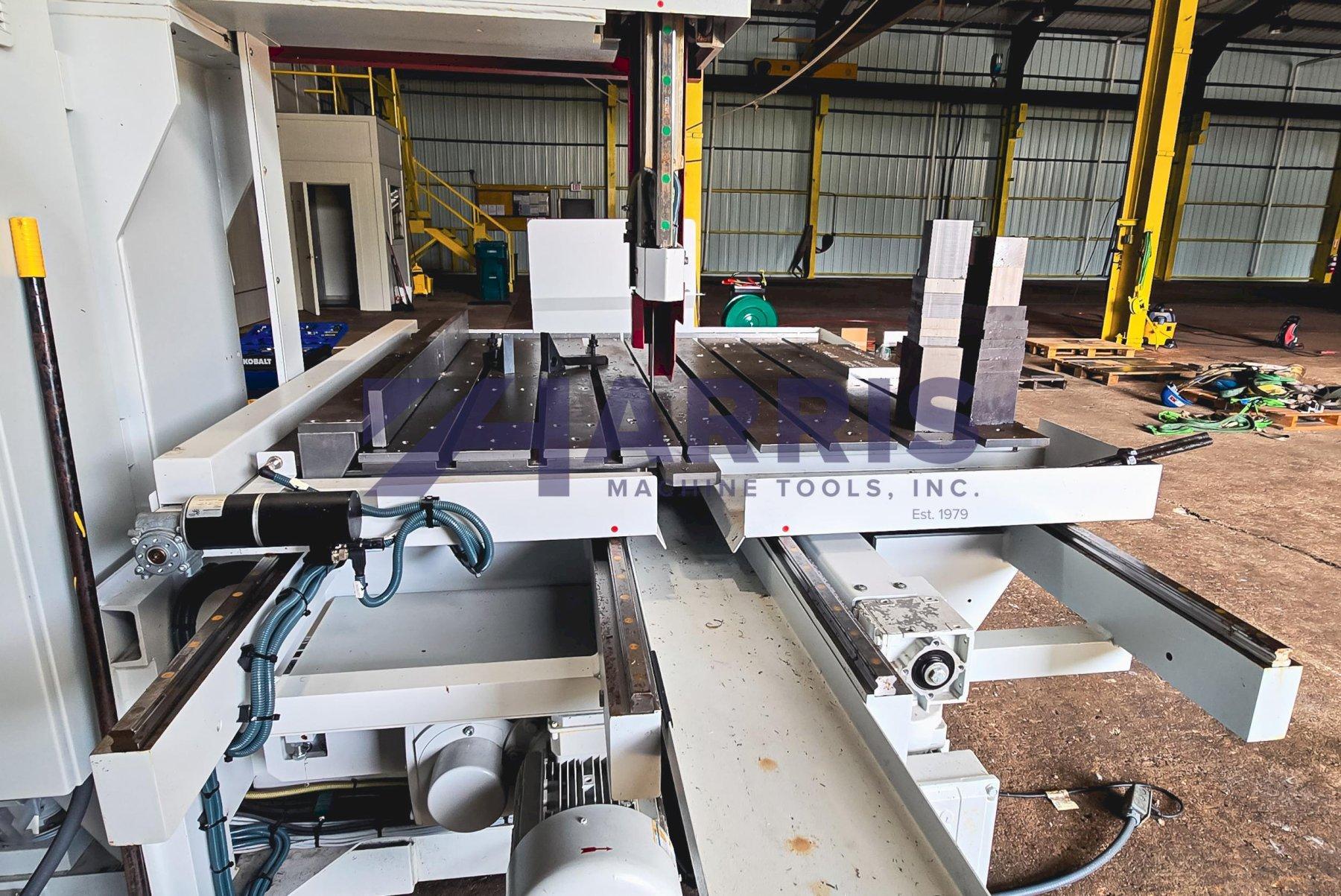

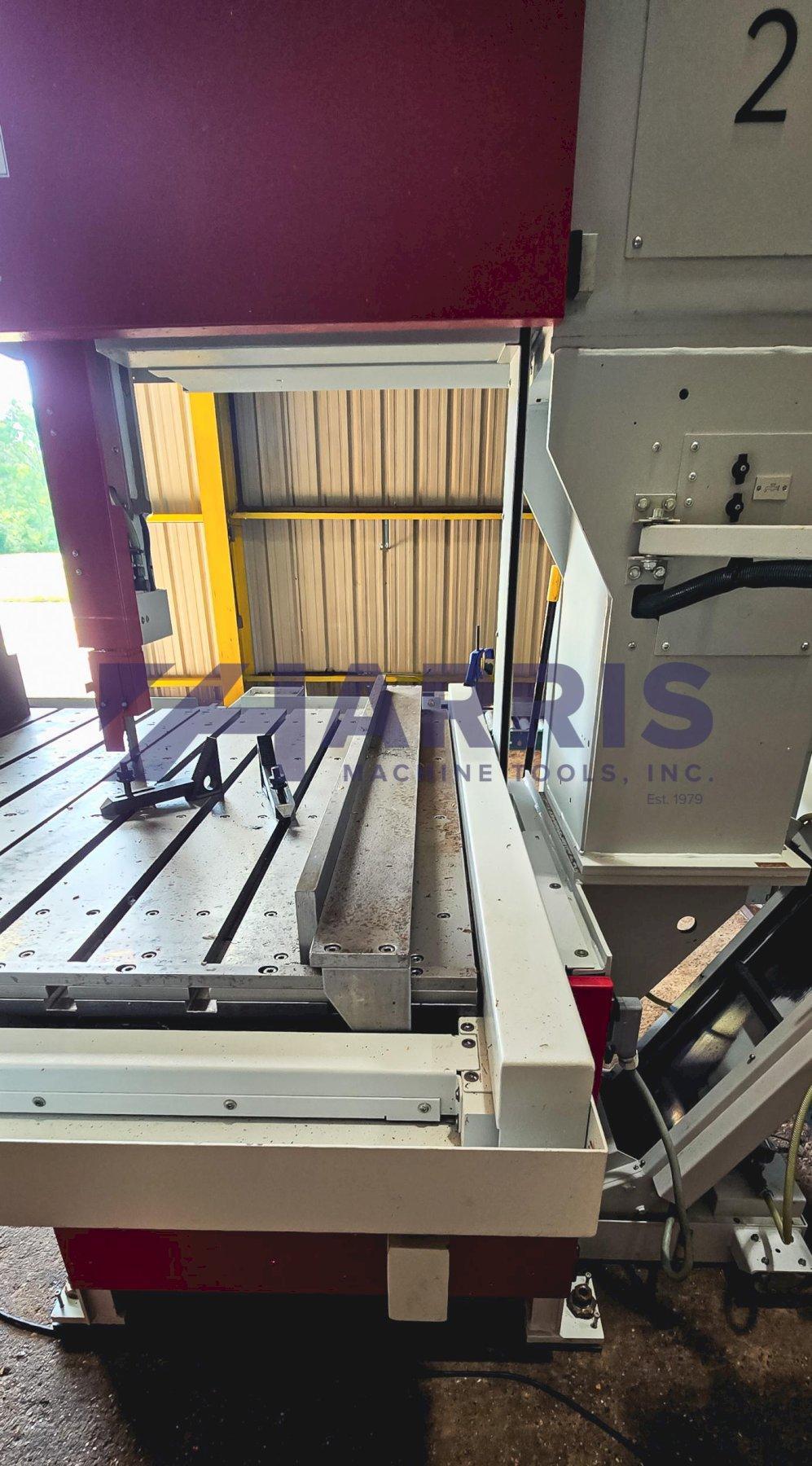

Material support:
Material support table is running on bearings on linear guides and travelling over a ball screw system with servomotor. The support area with unrifled even plates is equipped with T-nuts in the lengthwise direction for anchorage.
Including:
Power supply:
The parts of the machine are executed for power supply 460V - 60 Hz - with neutral wire.
Saw band dimension (Pos. 21 0):
The machine is prepared for saw band dimension 1-1/2" X .050" Recommended when cutting high tensile material with big dimensions.
Auto-Feed Control with integrated blade deflection monitor svstem (Pas. 32):
Automatic feed control system for automatic set-up of speed and feed rate according to input of material grade and width of material. The deflection of the saw blade is continuously monitored while machine is cutting. Two deviation thresholds are preset by the saw operator. If the first threshold is exceeded the down feed is reduced in several steps. The control resets the feed step by step to the initial value as soon as the deviation is reduced. If the first threshold is unvaried or displayed for a longer time the machine switches off after finishing the cut. If the second threshold is reached the machine switches off immediately.
Package for economic utilisation of carbide saw blades (Pas. 54):
Power7.5kW
Cutting speed 15 - 150 m/min - 49 - 492 ft/min
Including:
- Infinitely adjustment of the clamping force of the saw band guide
- Digital cutting feed display
- Flow control instrument for coolant
NC length measuring unit (Pas. 605):
The length measuring unit with continuous stop plate is positioned by electric motor to 0.1 mm setting accuracy. Setting and electronic display in the control panel.
Measuring range: 10-510 mm .3937- 20.07 inches
The usable width of the inner table is reduced accordingly.
*All specs are subject to buyer review.
