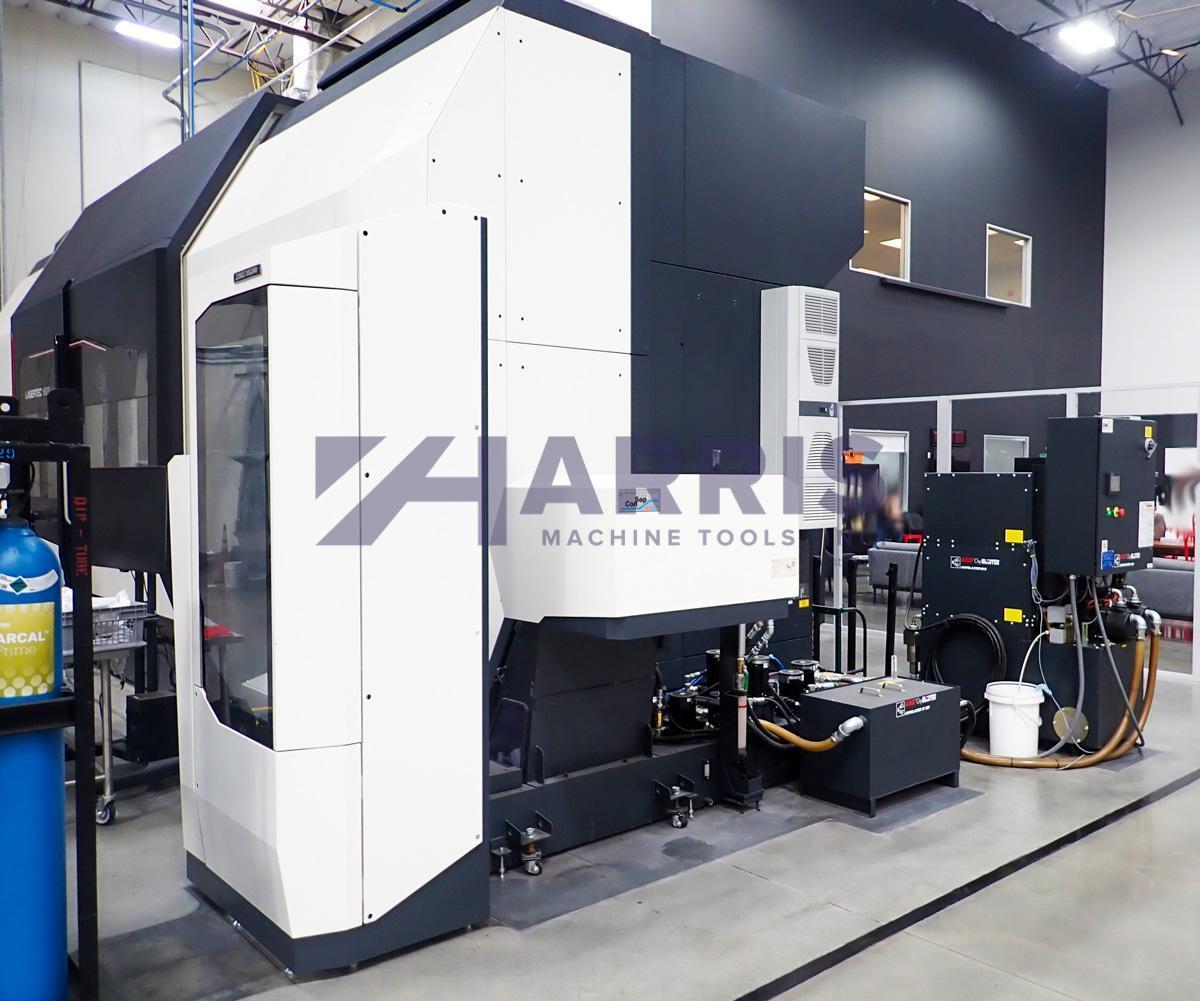

DMG MORI LASERTEC 6600 DED hybrid
Brand
DMG MORI
Model
LASERTEC 6600 DED hybrid
Type
Machining Centers, Horizontal, (5-Axis or More)
Stock #
20674
Condition
Not specified
Year
Location
Houston, Texas
United States
Specifications
| X Axis Travel | 40.9 inches |
| Y-Axis Travel | 12.9 inches |
| Y-Axis Travel | -11.0" through +12.9" Inches |
| Z Axis Travel | 163.3 inches |
| B-Axis Travel | -30° - +210° |
| Spindle Nose | JIS A1-20 |
| Max Spindle Speed (RPM) | 1000 |
| Spindle Hole Dia | 10.8 inches |
| Dimensions | 182.2" H x 473.1"W x 276.3"L |
| Turning-Milling Spindle Speed | 8000 RPM |
| B-Axis (Pallet Indexing) | 0.0001° |
| Taper hole of turning-milling spindle | Capto C8 |
| Tool Changer Capacity | 50 |
| Rapid Traverse Rate (X/Y/Z) | 1,574.8 IPM / 1,181.1 IPM / 1259.8 IPM |
| Spindle Motor 1 | 75 / 60 (30 min. / cont) |
| Spindle Motor 2 | 75 / 60 (30 min. / cont) |
Equipped With
Deposition Specs:
Capacity
Motors

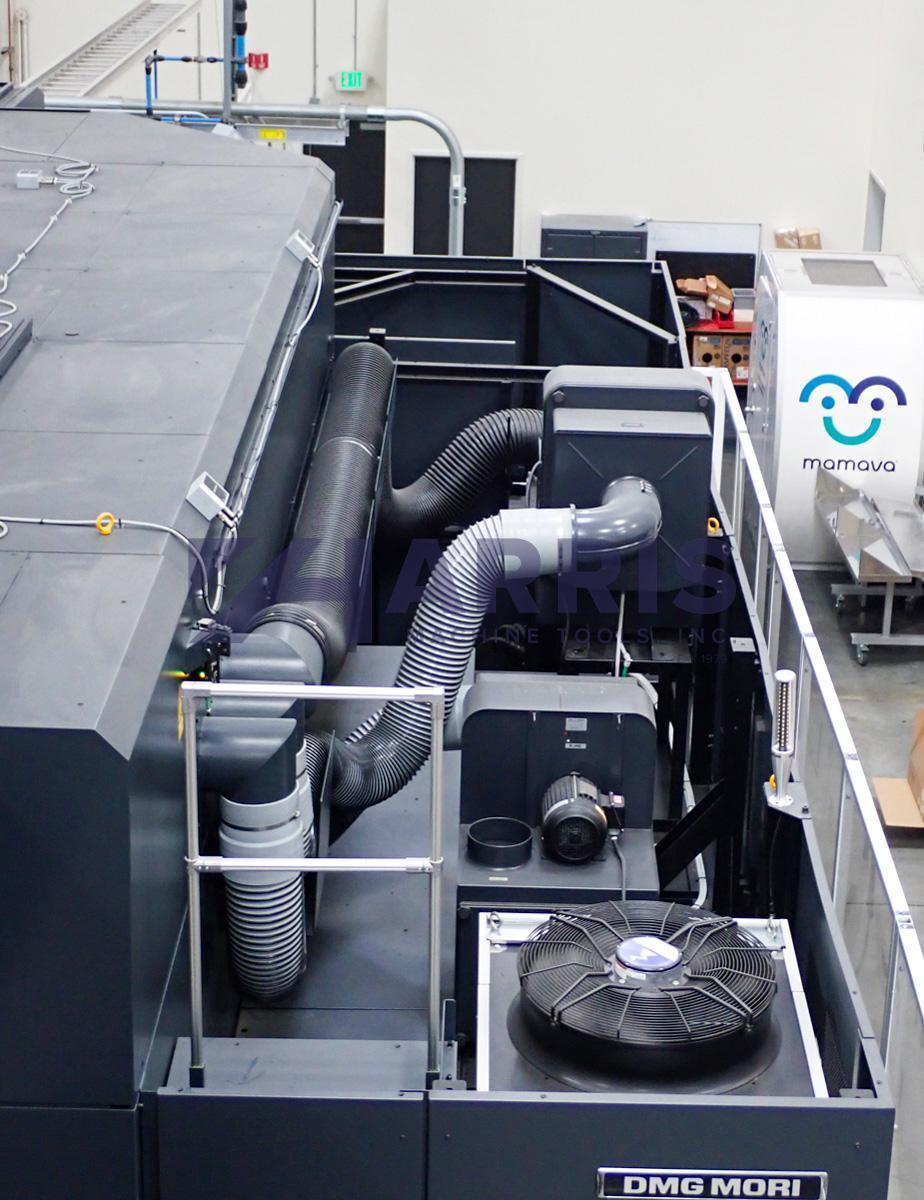

Motor for fume collector kW (HP) 3.7 (5)
*All specs are subject to buyer review and verification.
Capacity
Max. turning diameter mm (in.) 1,010 (39.7)
Max. turning length mm (in.) 3,702 (145.7)
Travel
Travel
X-axis (Turning-milling spindle) mm (in.) 1,040 (40.9)
Y-axis (Turning-milling spindle) mm (in.) -280 - +330 (-11.0 - +12.9)
Z-axis (Turning-milling spindle) mm (in.) 3,890 (153.1)
B-axis (Turning-milling spindle) -30° - +210°

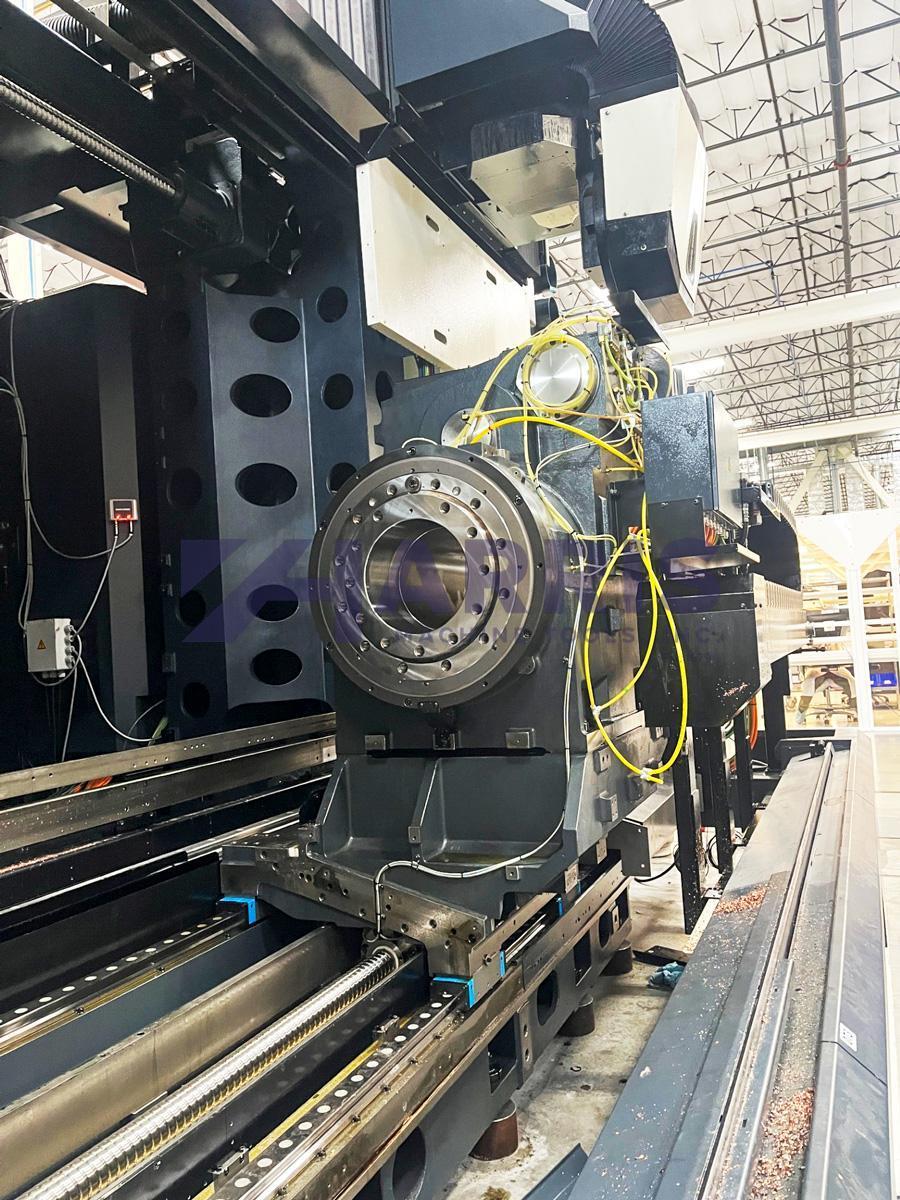

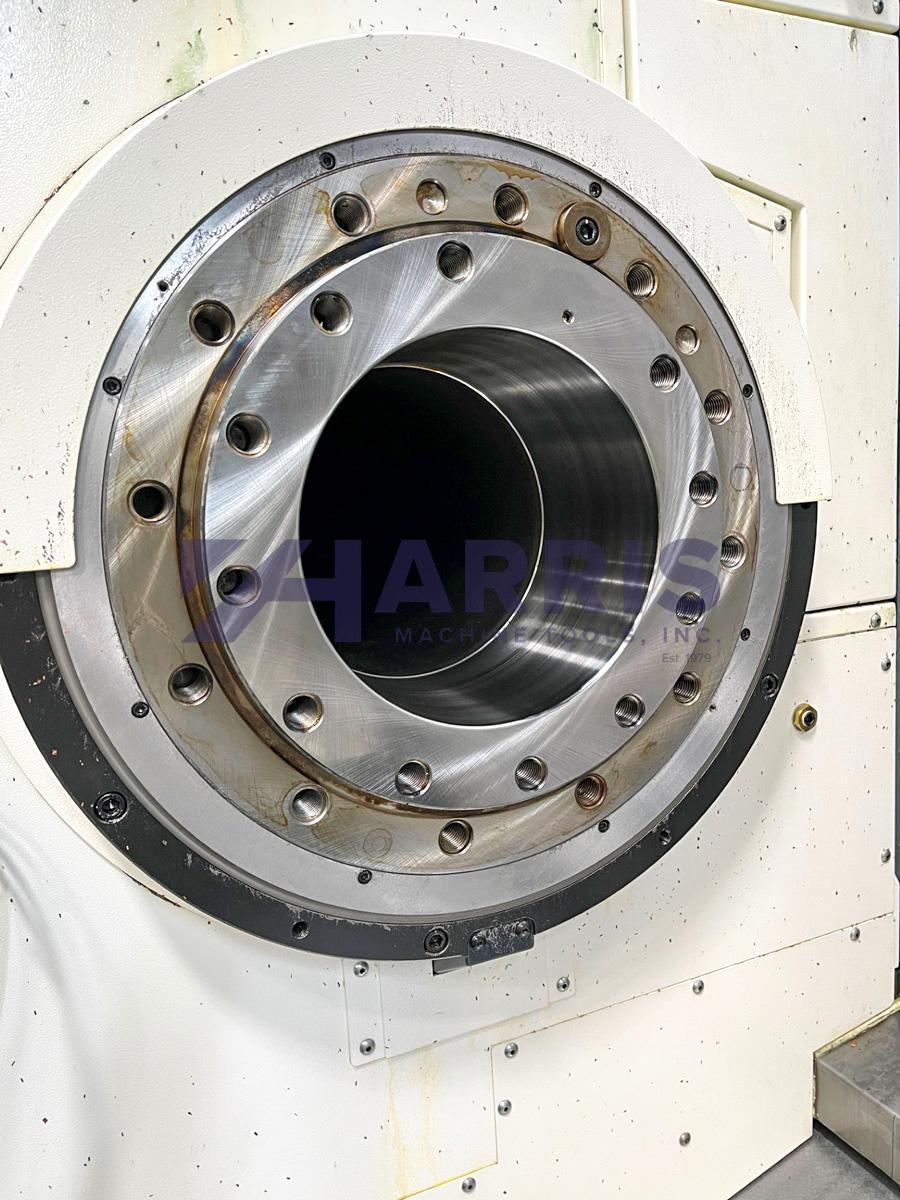

Spindle 1
Spindle speed min-1 1,000
Spindle nose JIS A1-20
Through-spindle hole diameter mm (in.) 275 (10.8)

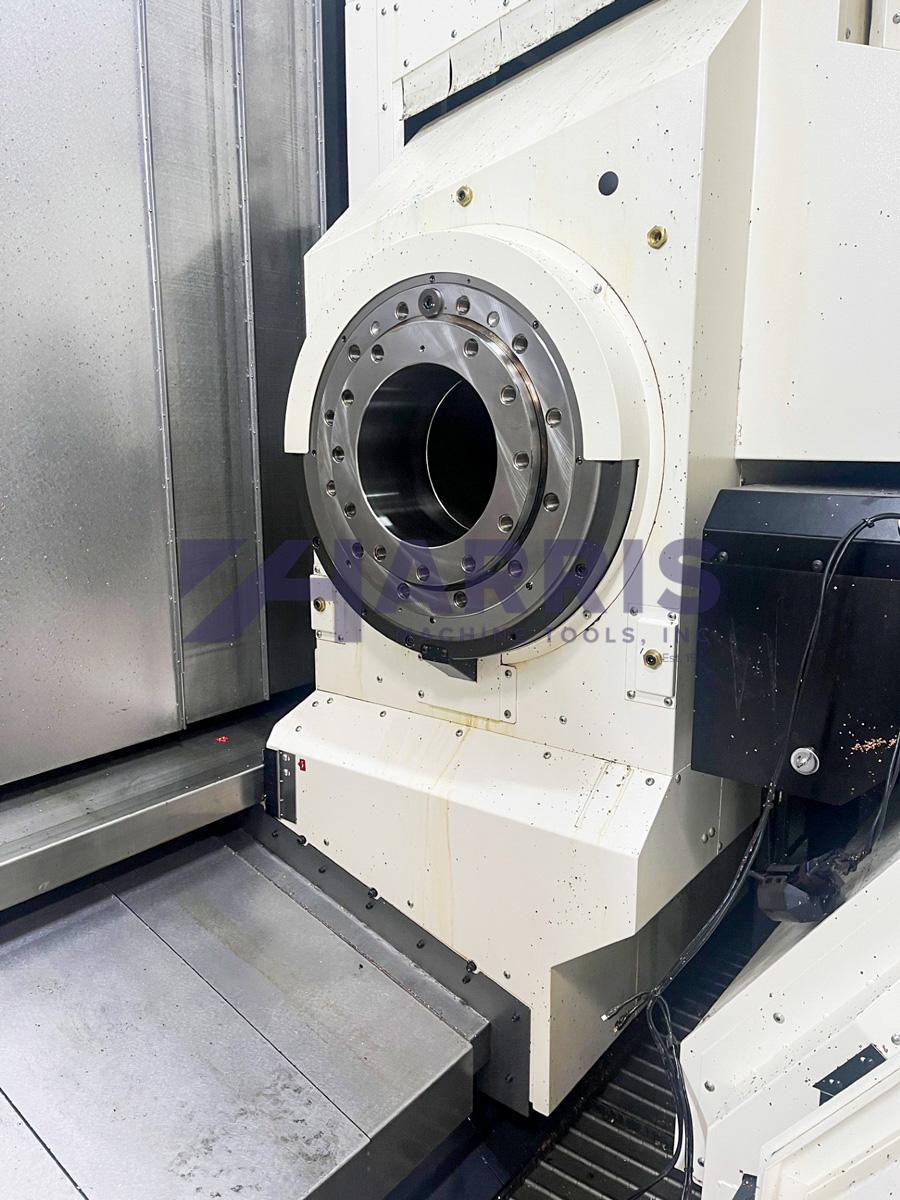

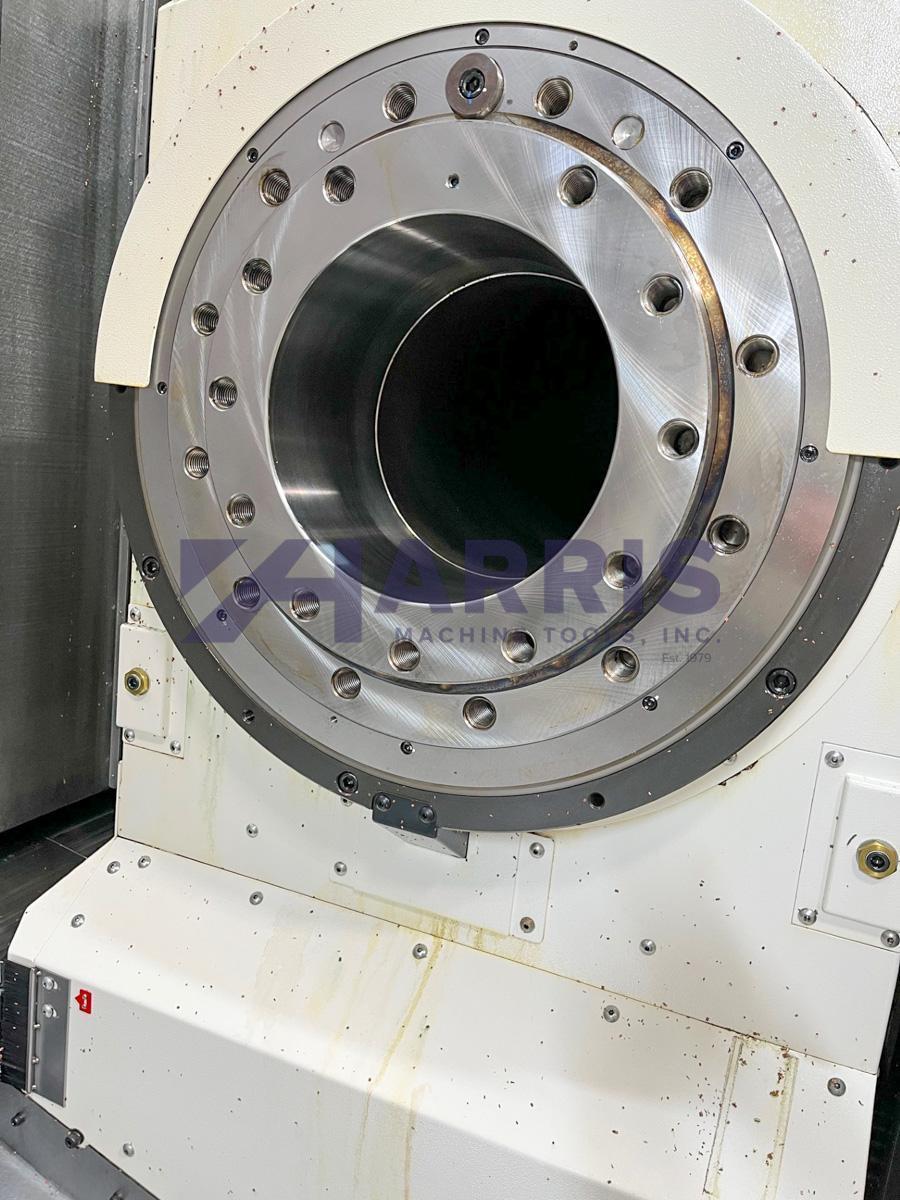

Spindle 2
Spindle speed min-1 1,000
Spindle nose JIS A1-20
Through-spindle hole diameter mm (in.) 275 (10.8)

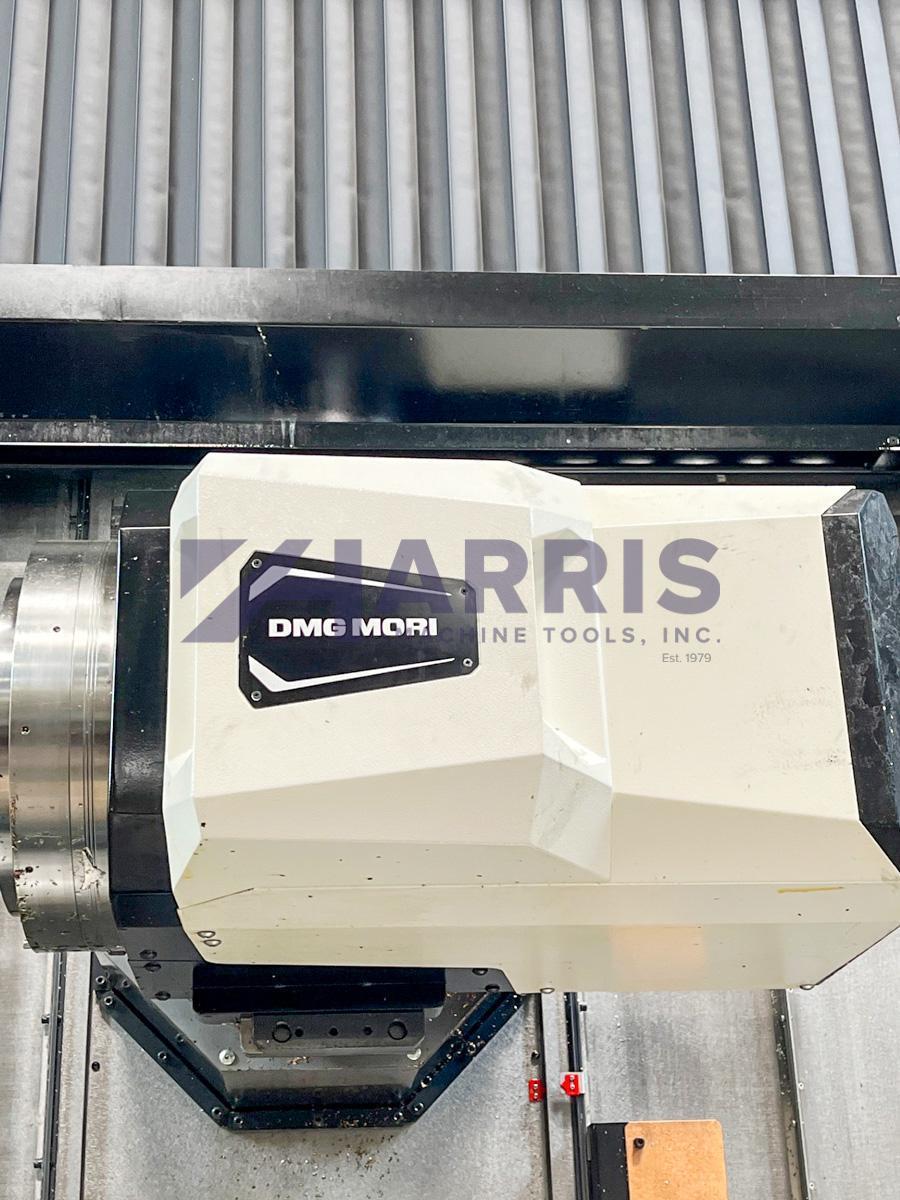

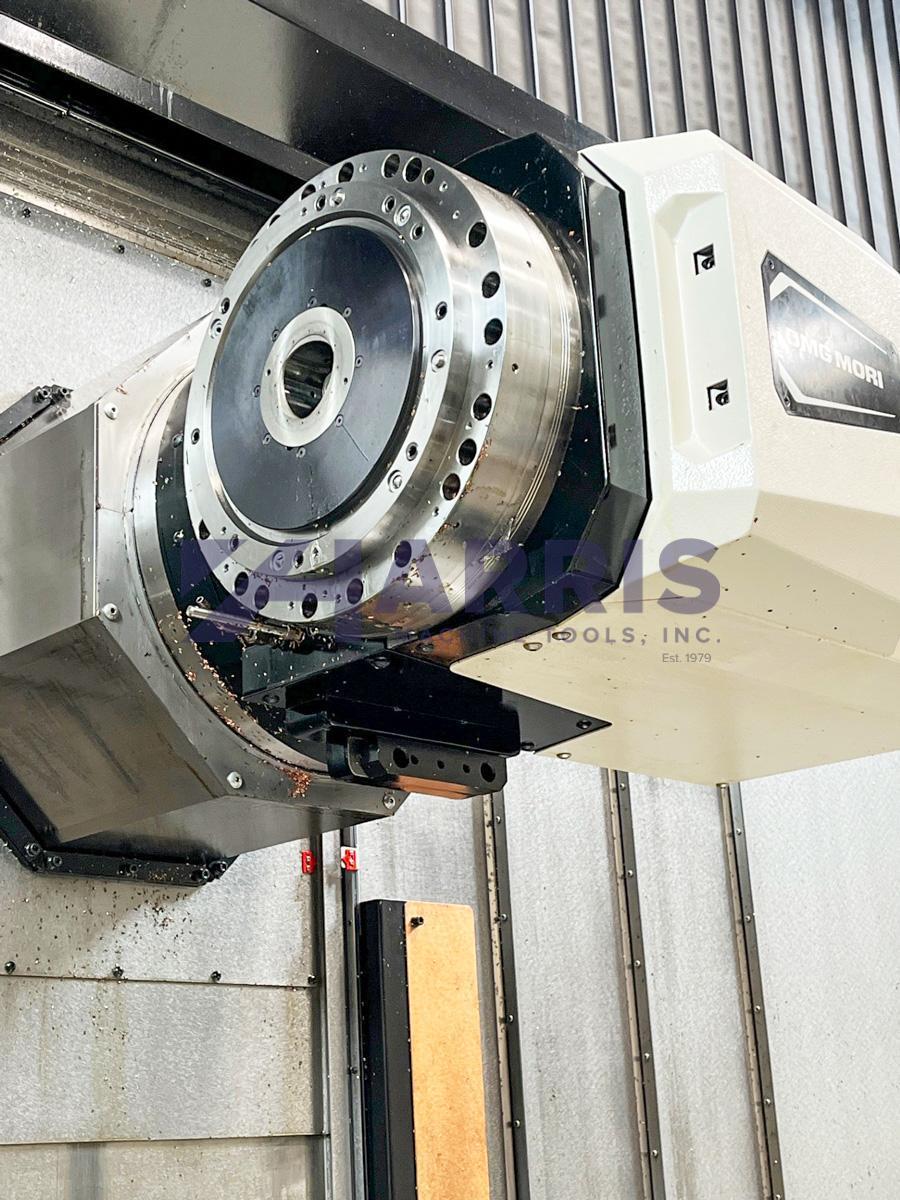

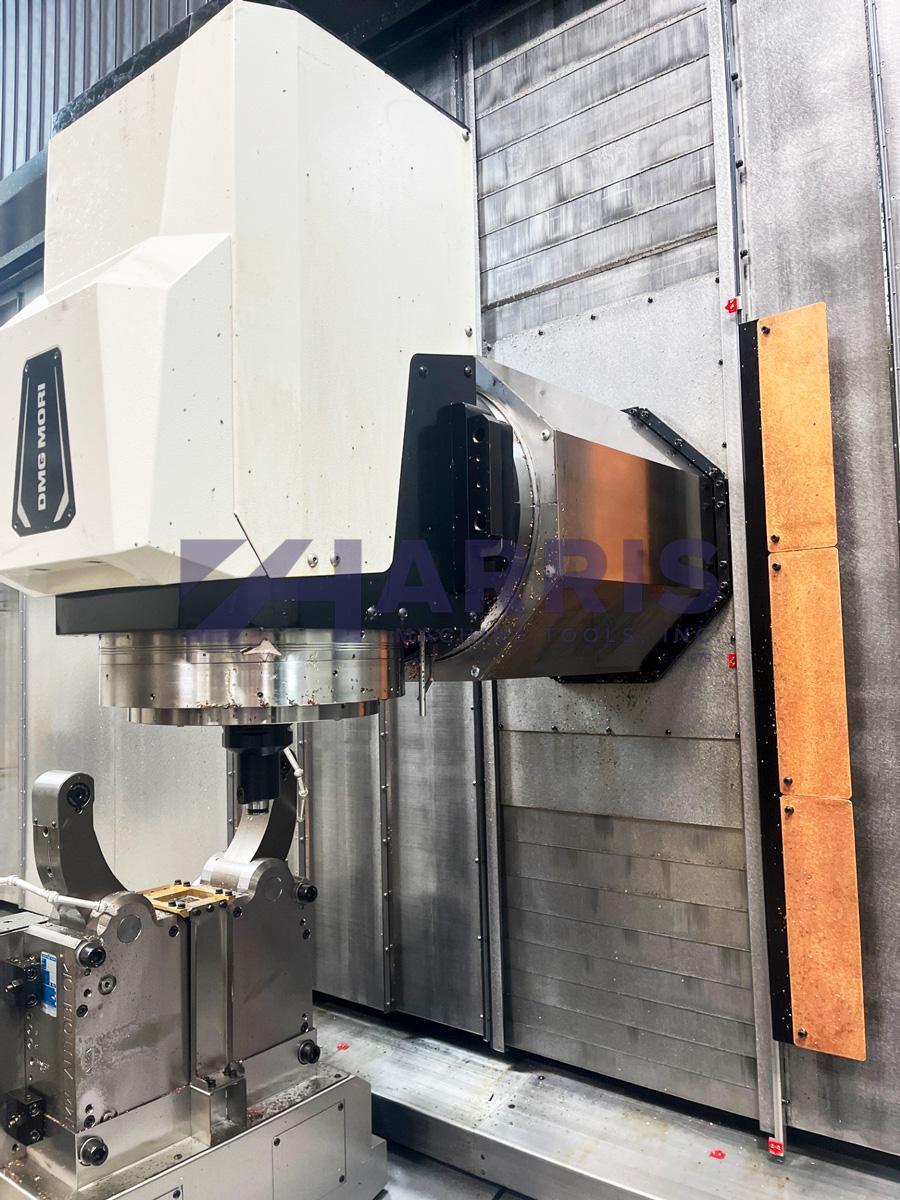

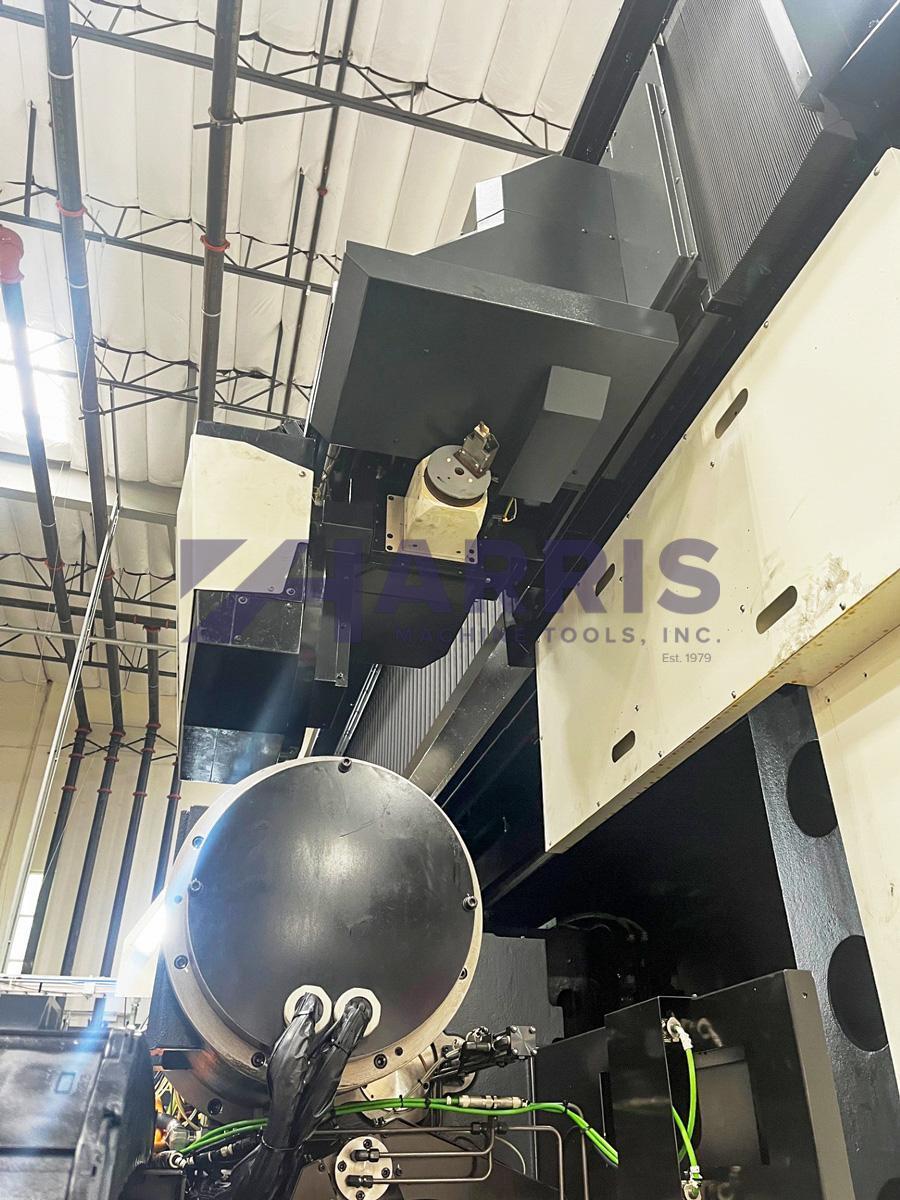

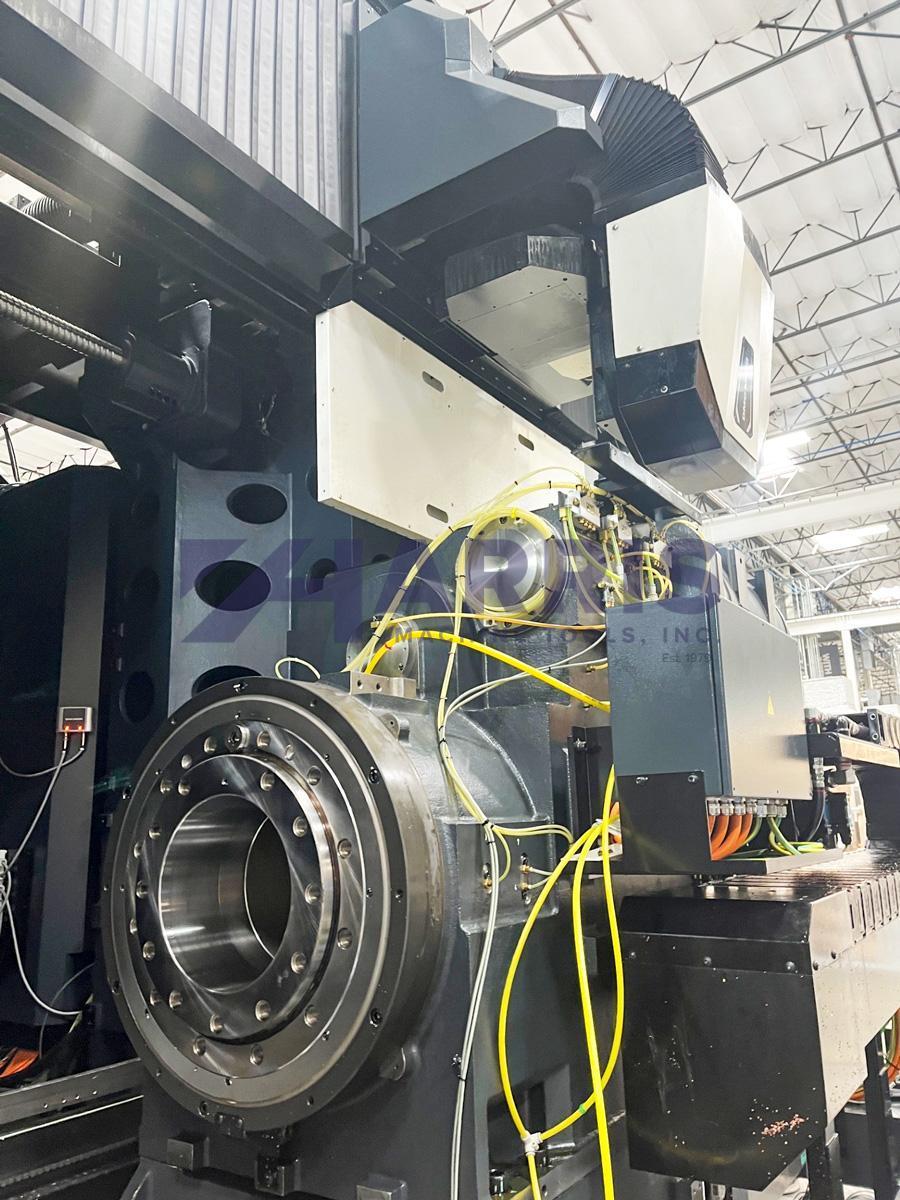

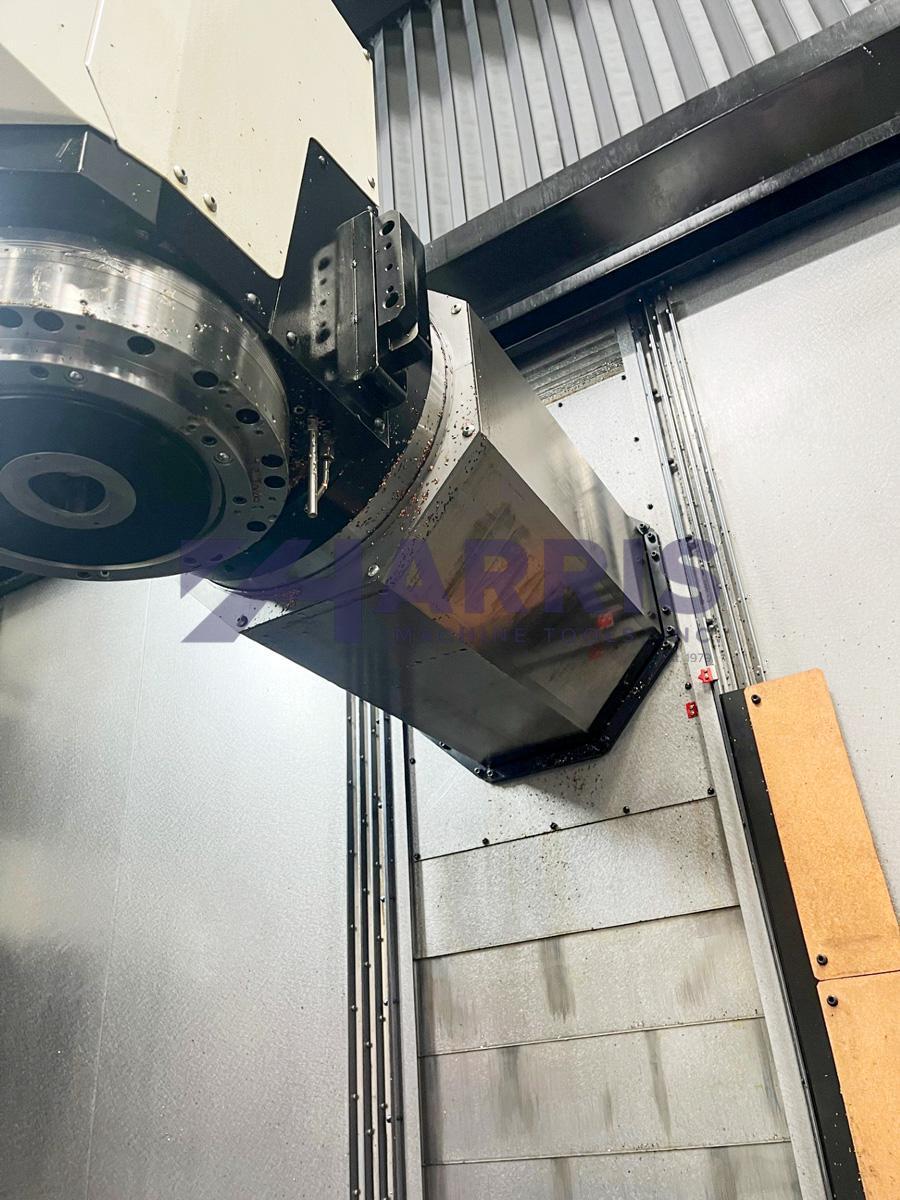

Turning-milling spindle
B-axis min. indexing increment 0.0001°
Turning-milling spindle
B-axis min. indexing increment 0.0001°

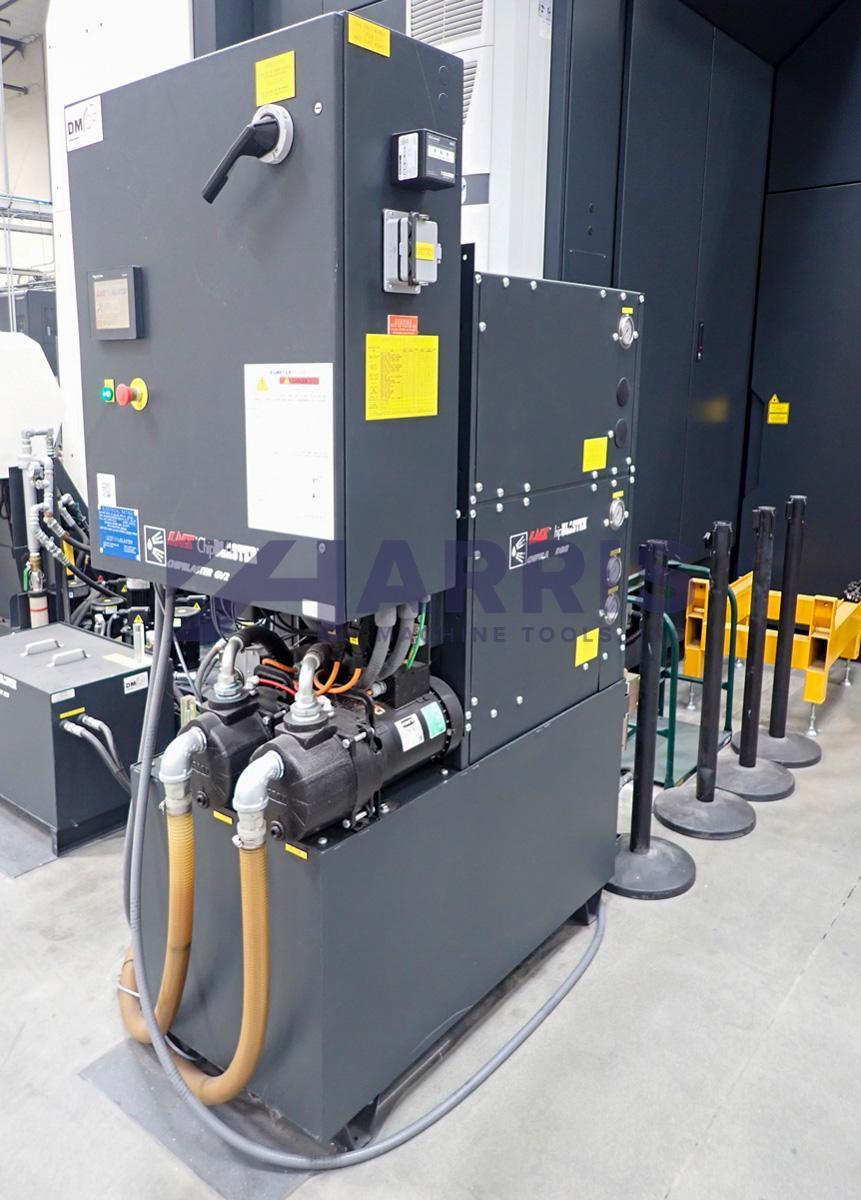

Laser
Nozzle storage capacity 1, 3
Laser type Fiber laser
Max. main laser output kW 2.5, 4.2, 6.3, 8.4
Main laser wavelength nm 1080±10
Max. pilot laser output mW ≦1
Pilot laser wavelength nm 635 - 680
Spot size or Cladding size mm (in.) φ4 (φ0.16)
Laser Class Class 2＊1
AM nozzle Single nozzle / Multi-jet nozzle2
Feedrate
Rapid traverse rate mm/min (ipm)
X: 5,000 (196.9)
Y: 5,000 (196.9)
Z: 5,000 (196.9)
min B: 1, C: 70
Motors
Motor for fume collector kW (HP) 3.7 (5)
Power sources
Electrical power supply kVA 196.1 <2.5 kW>, 196.1 <4.2 kW>, 207.4 <6.3 kW>, 208.0 <8.4 kW>
*All specs are subject to buyer review and verification.
