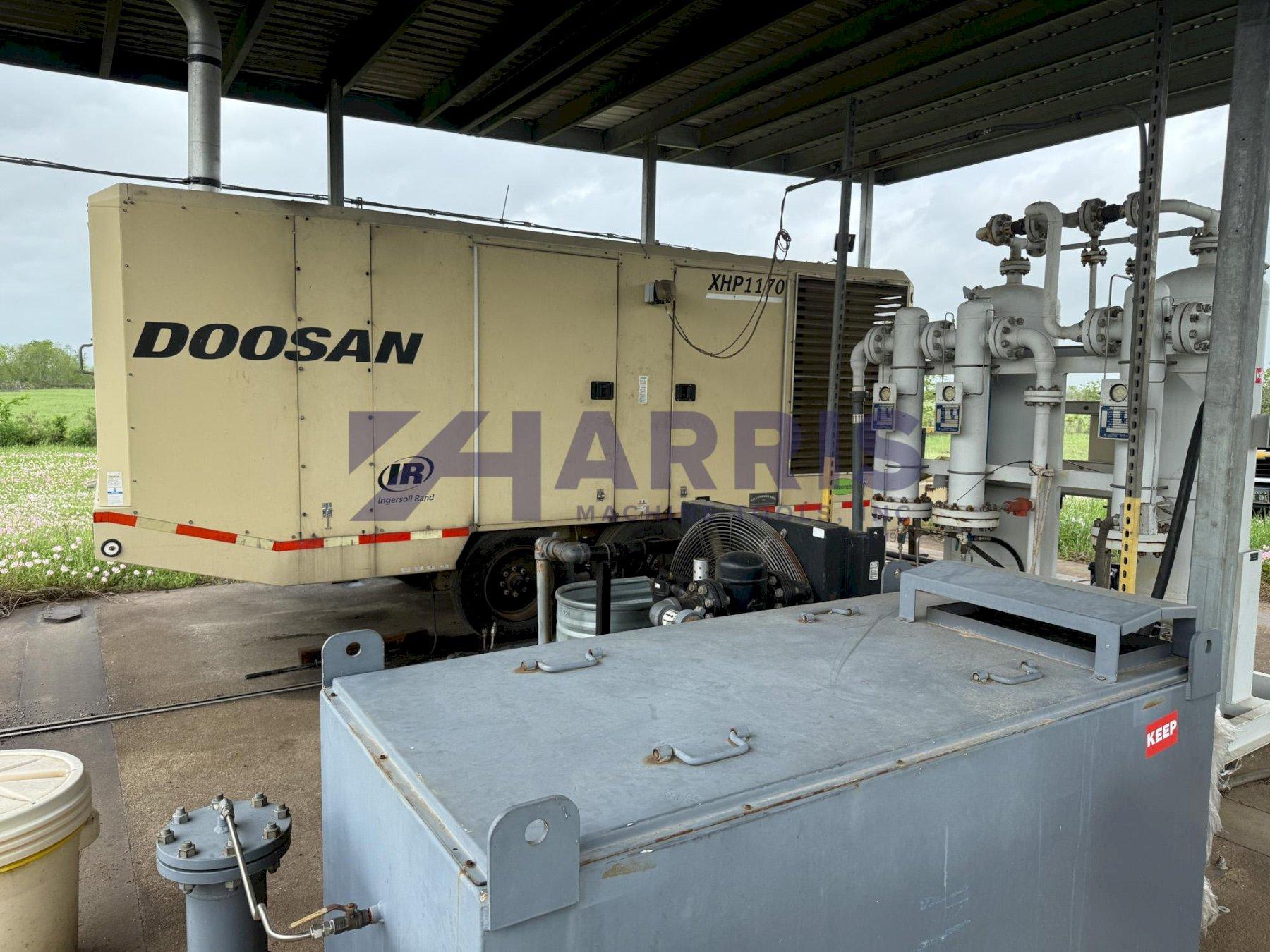

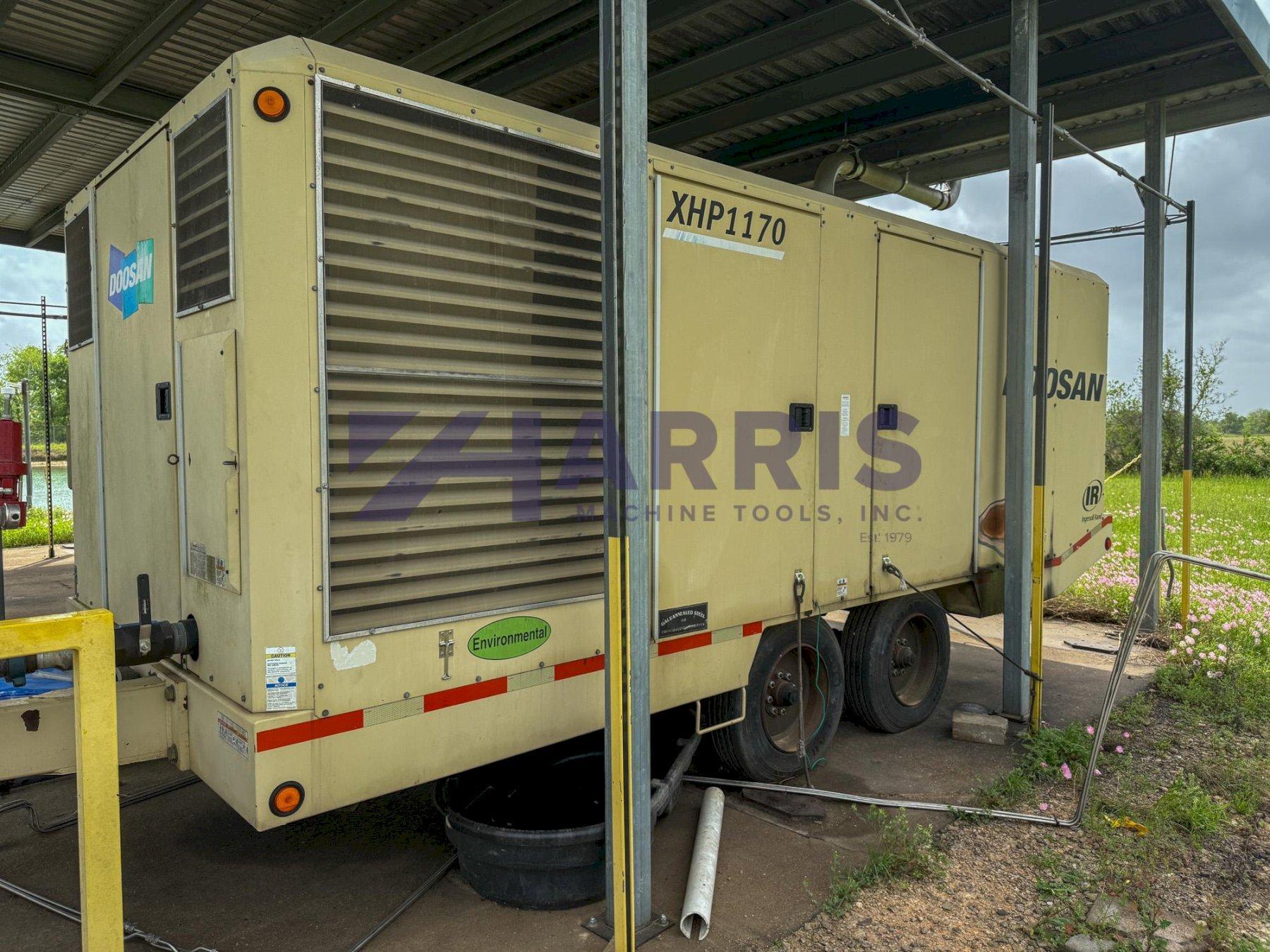

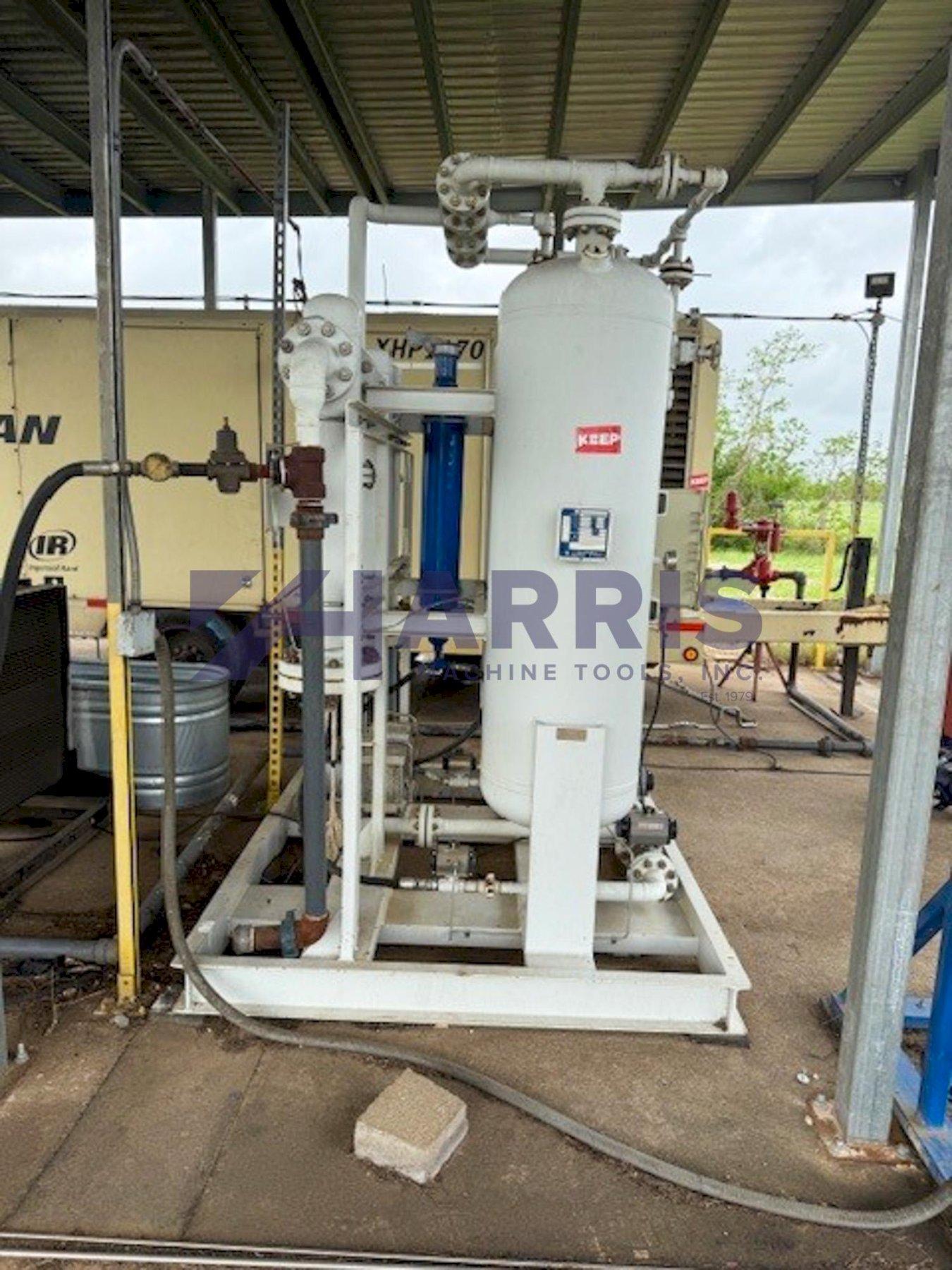

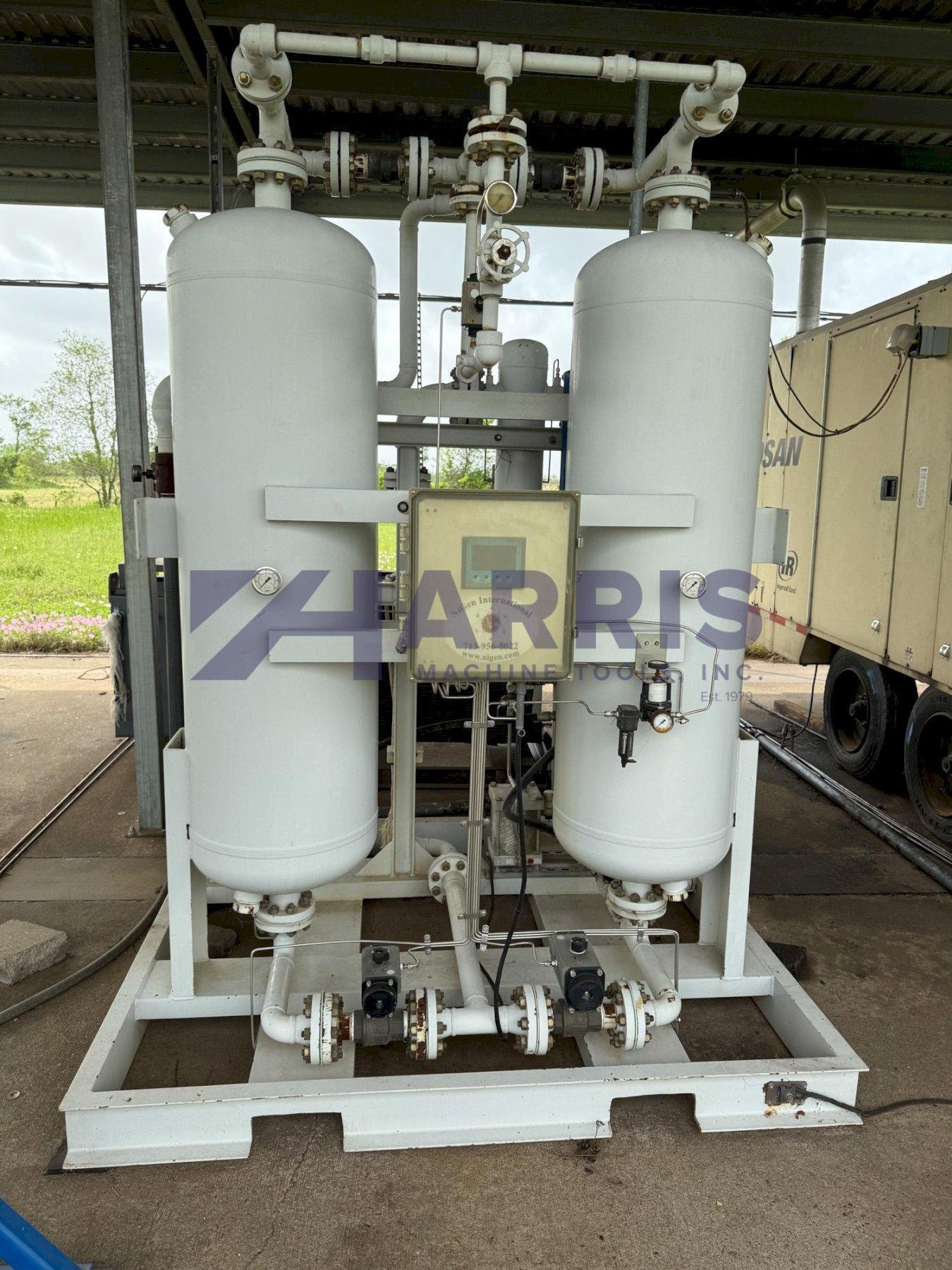

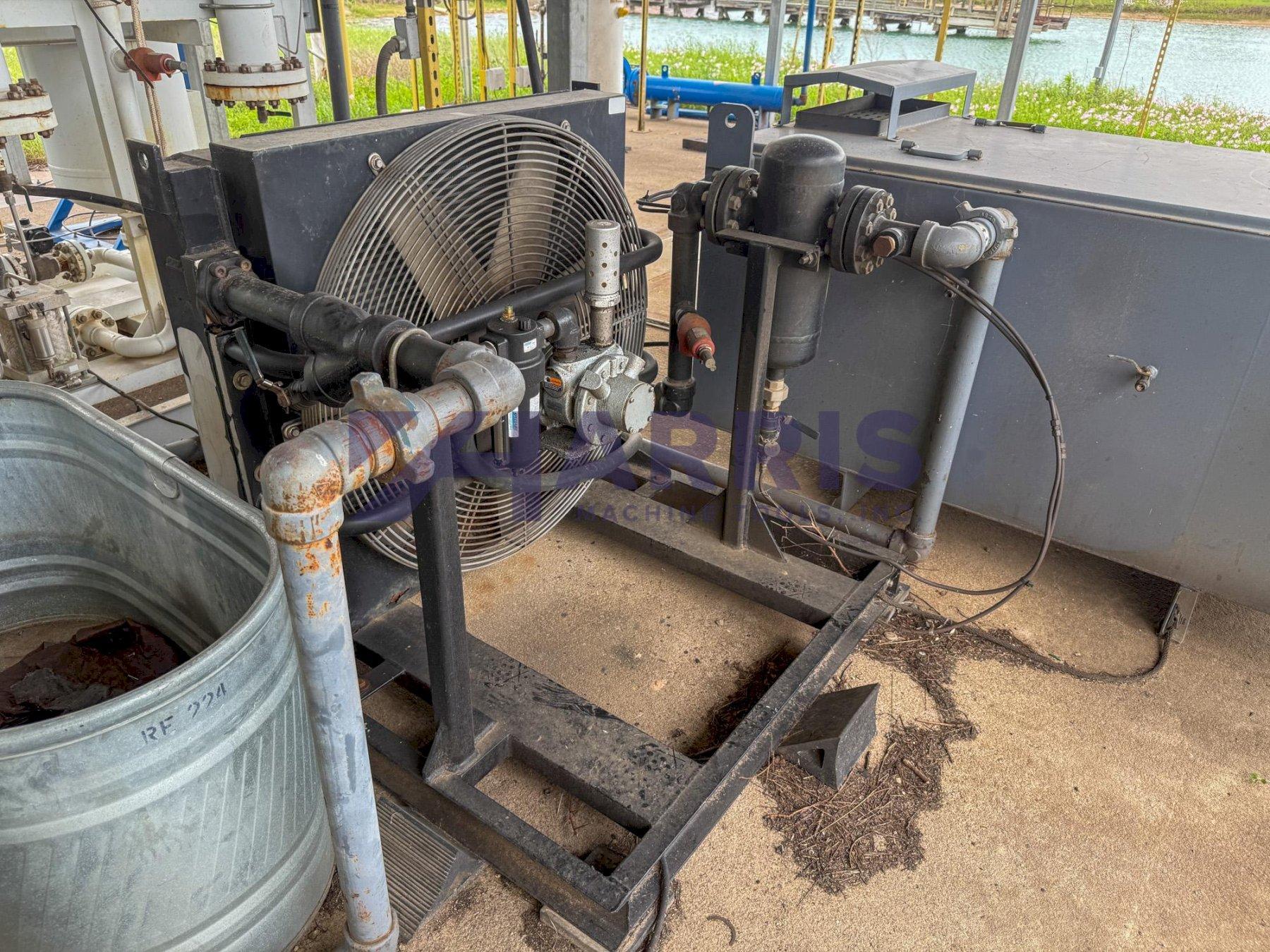

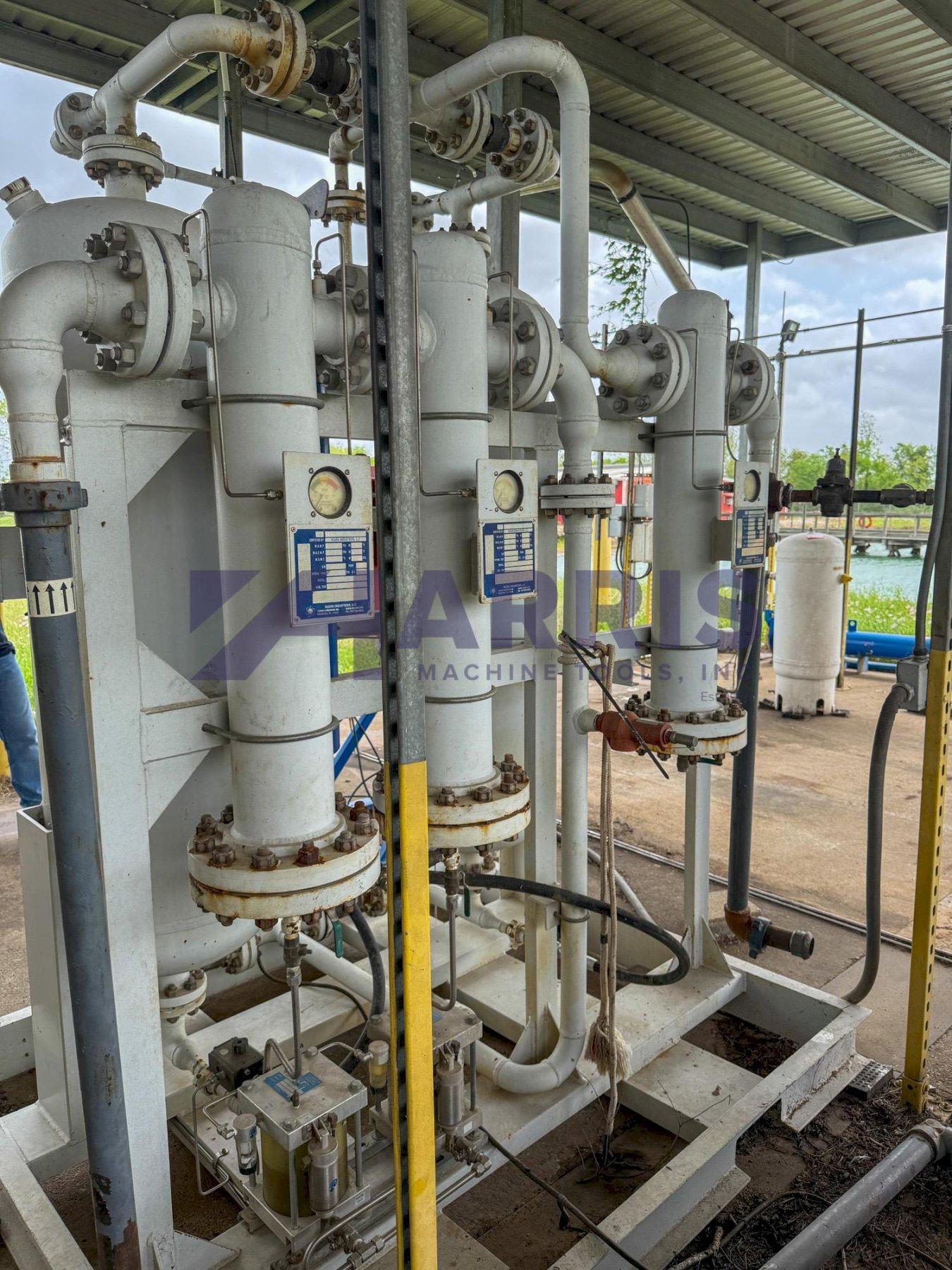

Doosan Trailer Mount Air Compressor with Air Dryer and Cooler
Brand
DOOSAN
Model
XHP1170WCAT-T3
Type
Air Compressors
Stock #
20691
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
| Dimensions | 292.4" L x 90.1" W x 99.5"H |
| Weight | 17355 pounds |
| Free-Air Delivery | 1170 cfm |
| Operating Pressure | 365 psig |
| Pressure Range | 140 - 365 psig |
Equipped With

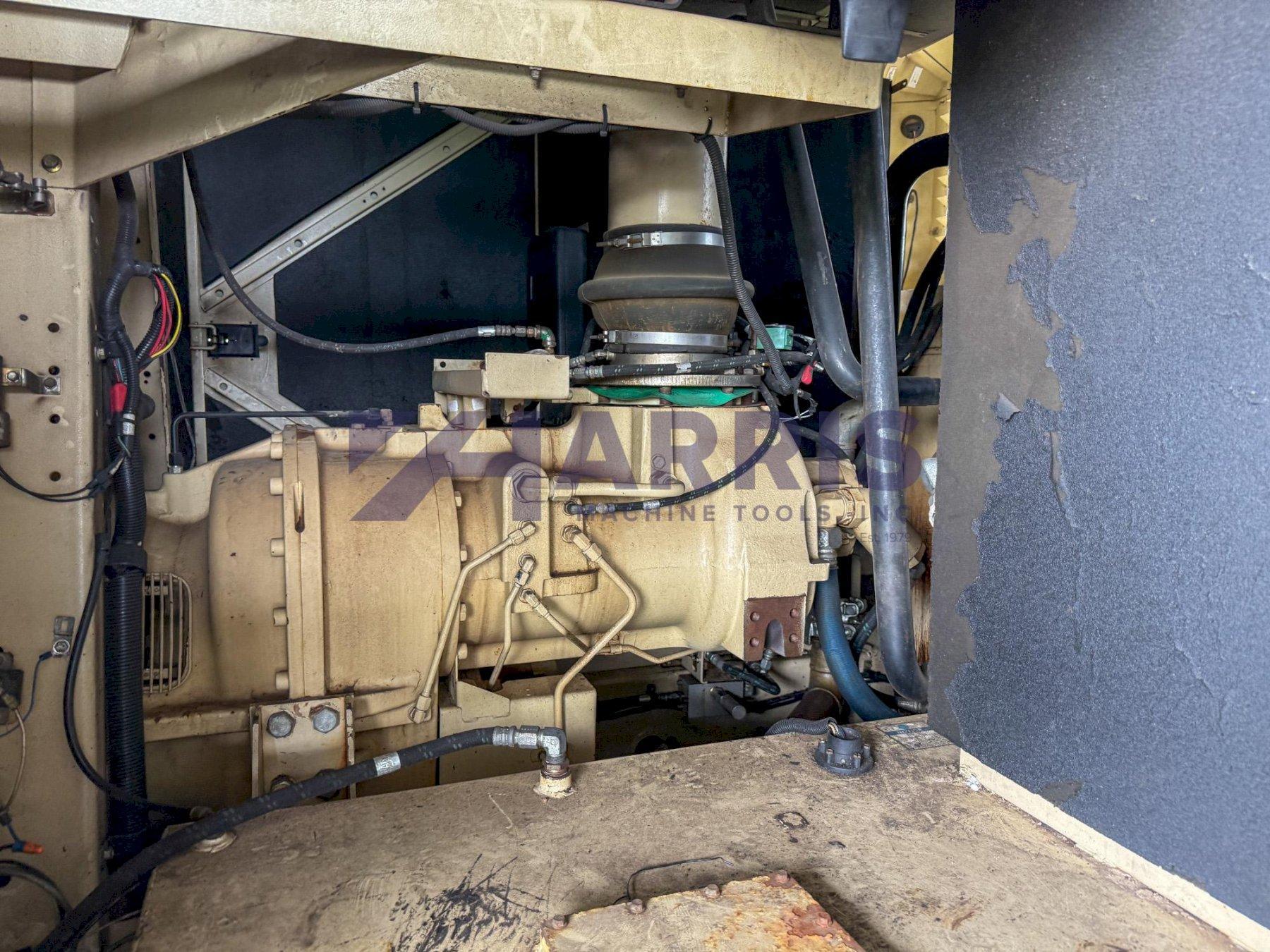

Compressor
Free-Air Delivery – cfm (m3/min): 1170 (33.1)
Rated Operating Pressure – psig (bar): 365 (25.1)
Pressure Range – psig (bar): 140-365 (9.7-25.2)
Air Discharge Outlet Size – in (mm): 3 (76.2)
Air Discharge Outlet Quantity: 1 (2 with IQ)
Fuel Tank Capacity – gal (L): 222.4 (841.9)

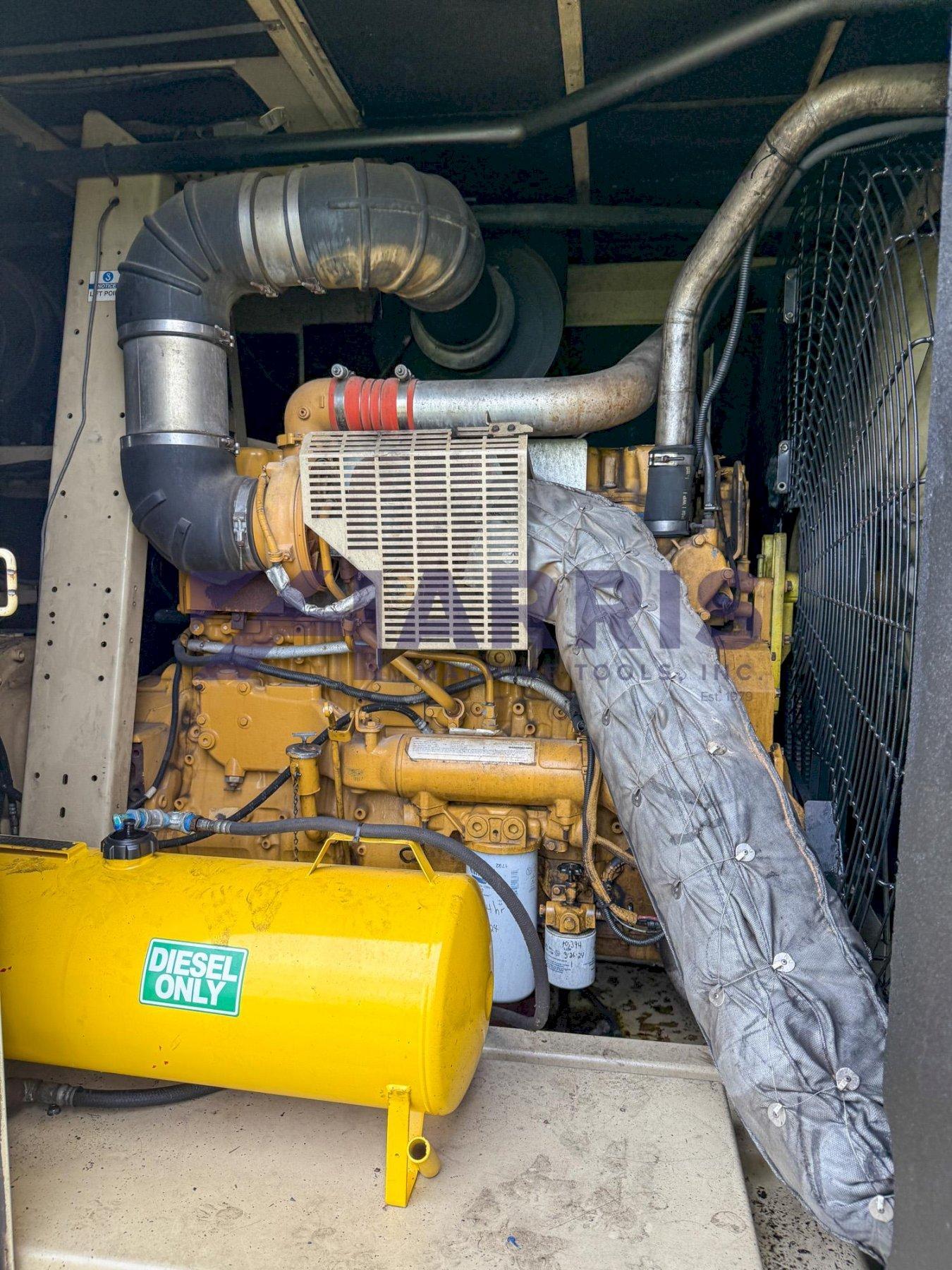

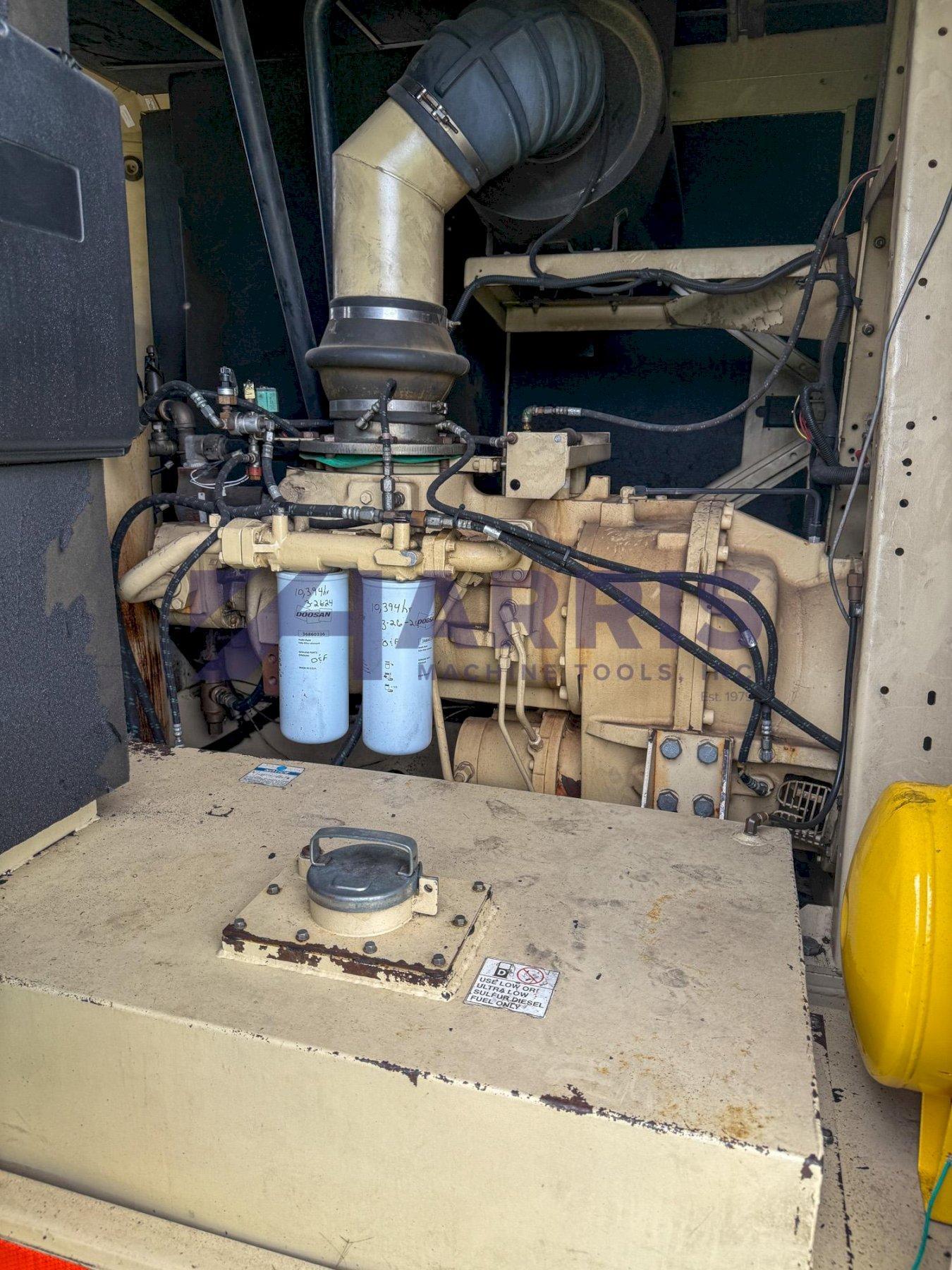

Engine
Make/Model: Cummins/QSX15
Emissions Tier Level: Tier 4 Final (T4F)
Number of Cylinders: 6
Displacement – cu in (L): 912 (14.9)
Rated Speed – rpm: 1800
Idle Speed – rpm: 1200
Bhp @ Rated Speed (kW): 580 (433)
Electrical – volts: 24
Dimensions With Running Gear
Length – in (mm): 292.4 (7427)
Width – in (mm): 90.1 (2289)
Height – in (mm): 99.5 (2527)
Track Width – in (mm): 71 (1803)
Tire Size: 17.5"
Shipping Weight – w/o fuel – lb (kg): 17355 (7871)
Working Weight – w fuel – lb (kg): 18835 (8542)
Dimensions Without Running Gear
Length – in (mm): 228.2 (5796)
Width – in (mm): 90.1 (2289)
Height – in (mm): 98.2 (2494) w/shockmounts
Shipping Weight – w/o fuel – lb (kg): 16169 (7333)
Working Weight – w fuel – lb (kg): 17860 (8100)
*All specs are subject to buyer verification.
