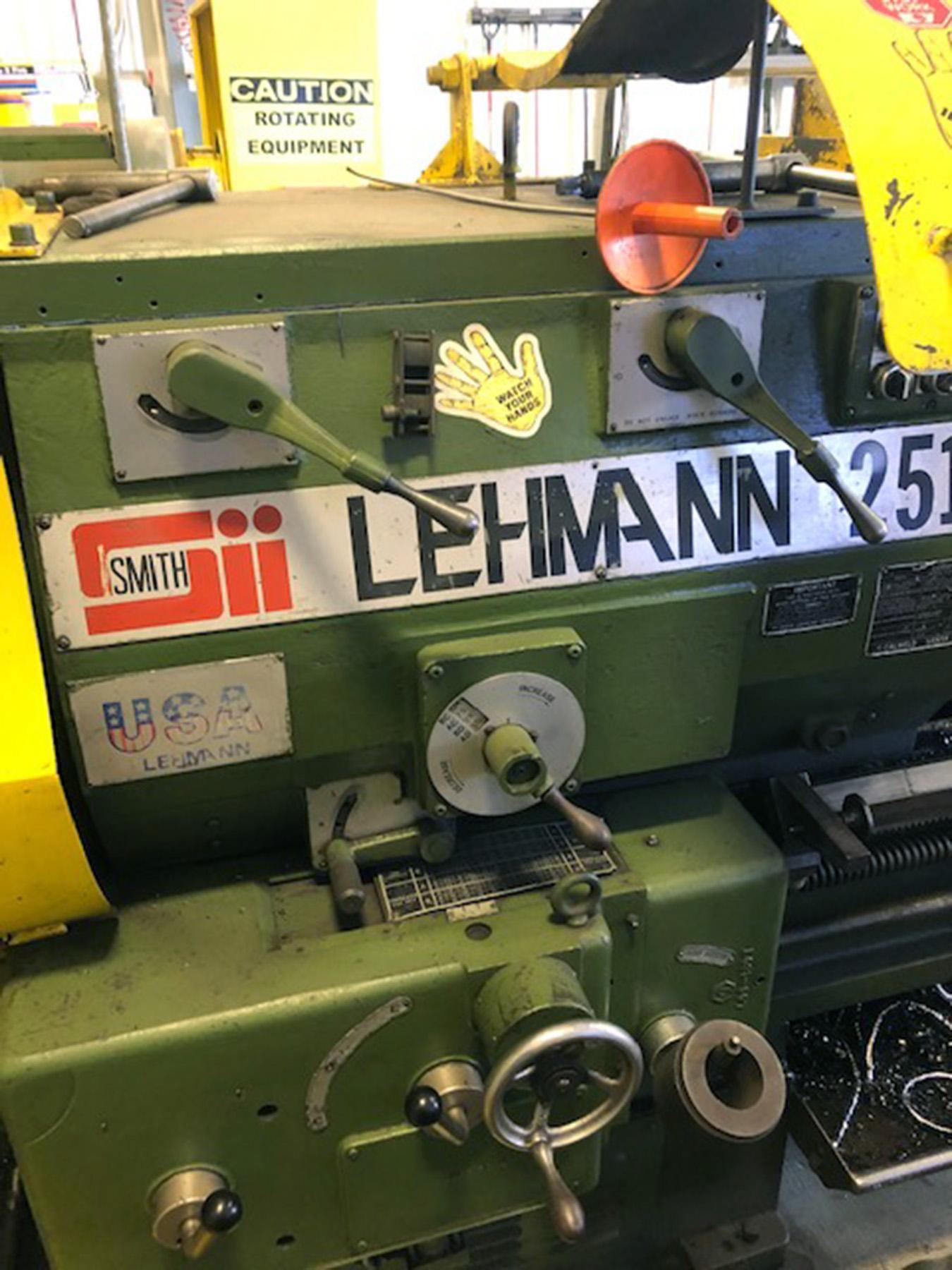

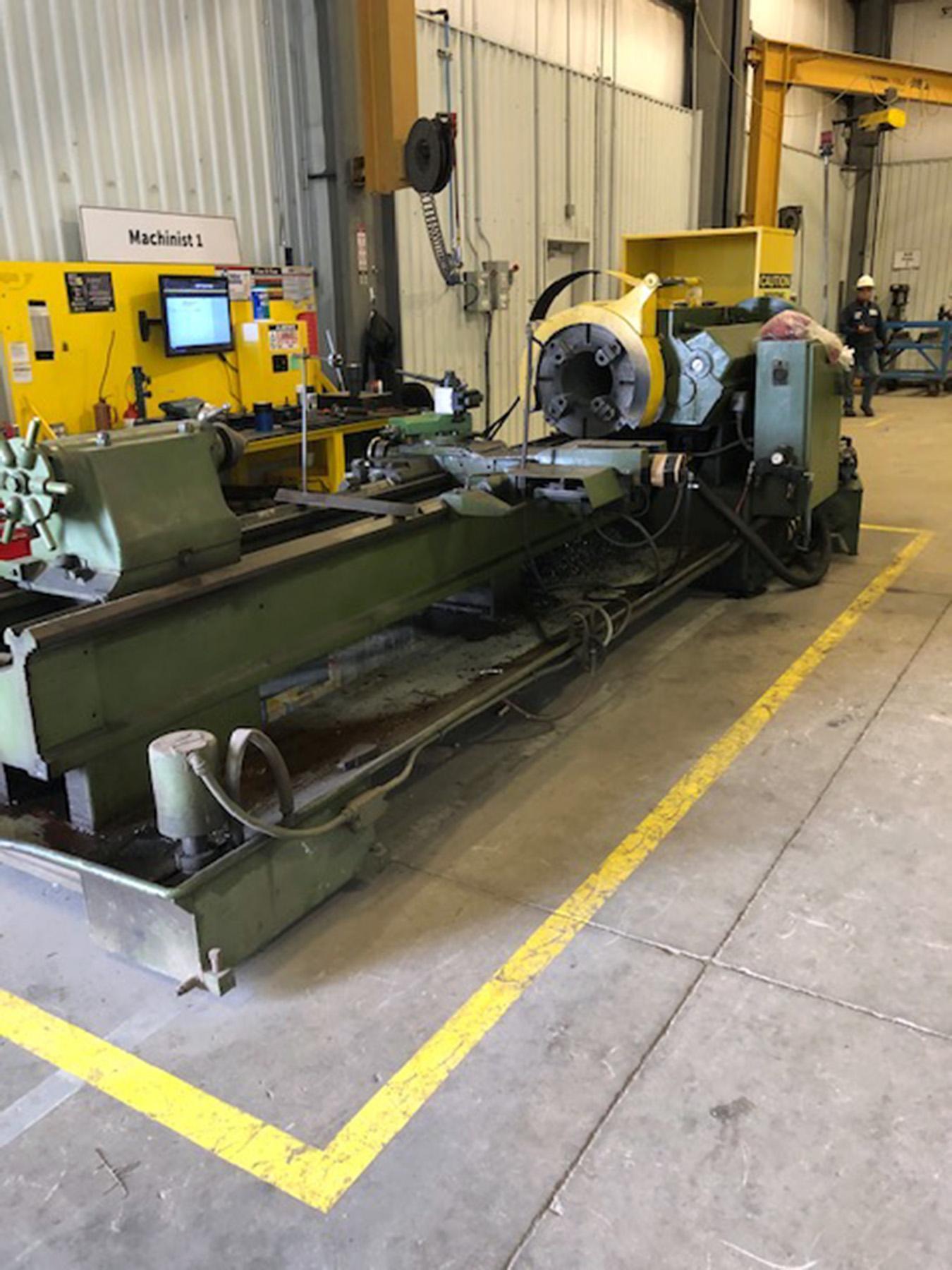

Lehmann 27" x 120" Oil Field and Hollow Spindle Lathe Model 2516
Brand
LEHMANN
Model
2516
Type
Lathes, Oil Field & Hollow Spindle
Stock #
20399
Condition
Used
Year
Status
For Sale
Location
City Not Specified,
Specifications
| Swing | 27.5 inches |
| Centers | 120 inches |
| Spindle Bore | 12 inches |
| Power | 30 horsepower |
| RPM | 793 |
| CNC Control | yes |
| Weight | 14000 pounds |
Equipped With
SWING OVER BED: 27.5"
SWING OVER CARRIAGE: 18.5"
DISTANCE BETWEEN CENTERS: 120"
SPINDLE SPEED RANGES: 16
SPINDLE SPEEDS: 10 - 397 RPM
SPINDLE MOTOR: 30 HP
SPINDLE BORE: 12"
FEED RATES: (54) 0.005 - 0.326 IPR
THREADING: (54) 36 - 5/8 TPI
TAILSTOCK SPINDLE DIAMETER: 4-7/8"
TAILSTOCK SPINDLE TAPER: MT5
TAILSTOCK SPINDLE TRAVEL: 12"
COOLANT PUMP: 1/4 HP
OAD (APPROXIMATE): 228" X 71" X 62" HIGH
EQUIPPED WITH:
AUTOMATIC THREADING
4-JAW FRONT AND REAR CHUCKS WITH 12" HOLE
TOOL POST
TAILSTOCK
TAPER ATTACHMENT
COOLANT
NOTE: BEDWAYS ARE LIKE NEW!! APRON REBUILT!!
