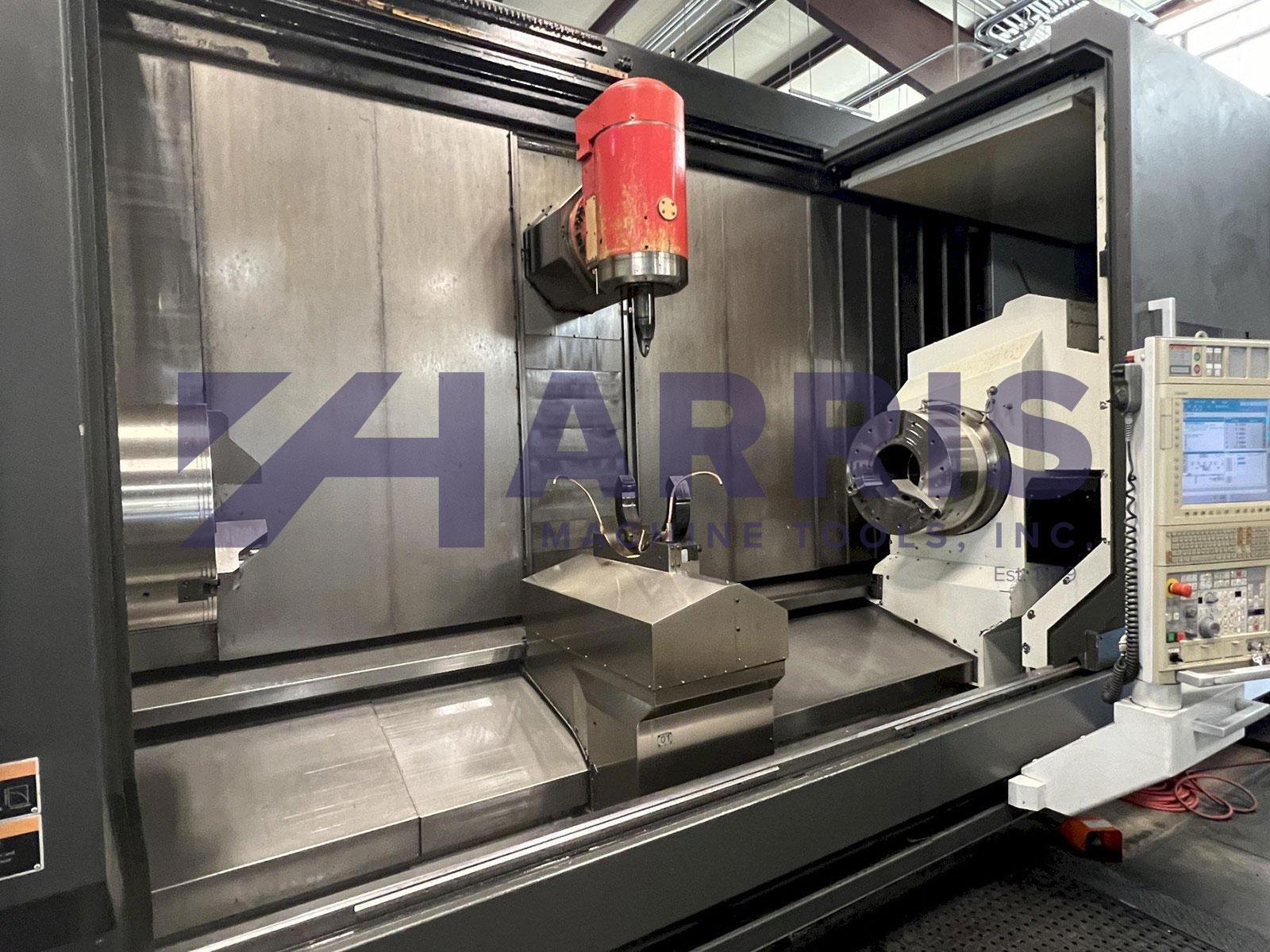

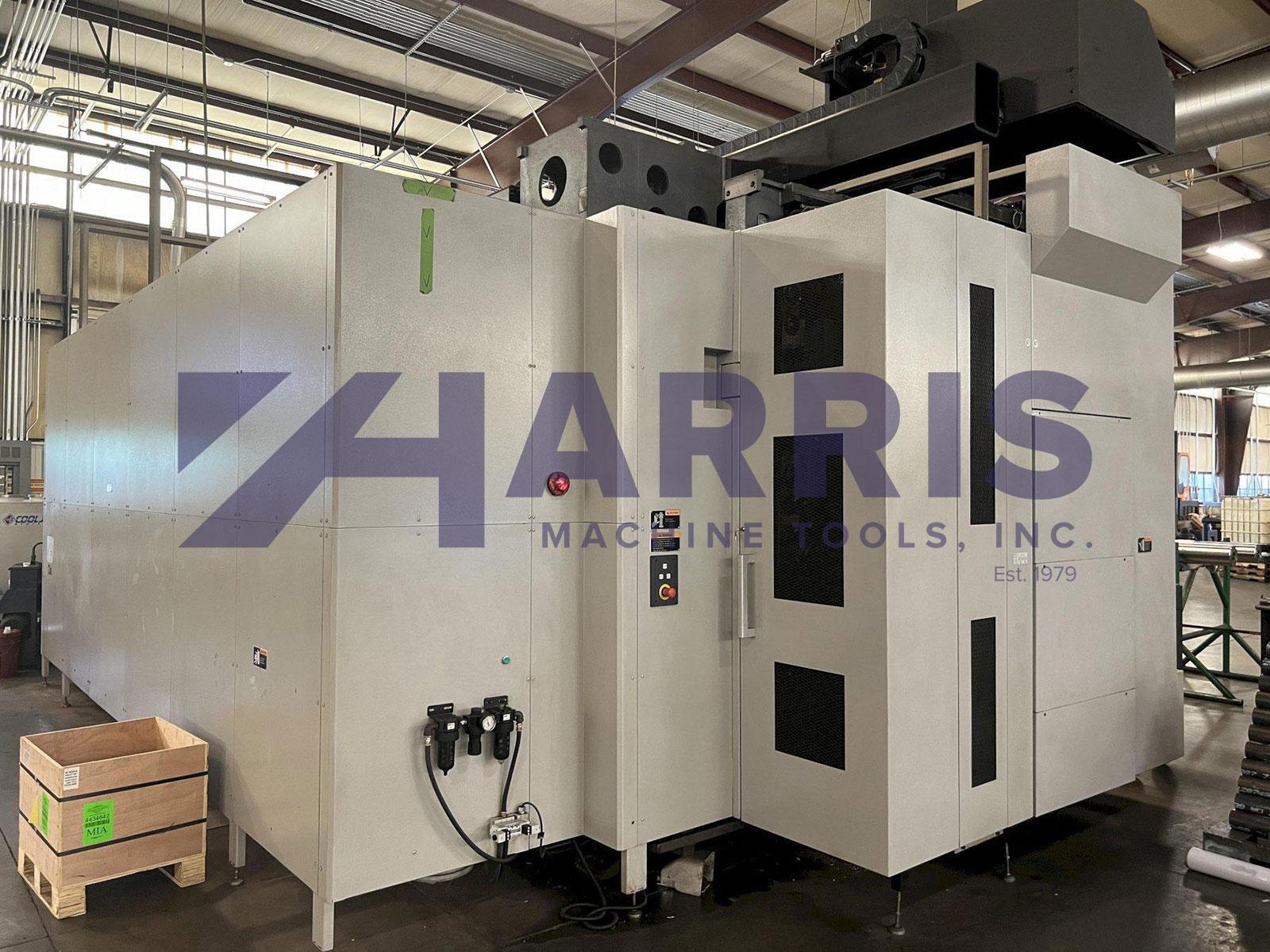

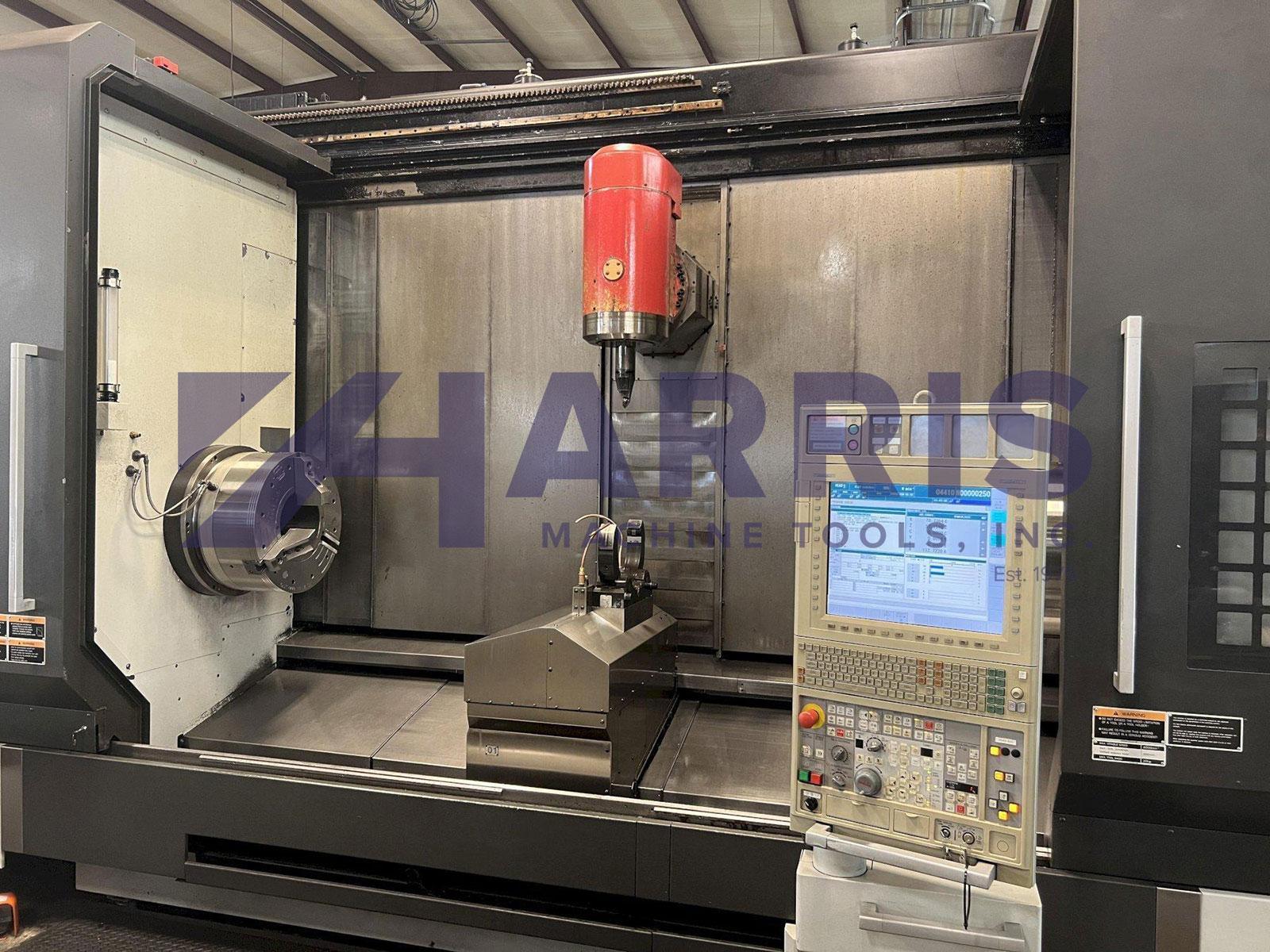

MORI SEIKI NT6600 DCG/3000CS 5 AXIS TURN MILL CENTER WITH SUB SPINDLE
Brand
MORI SEIKI
Model
NT6600 DCG/3000CS
Type
Lathes, CNC (3-Axis or More)
Stock #
20370
Condition
Not specified
Year
2010
Status
For Sale
Location
Houston, Texas
United States
Specifications
| Type of CNC Control | MSX-7111IV |
| # Axis | 5 |
| Chuck Size | 24 inches |
| Swing | 42 inches |
| Turning Diameter | 42 inches |
| Center Distance | 120 inches |
| Bar Capacity | 10.8 inches |
| Main Motor | 40 HP |
| Spindle Bore | 10.8 inches |
| Spindle Speed (RPM) | 1500 |
| Sub Spindle Motor | 40 HP |
| Sub Spindle Bore | 10.8 inches |
| Sub Spindle Chuck Size | 24 inches |
| Sub Spindle Speed (RPM) | 1500 |
| X Axis Travel | 41 inches |
| Z Axis Travel | 122 inches |
| Y Axis (Yes / No) | yes |
| Live Milling (Yes / No) | yes |
| Live Milling Speed (RPM) | 8000 |
| Live Milling Motor | 40 HP |
| Weight | 130000 pounds |
Equipped With
MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 120"
MAXIMUM BAR DIAMETER: 10.8"
SPINDLE BORE: 10.8"
SUB SPINDLE BORE: 10.8"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 122"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP

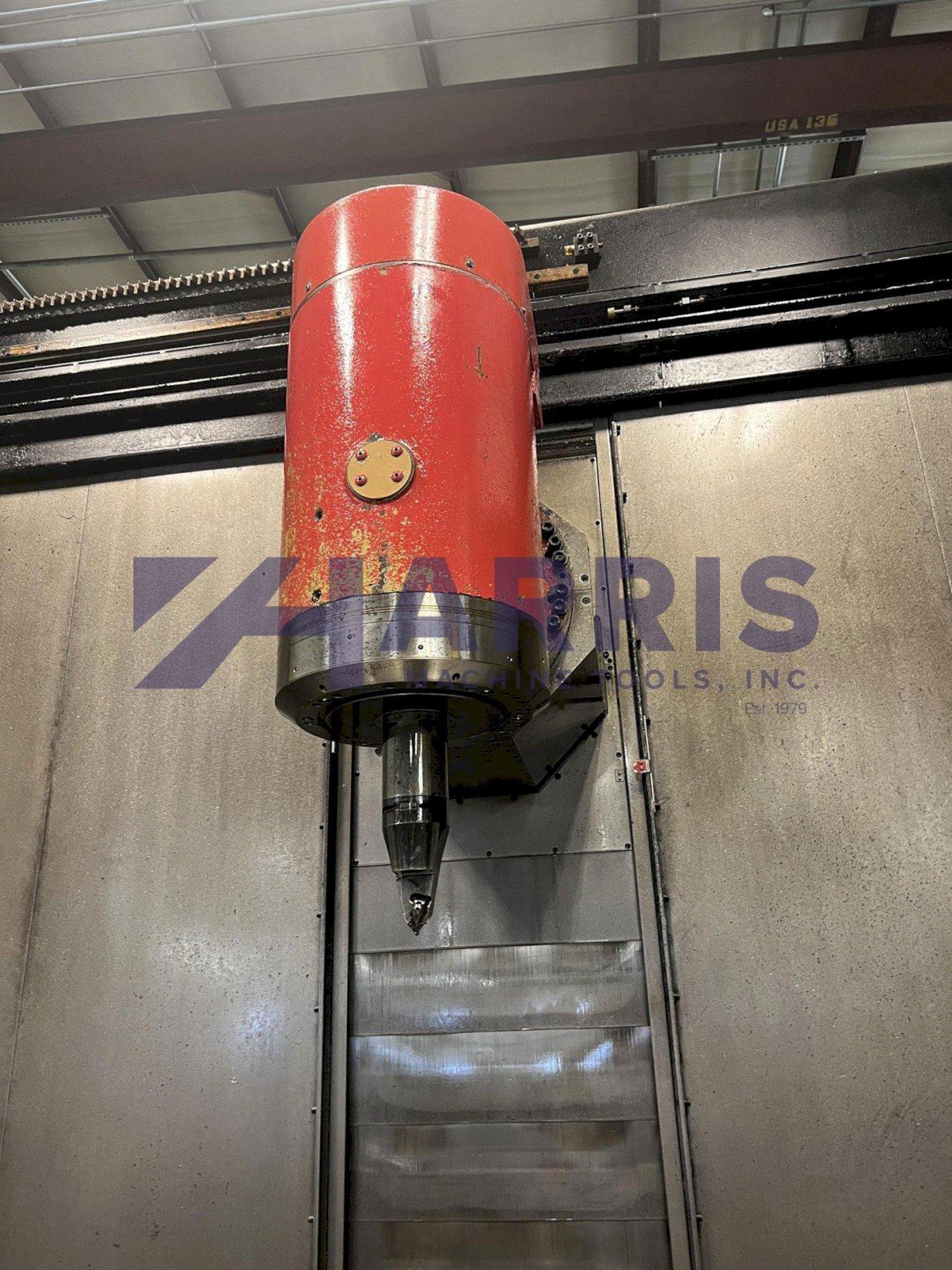

MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
OAD (APPROXIMATE): 360" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 130,000LBS.
EQUIPPED WITH:

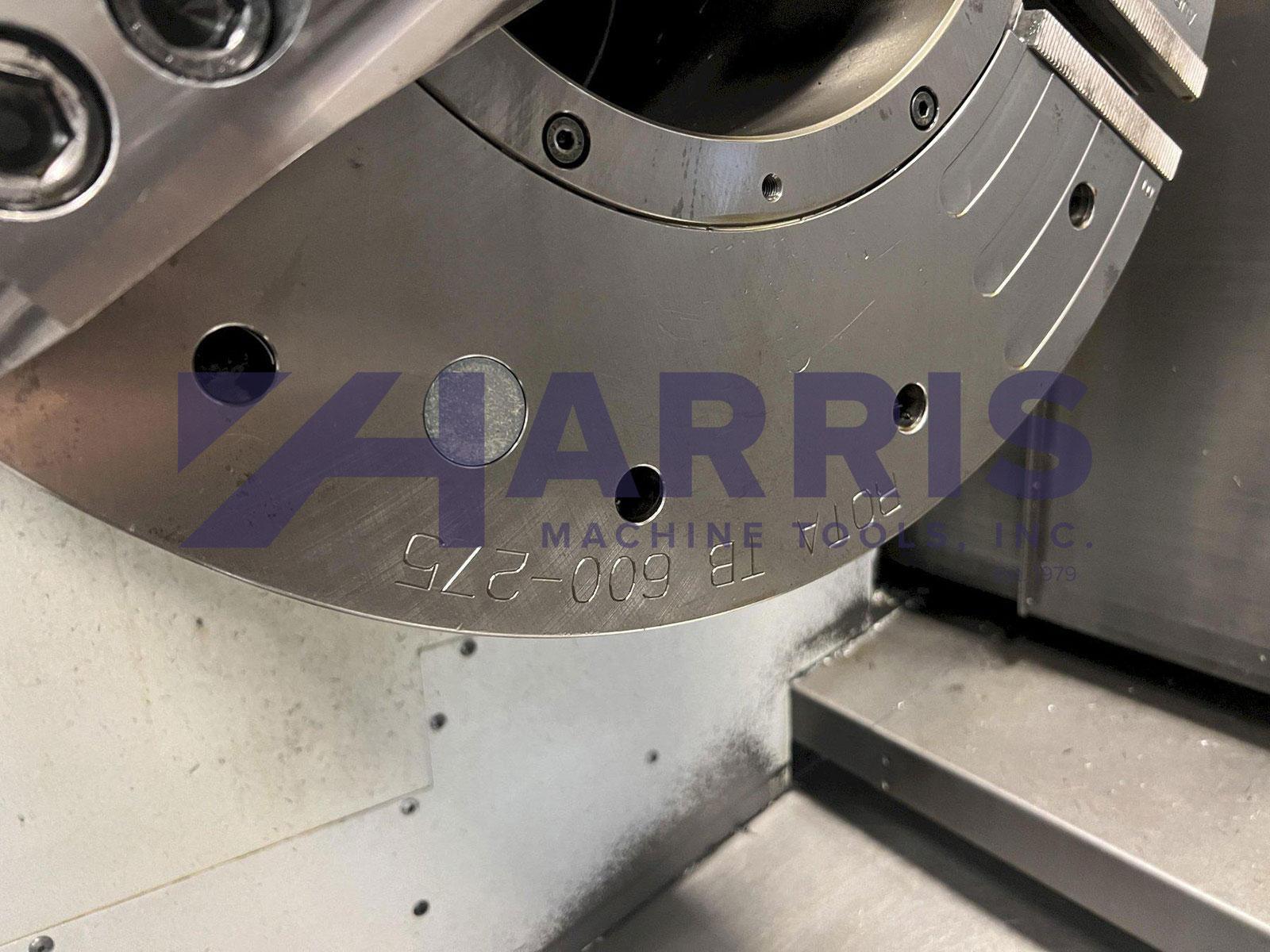

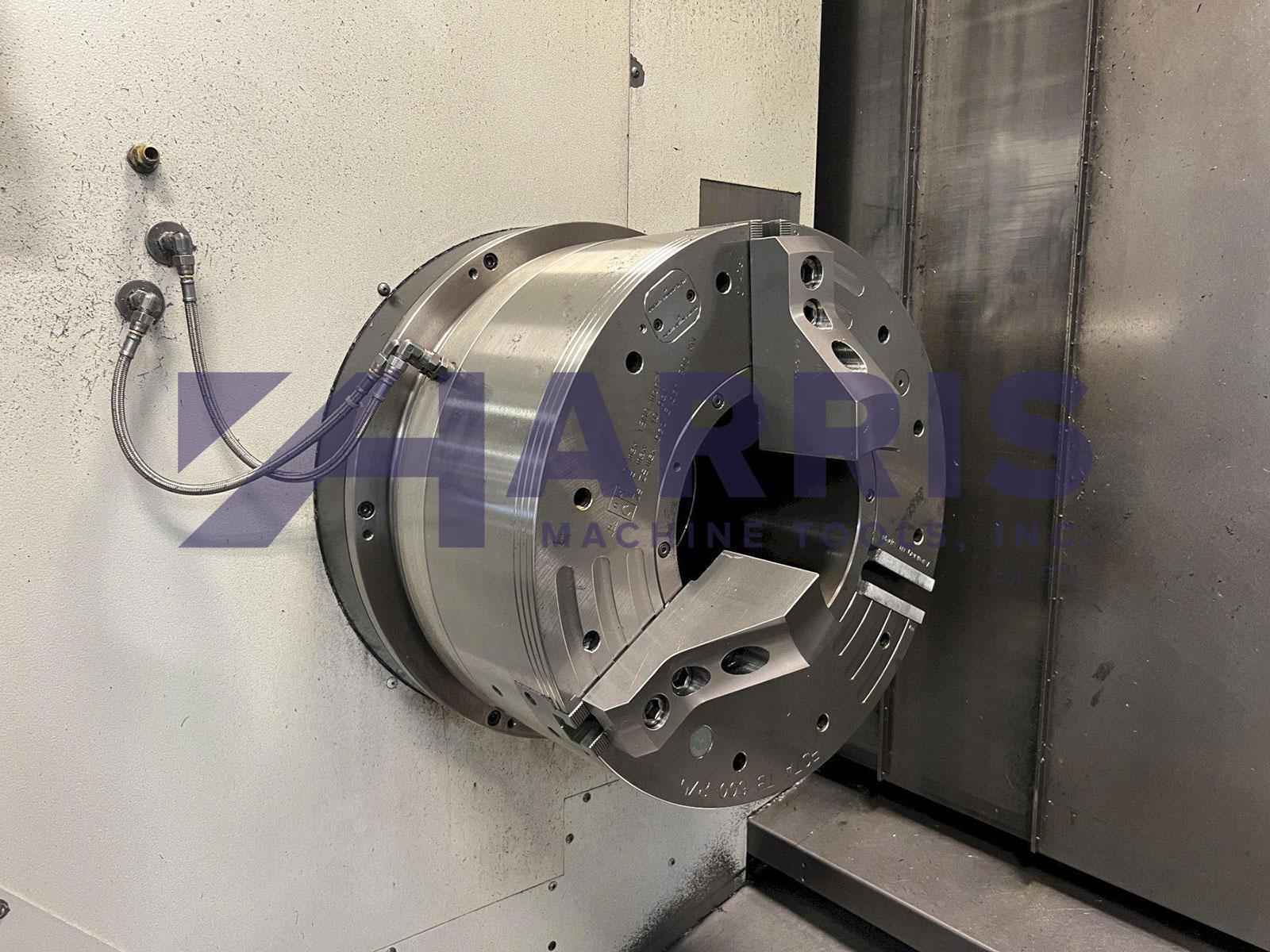

24" FRONT MOUNT AIR CHUCKS ON MAIN AND SUB SPINDLE
10.8" HOLE THROUGH MAIN AND SUB SPINDLE
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING

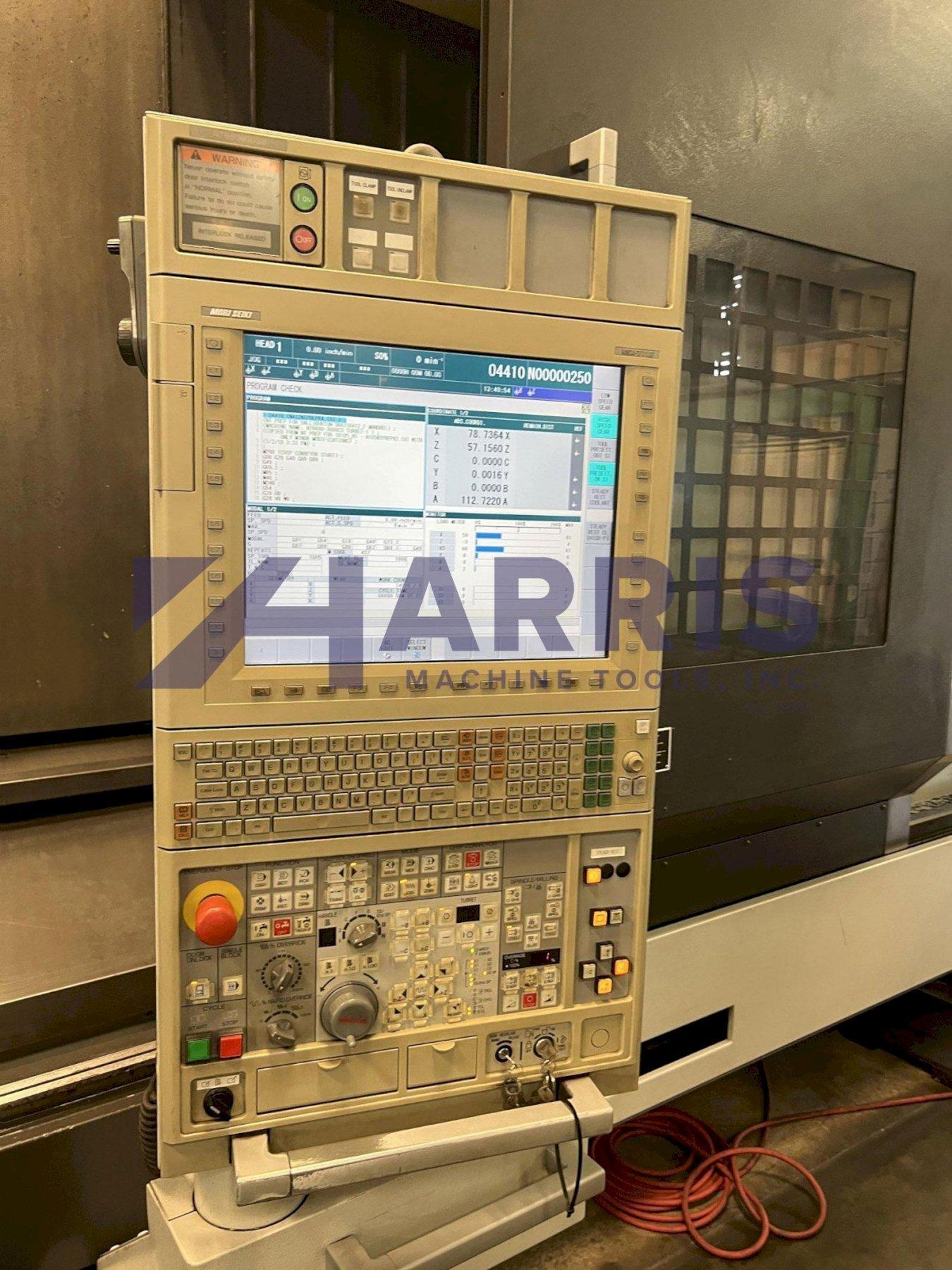

MSX-711IV / FS-31iA5 CNC CONTROL

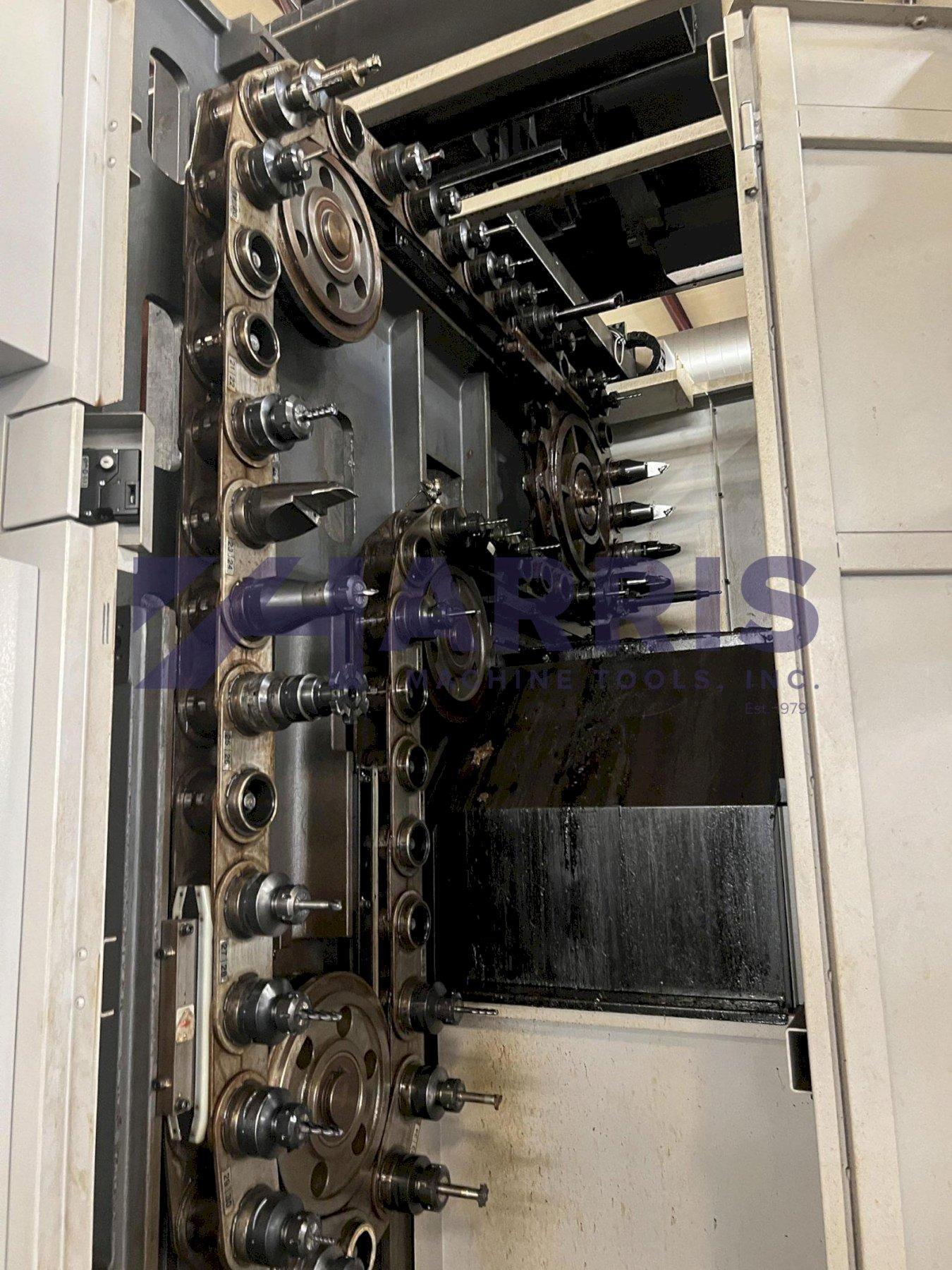

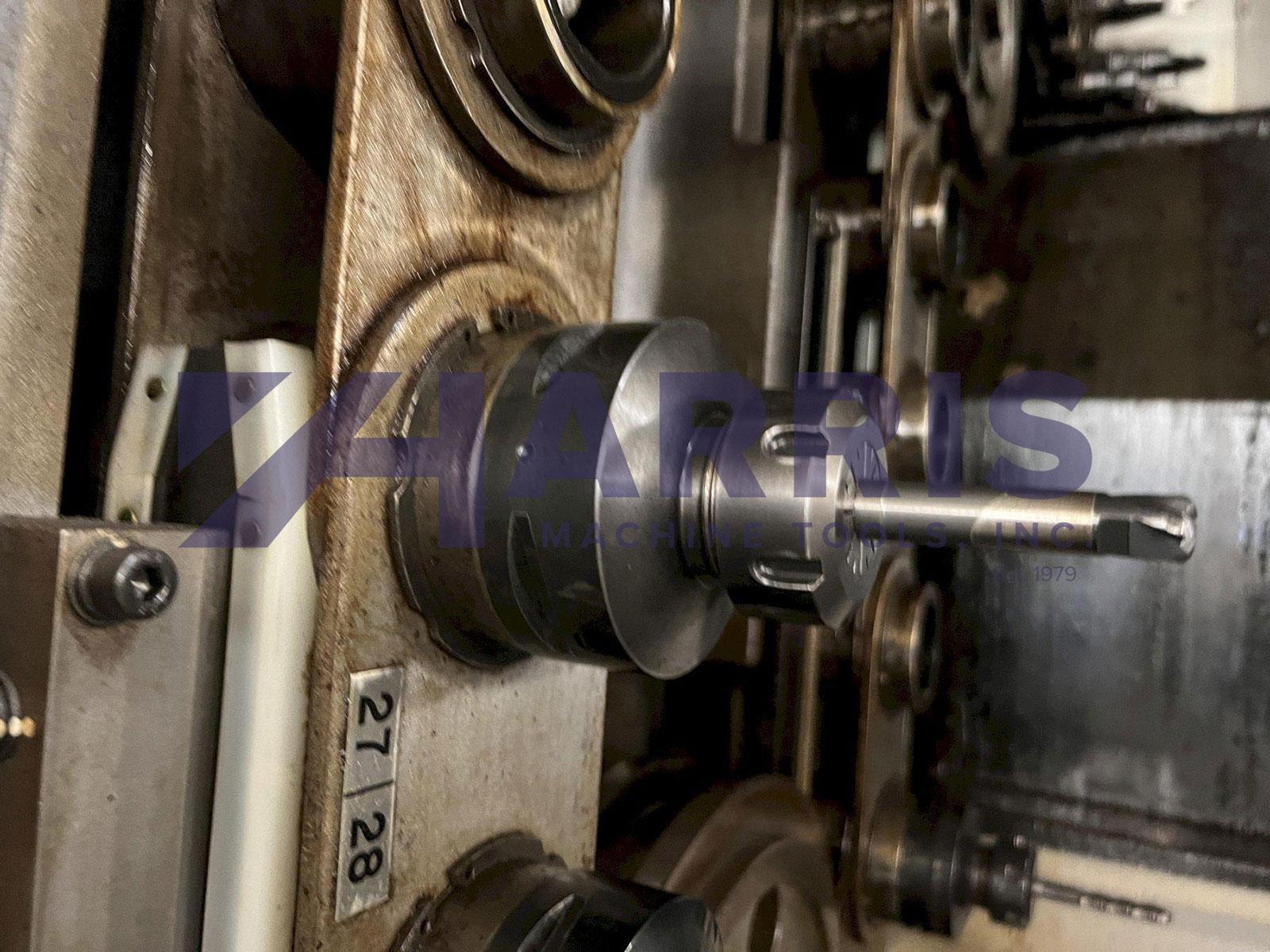

60 POSITION AUTOMATIC TOOL CHANGER
SUB SPINDLE
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR TO CHIP CONVEYOR SYSTEM WITH REAR DISCHARGE TAILSTOCK END
Additional Control Options:
Additional Machine Specs:
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 120"
MAXIMUM BAR DIAMETER: 10.8"
SPINDLE BORE: 10.8"
SUB SPINDLE BORE: 10.8"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 122"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
OAD (APPROXIMATE): 360" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 130,000LBS.
EQUIPPED WITH:
24" FRONT MOUNT AIR CHUCKS ON MAIN AND SUB SPINDLE
10.8" HOLE THROUGH MAIN AND SUB SPINDLE
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING
MSX-711IV / FS-31iA5 CNC CONTROL
60 POSITION AUTOMATIC TOOL CHANGER
SUB SPINDLE
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR TO CHIP CONVEYOR SYSTEM WITH REAR DISCHARGE TAILSTOCK END
Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
(1) Programmable Automatic Steady Rest (2.36 - 11.02" CAPACITY)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
