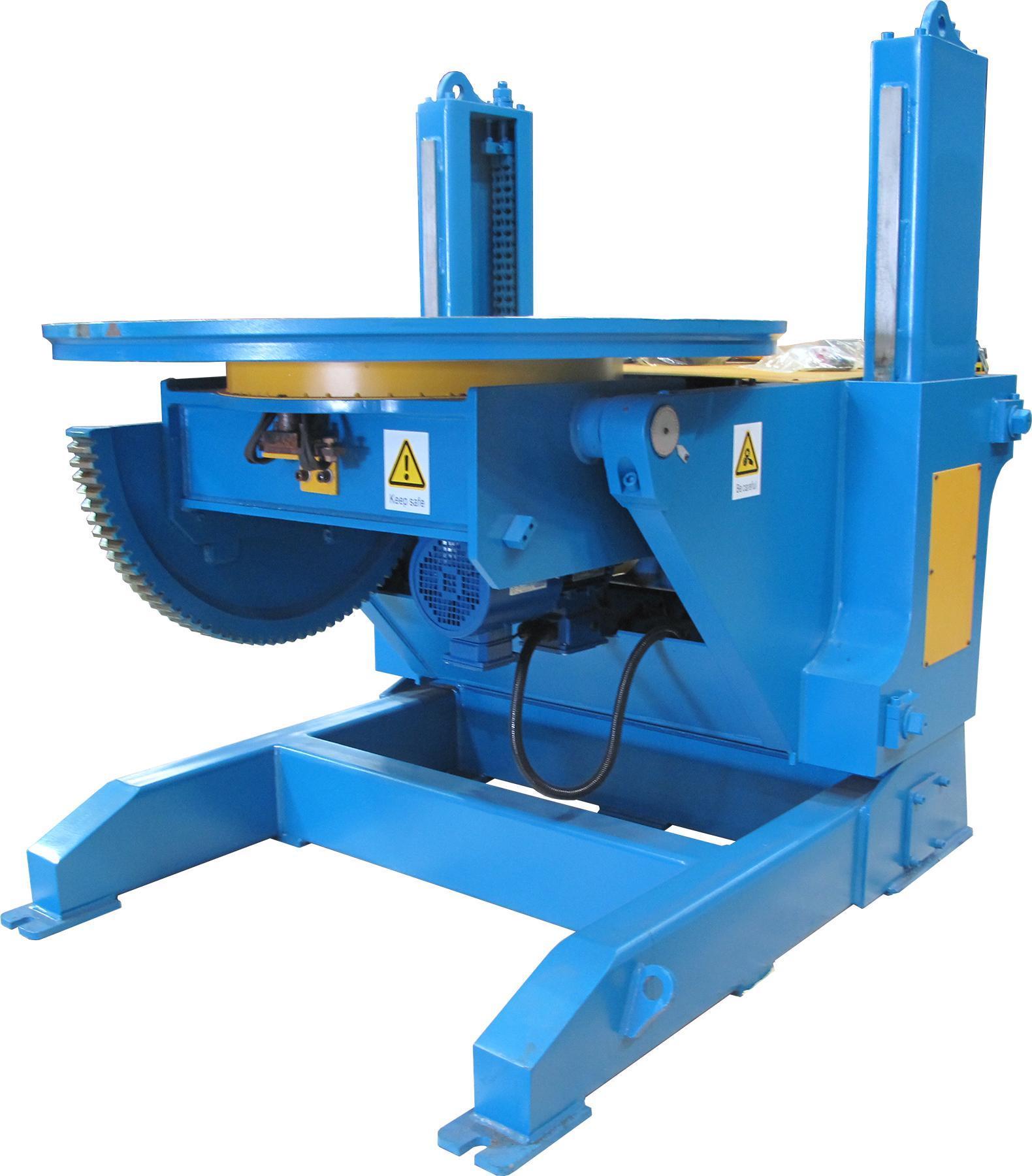

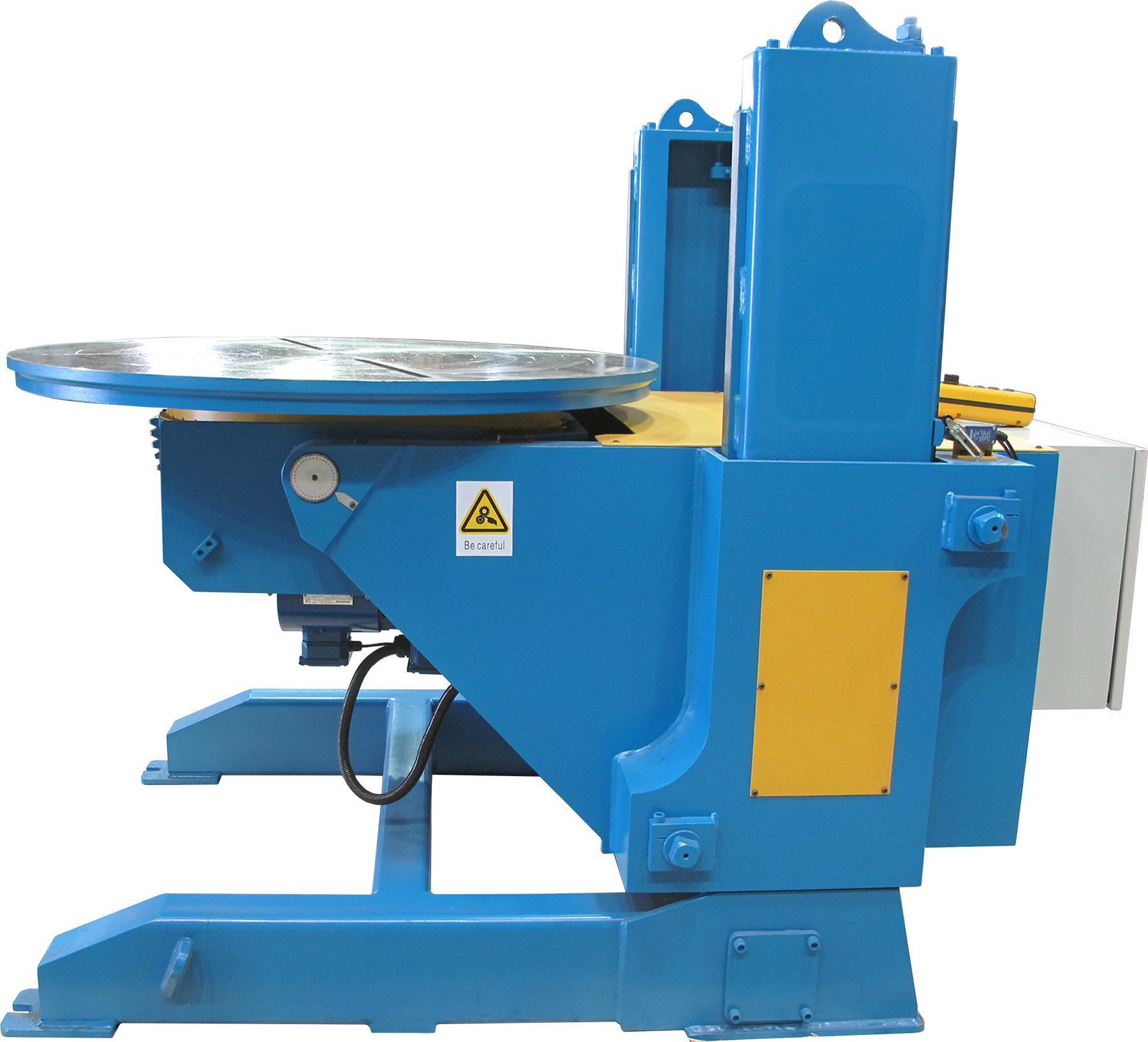

NEW, 2 TON STEADY-WELD MODEL P2-AM POWER ADJUSTABLE HEIGHT WELDING POSITIONER
Brand
STEADY-WELD
Model
P2-AM
Type
Welding, Positioner
Stock #
19339
Condition
New
Year
2021
Status
Sold
Location
Houston, Texas
United States
Specifications
Equipped With
MAXIMUM LOAD CAPACITY: 4,400 LBS.
GRAVITY CENTER: 11.8"
ECCENTRICITY: 7.8"
INHERENT OVERHANG: 6.3"
TABLE DIAMETER: 47.2"
TABLE T-SLOTS: 4 X 0.78"
TABLE HEIGHTS: 42.9" - 62.6" (INF. VAR.)
HEIGHT ADJUSTING SPEED: 30 IPM
TABLE ROTATION SPEED: 0.1 - 1.0 RPM
ROTATION TORQUE: 34,628 IN.-LB.
TABLE TILT: 0 - 135 DEG.
TABLE TILT SPEED: 0.33 RPM
TILTING TORQUE: 79,684 IN.-LB.
WELDING CURRENT: 500 AMPS
POWER: 480V/3P/60HZ
OAD (APPROXIMATE): 80.7" X 53.9" X 63.4" HIGH
WEIGHT (APPROXIMATE): 3,080 LBS.
EQUIPPED WITH:

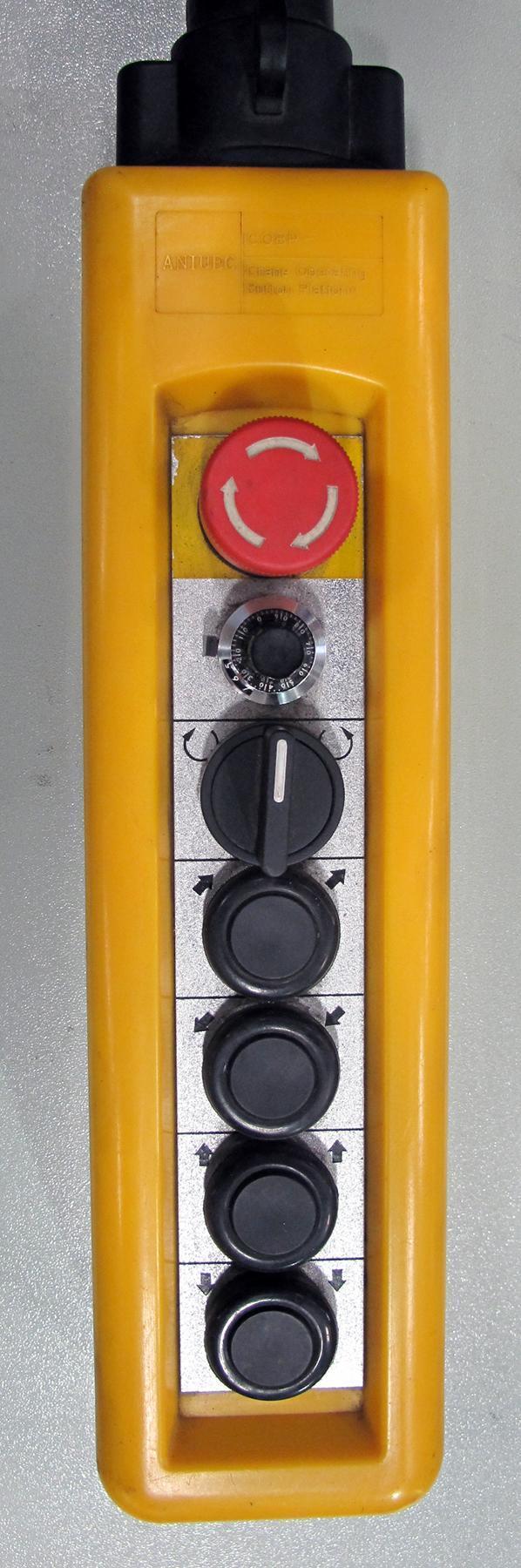

PENDANT CONTROL
FOOT PEDAL
INF. VAR. SPEED CONTROL
ELECTRO-MECHANICAL BRAKE ON ROTATION MOTOR
