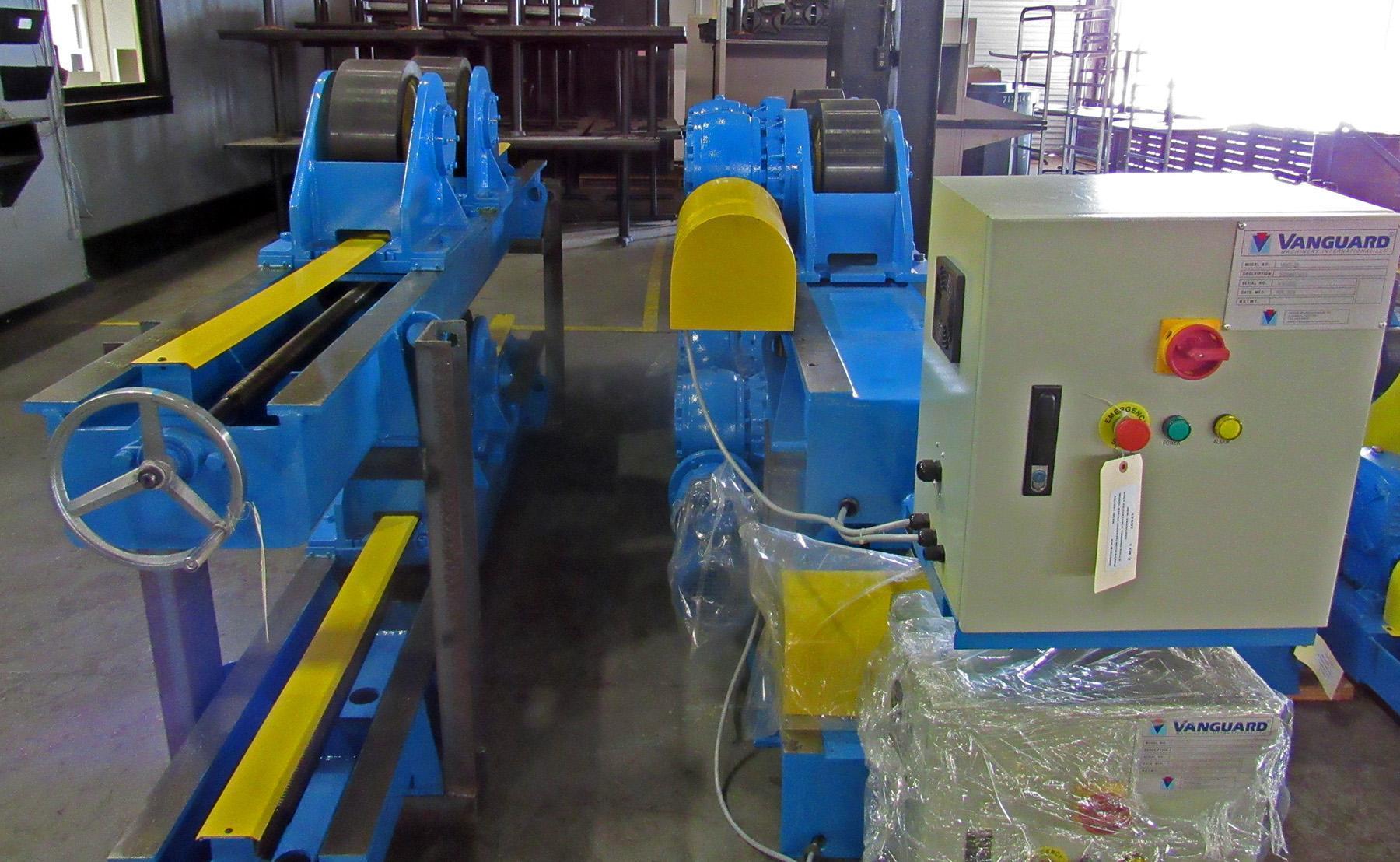

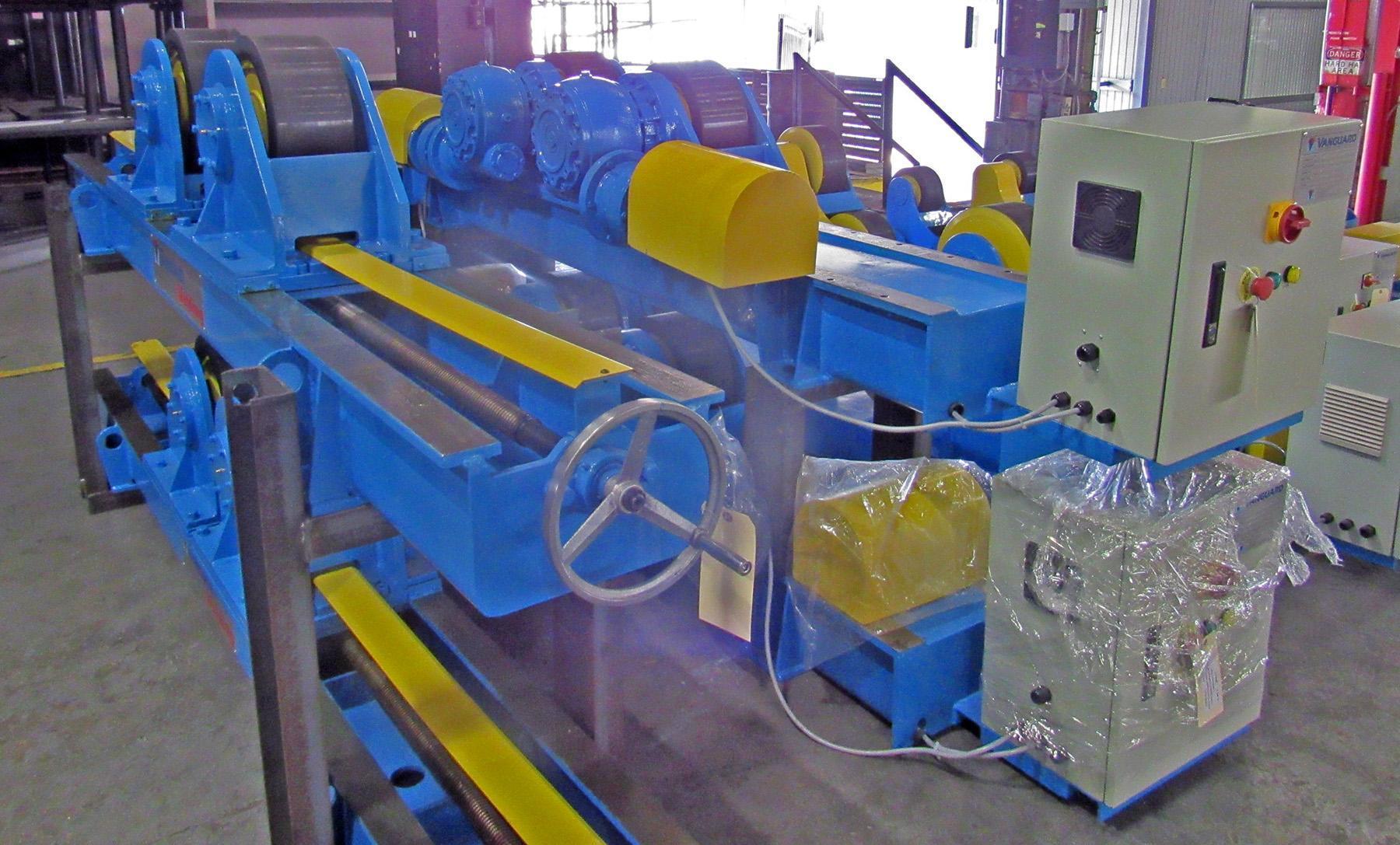

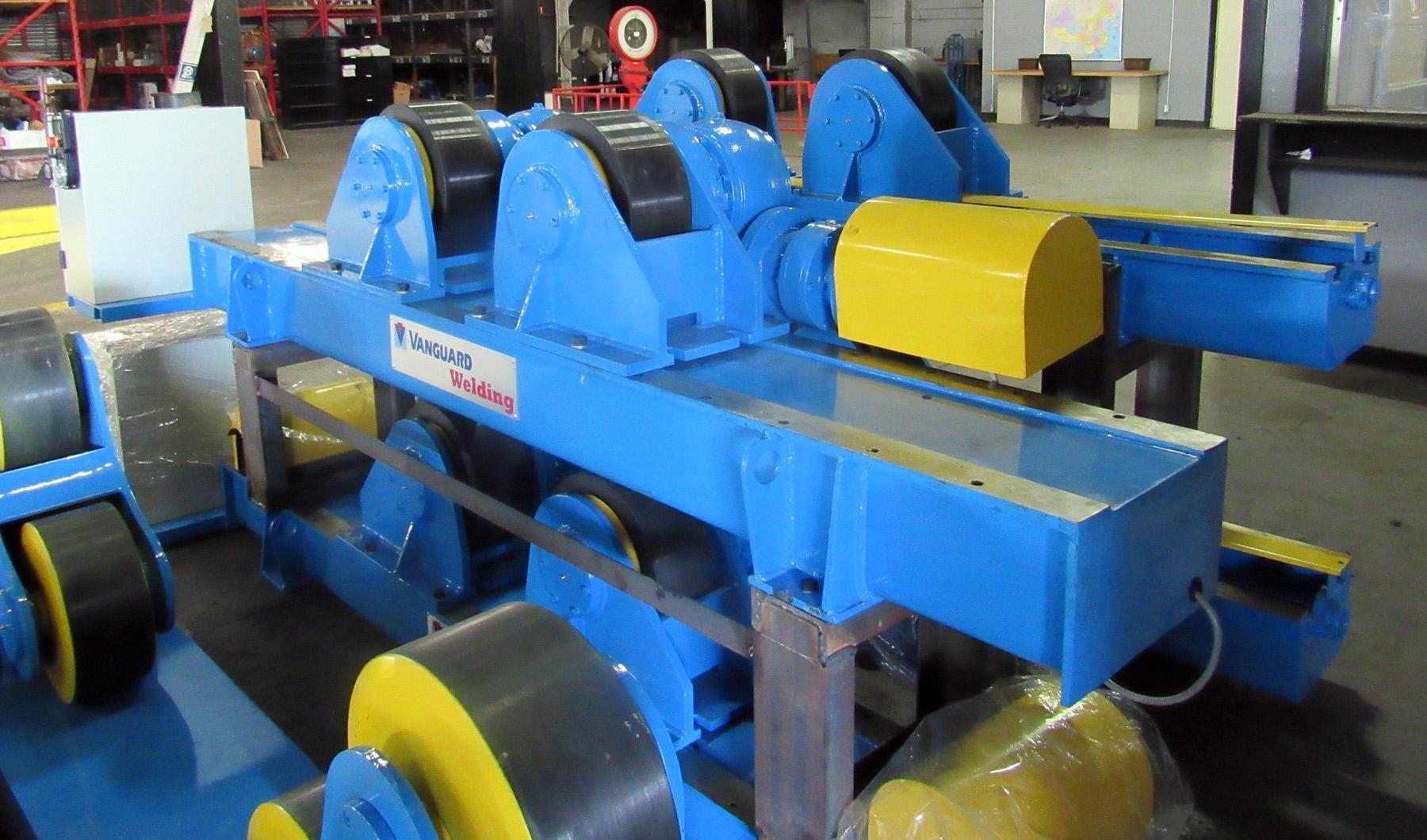

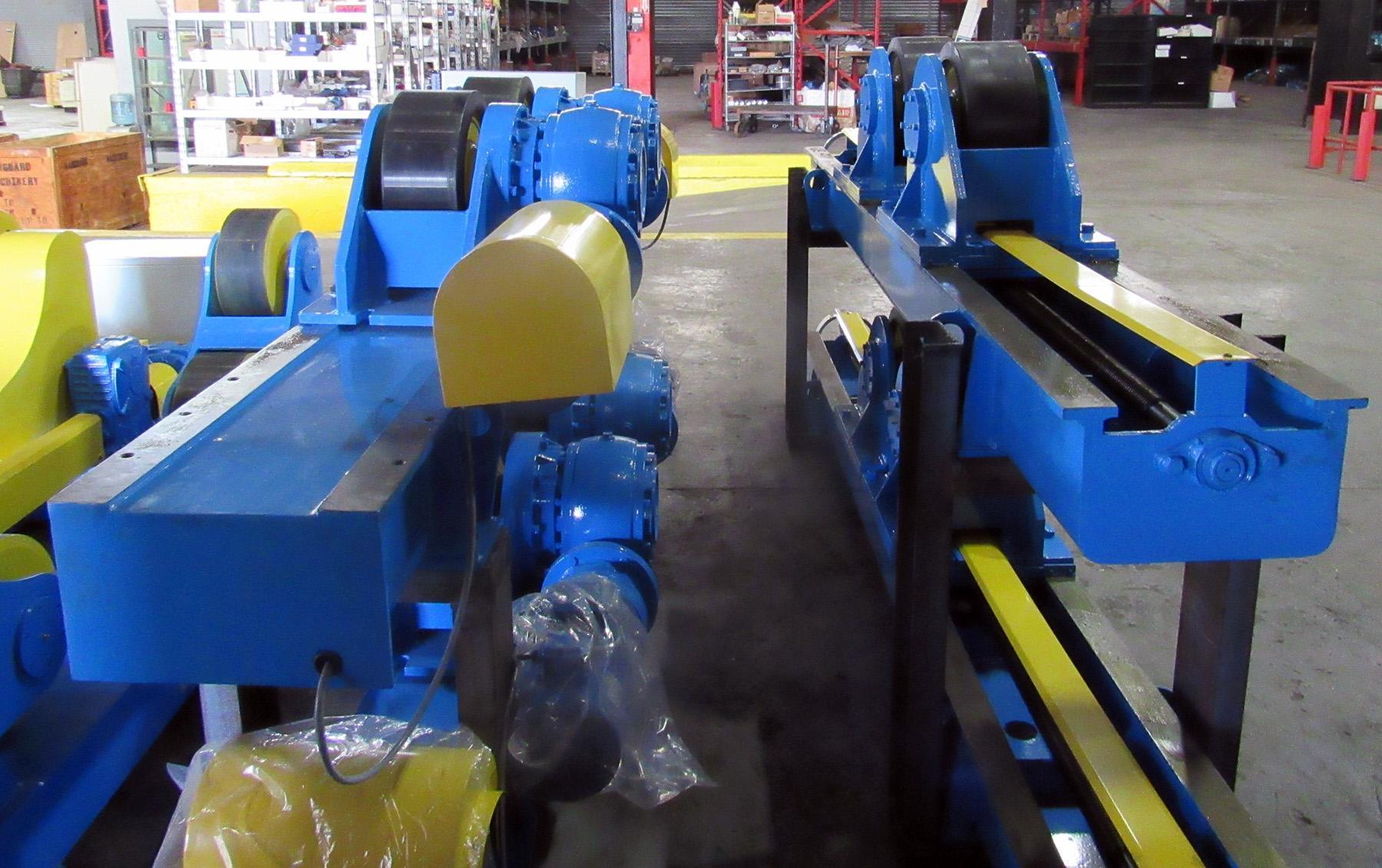

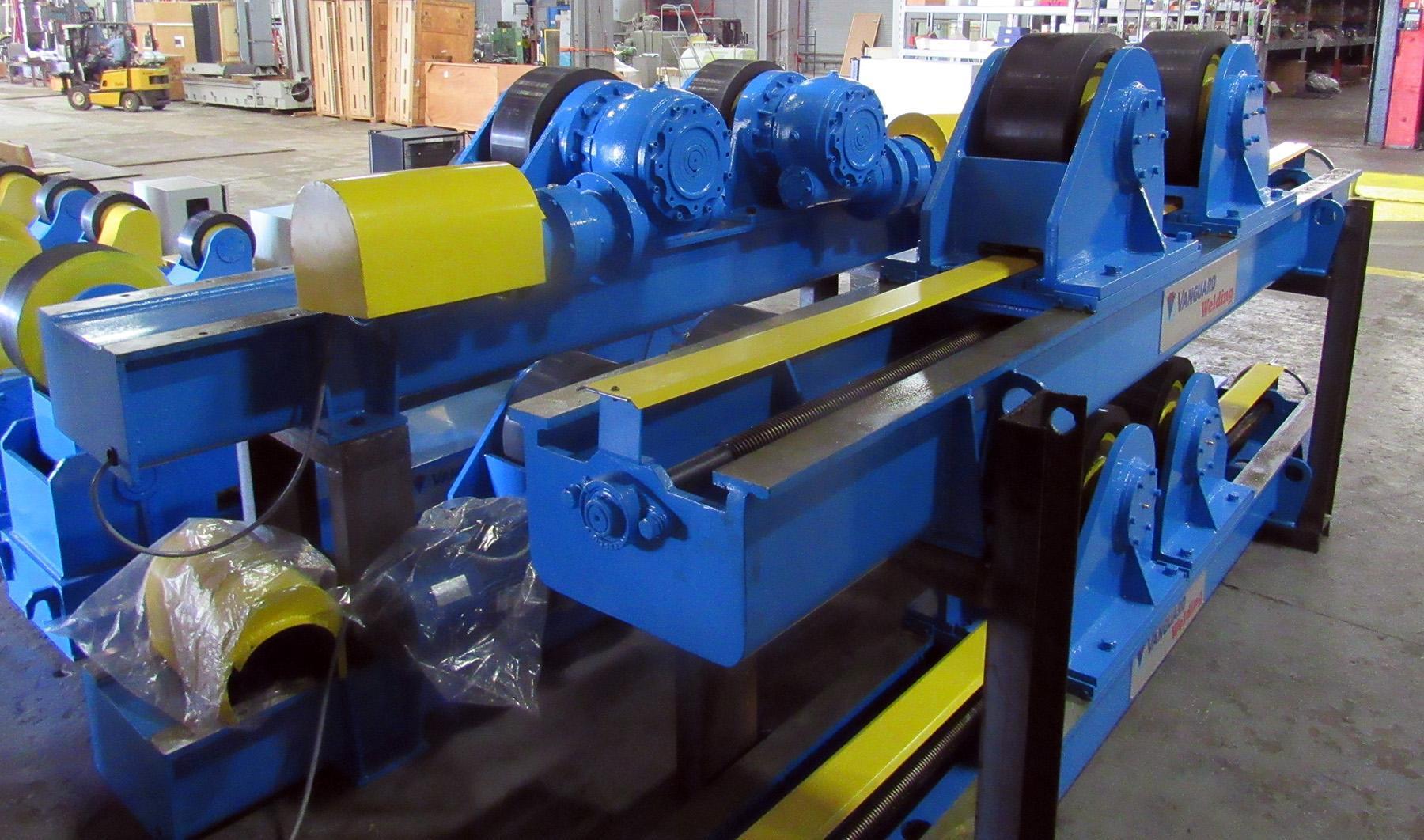

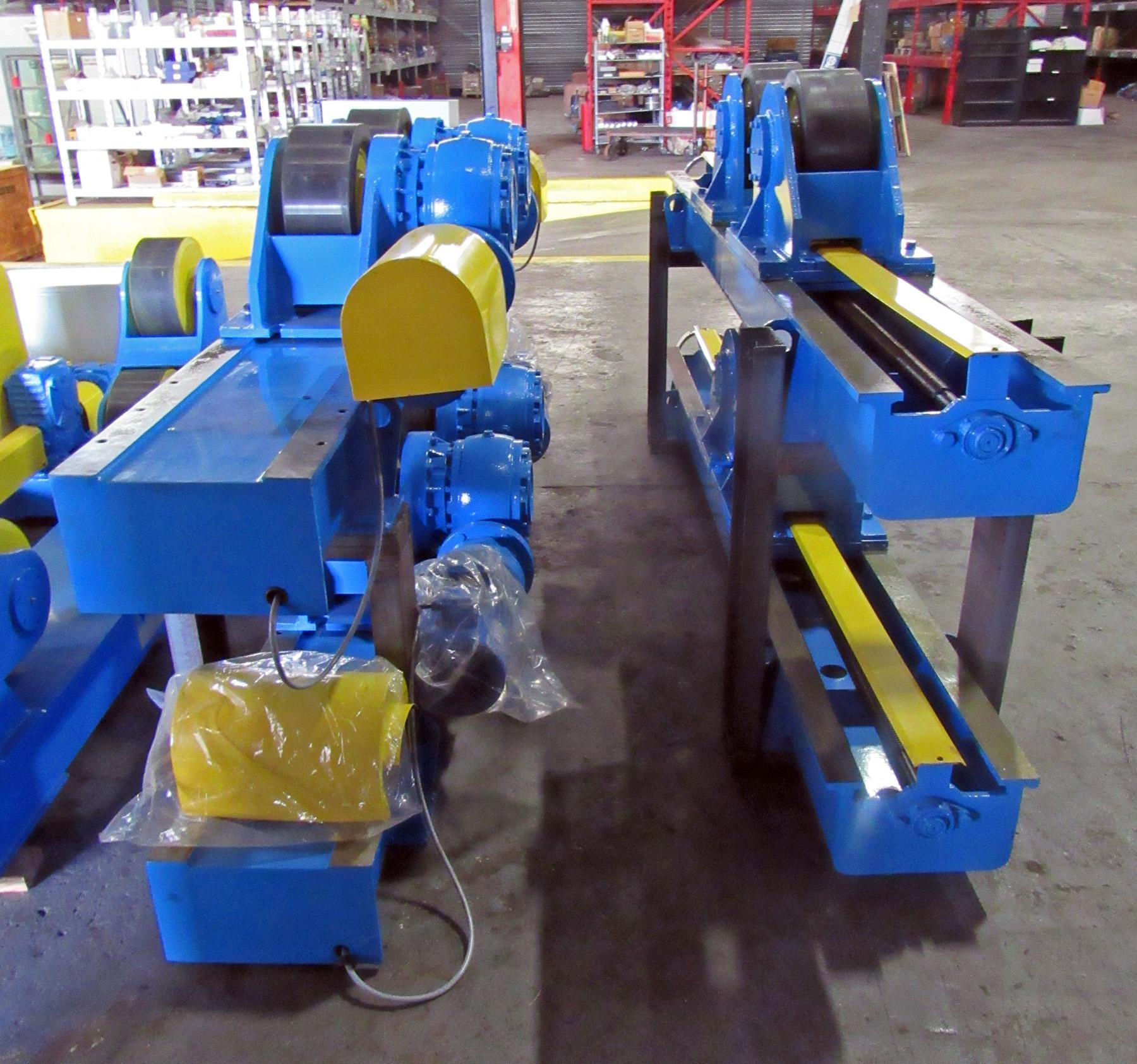

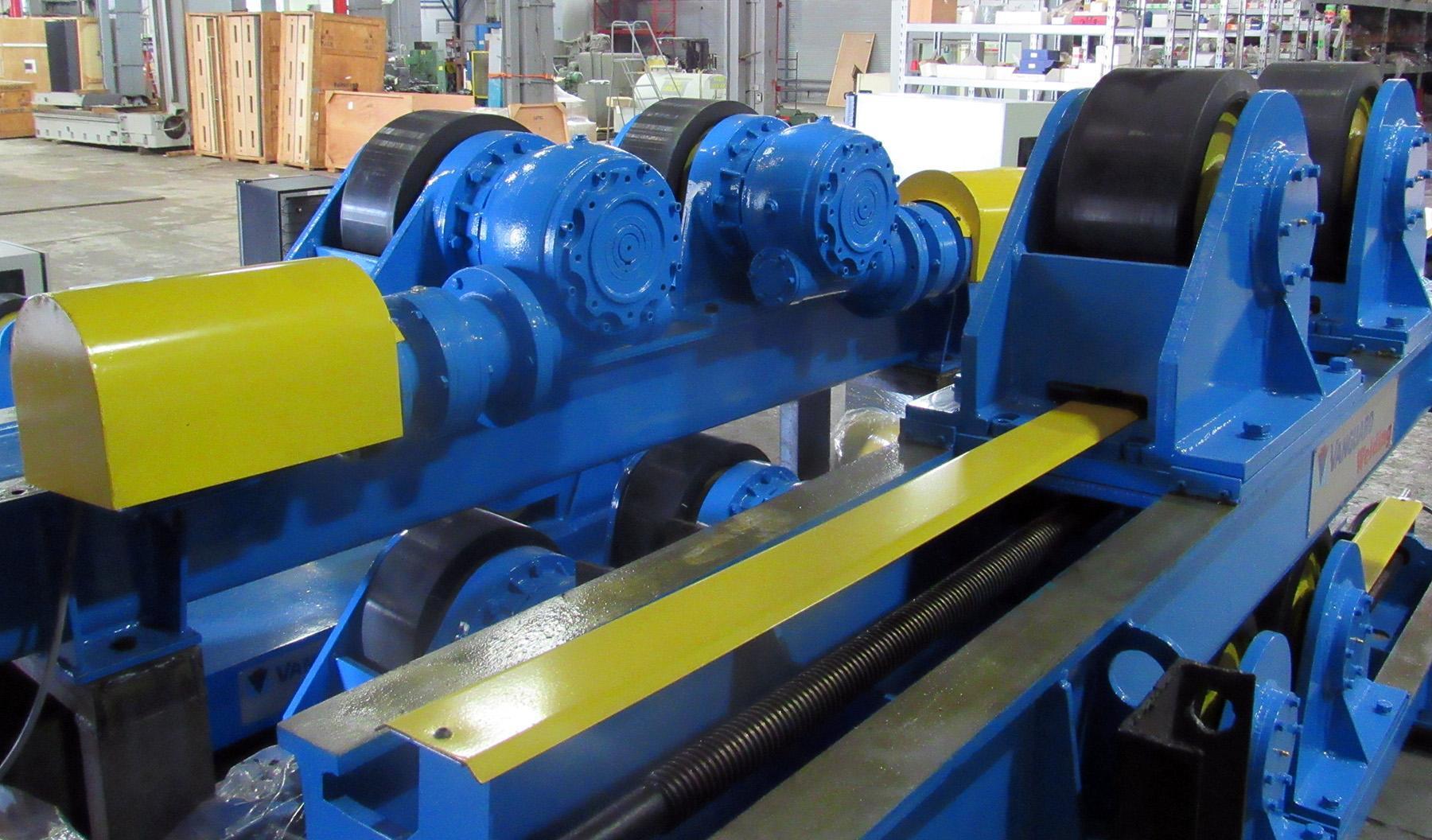

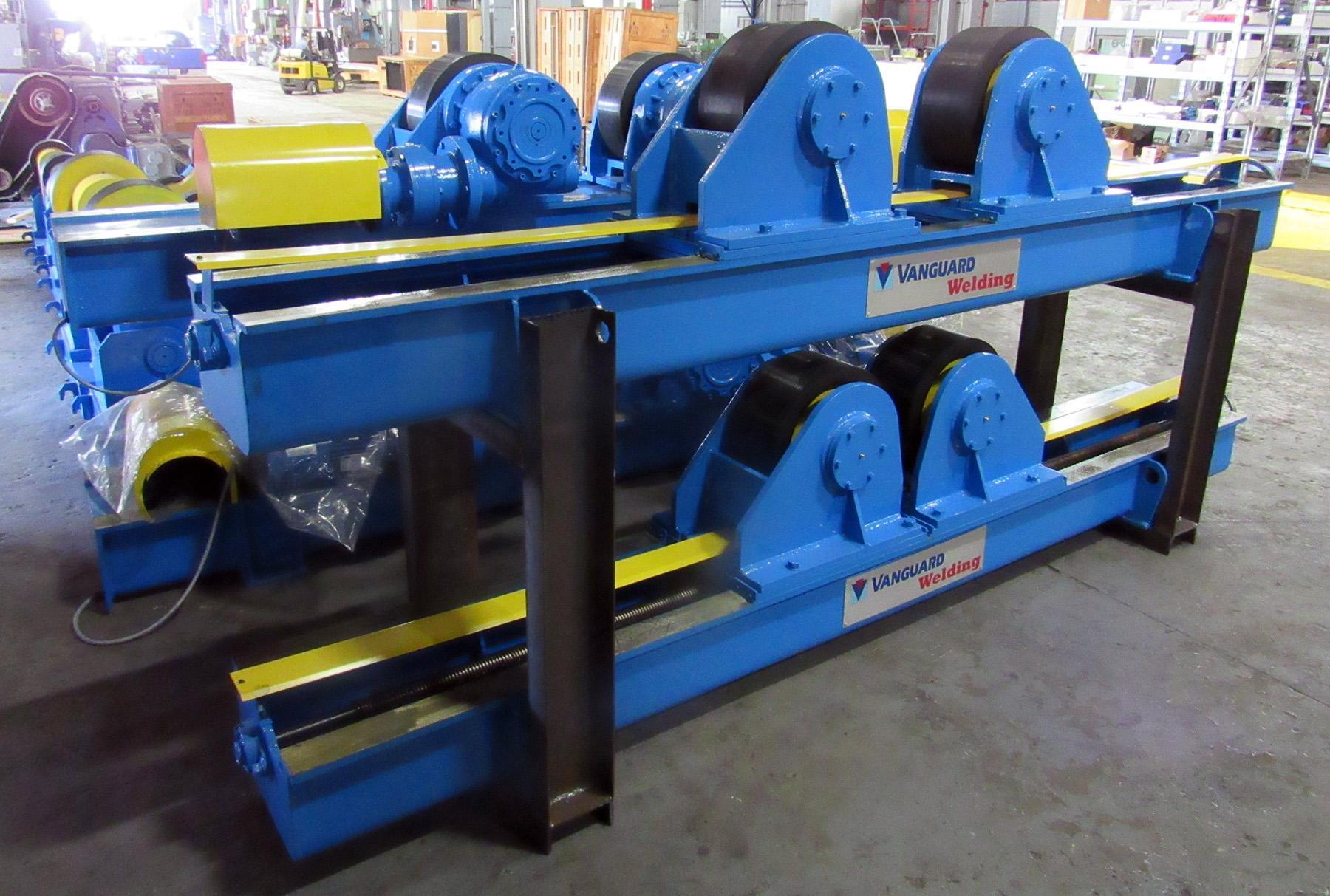

NEW, 20 TON VANGUARD BOLT ADJUSTABLE TURNING ROLLS MODEL R20-BA DRIVE WITH R20-LS LEAD SCREW ADJUST IDLER
Brand
VANGUARD
Model
R20-BA
Type
Welding Turning Rolls
Stock #
17557
Condition
Used
Year
2016
Status
Sold
Location
Houston, Texas
United States
Specifications
Equipped With
MAXIMUM LOAD CAPACITY, DRIVE + IDLER: 20,000 KG (44,000 LBS.)
MAXIMUM TURNING CAPACITY, DRIVE UNIT: 30,000 KG (66,000 LBS.)
MINIMUM WORK PIECE DIAMETER, DRIVE UNIT: 380 MM (15")
MINIMUM WORK PIECE DIAMETER, IDLER UNIT: 150 MM (6")
MAXIMUM WORK PIECE DIAMETER, DRIVE AND IDLER: 5000 MM (197")
ROLLER CENTER DISTANCE, DRIVE UNIT: 600 - 2150 MM (23.6" - 84.6")
ROLLER CENTER DISTANCE, IDLER UNIT: 410 - 2250 MM (16" - 88.6")
ROLLER WHEELS: 350 MM DIA. X 150 MM WIDTH (Ø13.8" X 5.9")
ROLLER LINEAR SPEED: 100 - 1000 MM/MIN (4 - 40 IPM)
ROLLER CENTER HEIGHT: 455 MM (17.9")
SPEED ADJUST: VARIABLE FREQUENCY DRIVE
DRIVE MOTORS (2): 1.1 KW (1.5 HP EACH)
OAD (LXWXH), DRIVE UNIT: 123" X 34" X 25" (APPROXIMATE)
WEIGHT, DRIVE UNIT: 1670 KG (3675 LBS.) (APPROXIMATE)
OAD (LXWXH), IDLER UNIT: 122" X 18" X 25" (APPROXIMATE)
WEIGHT, IDLER UNIT: 1310 KG (2880 LBS.) (APPROXIMATE)
EQUIPPED WITH:

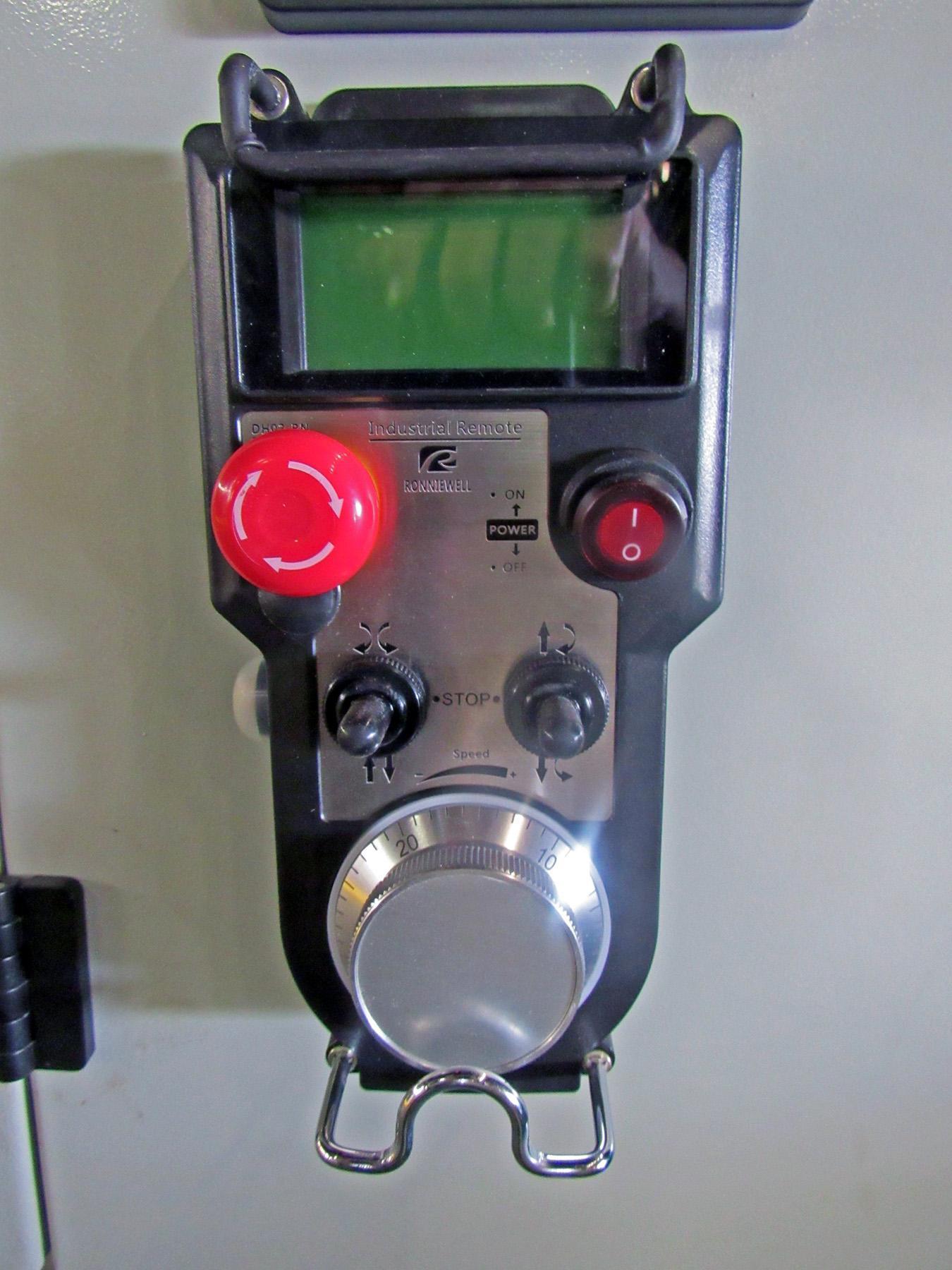

RADIO CONTROL REMOTE
POLYURETHANE ROLLER WHEELS
MAXIMUM TURNING CAPACITY, DRIVE UNIT: 30,000 KG (66,000 LBS.)
MINIMUM WORK PIECE DIAMETER, DRIVE UNIT: 380 MM (15")
MINIMUM WORK PIECE DIAMETER, IDLER UNIT: 150 MM (6")
MAXIMUM WORK PIECE DIAMETER, DRIVE AND IDLER: 5000 MM (197")
ROLLER CENTER DISTANCE, DRIVE UNIT: 600 - 2150 MM (23.6" - 84.6")
ROLLER CENTER DISTANCE, IDLER UNIT: 410 - 2250 MM (16" - 88.6")
ROLLER WHEELS: 350 MM DIA. X 150 MM WIDTH (Ø13.8" X 5.9")
ROLLER LINEAR SPEED: 100 - 1000 MM/MIN (4 - 40 IPM)
ROLLER CENTER HEIGHT: 455 MM (17.9")
SPEED ADJUST: VARIABLE FREQUENCY DRIVE
DRIVE MOTORS (2): 1.1 KW (1.5 HP EACH)
OAD (LXWXH), DRIVE UNIT: 123" X 34" X 25" (APPROXIMATE)
WEIGHT, DRIVE UNIT: 1670 KG (3675 LBS.) (APPROXIMATE)
OAD (LXWXH), IDLER UNIT: 122" X 18" X 25" (APPROXIMATE)
WEIGHT, IDLER UNIT: 1310 KG (2880 LBS.) (APPROXIMATE)
EQUIPPED WITH:
RADIO CONTROL REMOTE
POLYURETHANE ROLLER WHEELS
