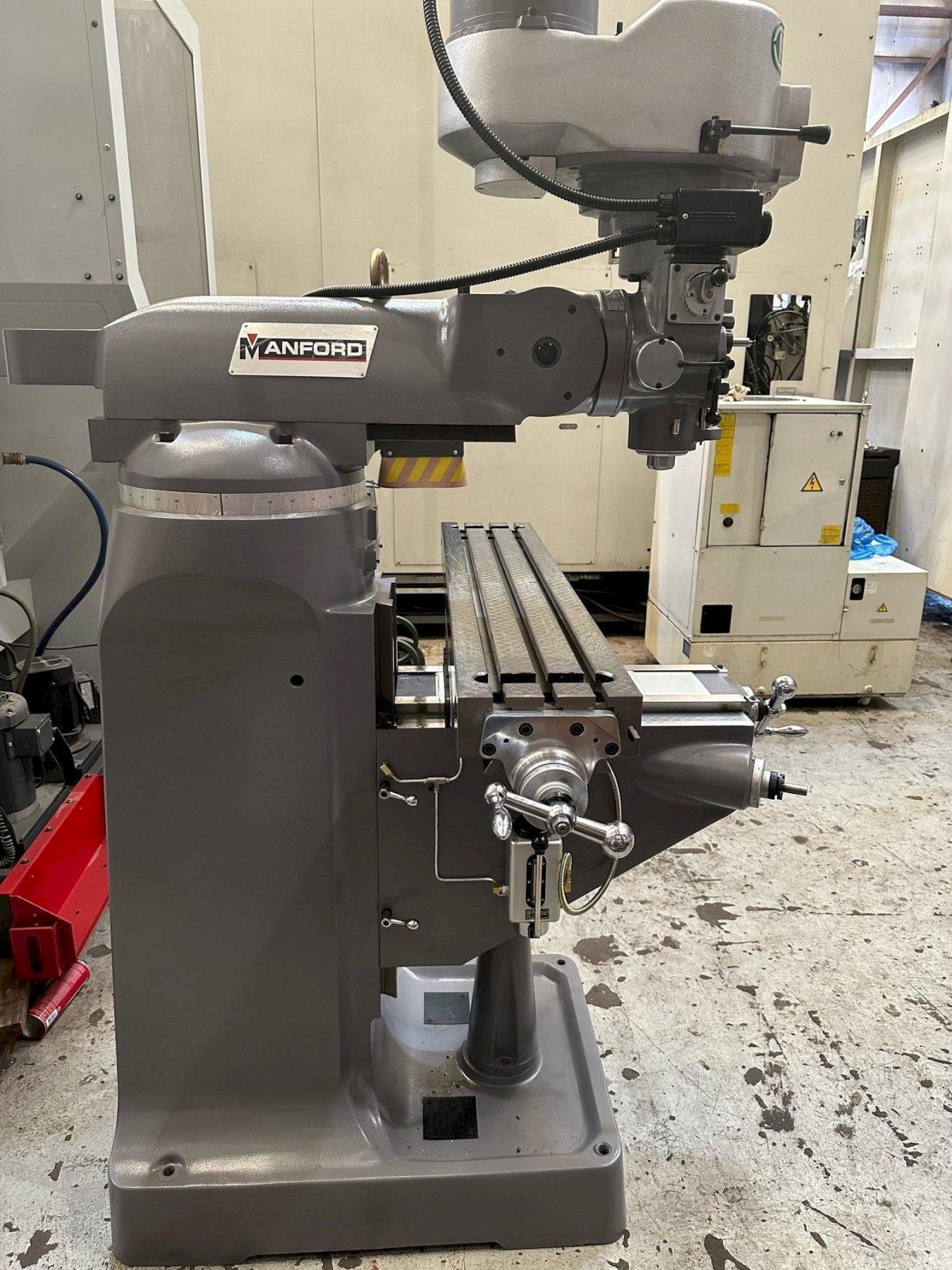

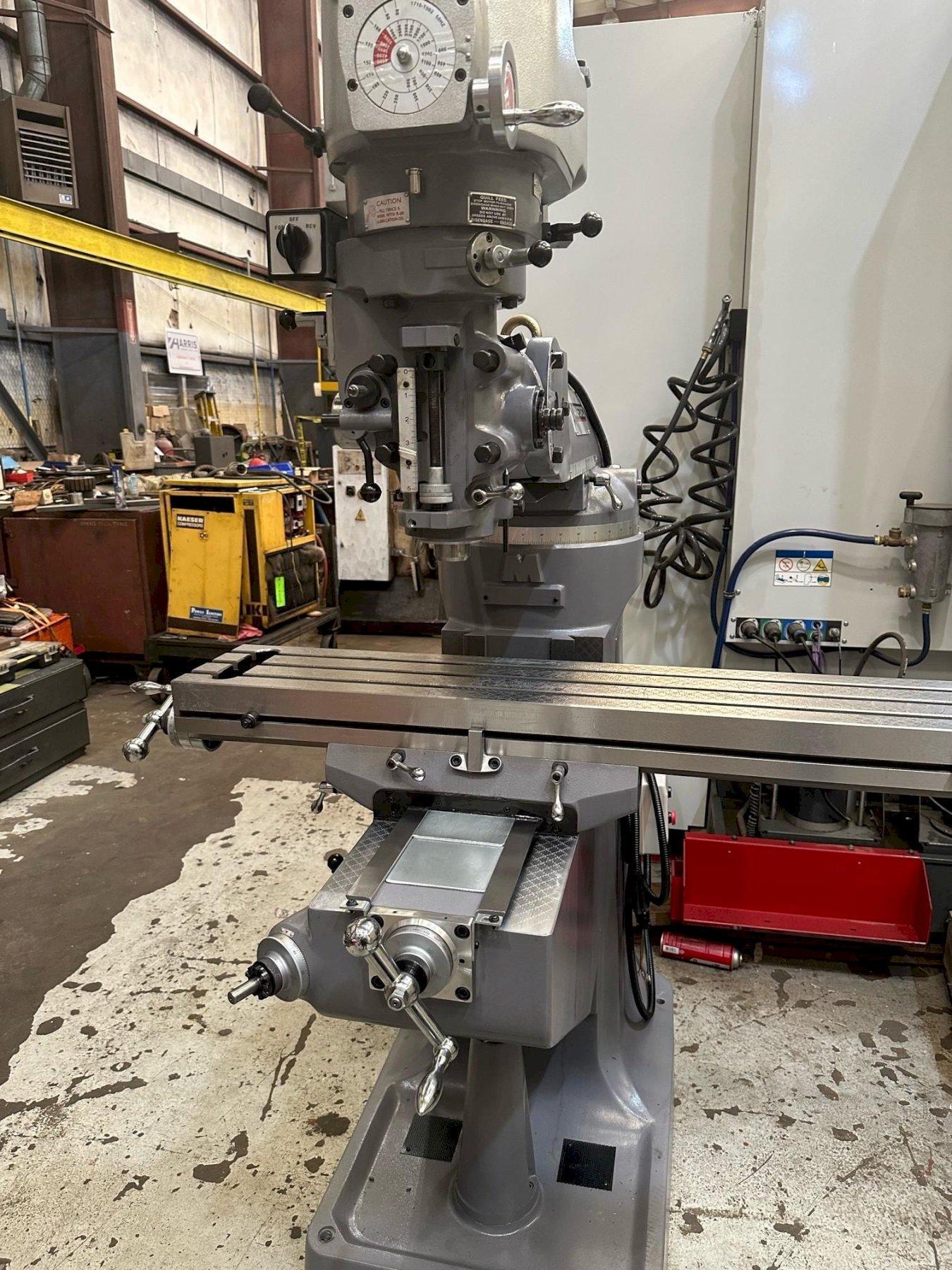

New, Manford Model L-2V Vertical Turret Milling Machine (MF-1 1/2VS)
Brand
MANFORD
Model
L-2V
Type
Millers, Vertical
Stock #
20713
Condition
New
Year
2024
Location
Houston, Texas
United States
Specifications
| Table Size | 9" x 49" |
| Table Travel Longitudinal | 37 inches |
| Table Travel Cross | 12 inches |
| Vertical Knee Travel | 16 inches |
| Ram Travel | 15 inches |
| Quill Travel | 5 inches |
| Max Distance Spindle To Table Top | 1.3" - 17.3" |
| Turret Rotation | 360 Deg. |
| Head Swivel | (L-R) +/- 45 Deg. |
| Head Tilt | (Up-Down) +/- 45 Deg. |
| Spindle to Column | 6" - 21.4" |
| Spindle Speed (RPM) | 70 - 4500 RPM |
| Spindle Motor | 3 HP |
| Spindle Taper | R8 |
| Quill Feeds | (3) 0.0015, 0.003, 0.006 IPR |
| Quill Diameter | 3.375 inches |
| Dimensions | 59" x 63-5/8" x 84" High |
| Weight | 2200 pounds |
Equipped With
Table Size: 9" x 49"
T-Slots: (3) 5/8"
Table Longitudinal Travel: 37"
Table Cross Travel: 12"
Knee Vertical Travel: 16"
Ram Travel: 15"
Quill Travel: 5"
Spindle Nose to Table: 1.3" - 17.3"
Turret Swivel: 360 Deg.
Head Swivel (L-R): +/- 45 Deg.
Head Tilt (Up-Down): +/- 45 Deg.
Spindle to Column: 6" - 21.4"
Spindle Speeds: 70 - 4500 RPM
Spindle Motor: 3 HP
Spindle Taper: R8
Quill Feeds: (3) 0.0015, 0.003, 0.006 IPR
Quill Diameter: 3-3/8"
OAD: 59" x 63-5/8" x 84" High
Weight (Approximate): 2200 Lbs.
EQUIPPED WITH:
2 AXIS NEWALL DRO PACKAGE
X-AXIS POWER FEED

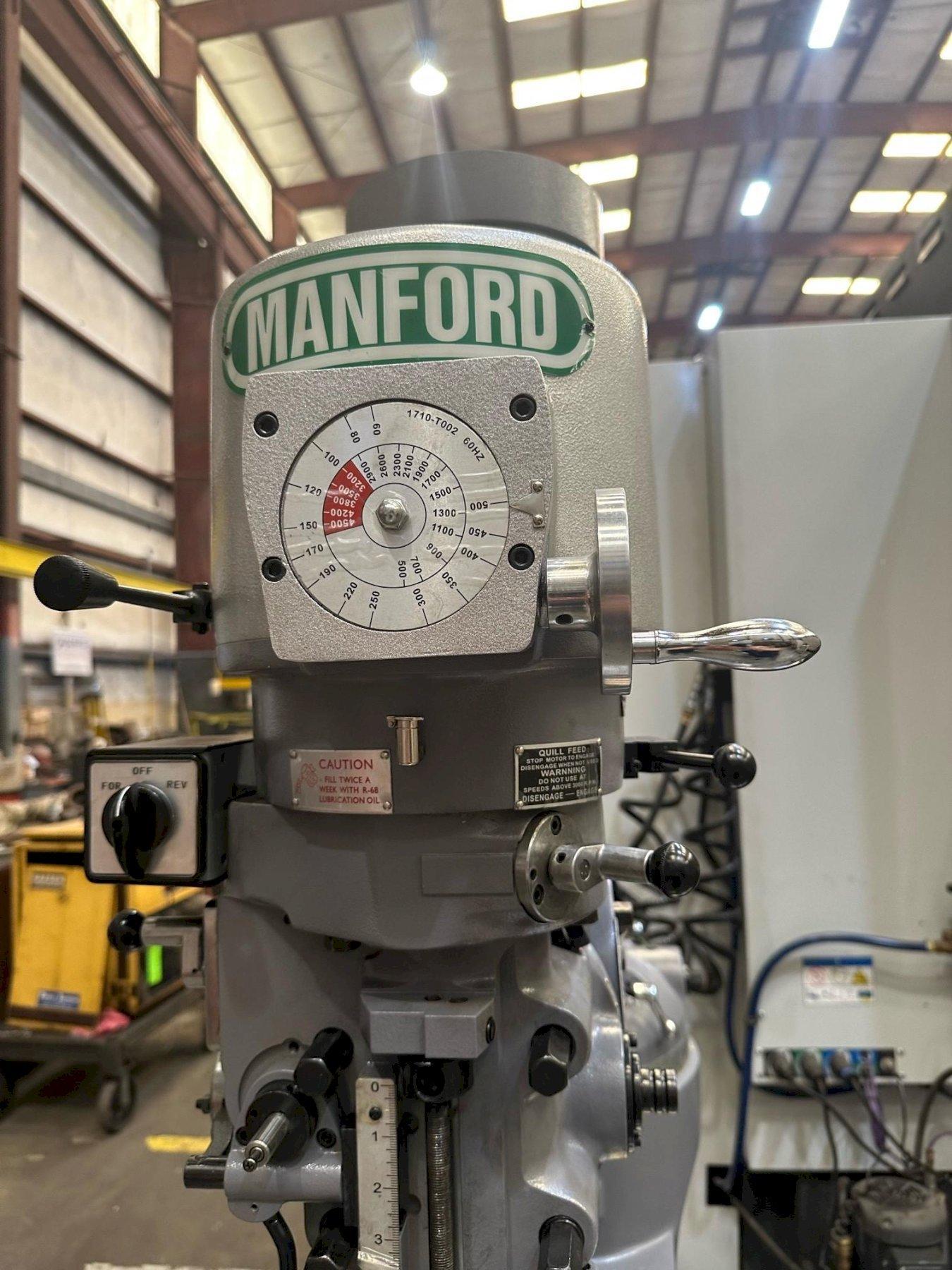

VARIABLE SPEED BRIDGEPORT STYLE HEAD
CHROME WAYS
ONCE SHOT LUBE
Note: All Specifications Subject to Verification
