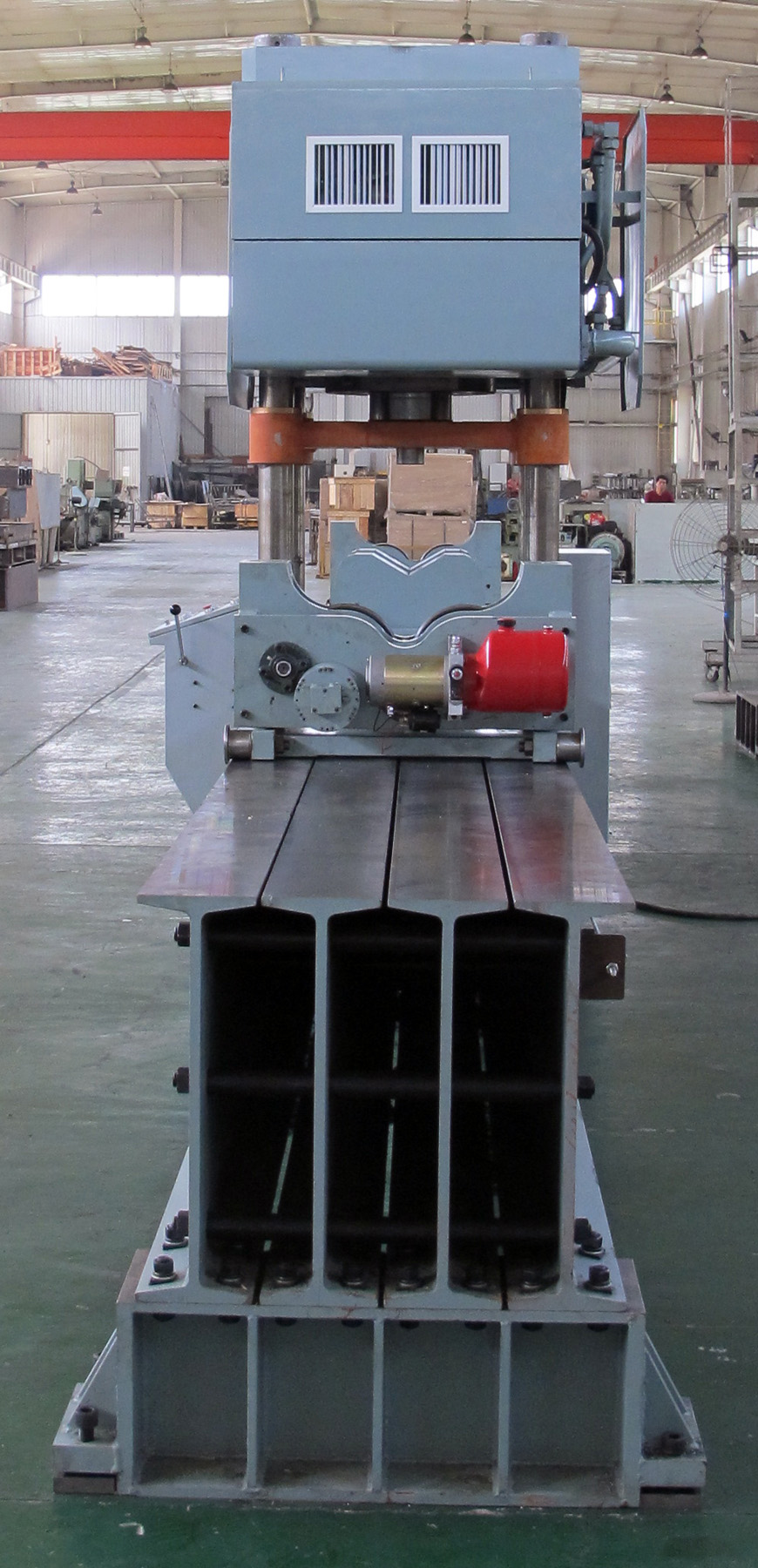

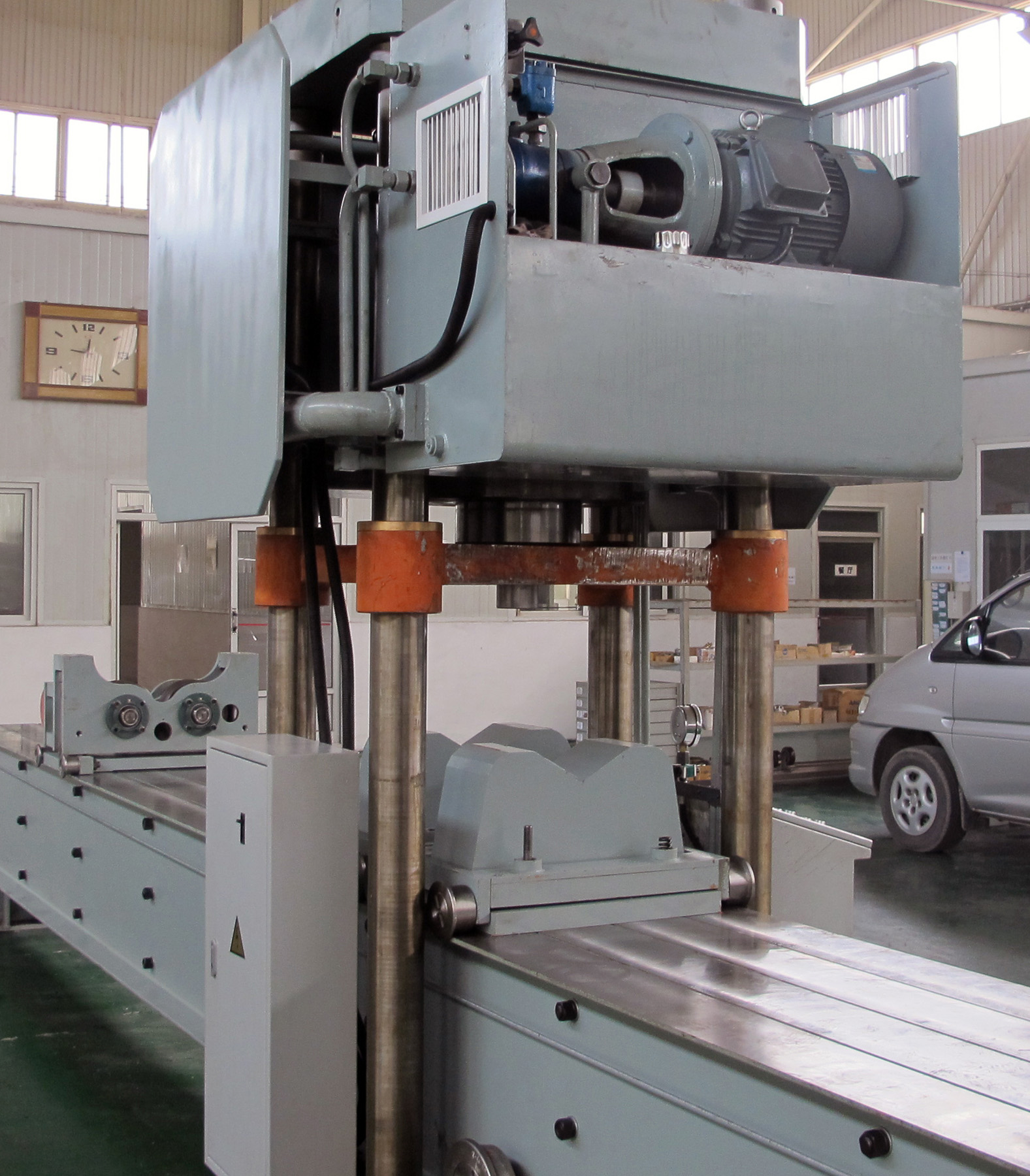

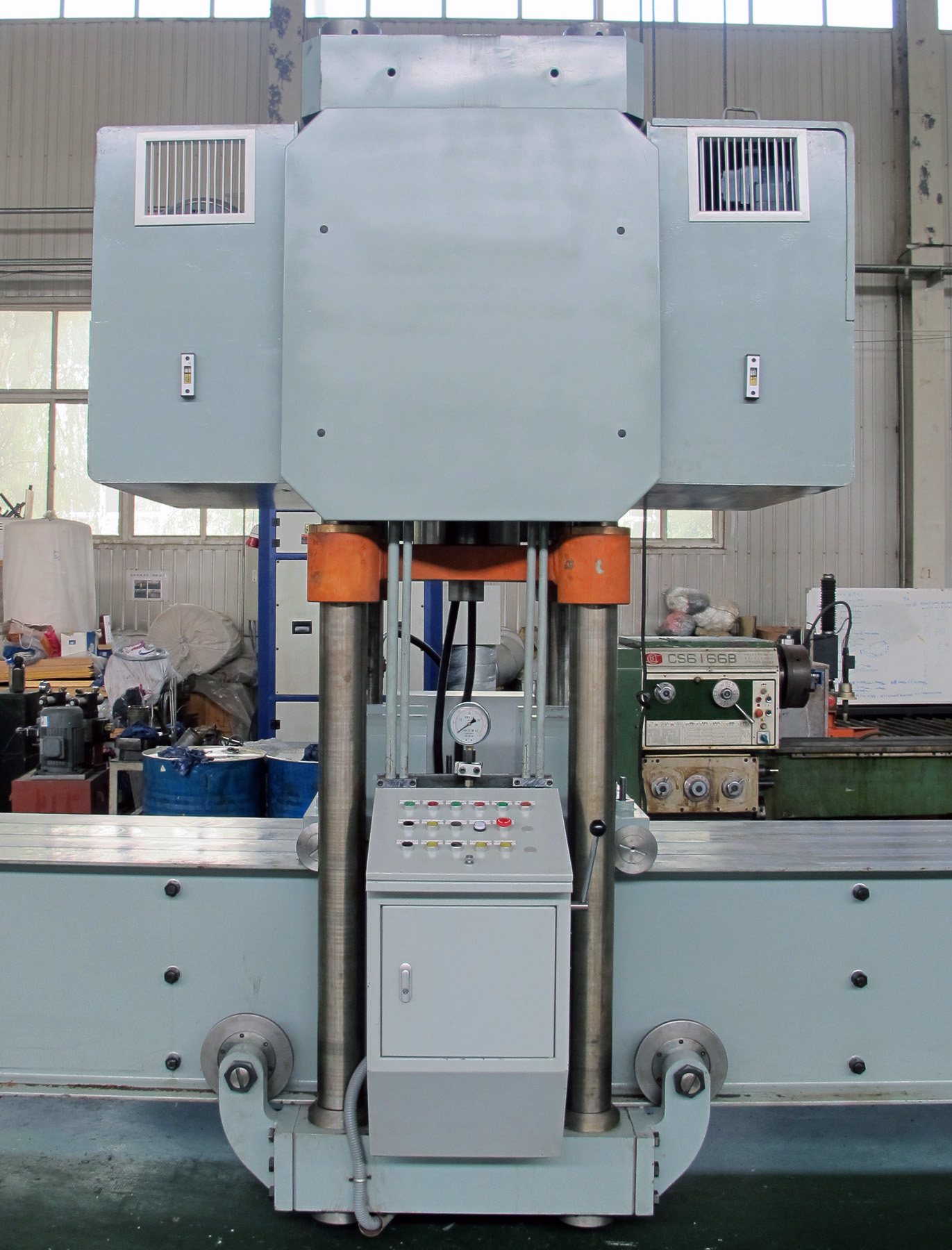

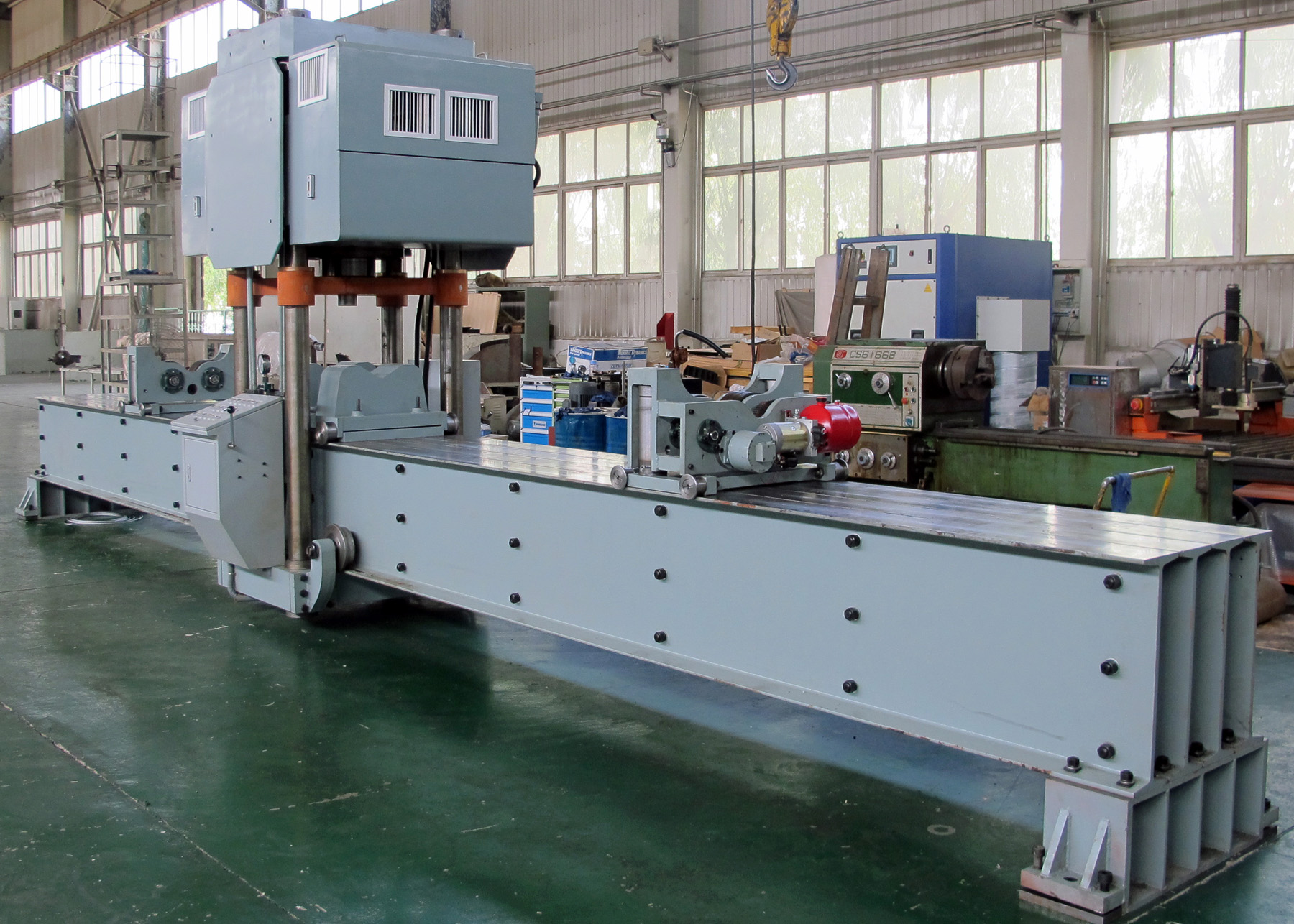

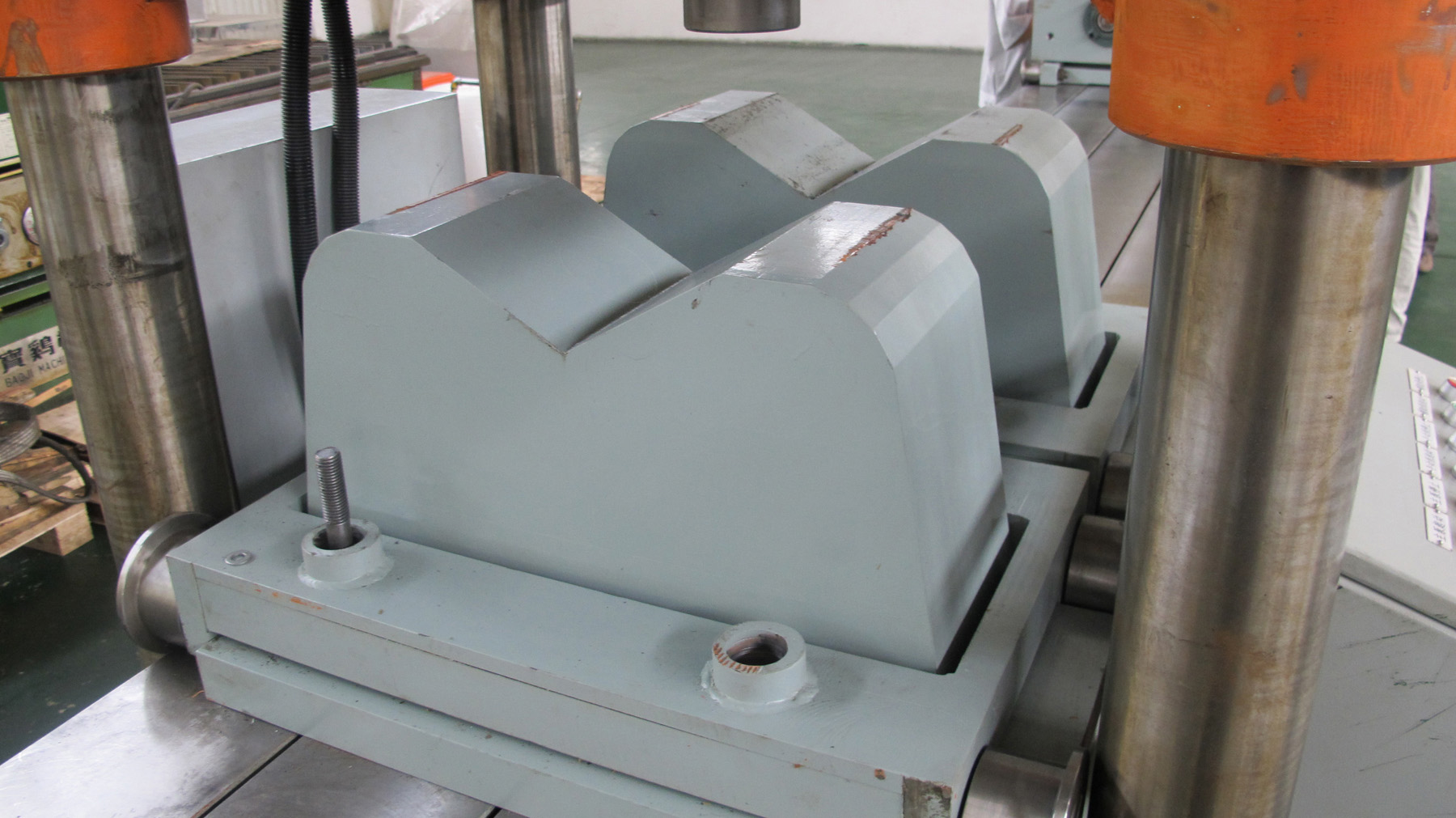

NEW, 400 TON TVAN MODEL 400T STRAIGHTENING PRESS
Brand
Not Specified
Model
400T
Type
Presses, Straightening
Stock #
15552
Condition
Used
Year
Status
For Sale
Location
Houston, Texas
United States
Specifications
Equipped With
CAPACITY (ADJ. FROM 15% TO 110% OF RATED CAP.): 400 TONS
PRESS BED: 29.3" X 364.2"
GANTRY TRAVEL: 240"
GANTRY TRAVEL SPEED: 130 IPM
RAM STROKE (ADJUSTABLE): 18"
OPEN DAYLIGHT (FACE OF NOSE TO TABLE): 29.6"
SHUT HEIGHT: 5.11"
TIE RODS DIAMETER: 4.7"
MAIN CYLINDER BORE: 15.7"
MAIN CYLINDER RAM DIAMETER: 11.8"
MAIN CYLINDER STROKE: 18.9"
MAIN CYLINDER WORKING PRESSURE: 3626 PSI
HYDRAULIC PRESSURE: 4641 PSI
PRESSURE GAUGE DIAMETER: 6"
INPUT POWER: 480V/3P/60HZ
WEIGHT (APPROX.): 41,800 LBS.
EQUIPPED WITH:
GROUND, POLISHED AND HARD SURFACED CHROME PLATED STEEL TIE RODS

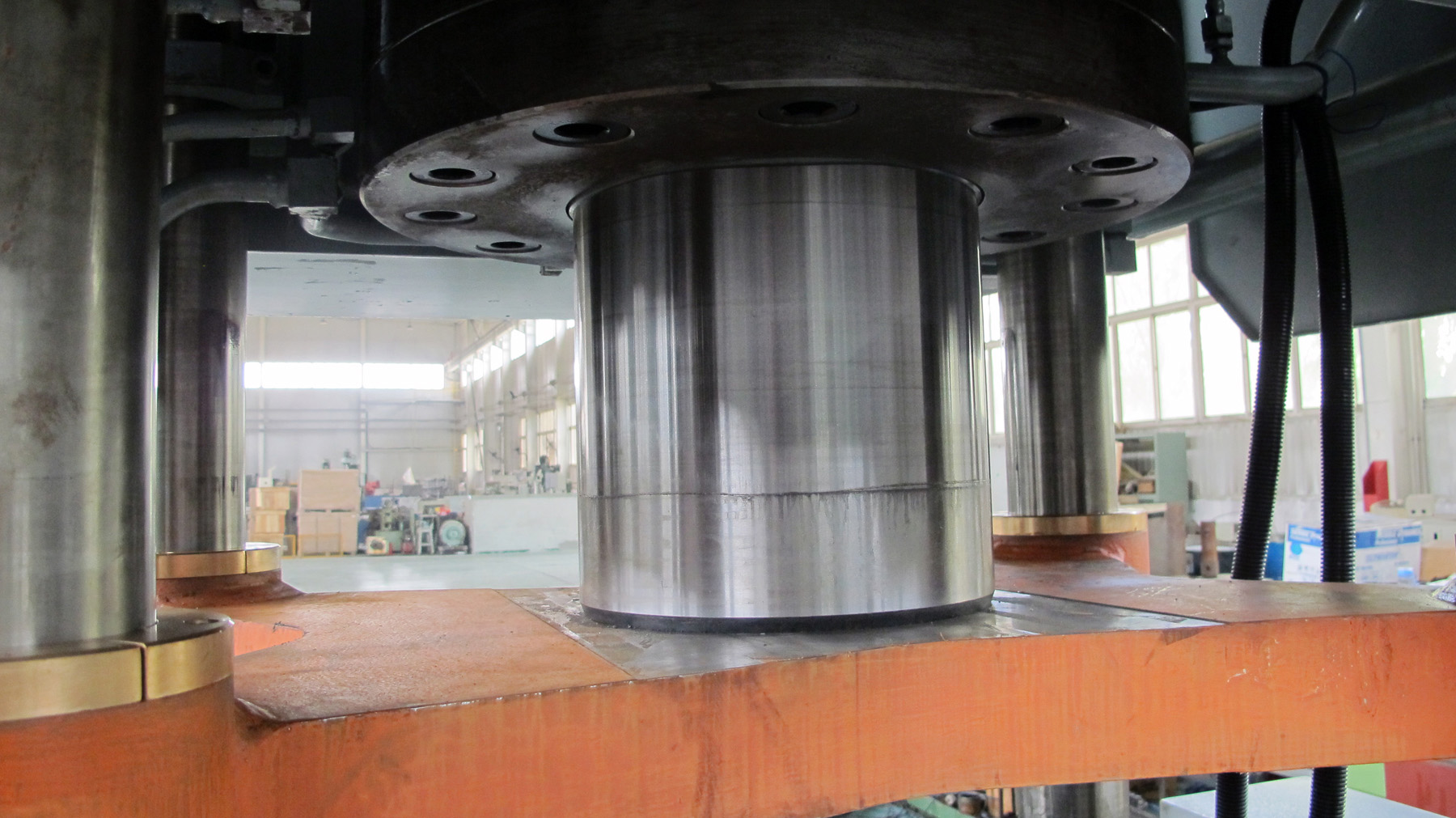

CHROME PLATED BORE AND RAM IN MAIN CYLINDER
LIQUID FILLED PRESSURE GAUGE

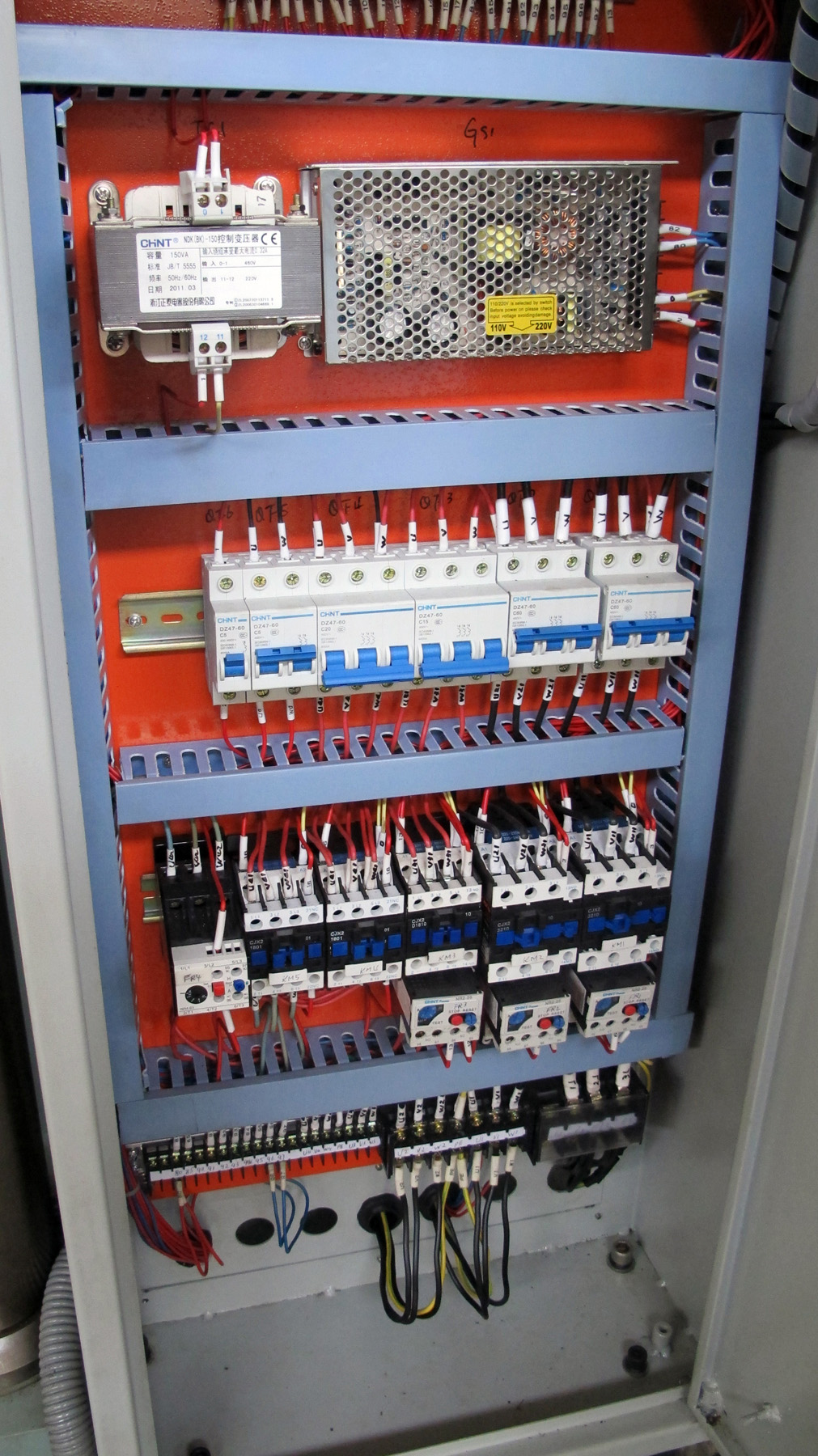

OPERATOR CONTROL PANEL
HYDRAULIC RESERVOIR
