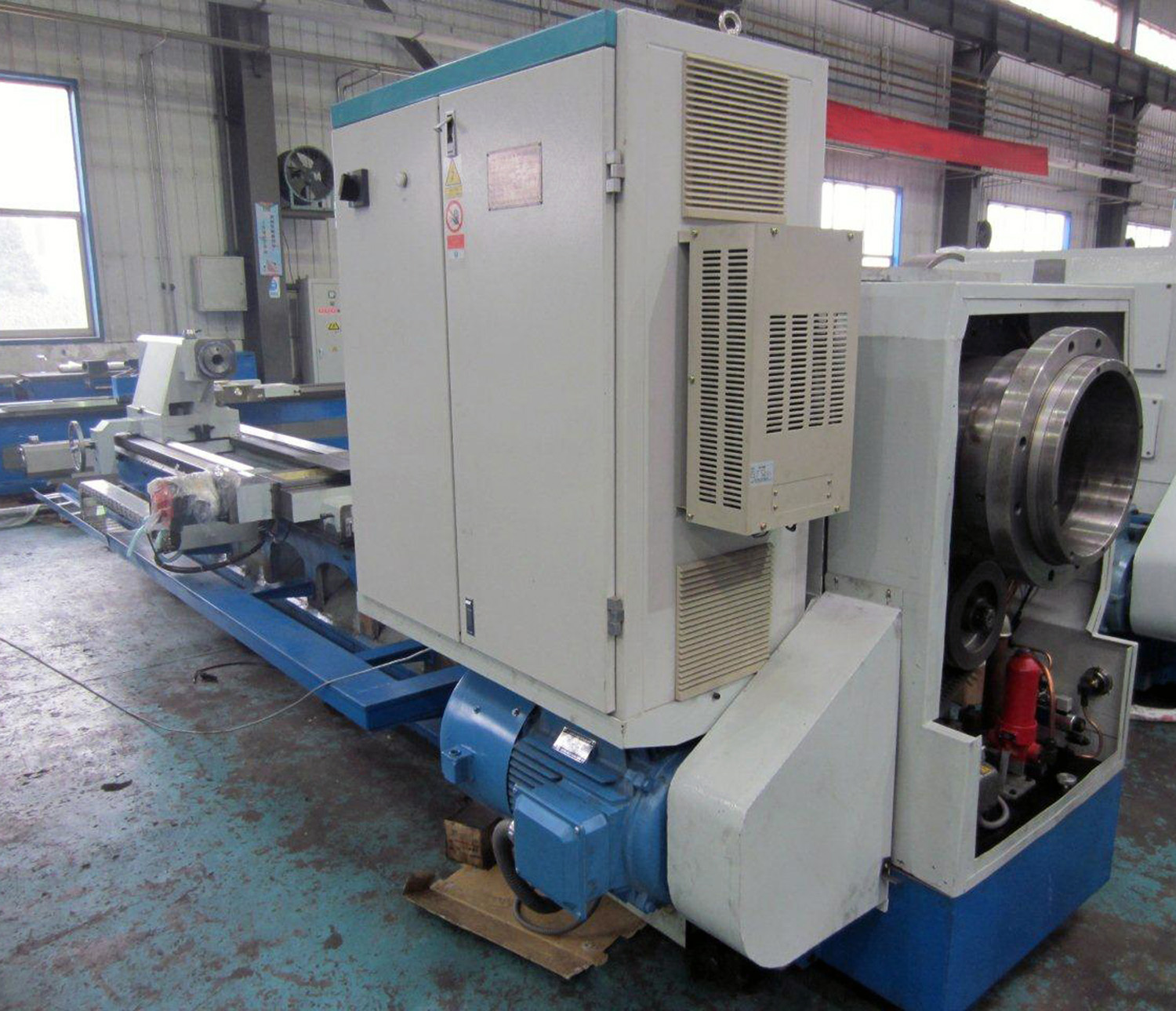

NEW, TVAN HS36-300 SIMPLE CNC HOLLOW SPINDLE LATHE WITH 14" BORE
Brand
Not Specified
Model
HS36-300
Type
Lathes, Oil Field & Hollow Spindle
Stock #
15551
Condition
Used
Year
Status
For Sale
Location
HOUSTON, Texas
United States
Specifications
Equipped With
SWING OVER BED: 39.3"
SWING OVER CROSS SLIDE: 25.2"
MAXIMUM WORK PIECE LENGTH: 118.1"
MAXIMUM WORK PIECE WEIGHT: 13,200 LBS.
BED WIDTH: 29.7"

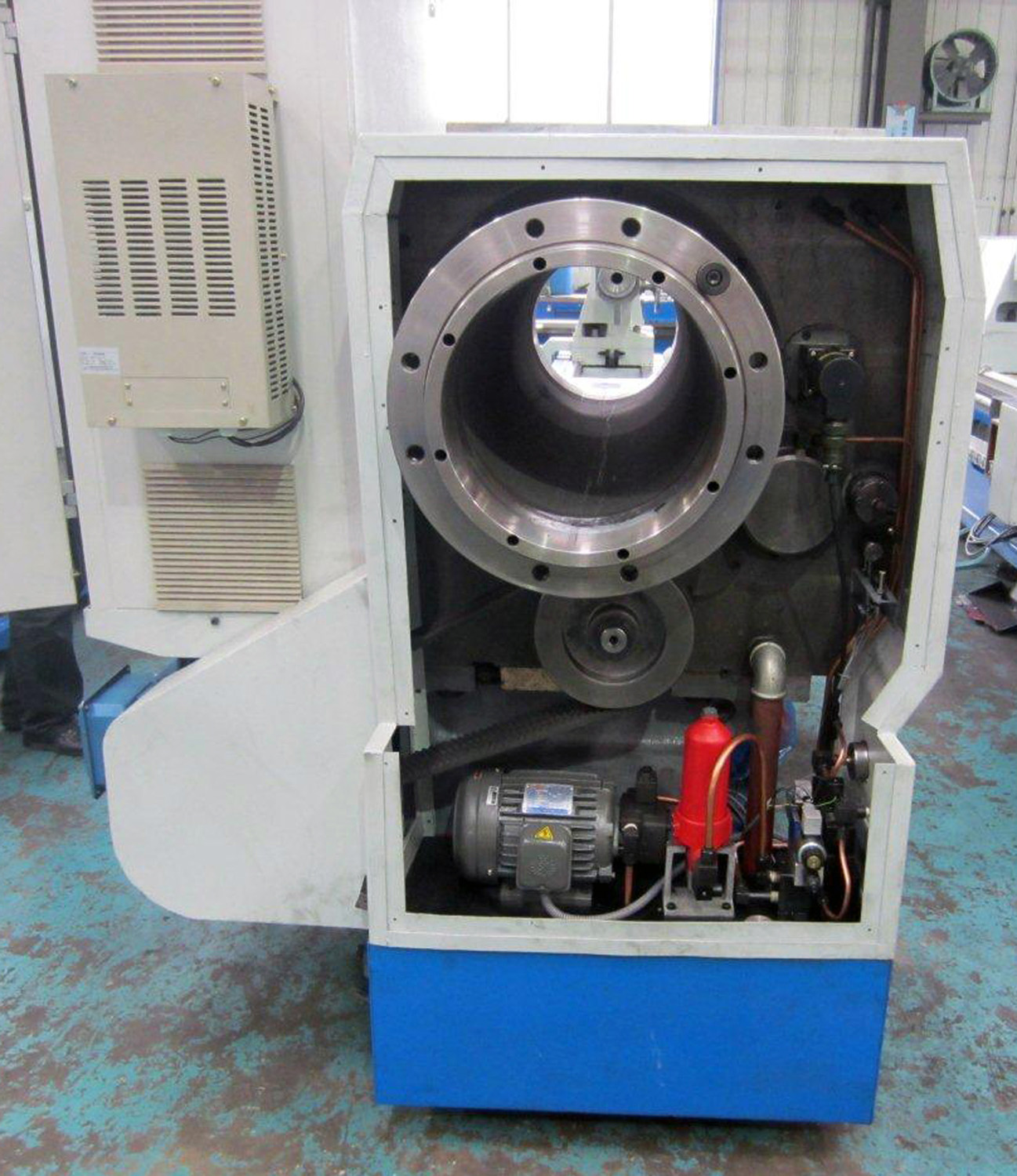

SPINDLE BORE: 14.17"
FRONT / REAR CHUCK DIA.: 31.5"
SPINDLE SPEED RANGES: 2 (STEPLESS)
SPINDLE SPEEDS: 3 - 315 RPM
SPINDLE MOTOR: 40 HP
TOOL SECTION SIZE: 1.25" X 1.25"
X AXIS TRAVEL: 24"
Z AXIS TRAVEL: 110.2"
RAPID TRAVERSE (X, Z): 236 IPM
FEED RANGE (X, Z): 0.00039 - 78.7 IPM
TURNING RANGE: 0.00039" - 7.87" PER THREAD
SERVO MOTORS TORQUE (X, Z): 20 FT-LBS.
MIN. SETTING UNIT (X, Z): 0.000039"
TAILSTOCK SLEEVE DIA.: 6.3"
TAILSTOCK SLEEVE STROKE: 11.8"
TAILSTOCK SLEEVE TAPER: METRIC 80
COOLANT PUMP MOTOR: 1.5 HP
COOLANT PUMP FLOW RATE: 21 GPM
LUBRICATION MOTOR: 1 HP
EQUIPPED WITH:

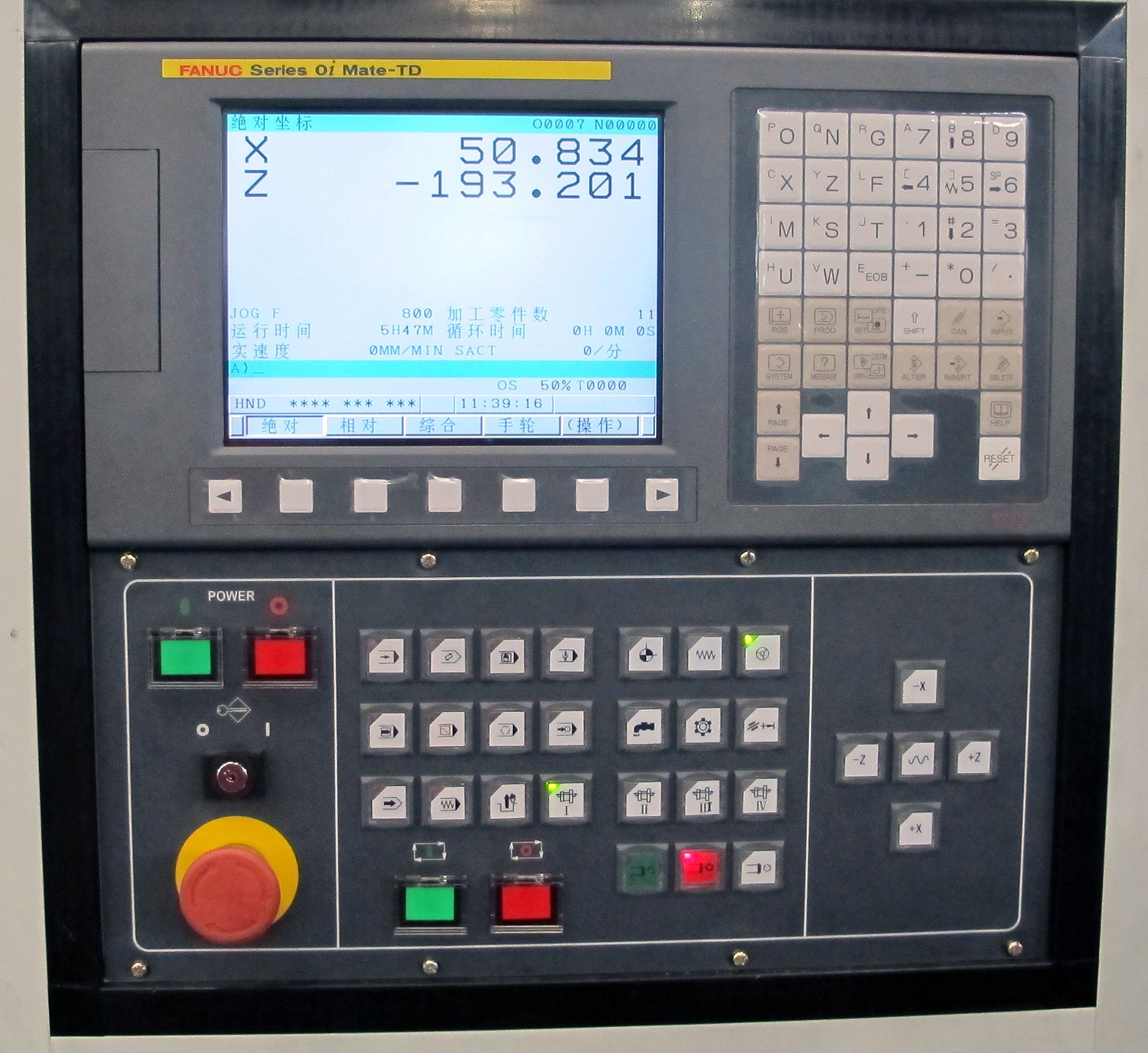

FANUC 0i-MATE TC CNC CONTROL

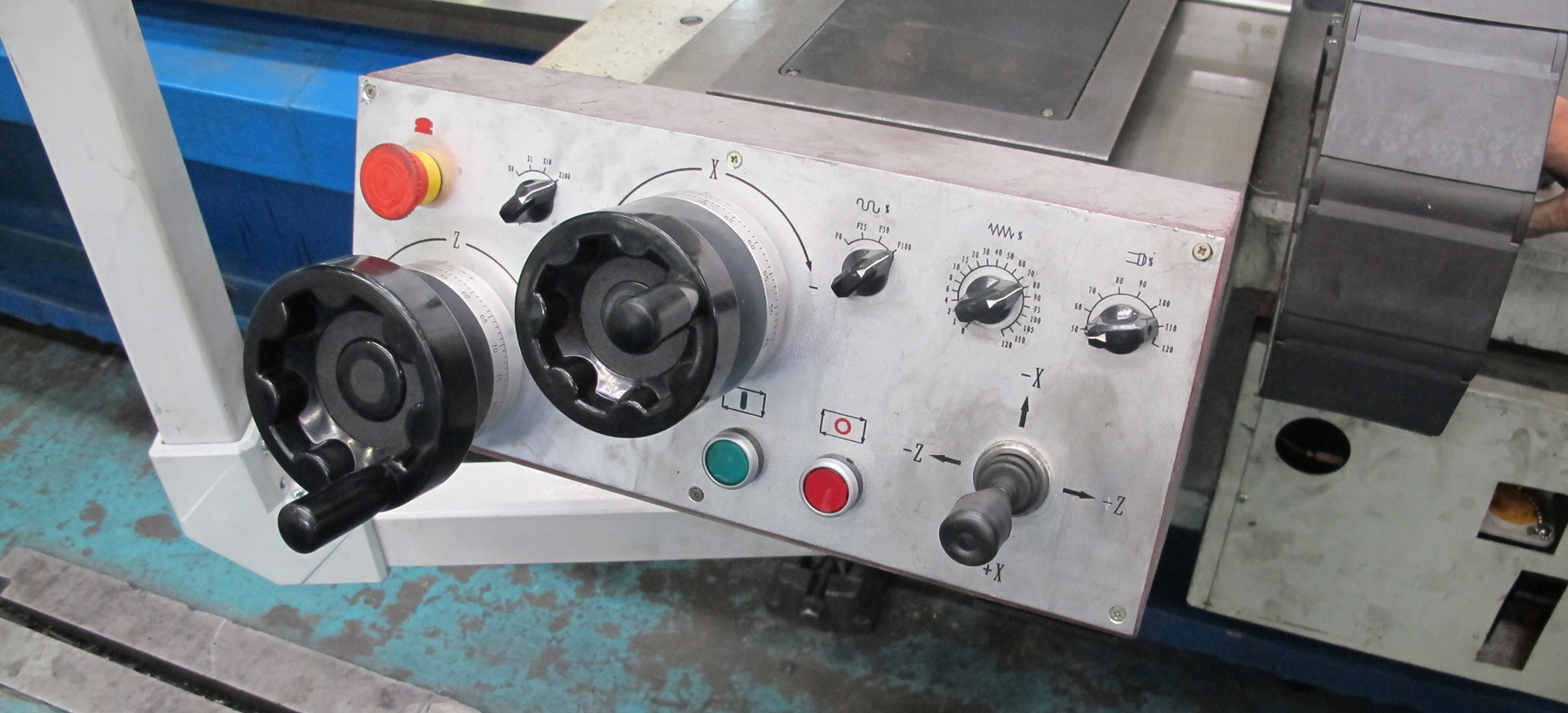

MANUAL INTERFACE FOR OD/ID TURNING AND FACING OPERATIONS (INC. CONSOLE WITH SPINDLE SPEED CONTROL, HAND WHEELS, AND JOYSTICK CONTROL)

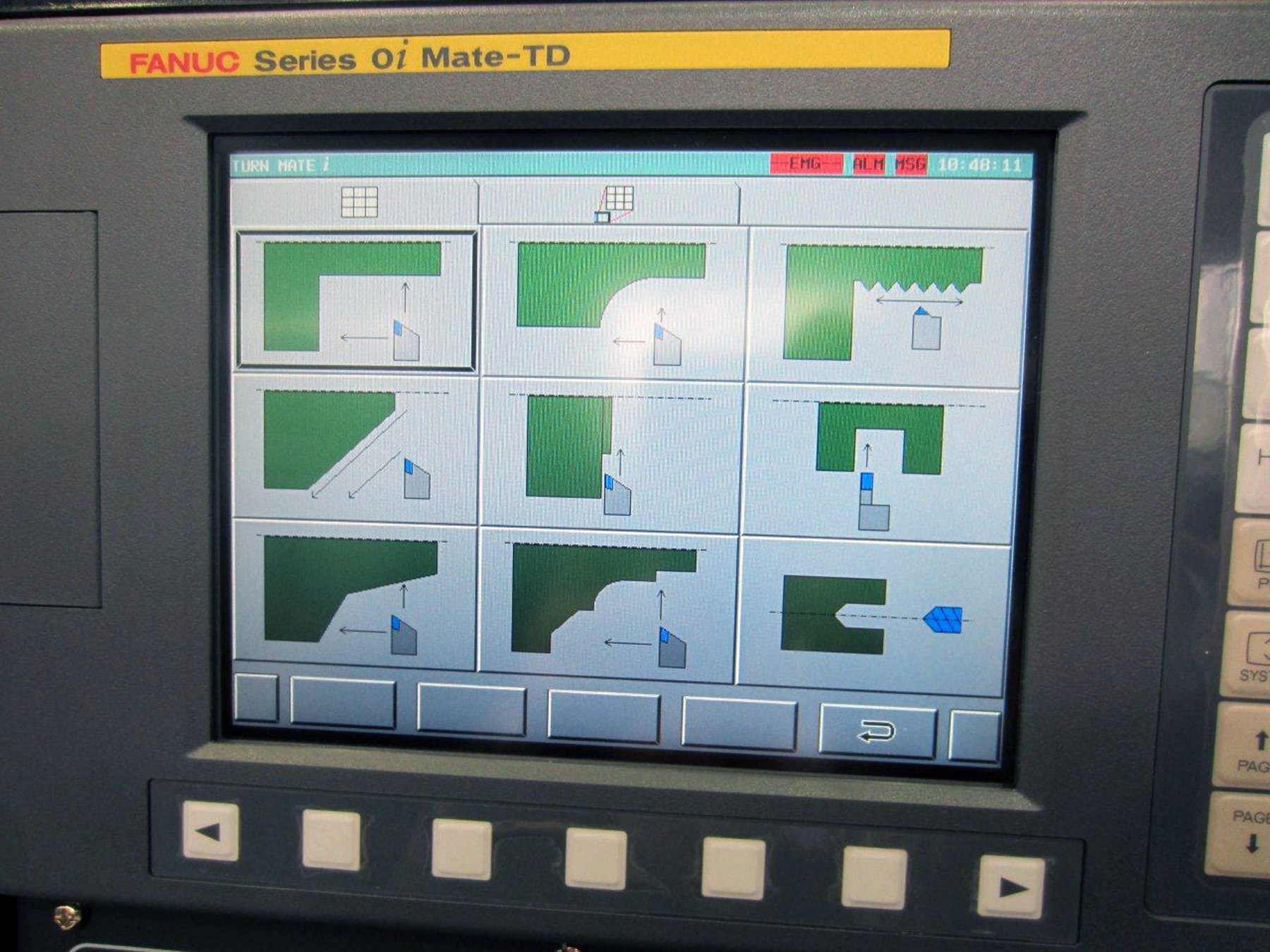

FANUC TURN MATE SOFTWARE FOR TEACH-IN MODE
QUICK CHANGE "ALORIS" TYPE TOOL TURRET
COOLANT SYSTEM
HYDRAULIC SYSTEM
CENTRALIZED LUBRICATION SYSTEM
HARDENED AND GROUND BED WAYS
CHIP CONVEYOR
AIR CONDITIONED ELECTRICAL CABINET
