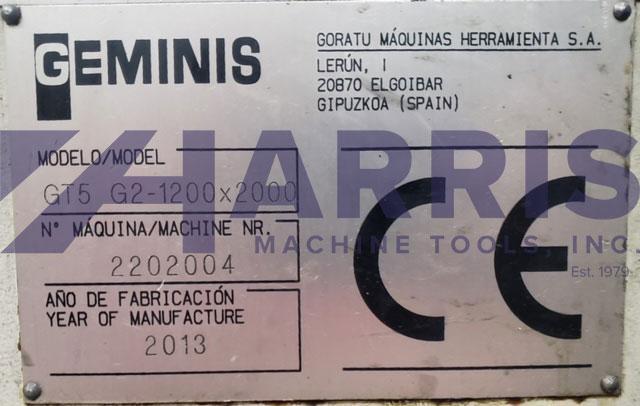

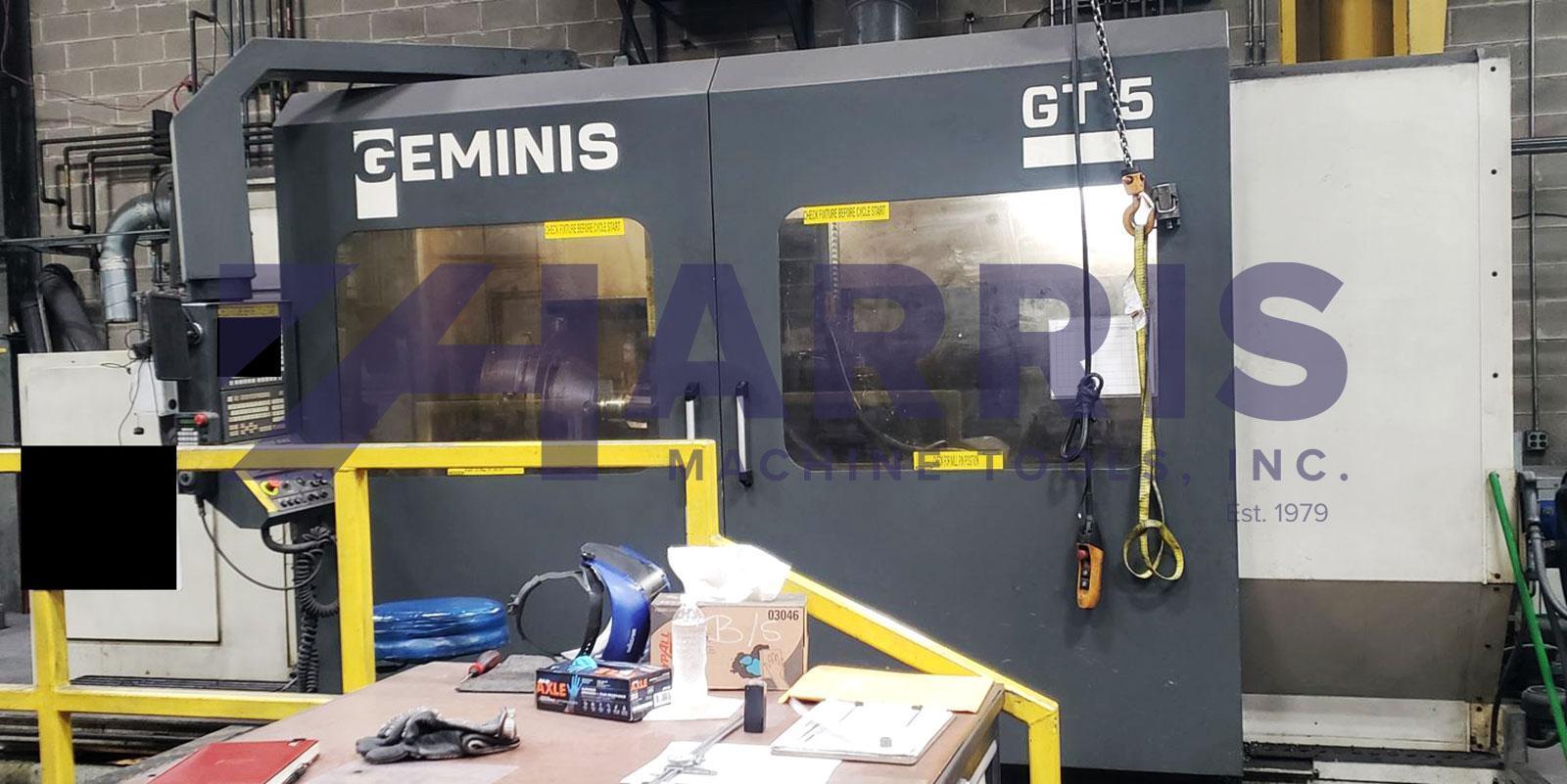

Used, 48" x 78" Geminis Model GT5 G2 - Flat Bed CNC Lathe with Y Axis
Brand
GEMINIS
Model
GT5 G2
Type
Lathes, CNC (3-Axis or More)
Stock #
20175
Condition
Used
Year
2013
Location
Houston, Texas
United States
Specifications
| CNC Control | yes |

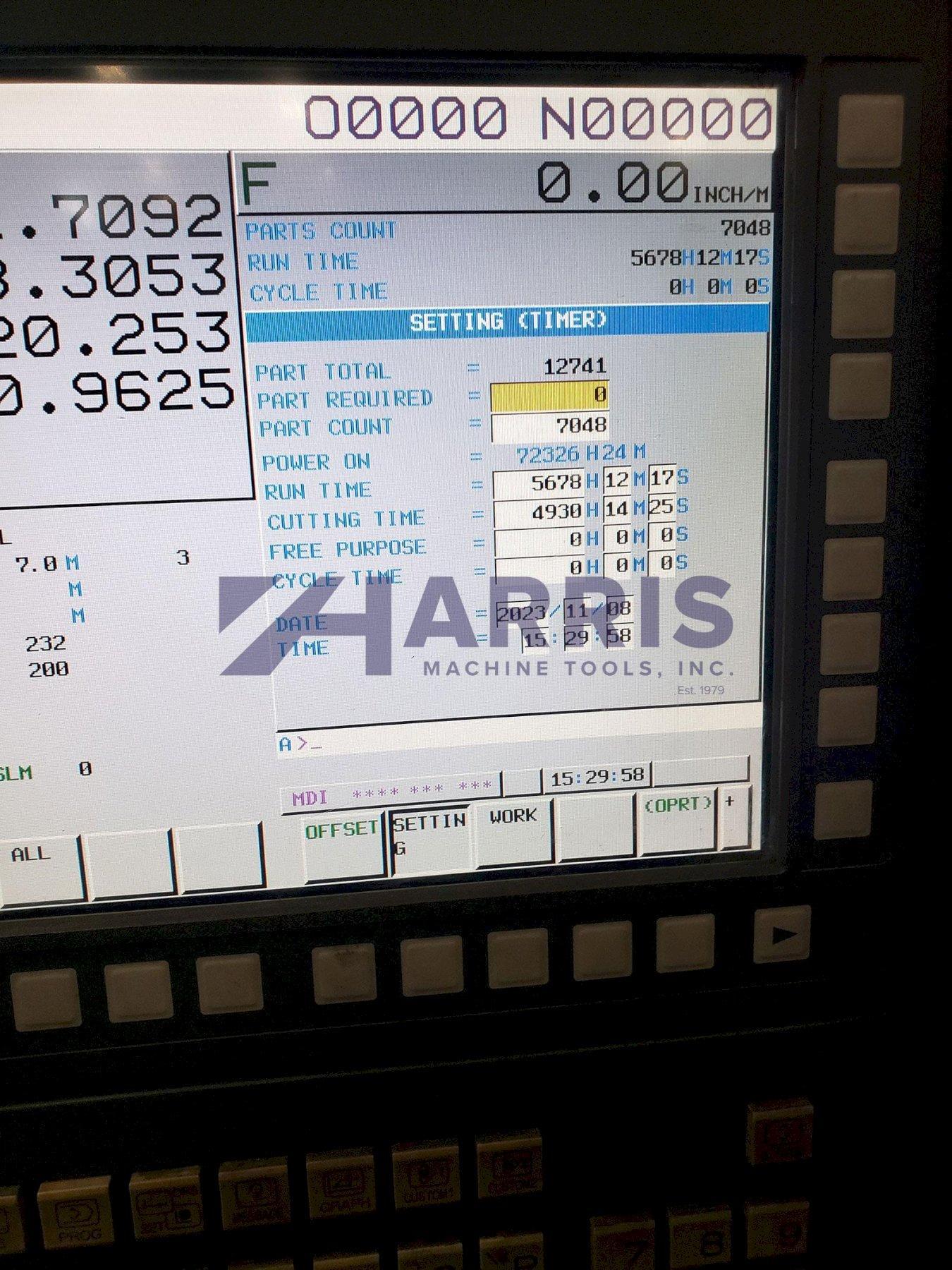

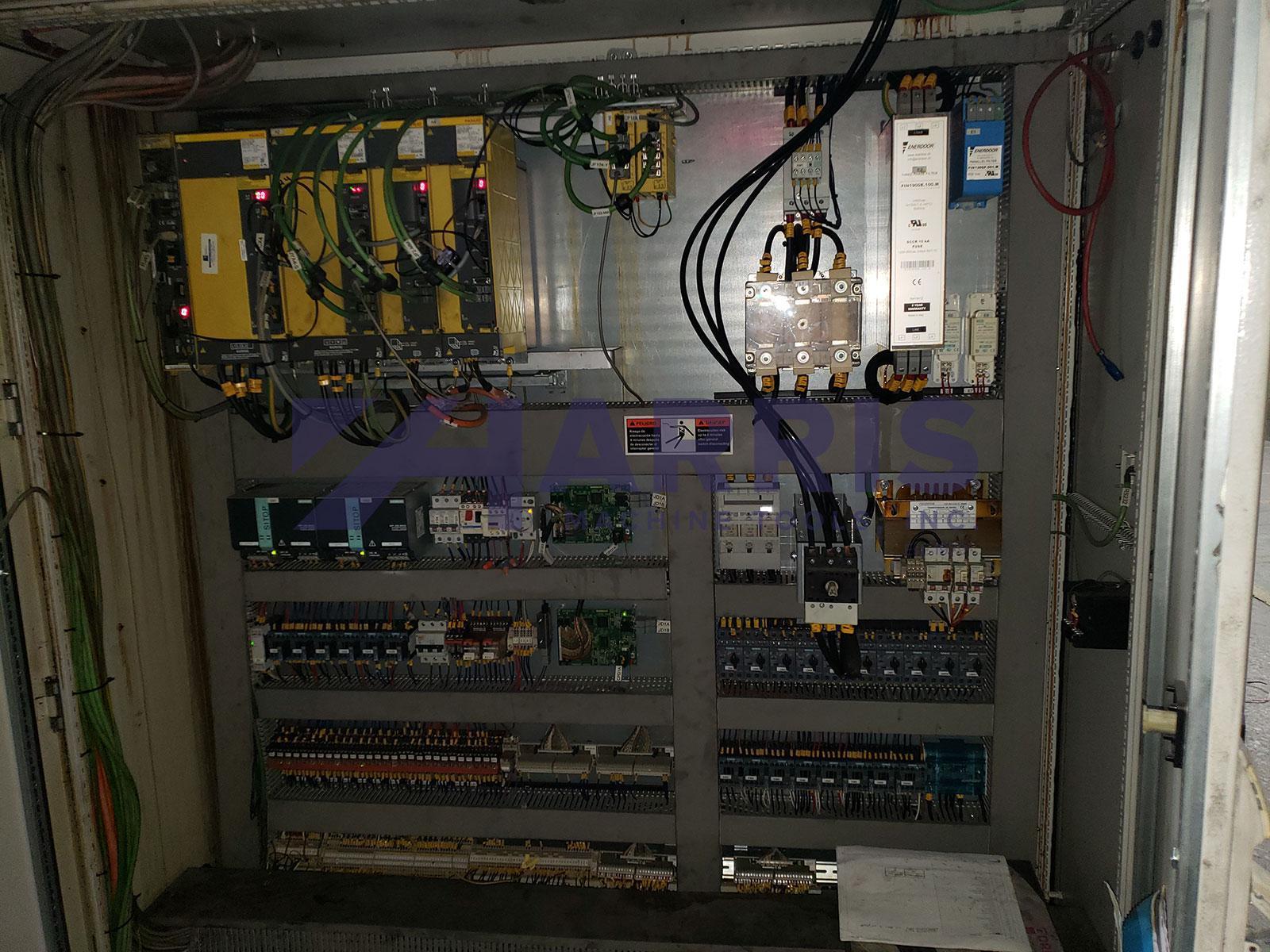

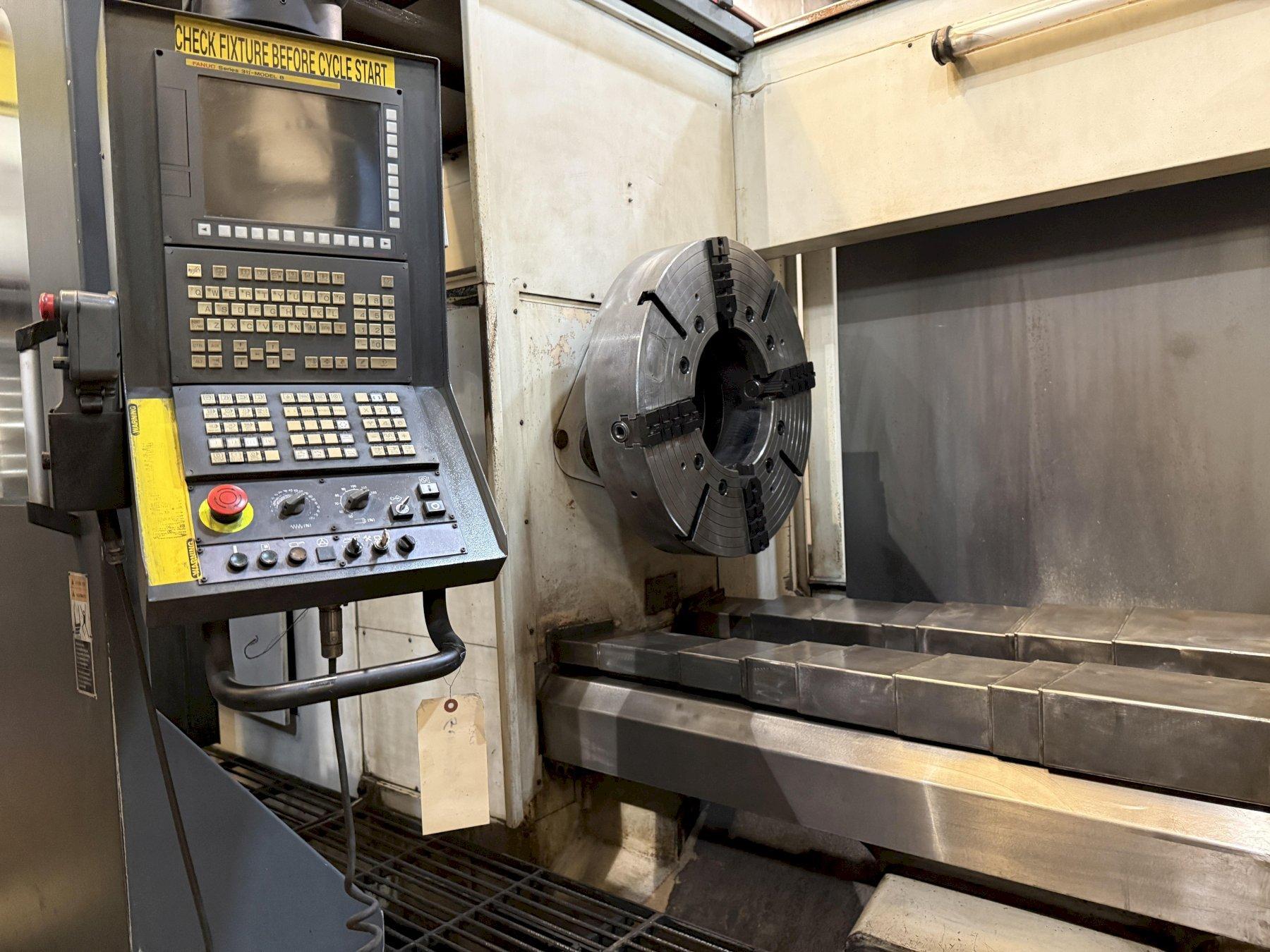

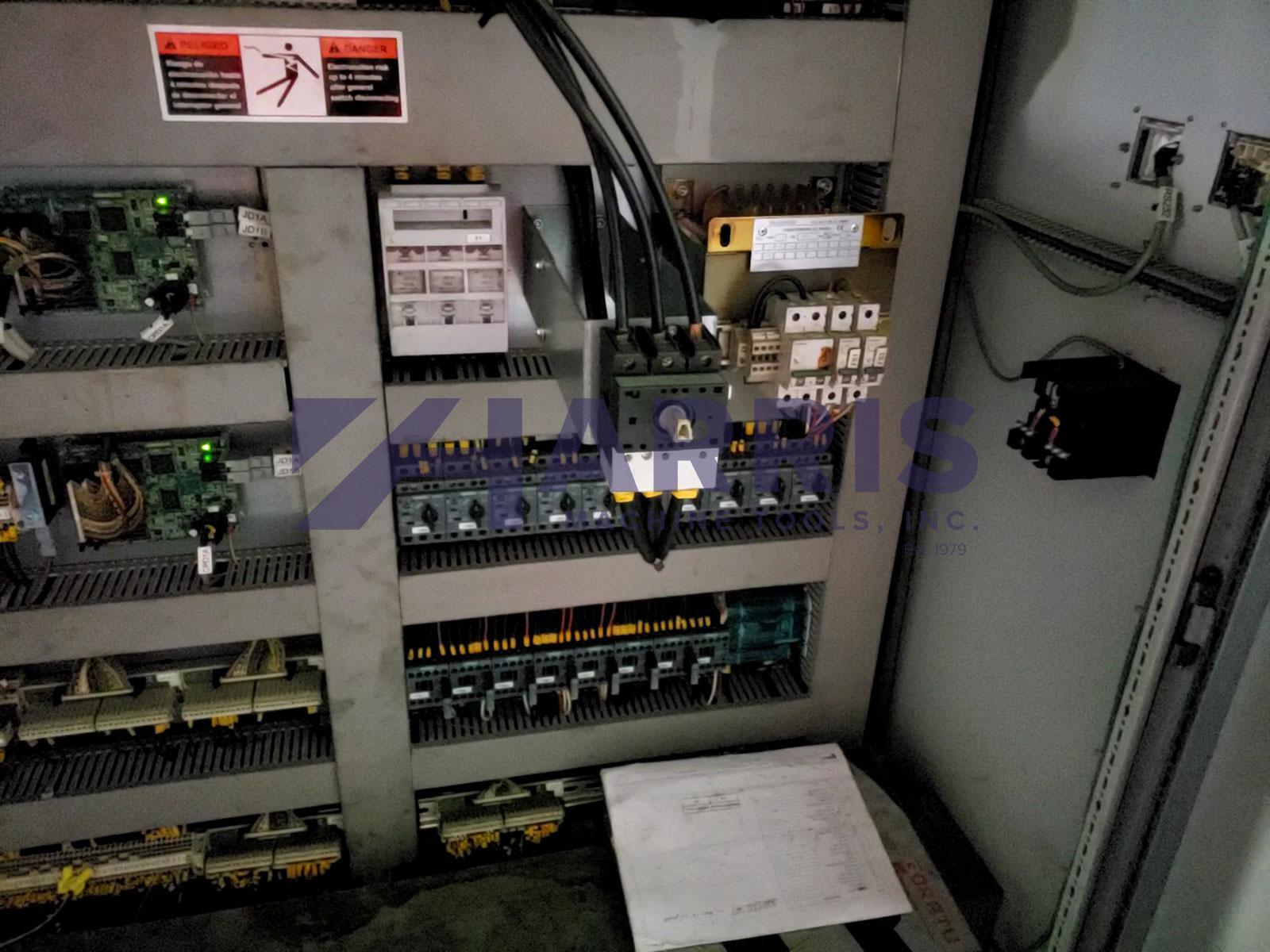

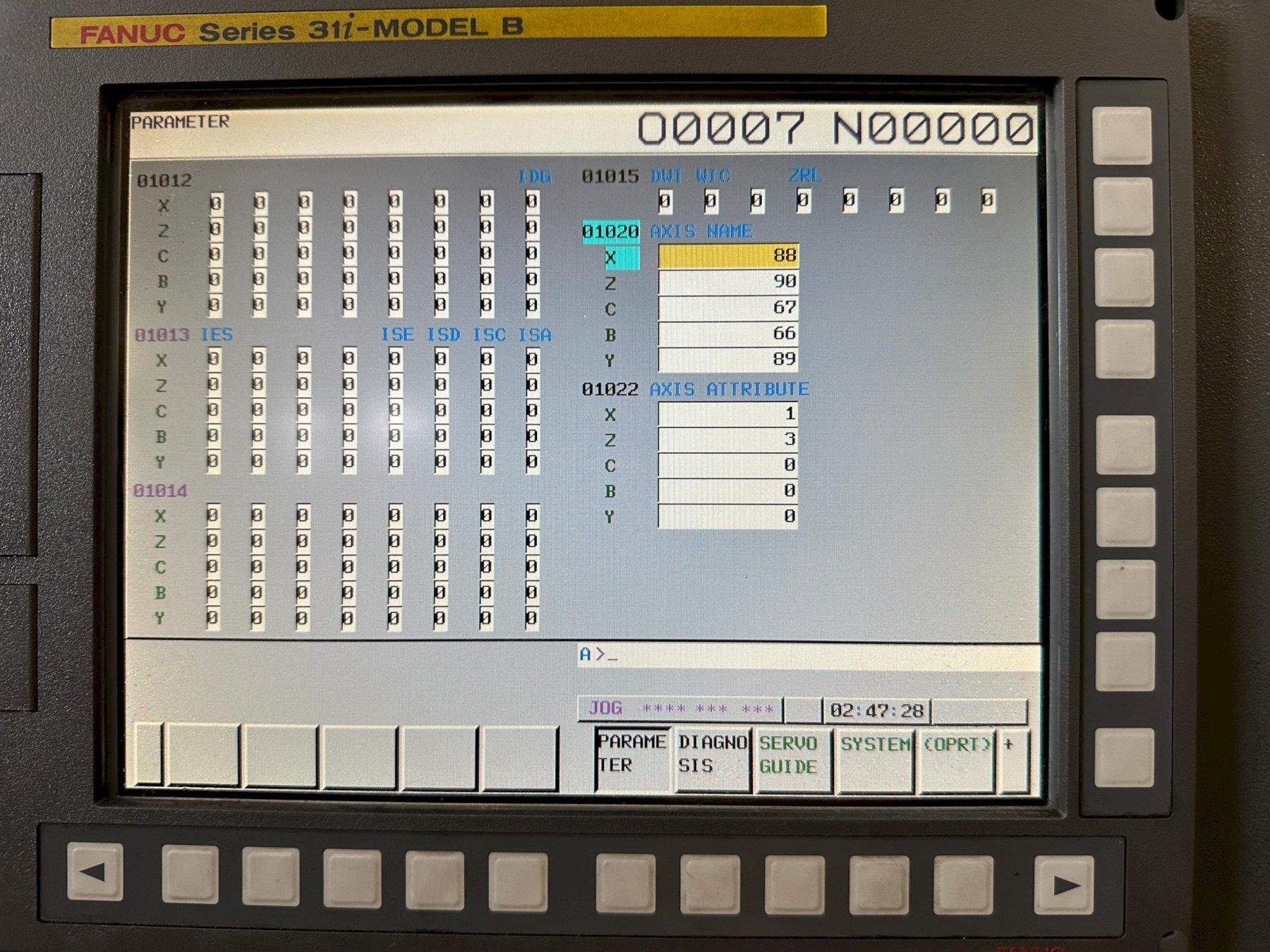

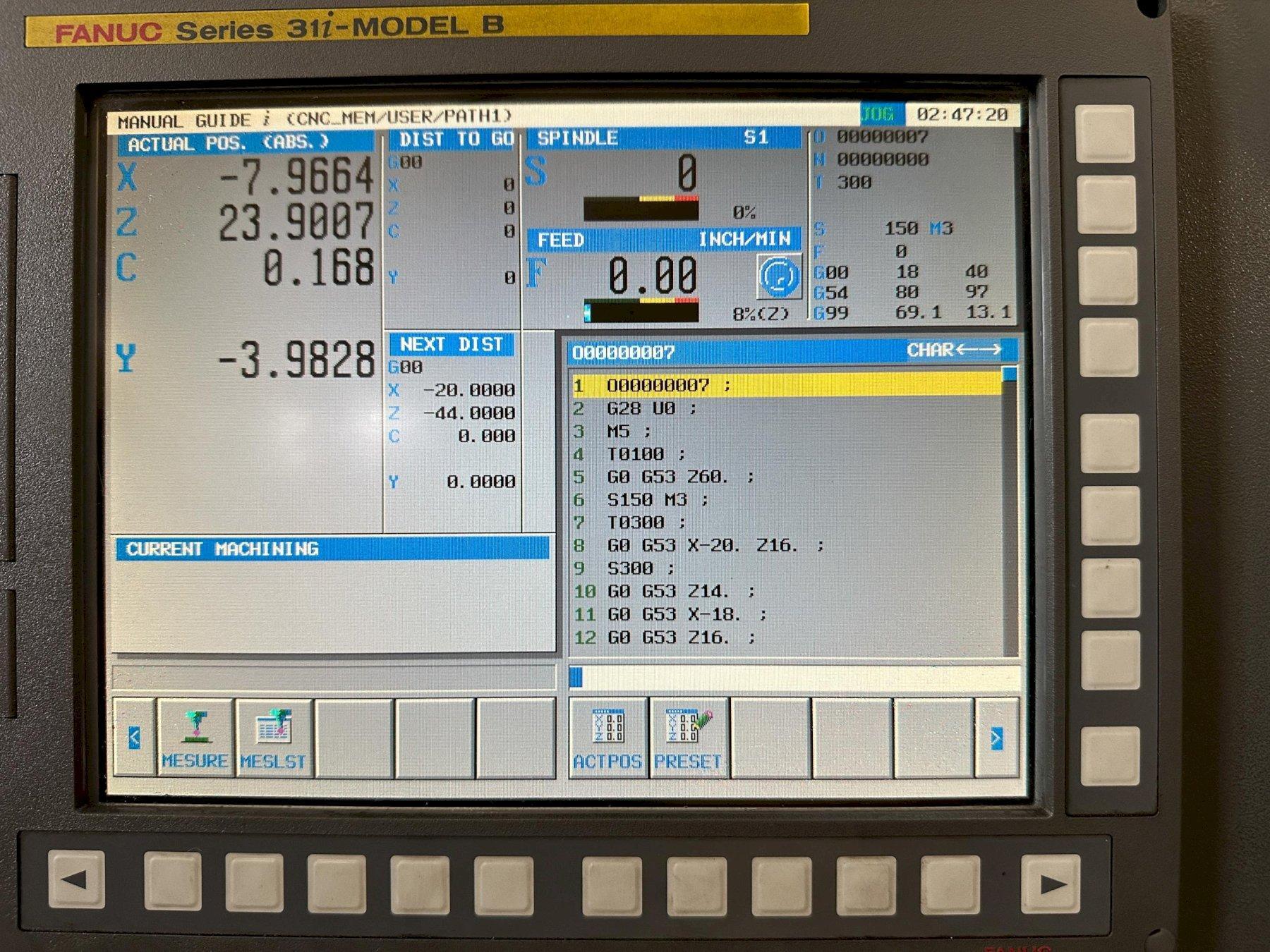

| Type of CNC Control | FANUC CNC Series 30i-B |
| Chuck Size | 40 inches |
| Swing | 48 inches |
| Center Distance | 78 inches |
| Bar Capacity | 4 inches |
| Spindle Speed (RPM) | 1400 |
| Main Motor | 50 HP |
| Turret Capacity | 4 |
| Tailstock | yes |
| Y Axis | yes |
| Power | 10 horsepower |
| # Axis | 4 |
Equipped With
SWING OVER BED: 48"
SWING OVER CROSS SLIDE: 33.5
DISTANCE BETWEEN CENTERS: 78"
MAX WEIGHT BETWEEN CENTERS: 10,000 LBS.
SPINDLE POWER: 50 HP
MAX MAIN SPINDLE RPM: 1,400
LIVE SPINDLE POWER: 10 HP
LIVE SPINDLE TAPER: NO. 50
EQUIPPED WITH:

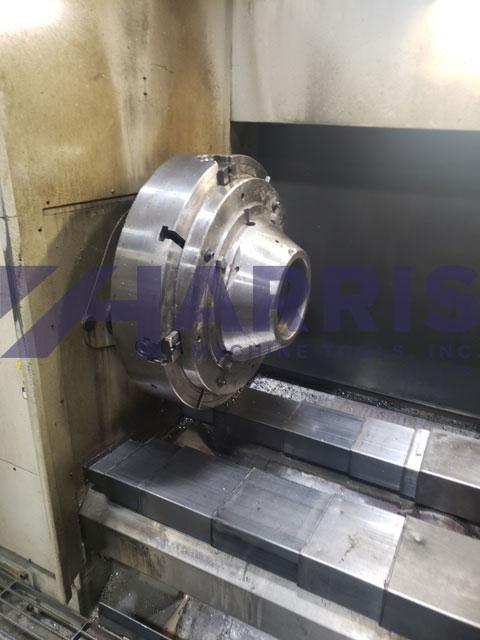

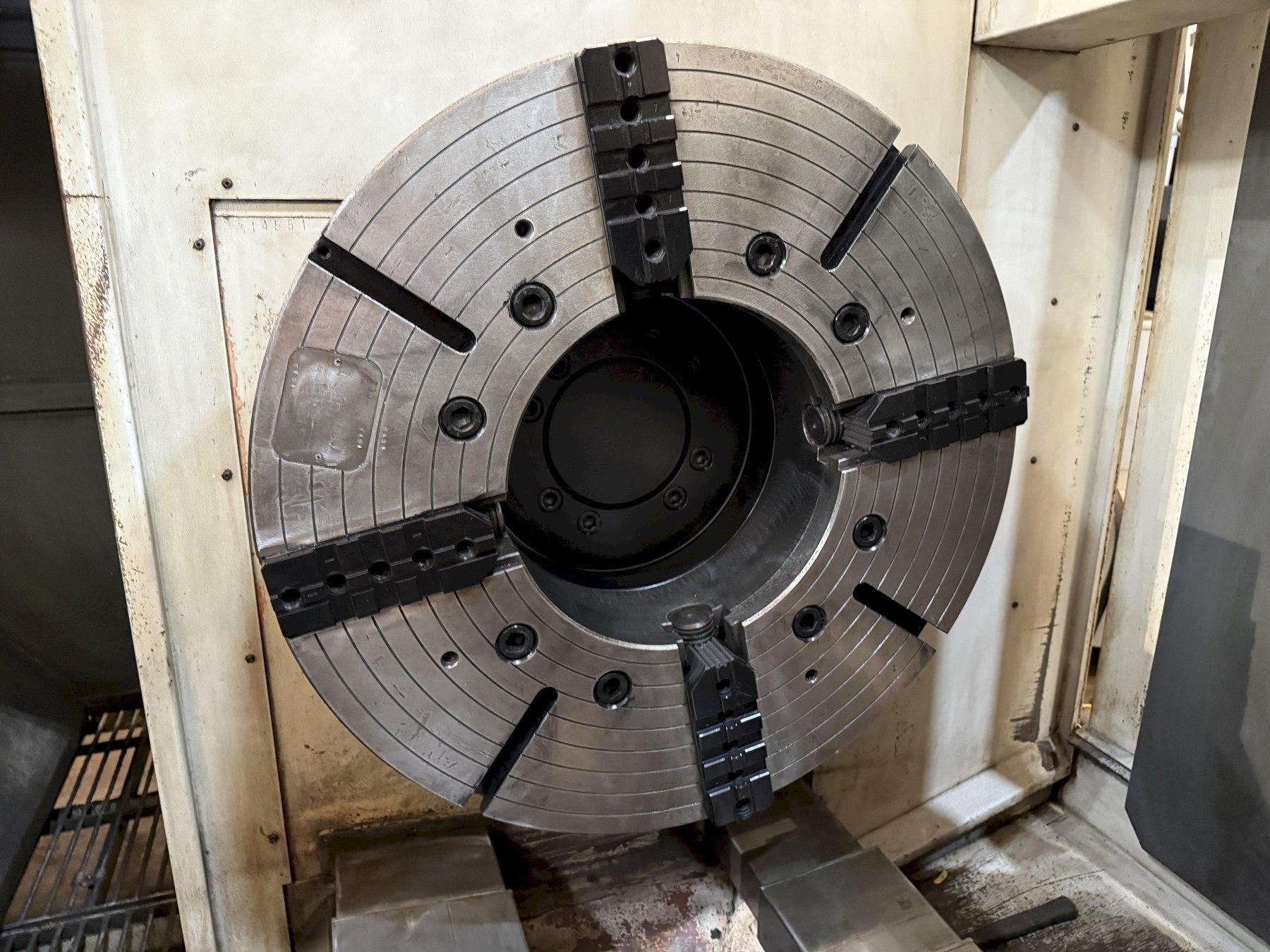

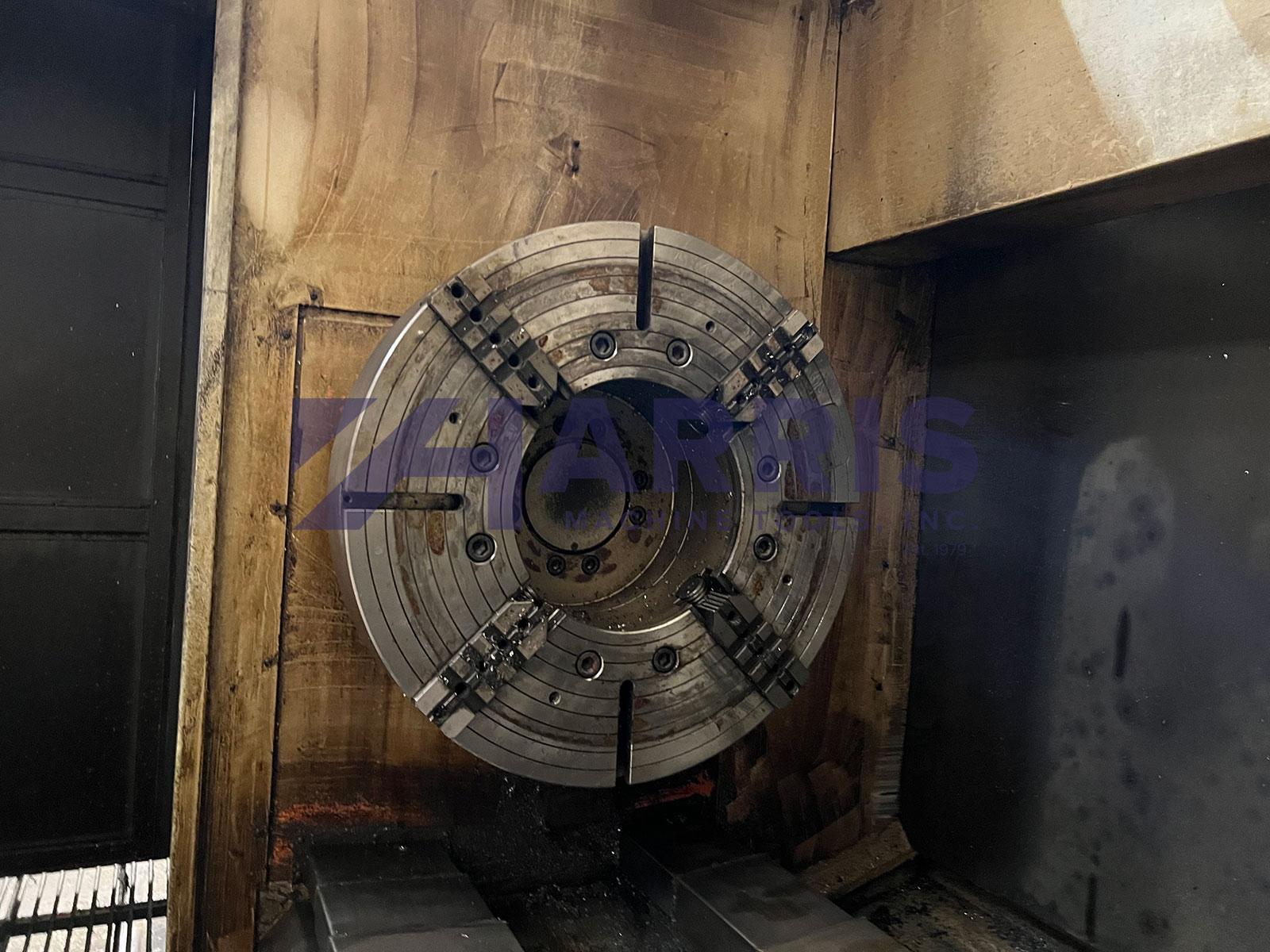

40" 4 JAW CHUCK

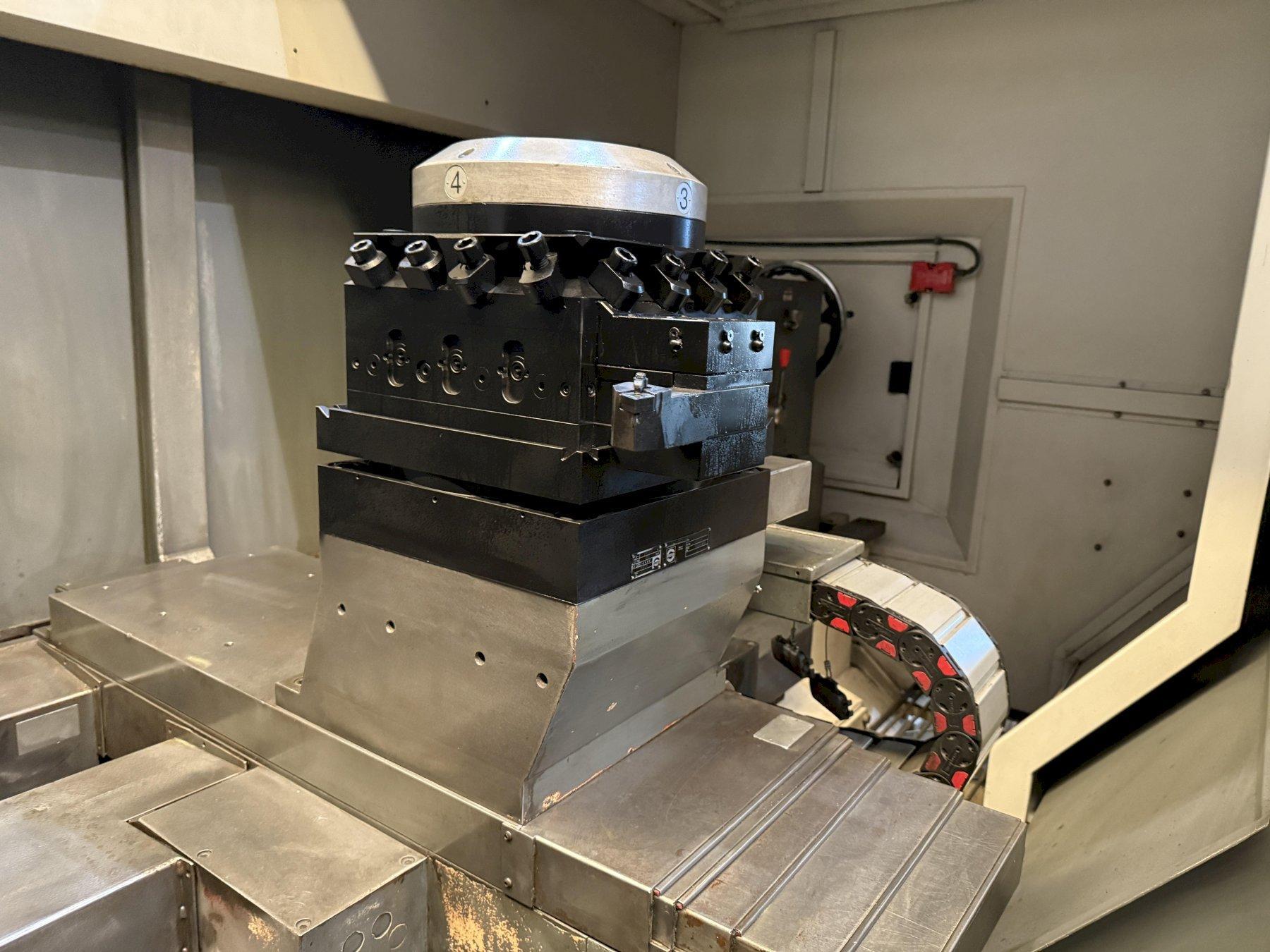

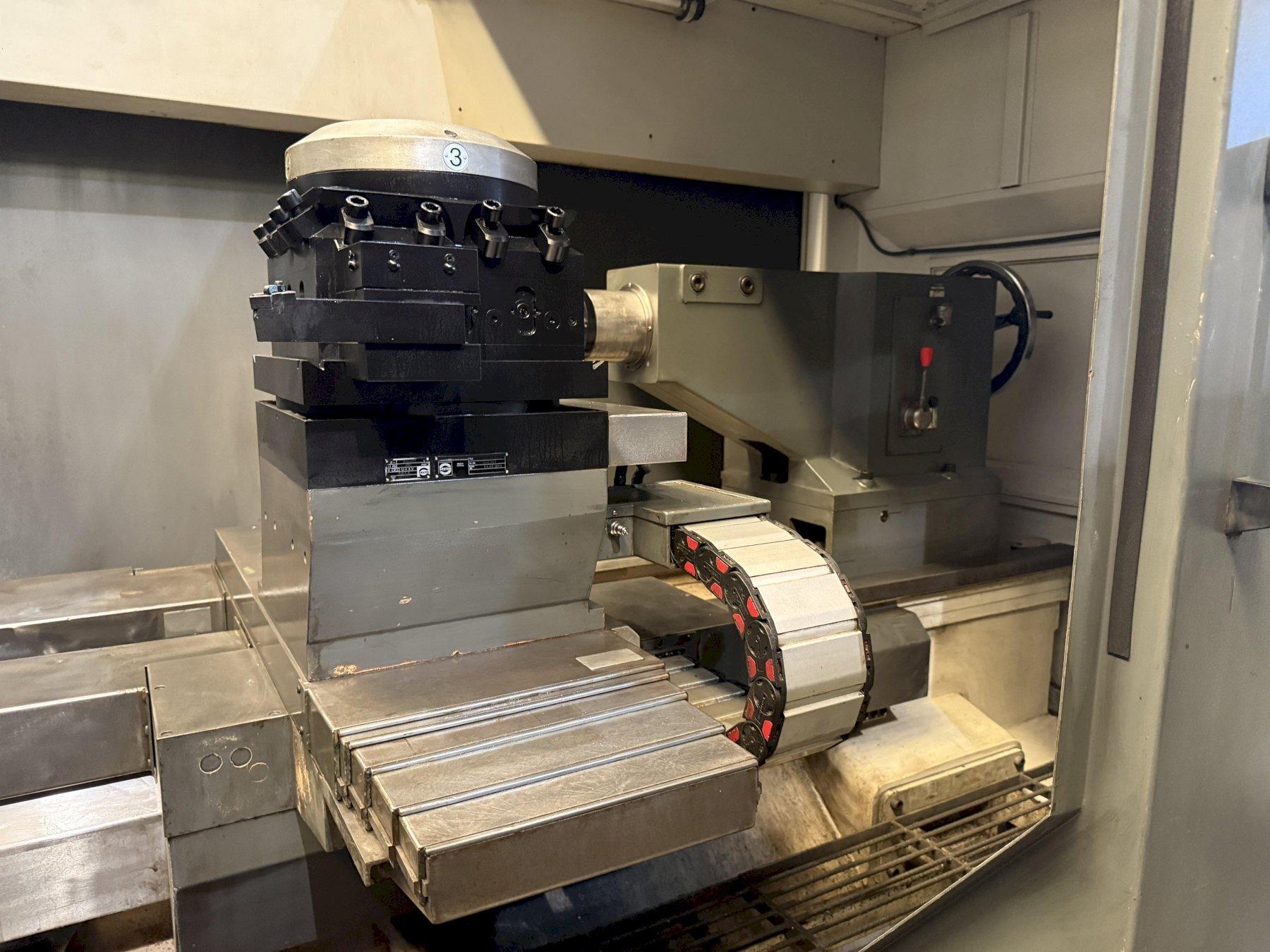

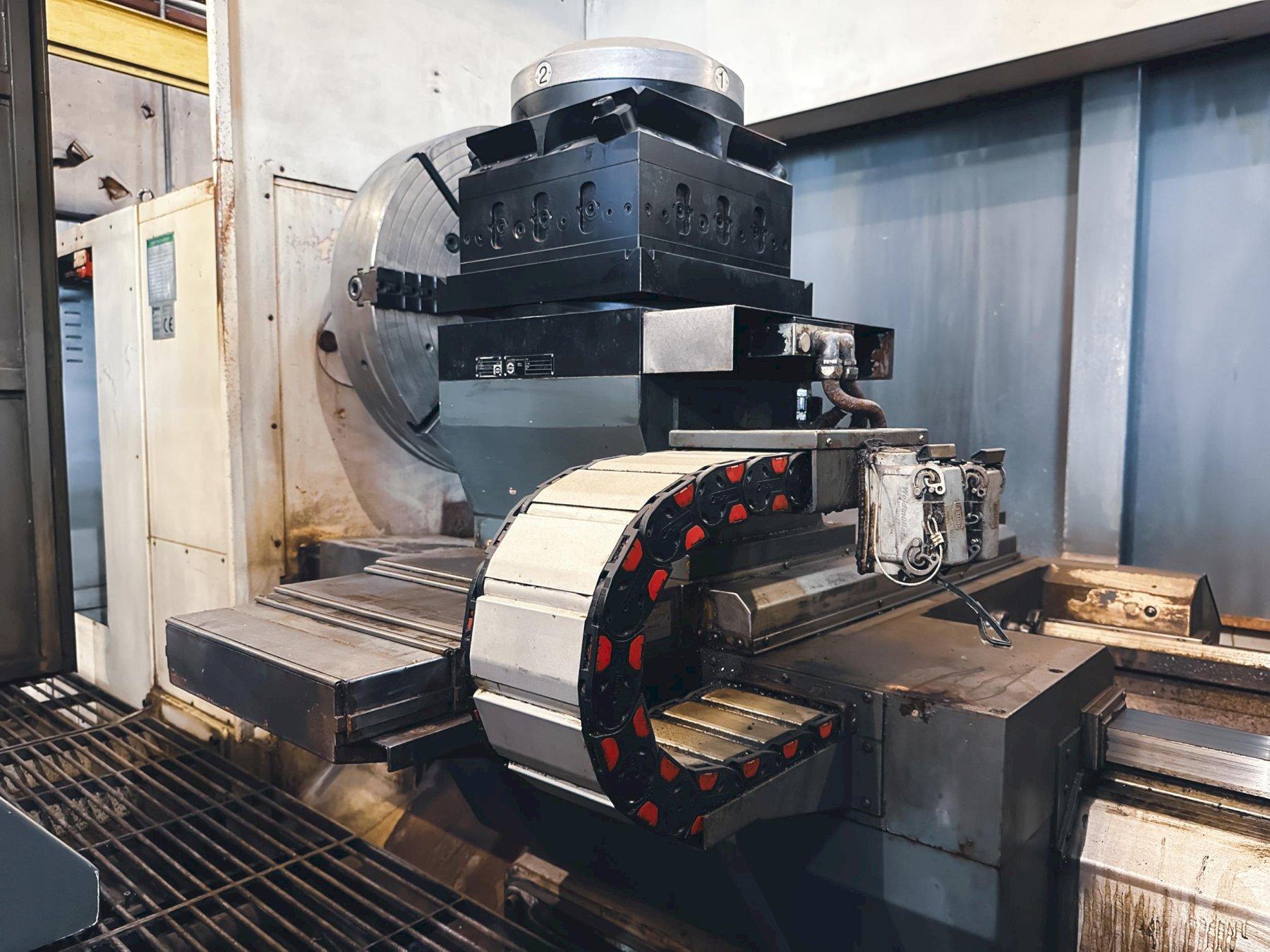

4 POSITION TURRET
C AXIS POSITIONING

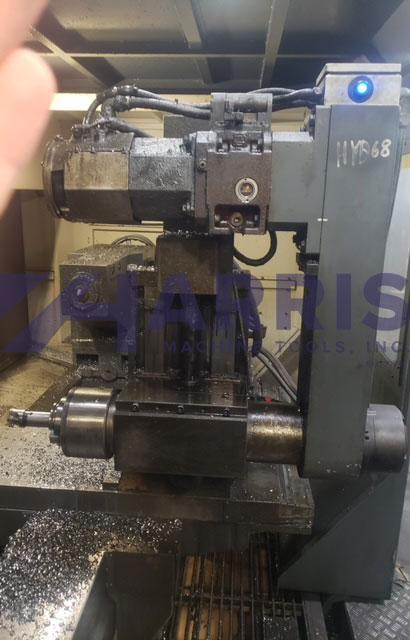

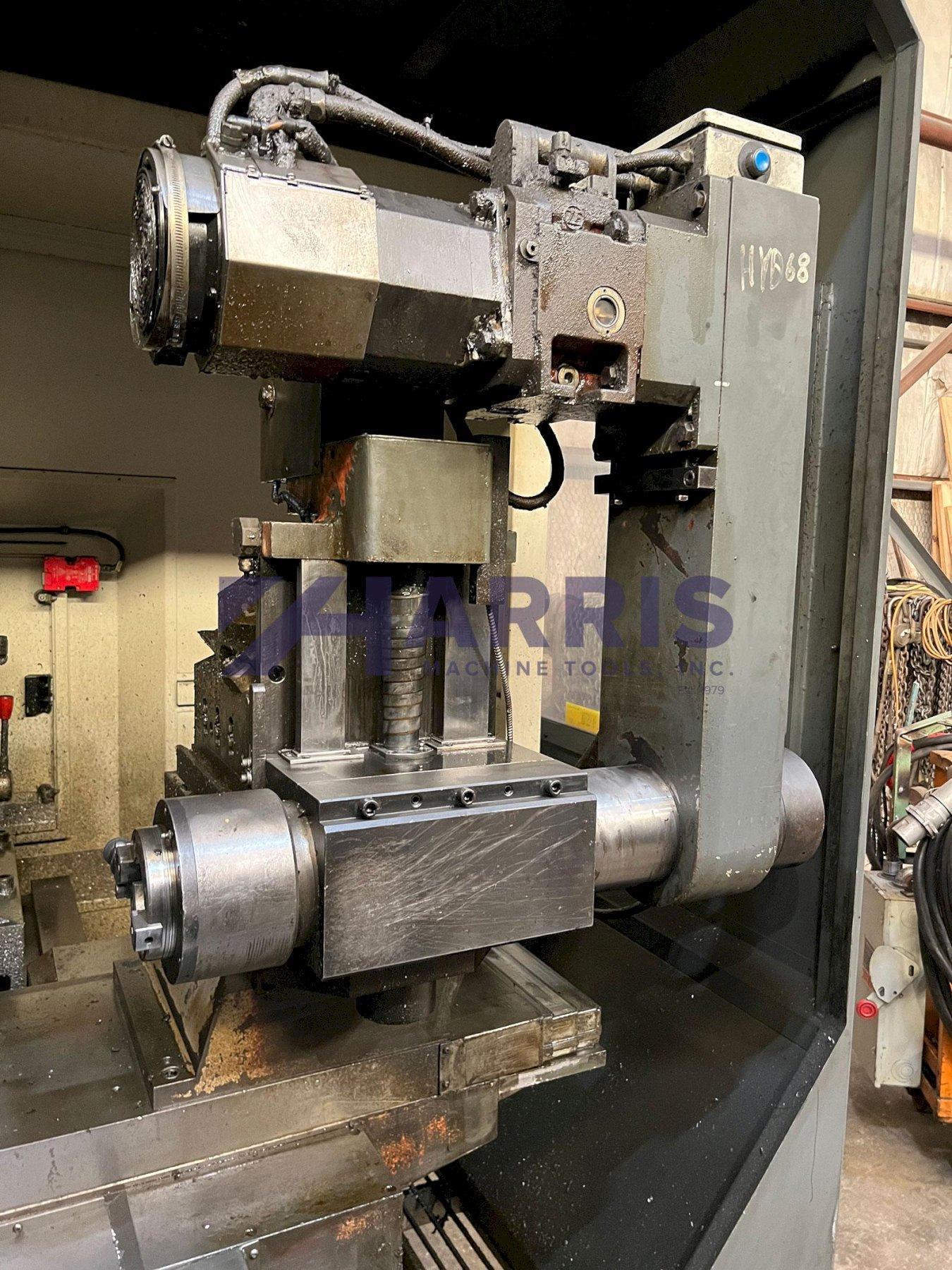

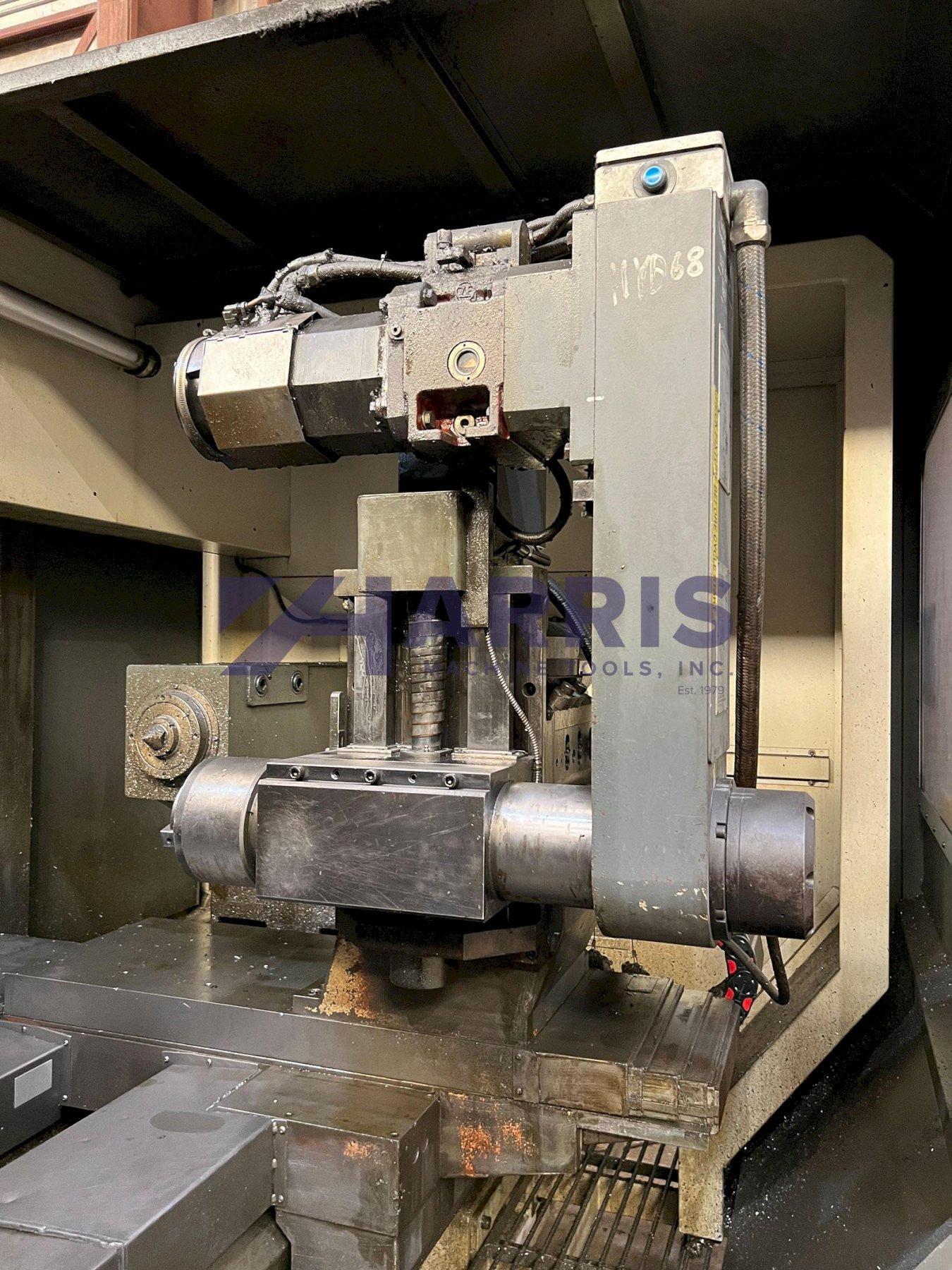

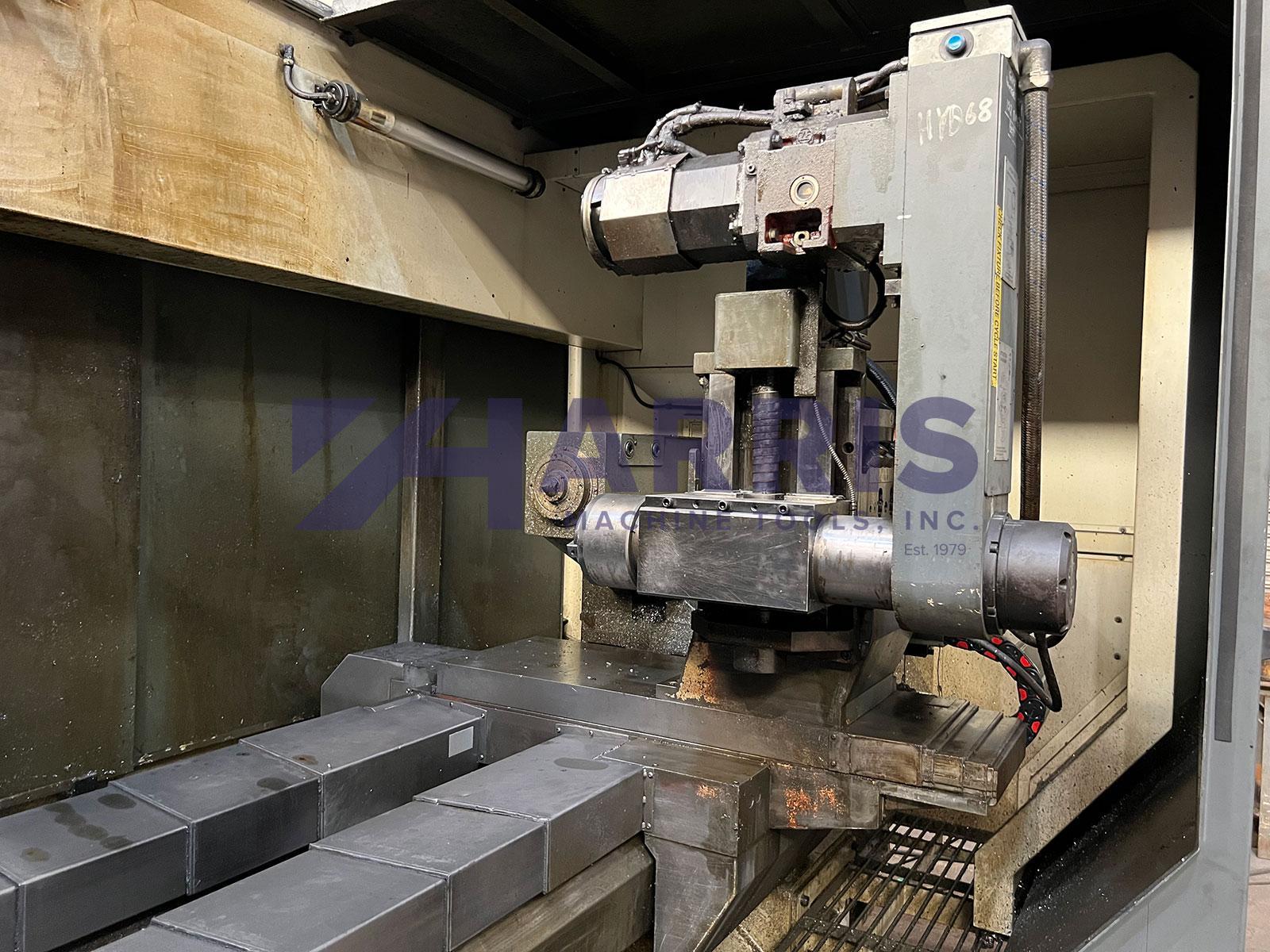

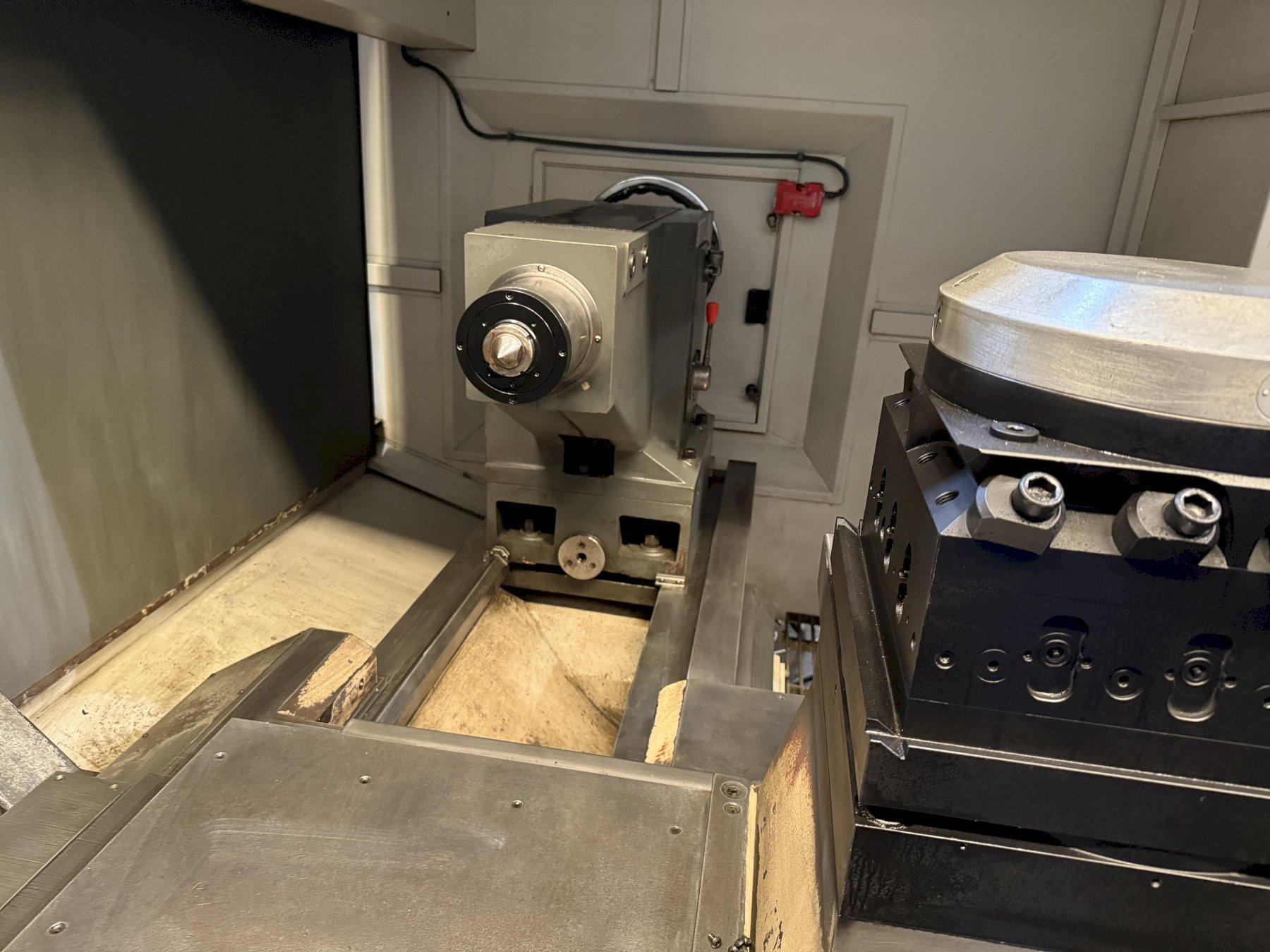

REMOVEABLE Y AXIS LIVE MILLING ATTACHMENT
CHIP CONVEYOR

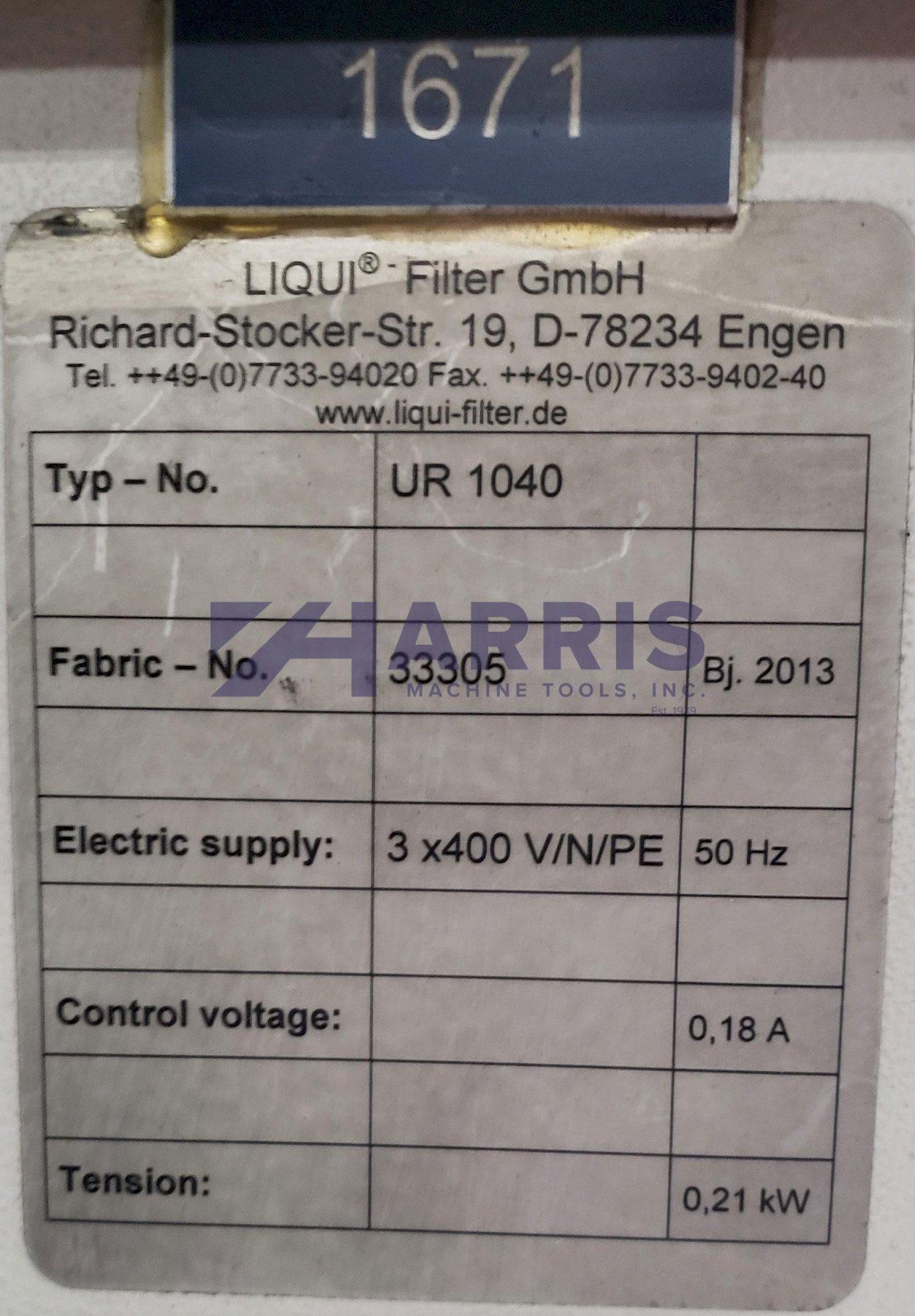

COOLANT WITH FILTRATION SYSTEM
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
SWING OVER CROSS SLIDE: 33.5
DISTANCE BETWEEN CENTERS: 78"
MAX WEIGHT BETWEEN CENTERS: 10,000 LBS.
SPINDLE POWER: 50 HP
MAX MAIN SPINDLE RPM: 1,400
LIVE SPINDLE POWER: 10 HP
LIVE SPINDLE TAPER: NO. 50
EQUIPPED WITH:
40" 4 JAW CHUCK
4 POSITION TURRET
C AXIS POSITIONING
REMOVEABLE Y AXIS LIVE MILLING ATTACHMENT
CHIP CONVEYOR
COOLANT WITH FILTRATION SYSTEM
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
