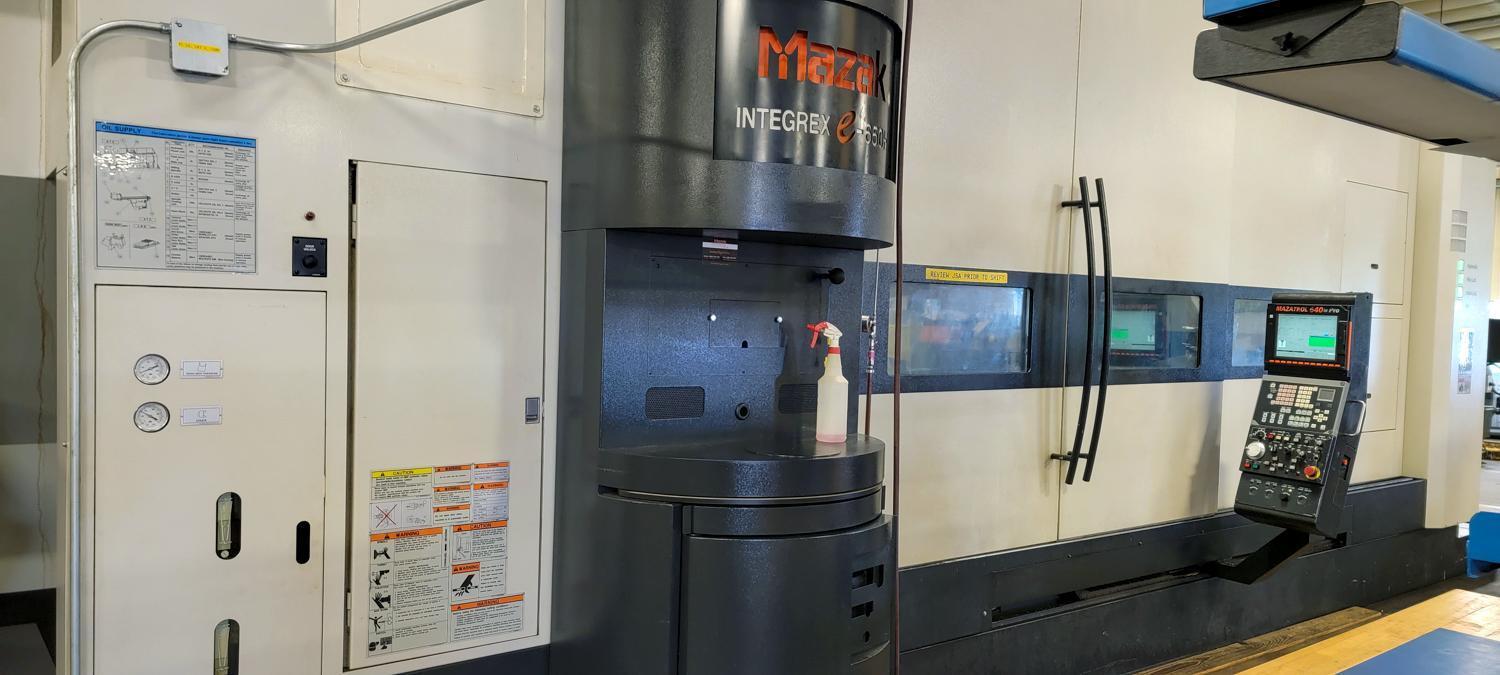

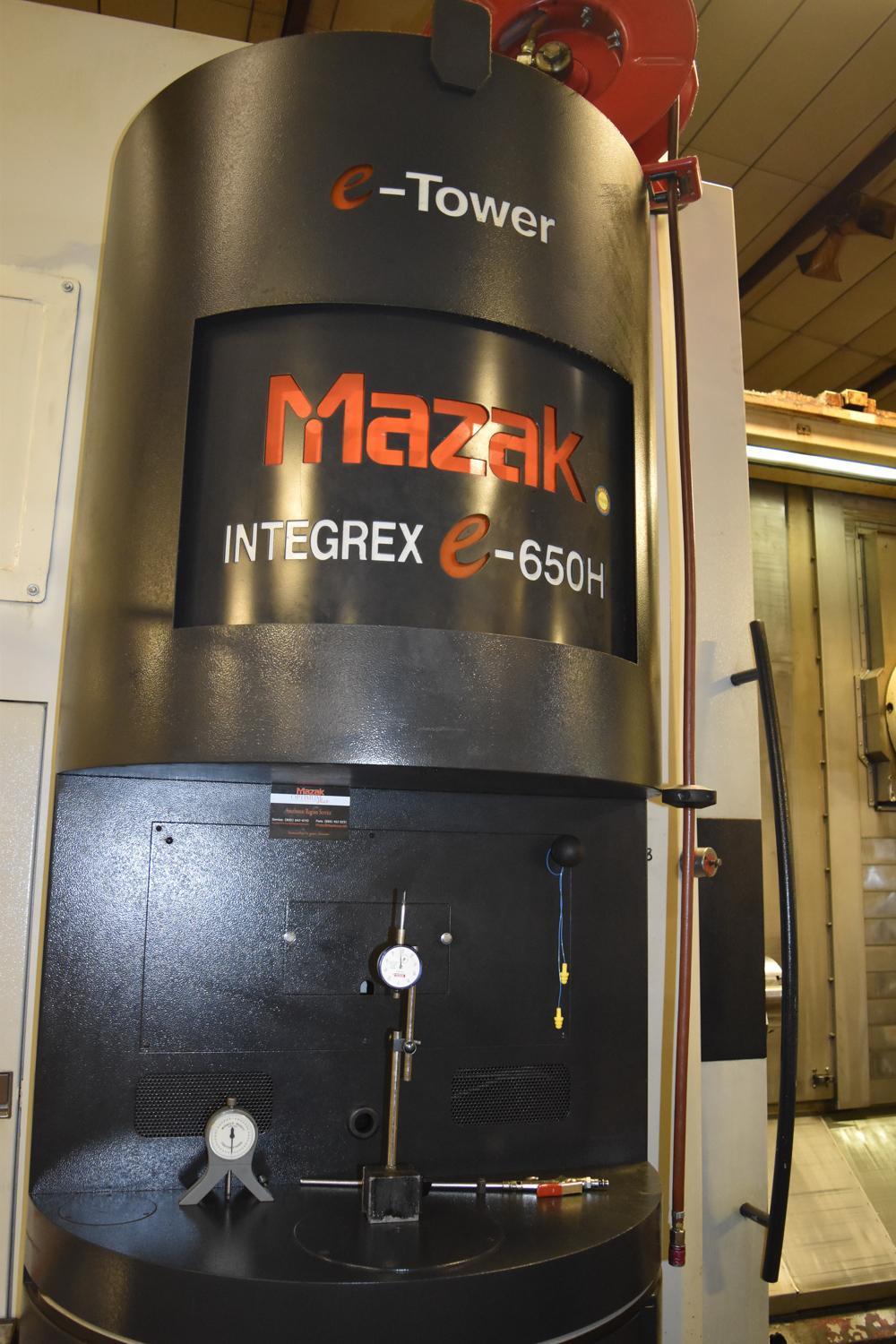

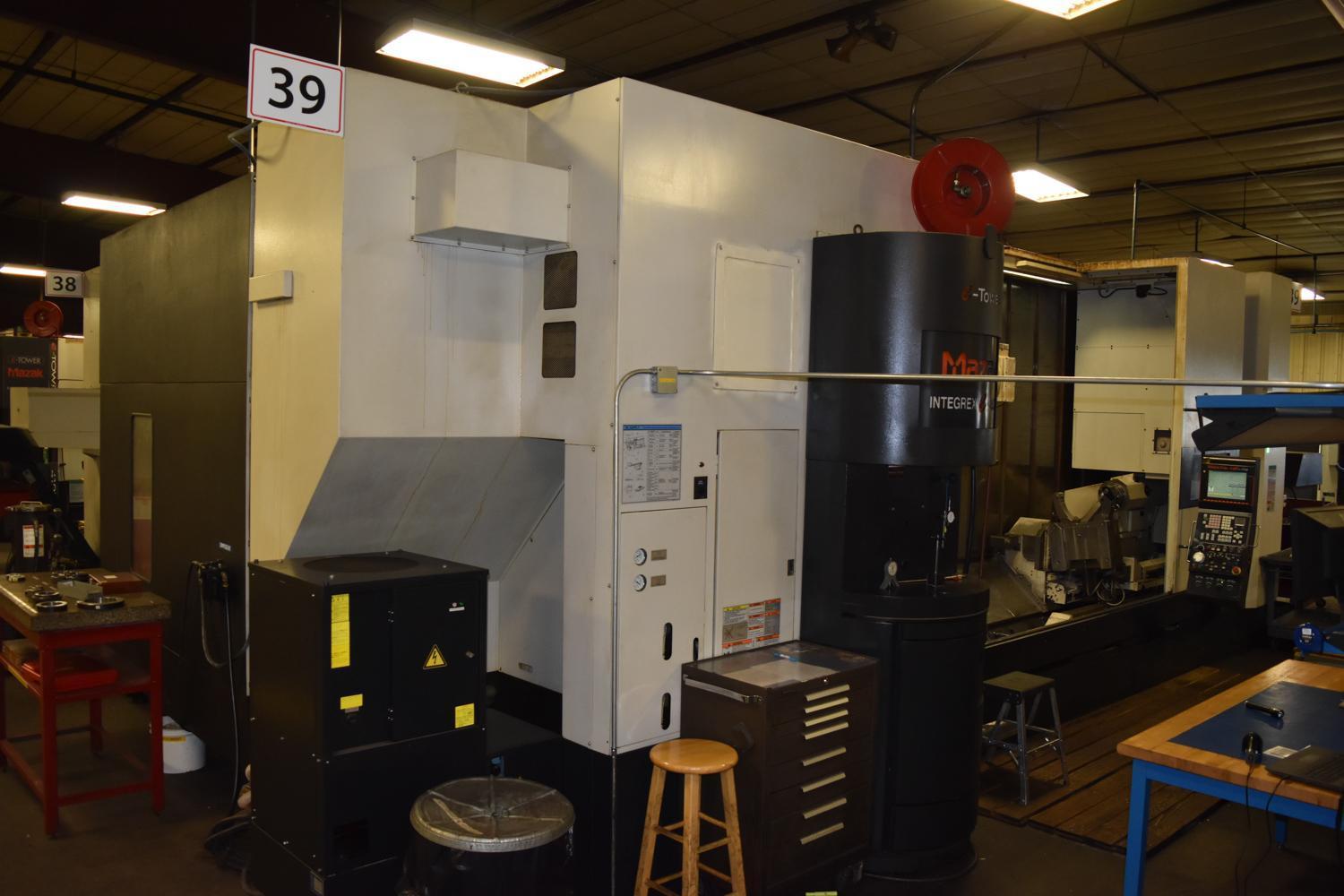

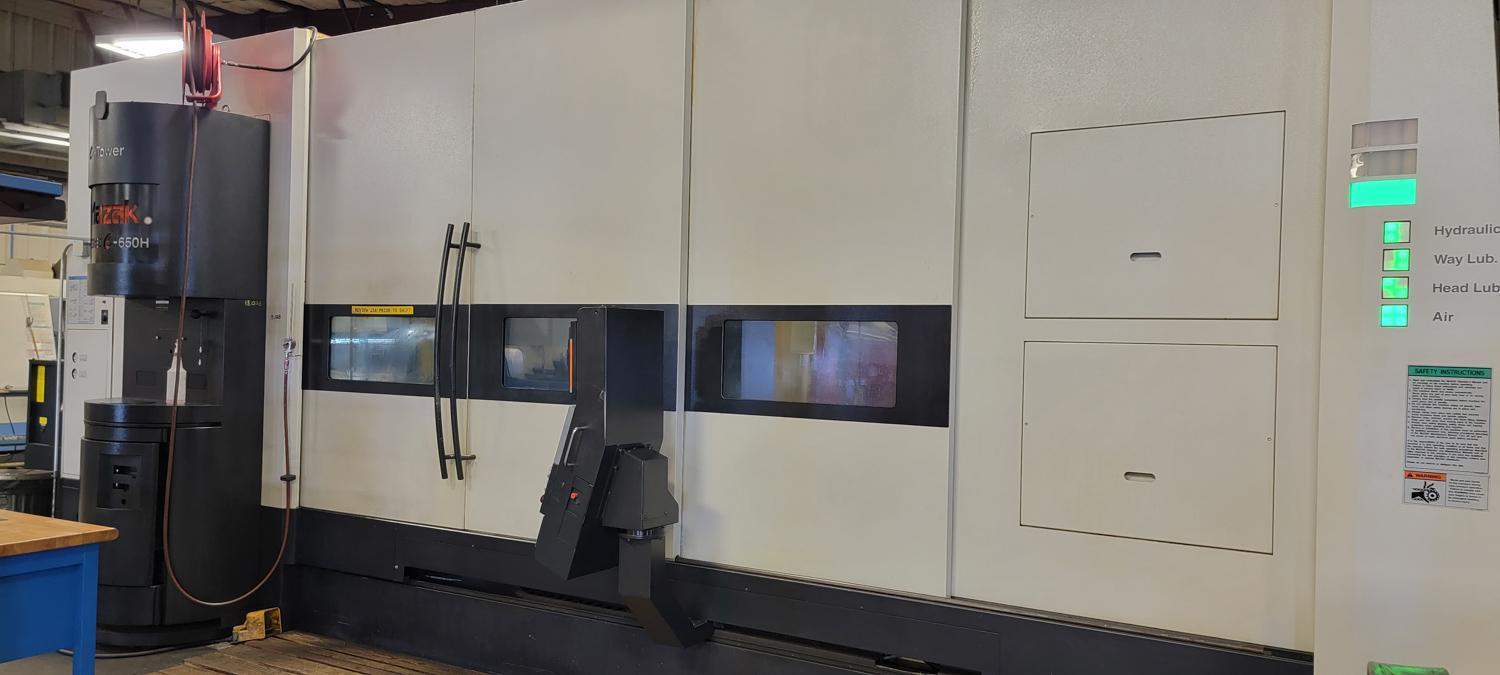

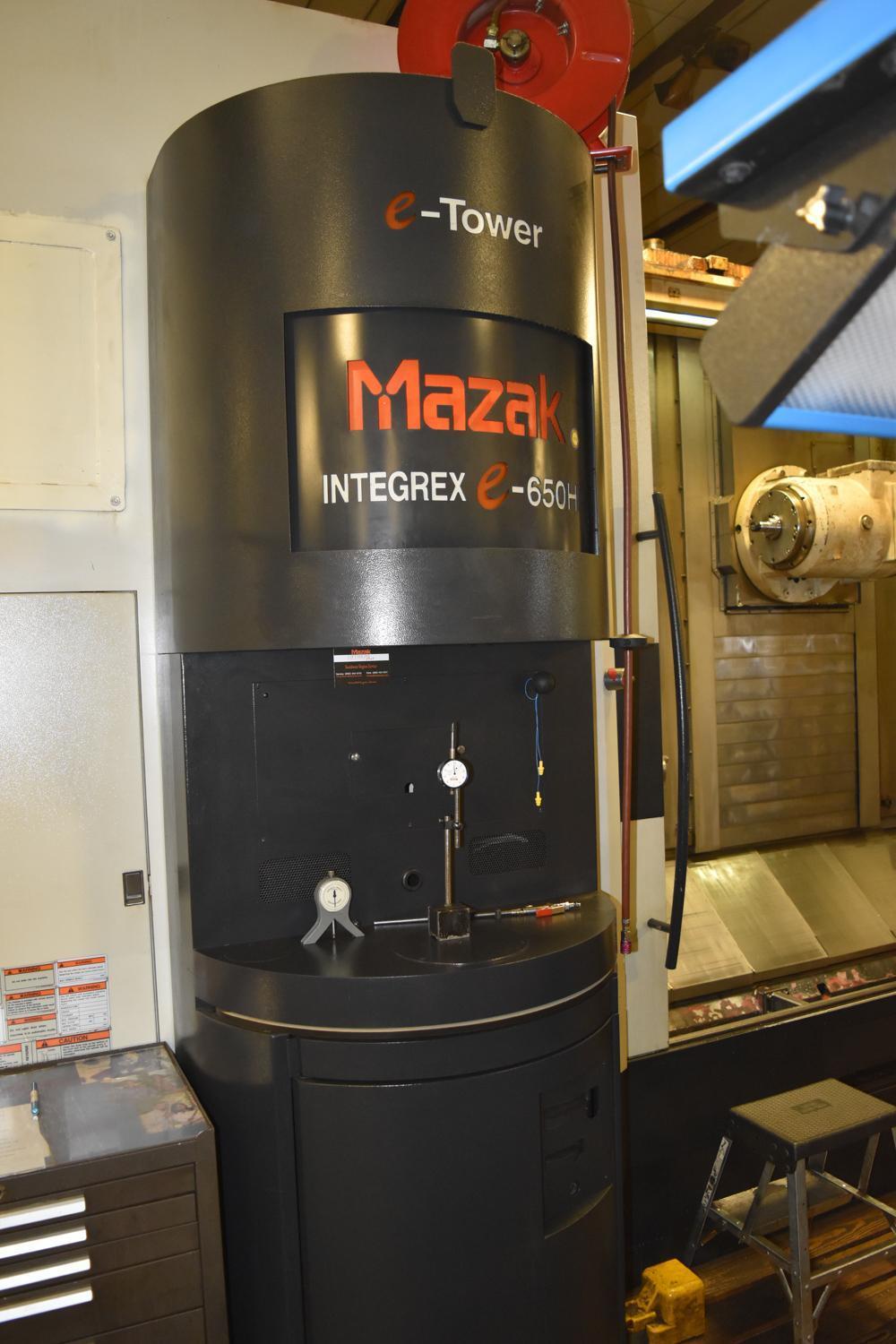

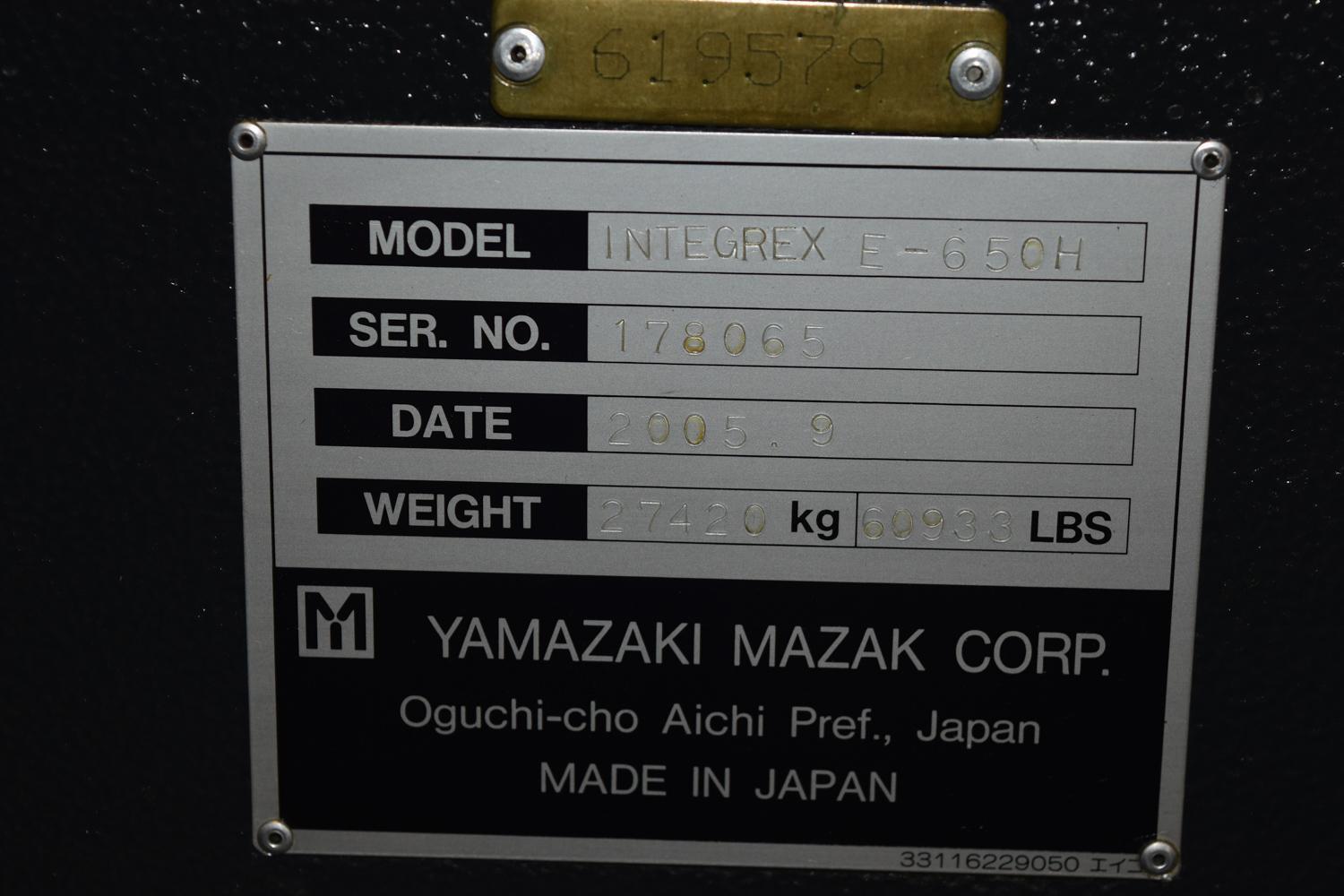

USED, MAZAK INTEGREX E-650 / 3000MM 5 AXIS TURNING AND MILLING CENTER
Brand
MAZAK
Model
INTEGREX E650H
Type
Lathes, CNC (3-Axis or More)
Stock #
20748
Condition
Not specified
Year
2005
Location
Houston, Texas
United States
Specifications
| CNC Control | yes |
| Type of CNC Control | MAZATROL |
| # Axis | 5 |
| Chuck Size | 24 inches |
| Swing | 36 inches |
| Turning Diameter | 36 inches |
| Center Distance | 120 inches |
| Bar Capacity | 10.2 inches |
| Spindle Bore | 10.2 inches |
| X Axis Travel | 40 inches |
| Z Axis Travel | 122 inches |
| Y Axis (Yes / No) | yes |
| Spindle Speed (RPM) | 1000 |
| Main Motor | 50 HP |
| Live Milling (Yes / No) | yes |
| Live Milling Speed (RPM) | 10000 |
| Live Milling Motor | 50 |
| Turret Capacity | 80 |

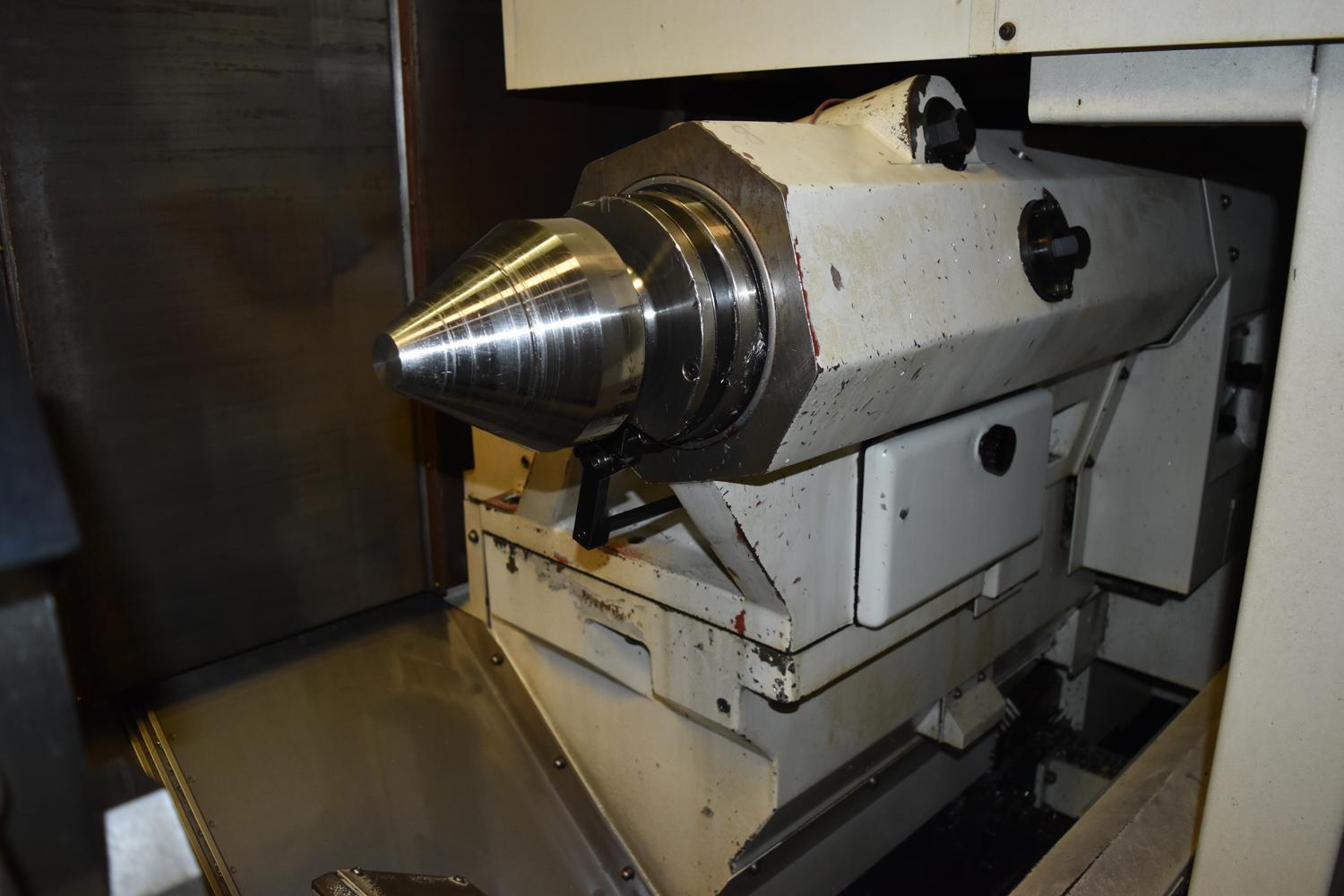

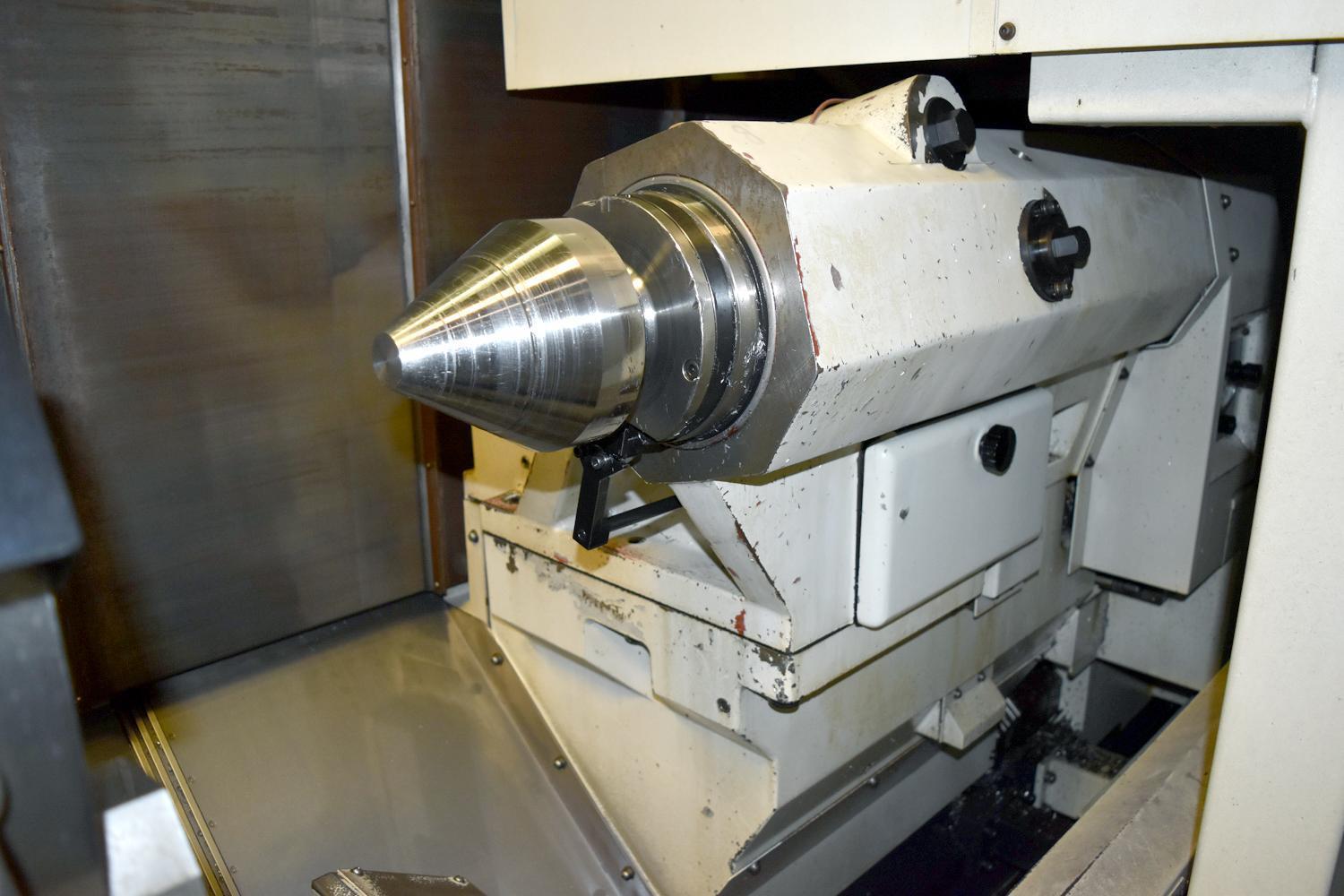

| Tailstock (Yes/No) | yes |
| Power | 50 horsepower |
| Live Tooling Max Spindle Speed (RPM) | 10000 |
Equipped With
Travels:
- Y-Axis: 25.6"
- B-Axis: 0.0001° Contouring
- C-Axis: 1000 RPM
EQUIPPEED WITH:

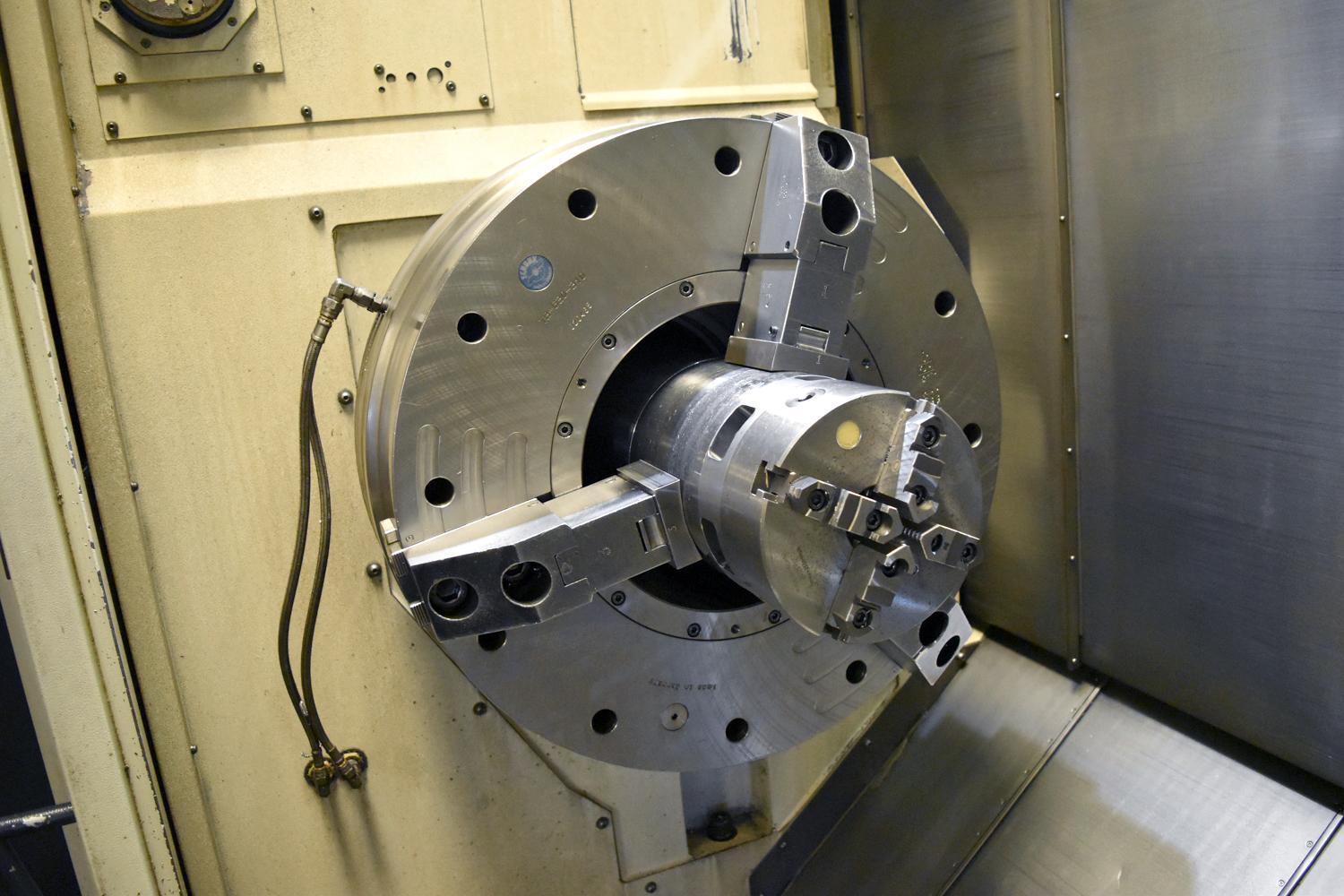

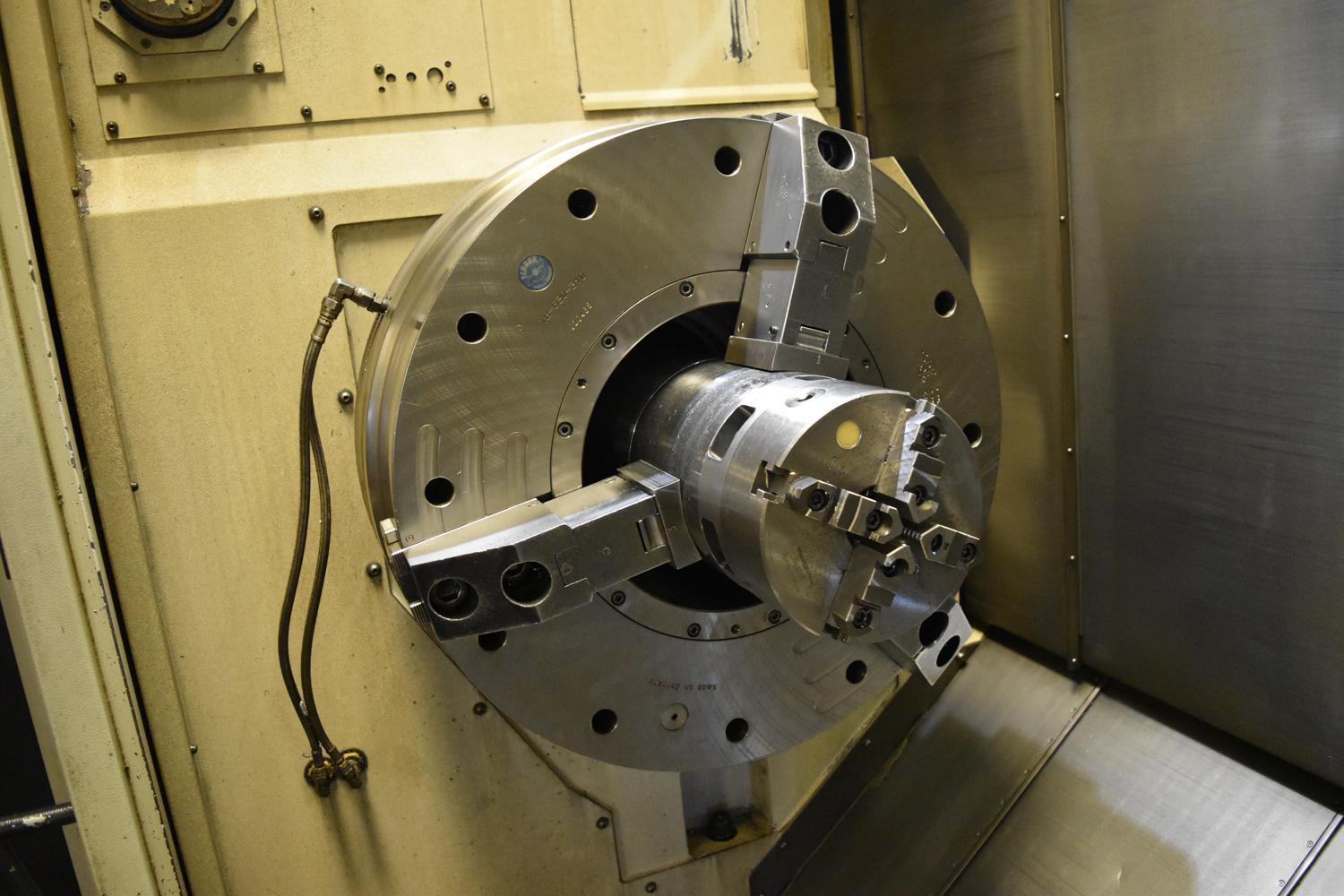

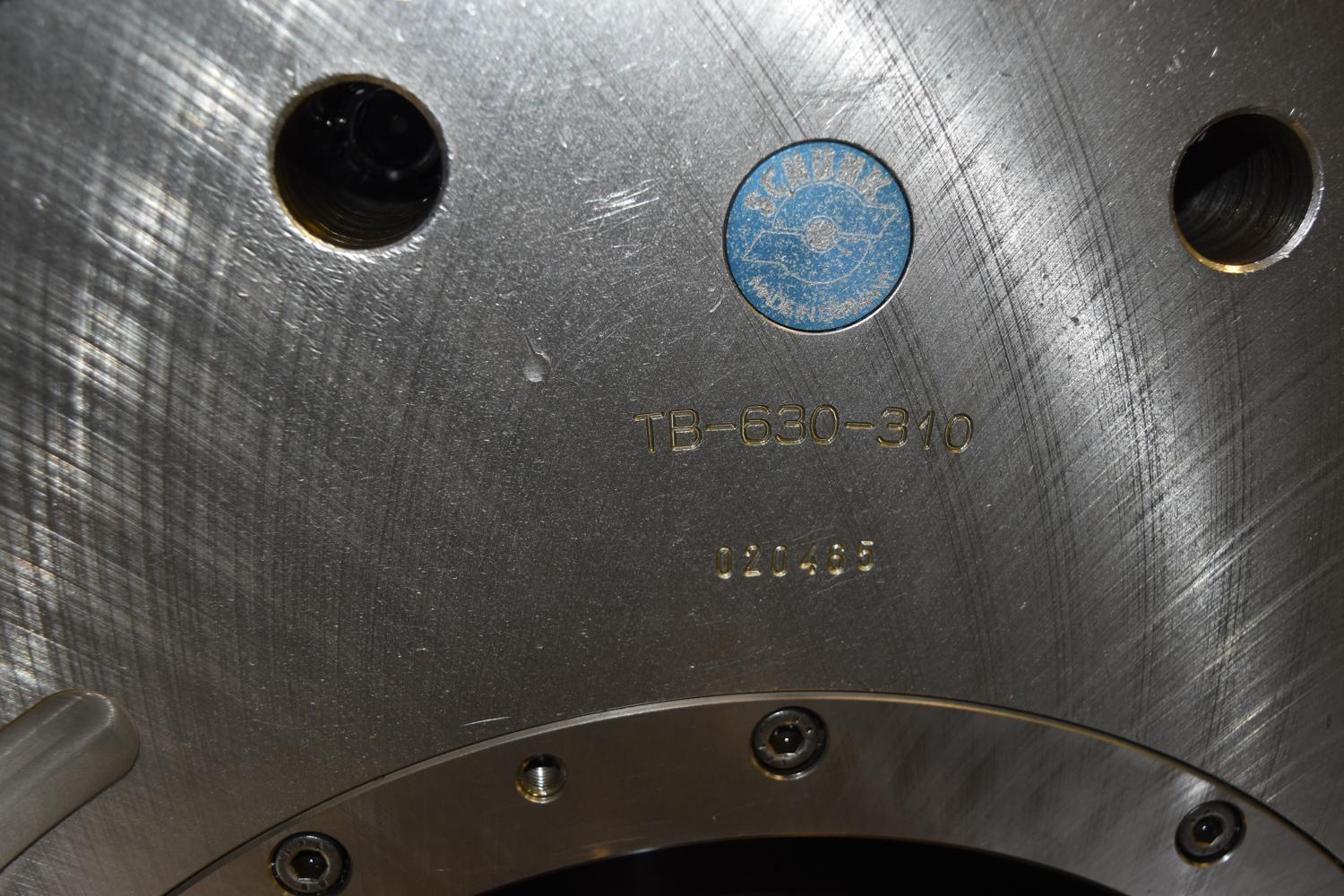

24" SCHUNK 3 JAW FRONT MOUNT AIR CHUCK

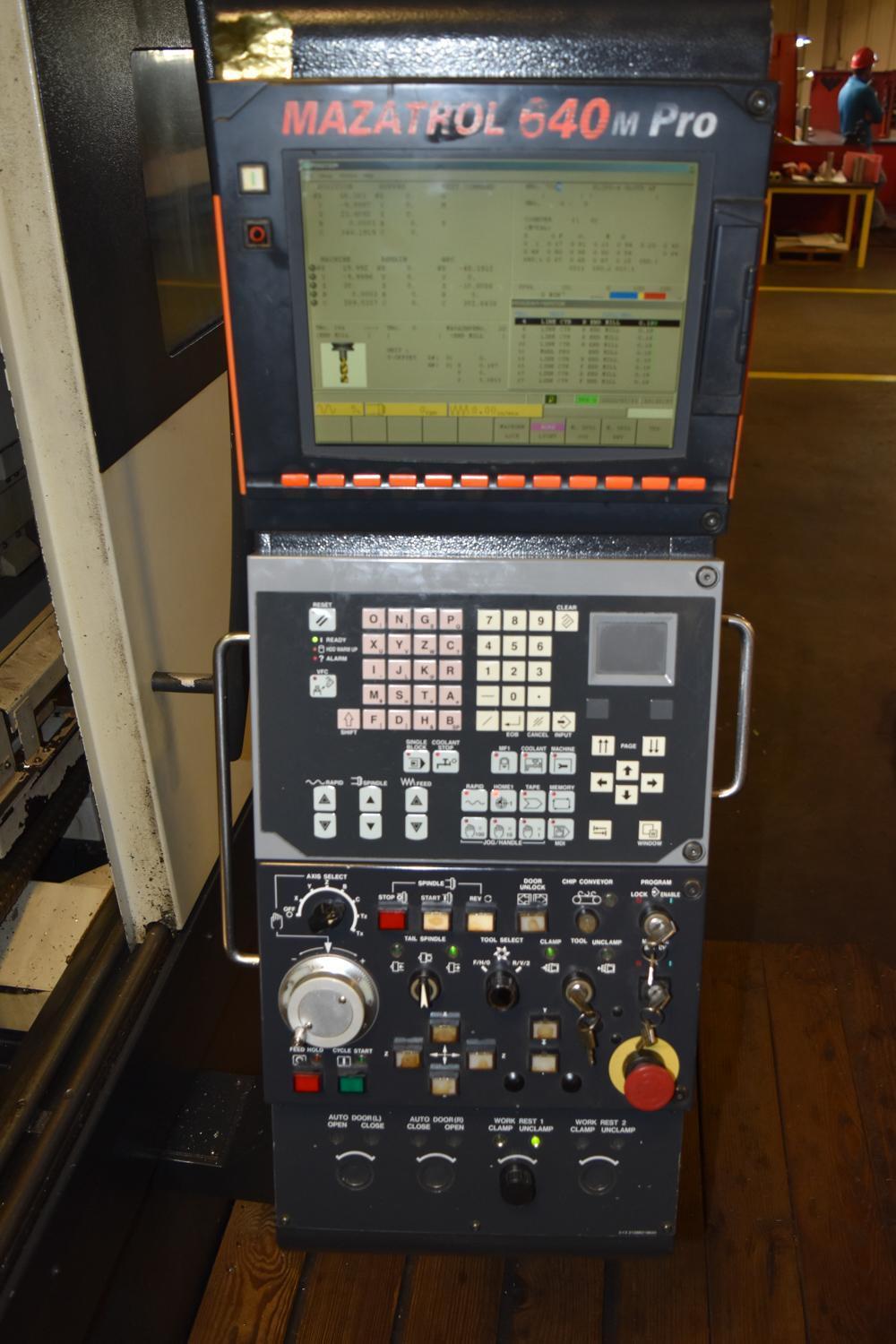

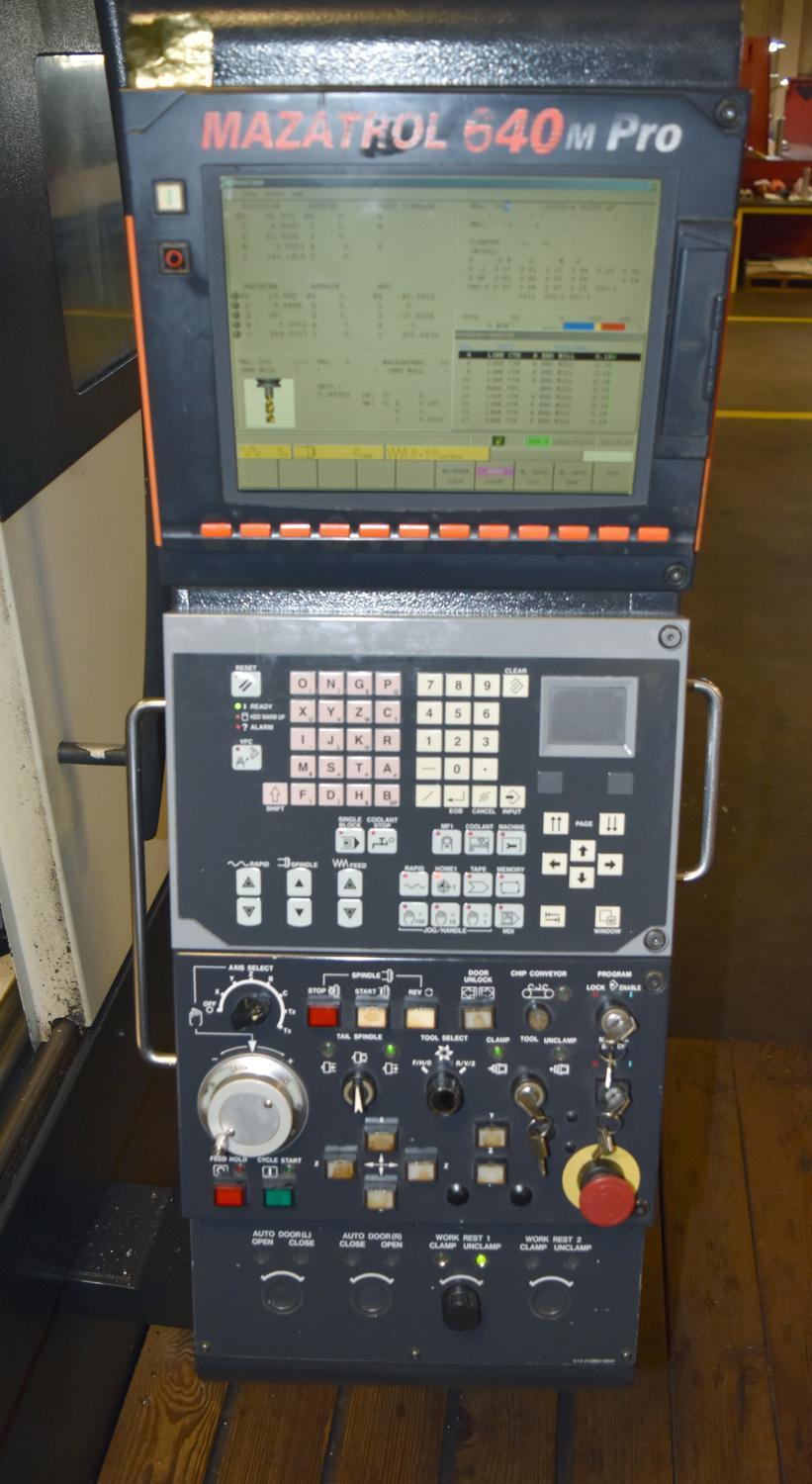

MAZATROL 640M PRO CNC CONTROL

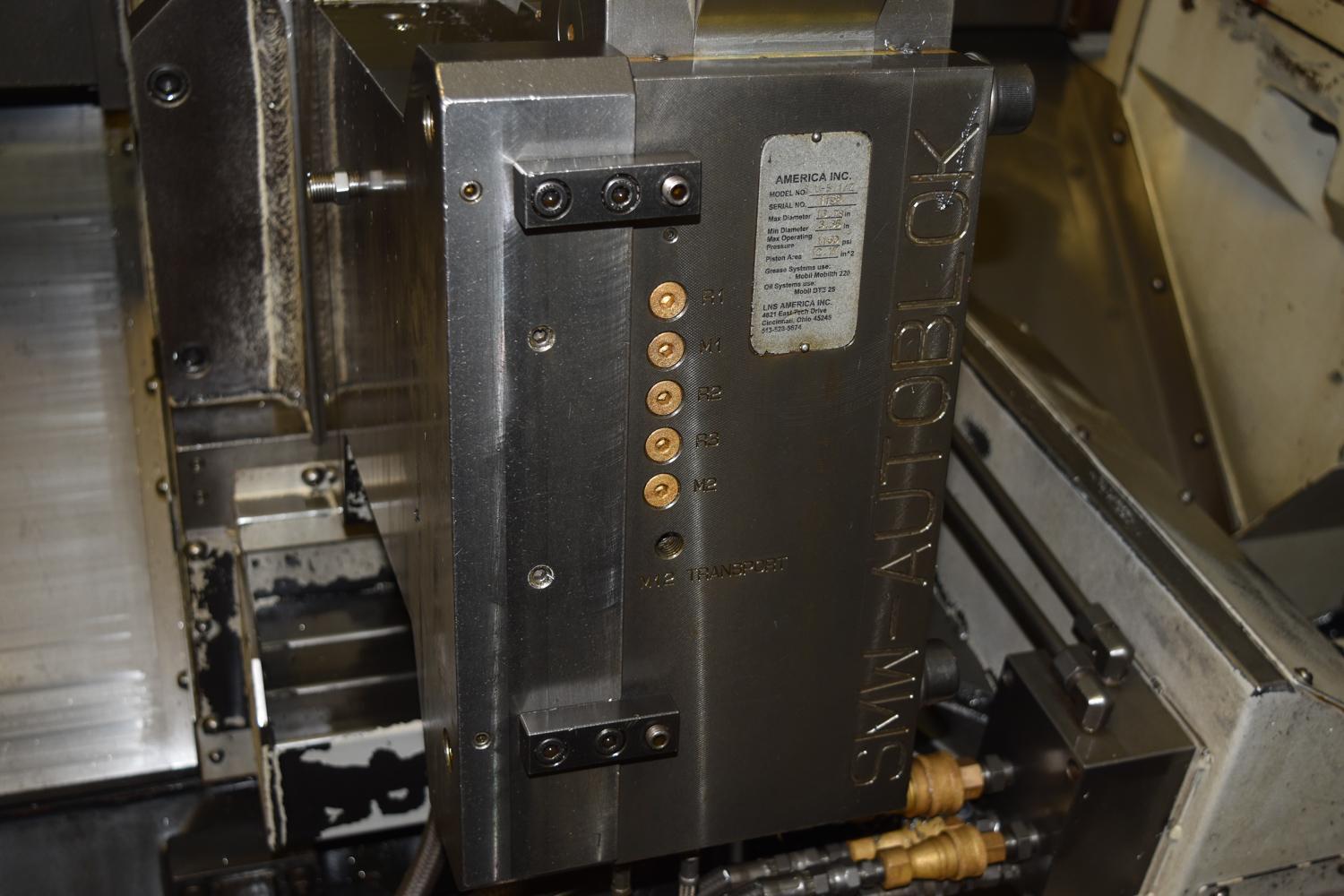

SMW HYDRAULIC STEADY REST (1.7 - 12.2" CAPACITY)

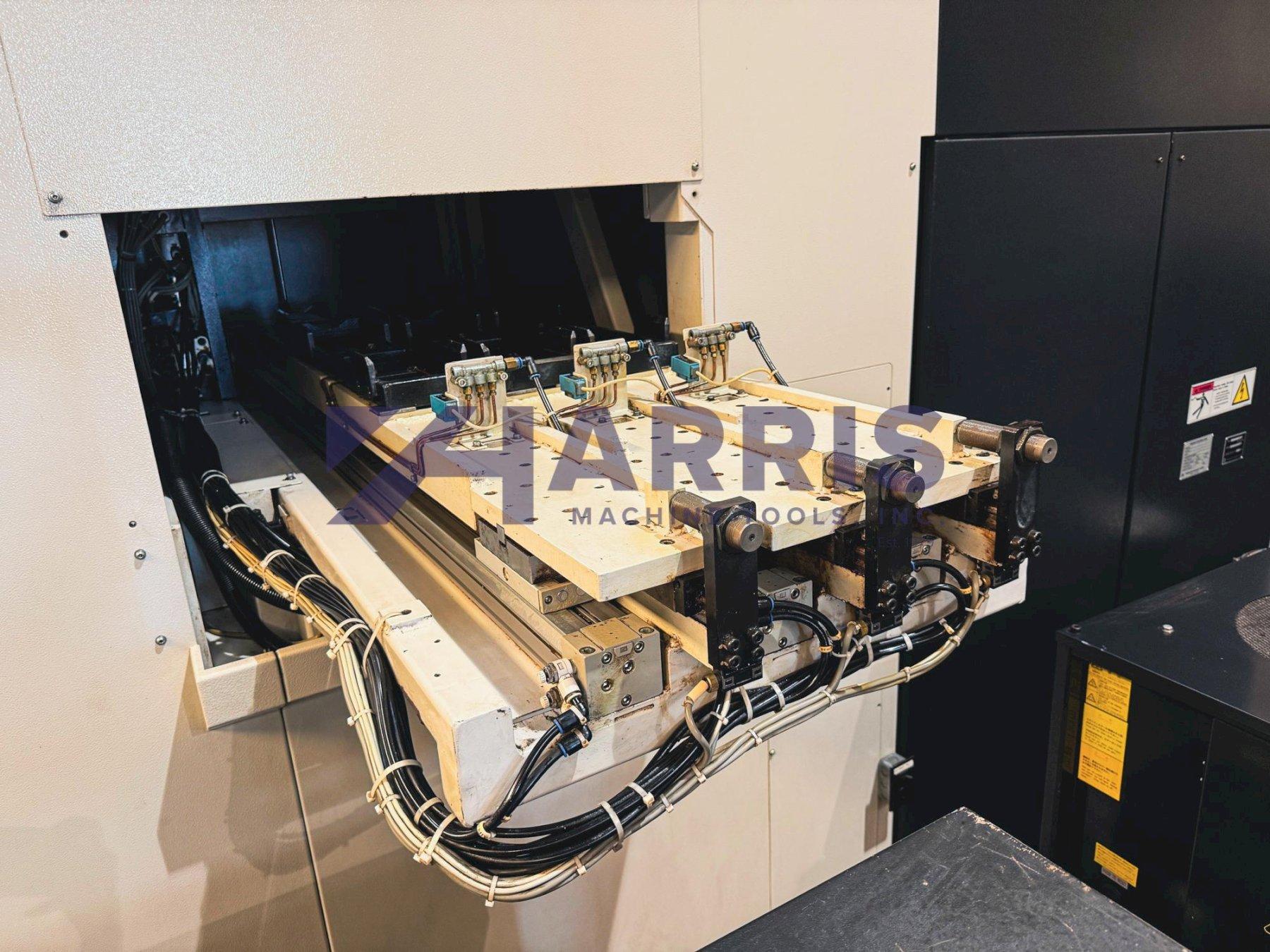

BORING BAR STOCKER FOR 100 AND 80MM BARS
MIST COLLECTOR
AUTOMATIC TOOL LENGHT MEASUREMENT SYSTM
TOOL EYE

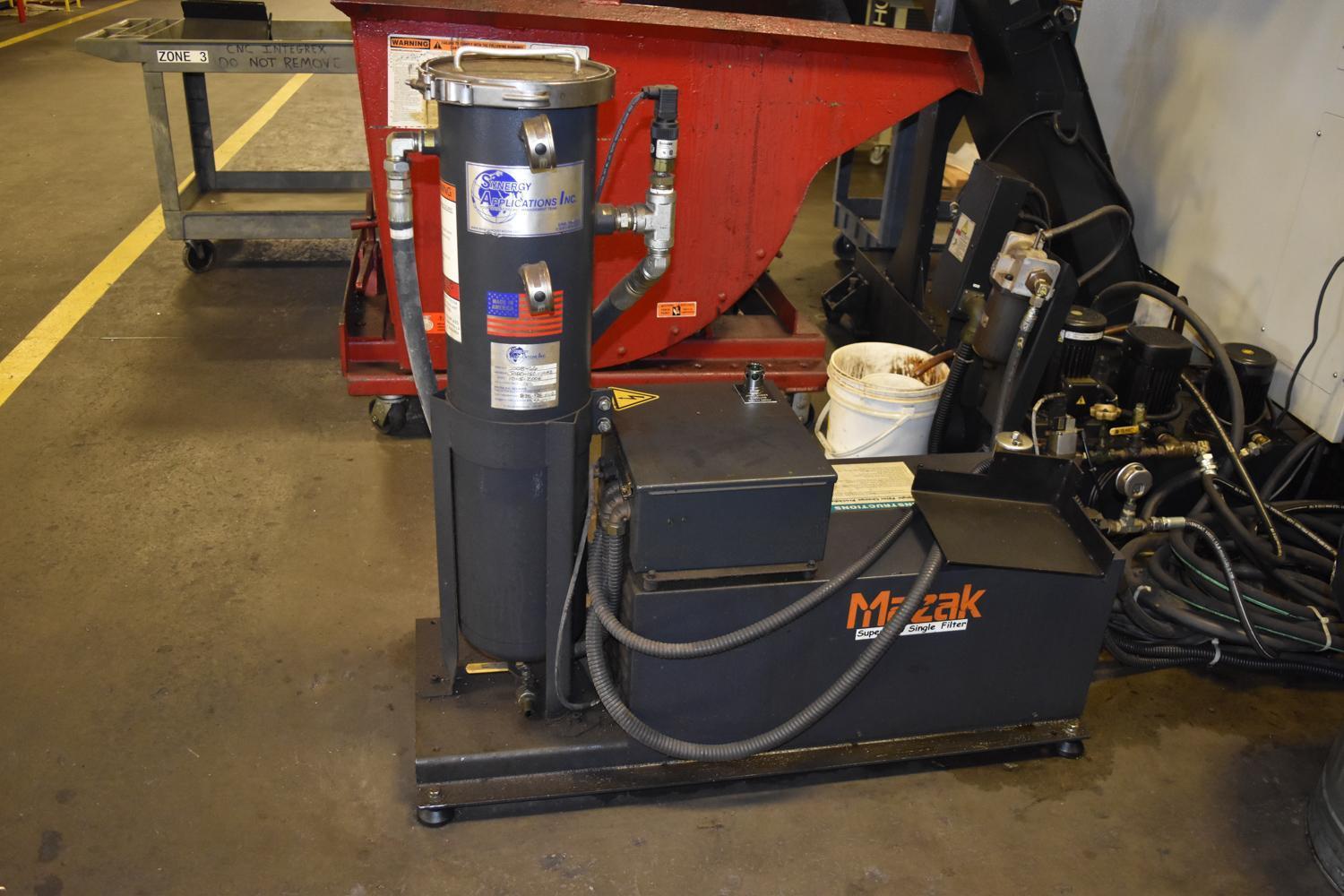

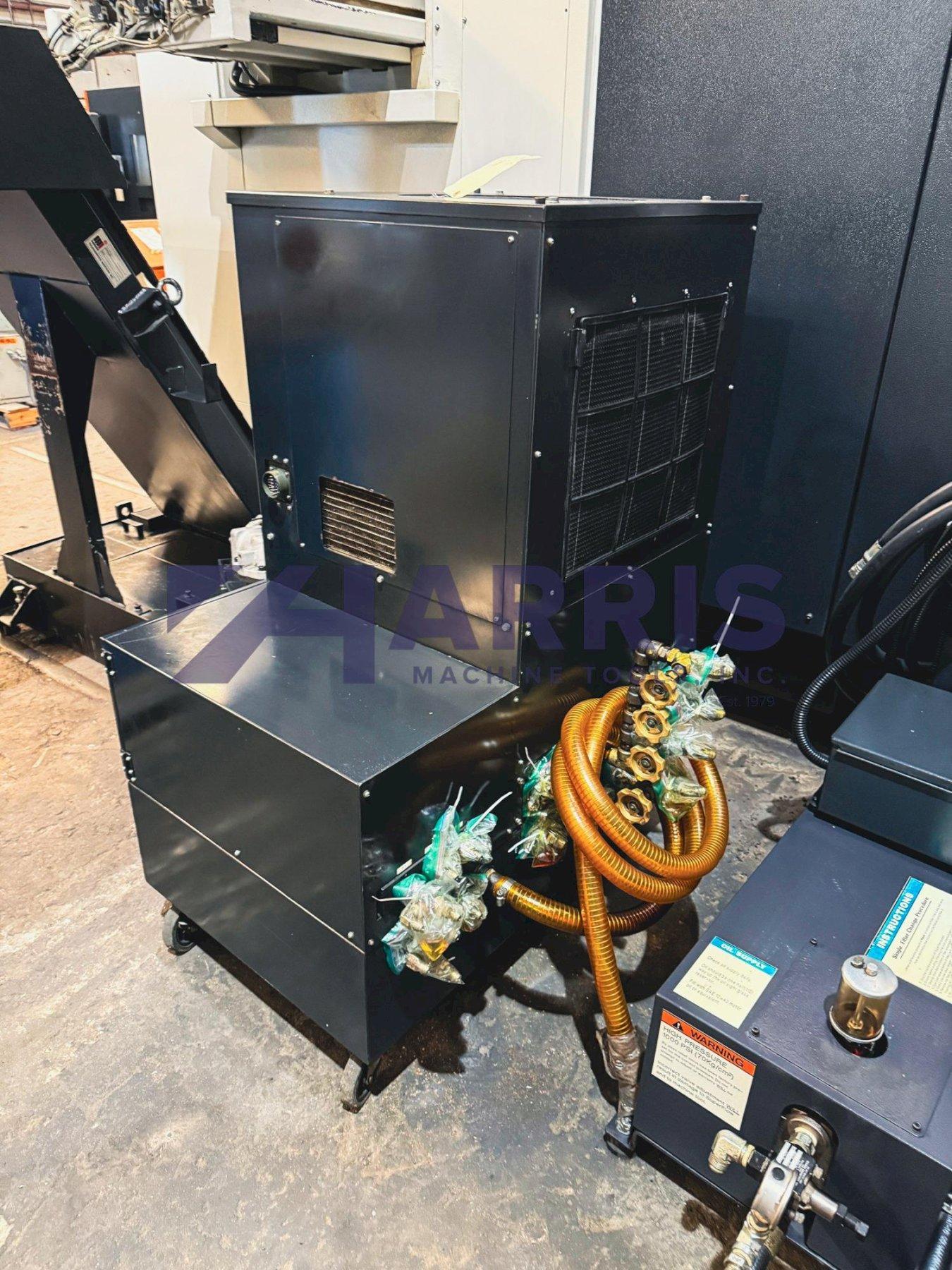

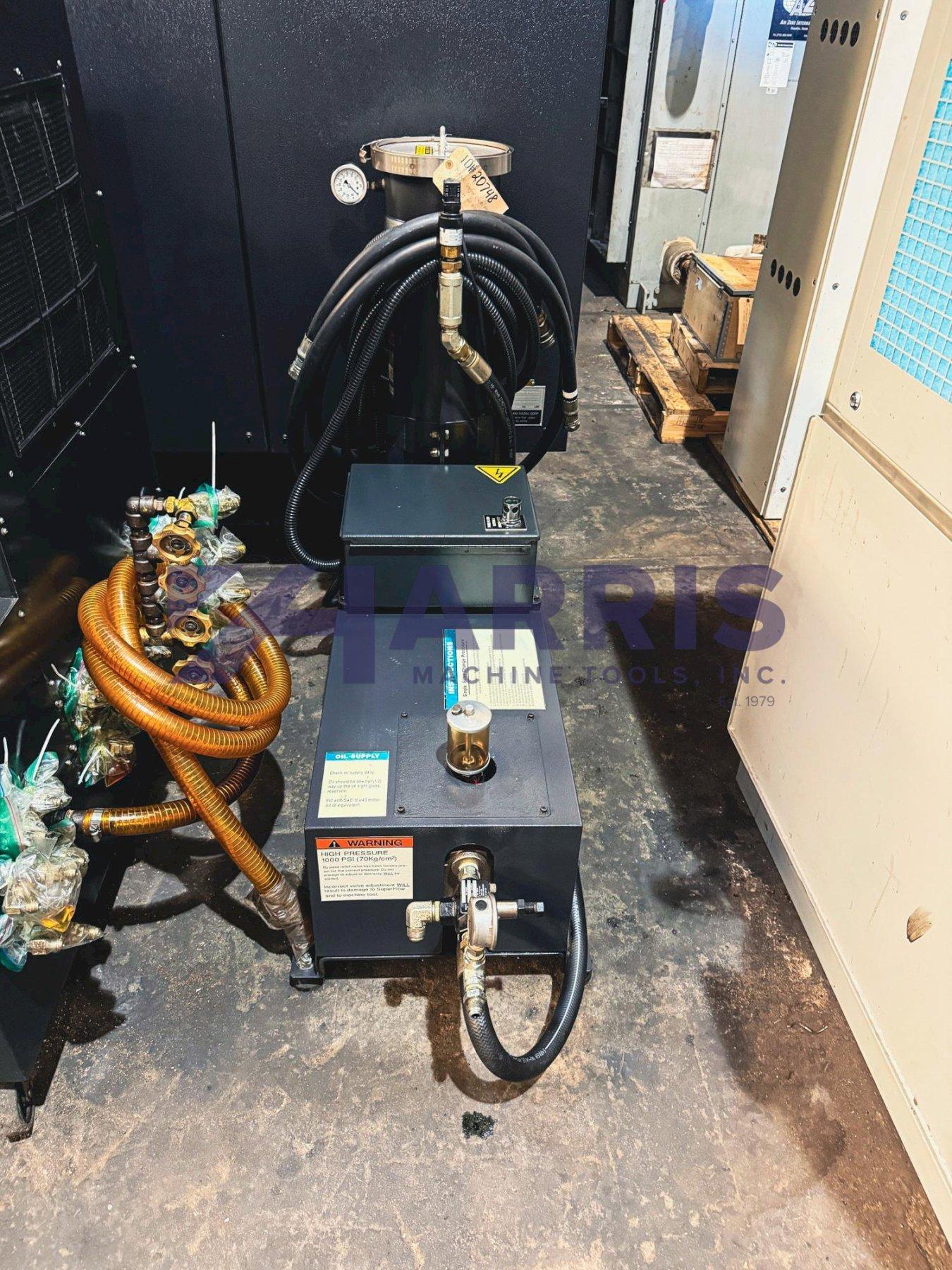

HIGH PRESSURE COOLANT
REAR CHUCK MOUNT
RENISHAW PROBE

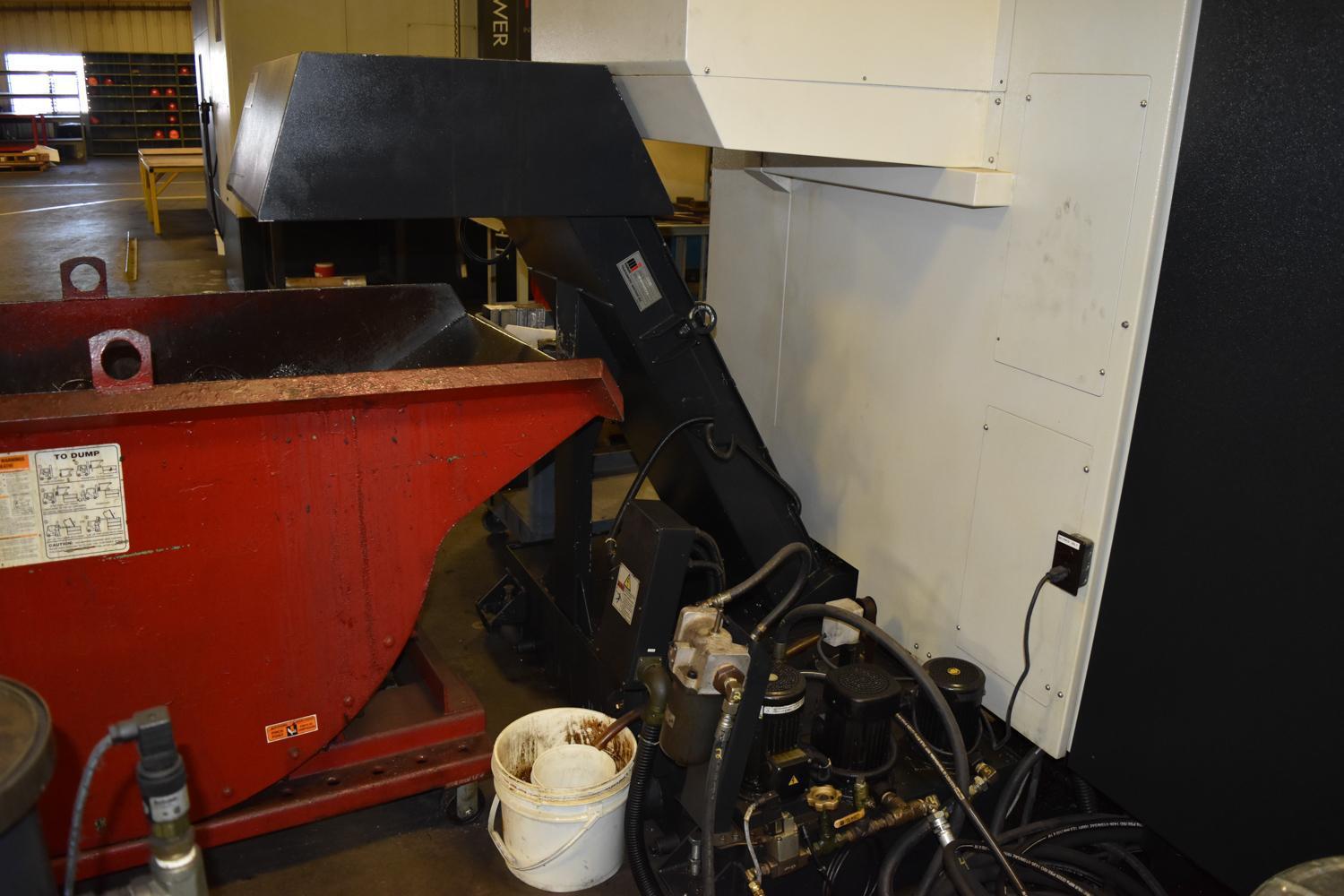

CHIP CONVEYOR

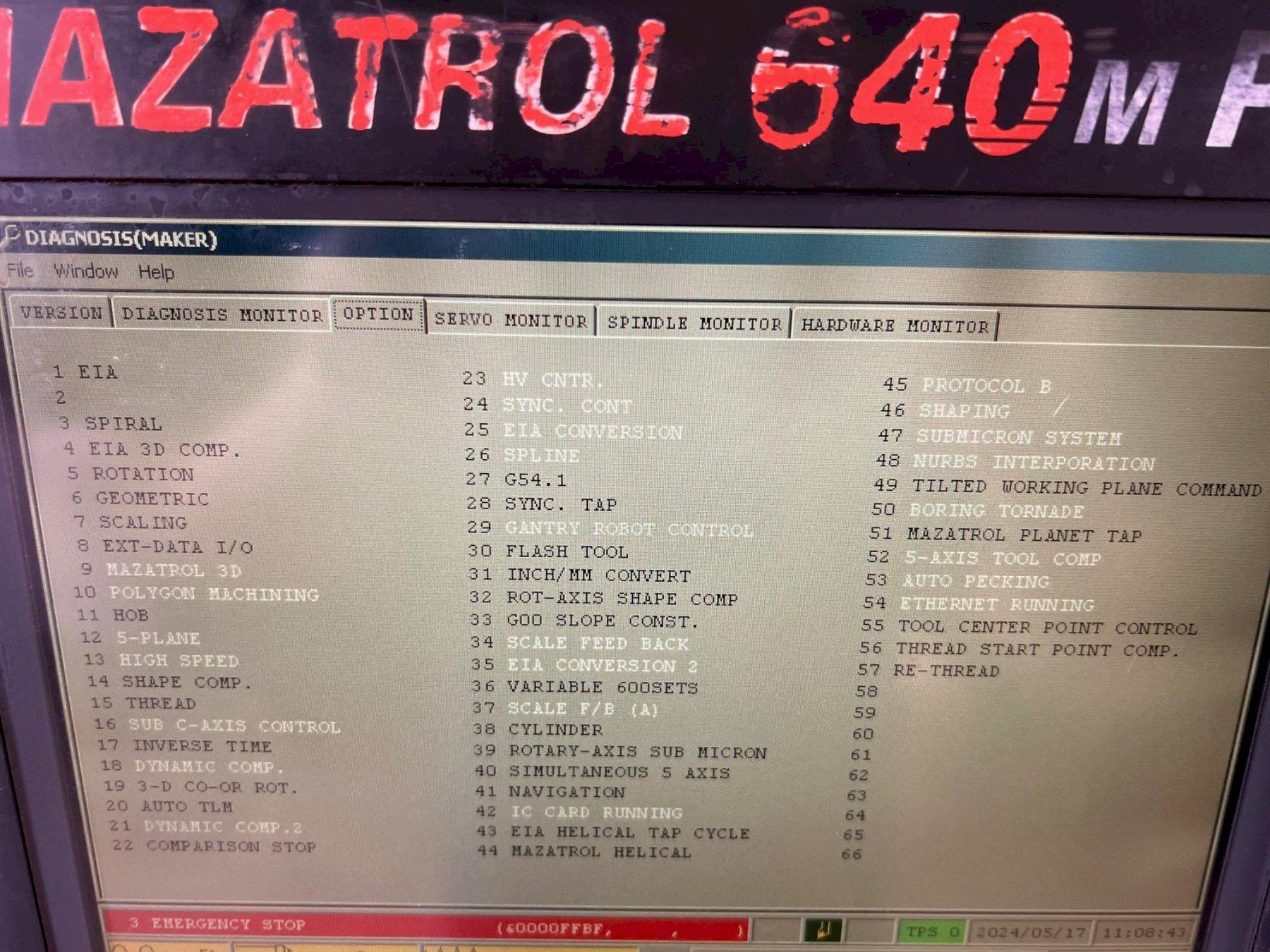

CONTROL OPTIONS:
Coordinate Rotation and Scaling;Helical Interpolation;Synchronized Tapping;Inch/Metric Conversion;Rotation and Scaling;EIA/ISO Code Input Function
Spiral Interpolation
3D Cutter Compensation
Geometric Command
Hobbing
Shape Compensation
Thread Cutting
Re-Threading
Thread Start Point Compensation
Inverse Time Feed
3D Coordinate Rotation
Comparison Stop
G54.1
Flash Tool
Rotation Axis Shape Compensation
G00 Slope Constant
600 Sets Variable
Cylinder
Rotary-Axis Sub Micron
Simultaneous 5-Axis
Helical Tap Cycle
Tilted Working Plane Command
Mazatrol Planet Tap
Tool Center Point Control
NOTE: TOOLING AND BORING BAR IN PHOTOS NOT INCLUDED **
- Y-Axis: 25.6"
- B-Axis: 0.0001° Contouring
- C-Axis: 1000 RPM
EQUIPPEED WITH:
24" SCHUNK 3 JAW FRONT MOUNT AIR CHUCK
MAZATROL 640M PRO CNC CONTROL

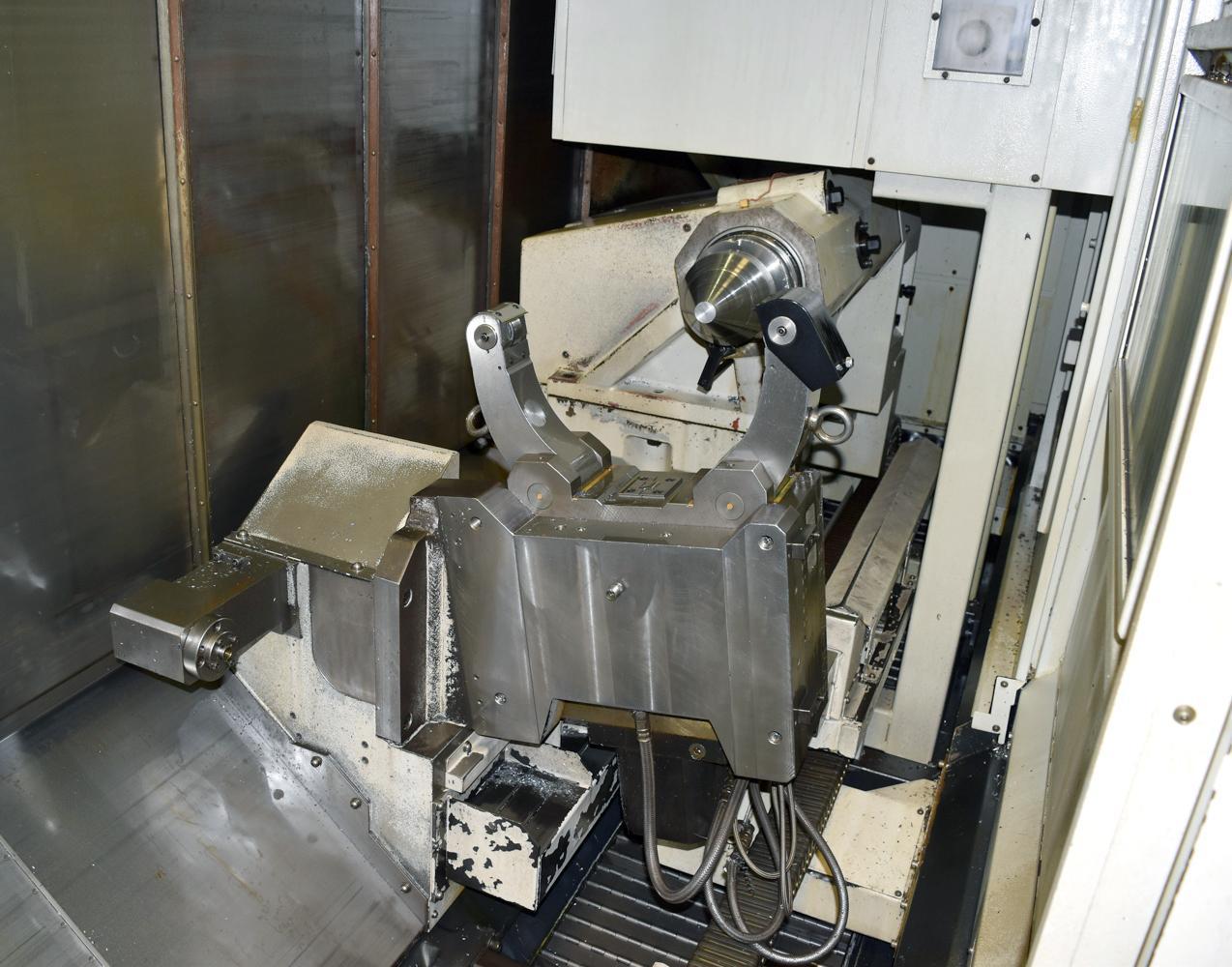

SMW HYDRAULIC STEADY REST (1.7 - 12.2" CAPACITY)
