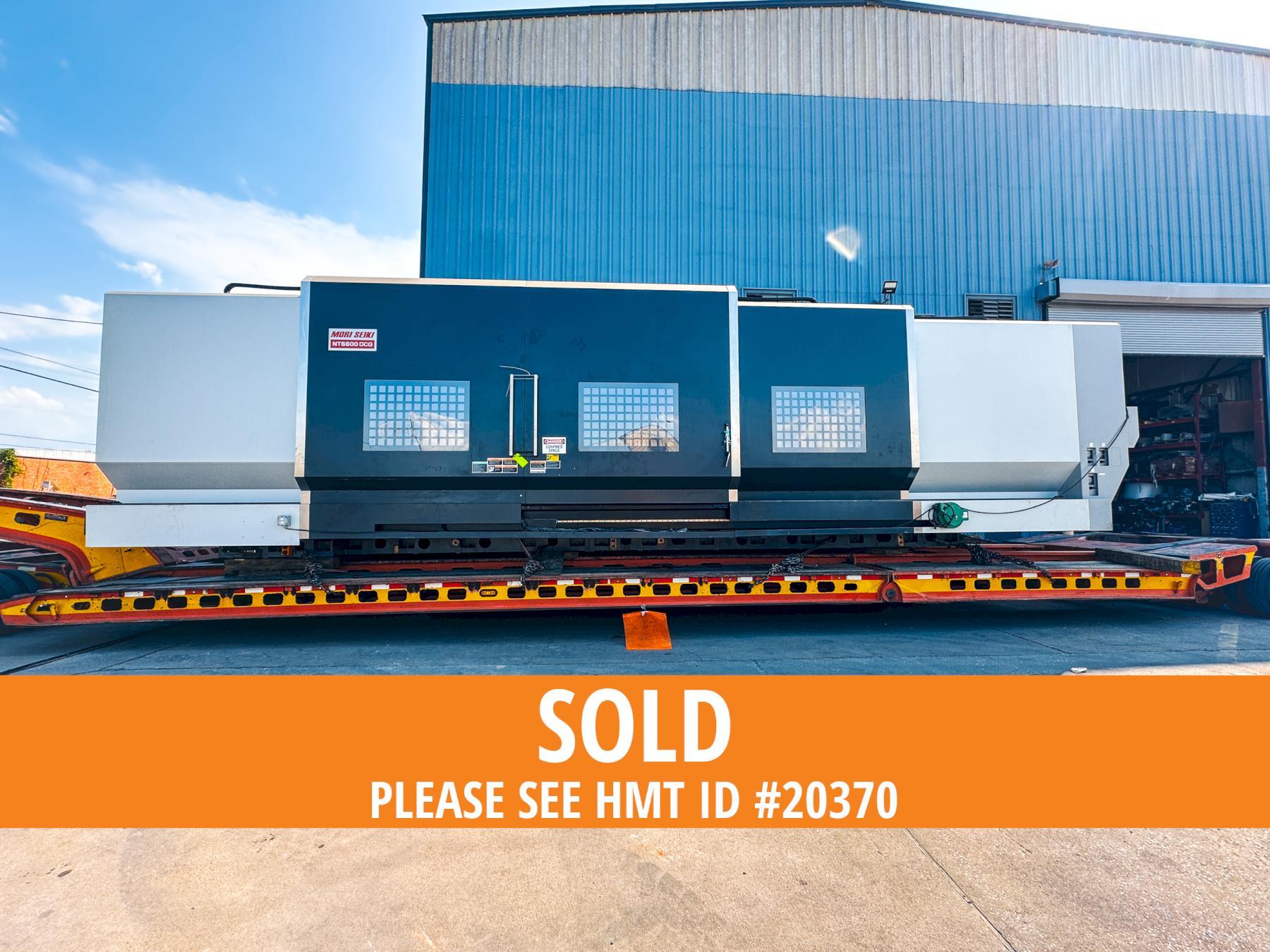

USED, MORI SEIKI NT6600 DCG/6000B CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING
Brand
MORI SEIKI
Model
NT6600 DCG/6000B
Type
Lathes, CNC (3-Axis or More)
Stock #
19681
Condition
Used
Year
2012
Status
For Sale
Location
Houston, Texas
United States
Specifications
| CNC Control | yes |
| Type of CNC Control | FS31iA5 CNC Control |
| Chuck Size | 20 inches |
| Swing | 42 inches |
| Bar Capacity | 6.4 inches |
| Spindle Bore | 7 inches |
| X Axis Travel | 41 inches |
| Z Axis Travel | 242 inches |
| Y Axis (Yes / No) | yes |
| Y Axis Travel | 26 inches |
| B Axis | +/- 120 Deg. |
| Spindle Speed (RPM) | 1500 |
| Spindle Motor | 40 HP |
| Sub Spindle Speed (RPM) | 8000 |
| Sub Spindle Motor | 40 HP |
| Live Milling (Yes / No) | yes |
| Dimensions | 490" x 182" x 169"H |
| Hours | 49625 |
| Weight | 120560 pounds |
Equipped With
MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING
20" HYDRAULIC CHUCK
FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER
PROGRAMMABLE TAILSTOCK
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR
Additional Control Options:
Machine Options:
Tool Presetter
Automatic Tool Length Measurement System
Additional Machine Specs:
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING
20" HYDRAULIC CHUCK
FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER
PROGRAMMABLE TAILSTOCK
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR
Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Machine Options:
Tool Presetter
Automatic Tool Length Measurement System
Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
Right Hinge-Type Chip Conveyor
(2) Programmable Automatic Steady Rests (8" capacity)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
Machine Hours: 49,625
Spindle Hours: 4,798
Machine Hours: 49,625
Spindle Hours: 4,798
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
