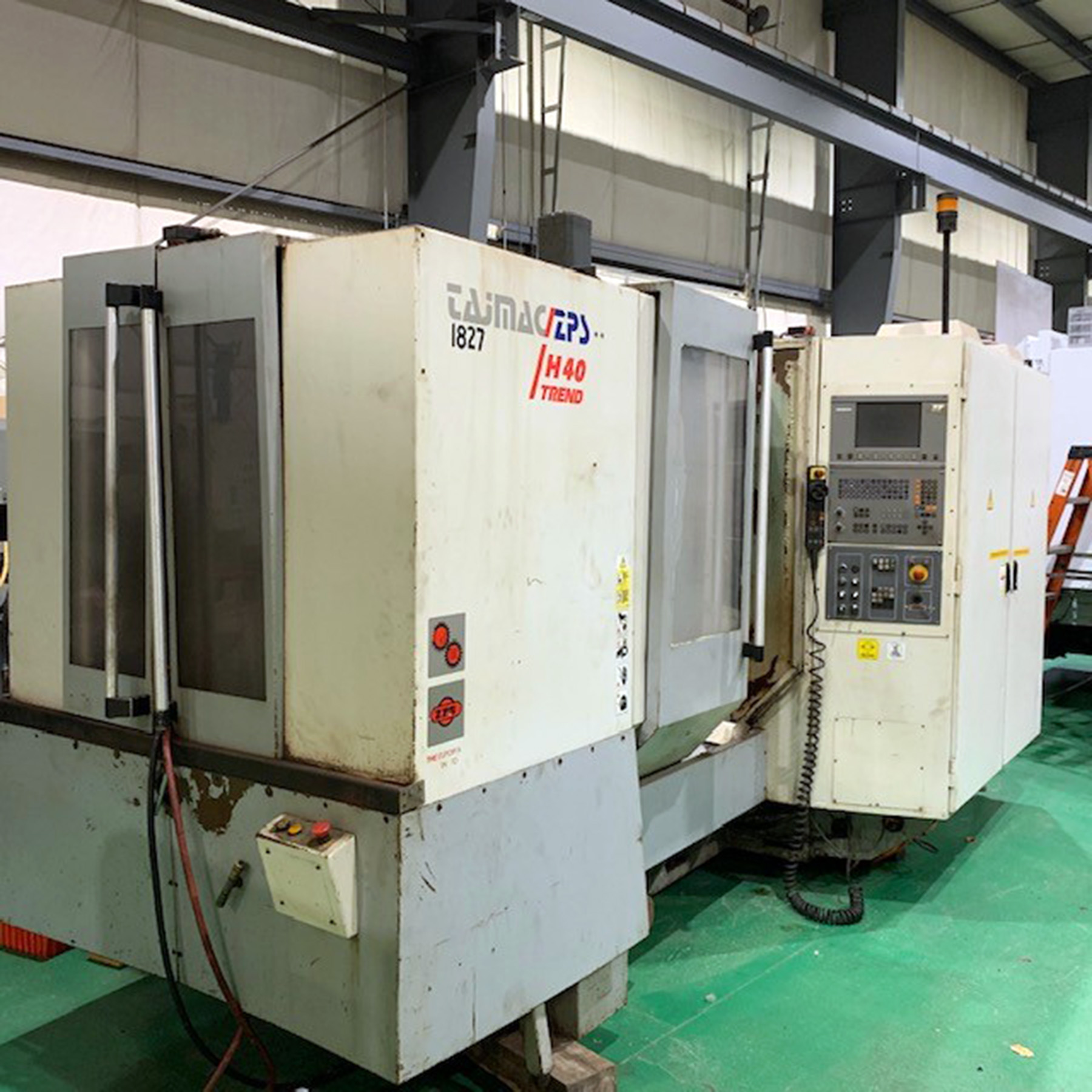

USED, TAJMAC - ZPS H40 TREND CNC HORIZONTAL MACHINING CENTER
Brand
Not Specified
Model
H40 TREND
Type
Machining Centers, Horizontal
Stock #
18272
Condition
Used
Year
2011
Status
For Sale
Location
City Not Specified,
Specifications
Equipped With
PALLET SIZE: 400 X 400 MM (15.7" X 15.7")
NUMBER OF PALLETS: 2
PALLET LOAD CAPACITY: 300 KG (660 LBS.)
PALLET ROTATION: 360 DEGREES
PALLET ROTATION INCREMENT: 0.001 DEGREES
X AXIS TRAVEL: 560 MM (22")
Y AXIS TRAVEL: 510 MM (20")
Z AXIS TRAVEL: 560 MM (22")
SPINDLE SPEED: 10,000 RPM
SPINDLE MOTOR: 12/17 KW (16/23 HP)
MAXIMUM SPINDLE TORQUE: 90/127 NM (66/94 LB-FT)
SPINDLE TAPER: ISO 40
MAXIMUM WORKING FEED: 15 M/MIN (590 IPM)
RAPID TRAVERSE: 50 M/MIN (1970 IPM)
SPINDLE FACE TO ROTARY TABLE AXIS: 130 - 690 MM (5.1" - 27.1")
SPINDLE AXIS TO PALLET CLAMPING SURFACE: 80 - 590 MM (3.1" - 23.2")
PALLET SURFACE TO FLOOR: 950 MM (37.4")
OAD: 4991 X 2540 X 2616 MM (196" X 100" X 103")
WEIGHT (APPROXIMATE): 9000 KG (19,800 LBS.)
EQUIPPED WITH:

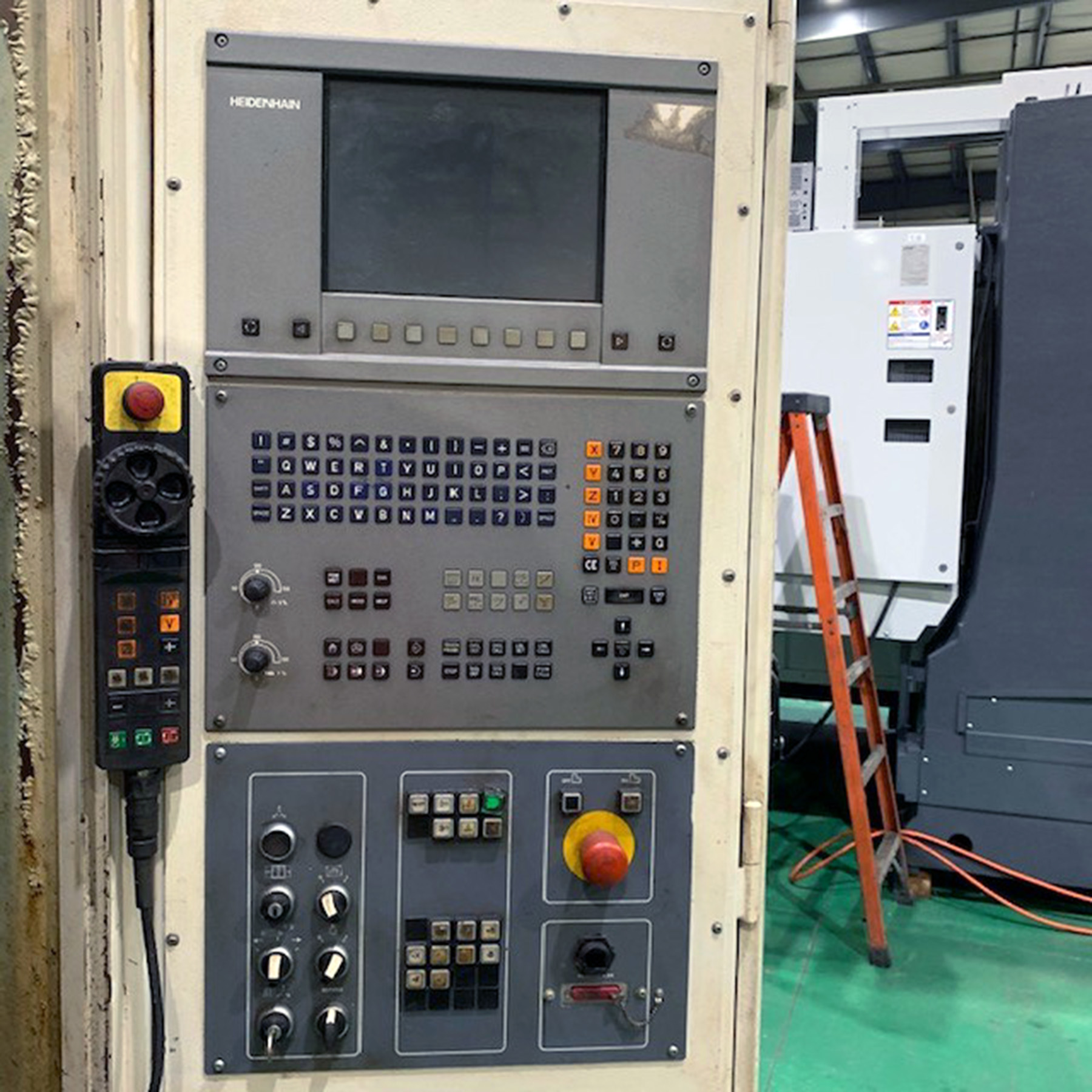

HEIDENHAIN iTNC 530 CNC CONTROL
45 POSITION ATC
NUMBER OF PALLETS: 2
PALLET LOAD CAPACITY: 300 KG (660 LBS.)
PALLET ROTATION: 360 DEGREES
PALLET ROTATION INCREMENT: 0.001 DEGREES
X AXIS TRAVEL: 560 MM (22")
Y AXIS TRAVEL: 510 MM (20")
Z AXIS TRAVEL: 560 MM (22")
SPINDLE SPEED: 10,000 RPM
SPINDLE MOTOR: 12/17 KW (16/23 HP)
MAXIMUM SPINDLE TORQUE: 90/127 NM (66/94 LB-FT)
SPINDLE TAPER: ISO 40
MAXIMUM WORKING FEED: 15 M/MIN (590 IPM)
RAPID TRAVERSE: 50 M/MIN (1970 IPM)
SPINDLE FACE TO ROTARY TABLE AXIS: 130 - 690 MM (5.1" - 27.1")
SPINDLE AXIS TO PALLET CLAMPING SURFACE: 80 - 590 MM (3.1" - 23.2")
PALLET SURFACE TO FLOOR: 950 MM (37.4")
OAD: 4991 X 2540 X 2616 MM (196" X 100" X 103")
WEIGHT (APPROXIMATE): 9000 KG (19,800 LBS.)
EQUIPPED WITH:
HEIDENHAIN iTNC 530 CNC CONTROL
45 POSITION ATC
