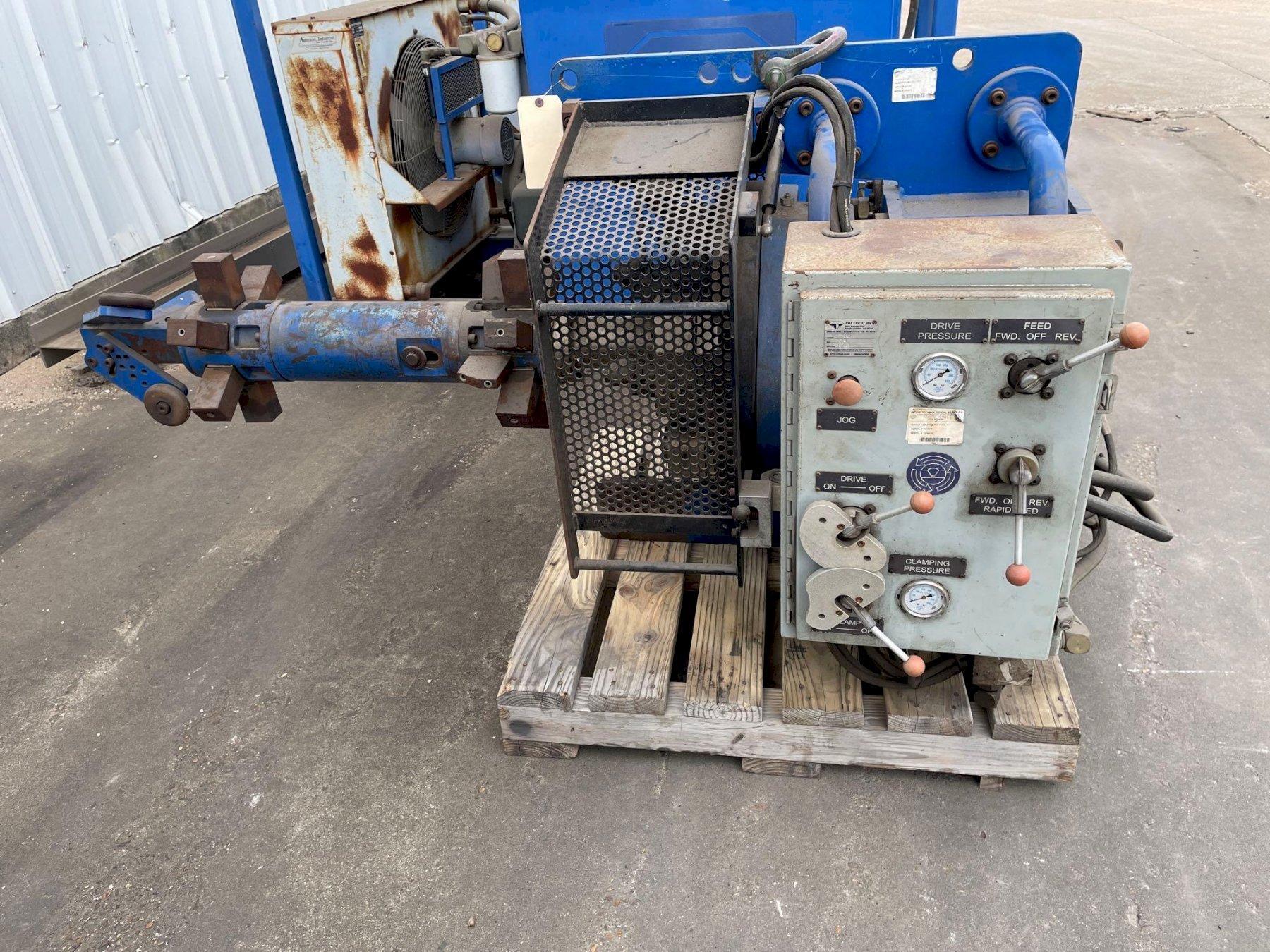

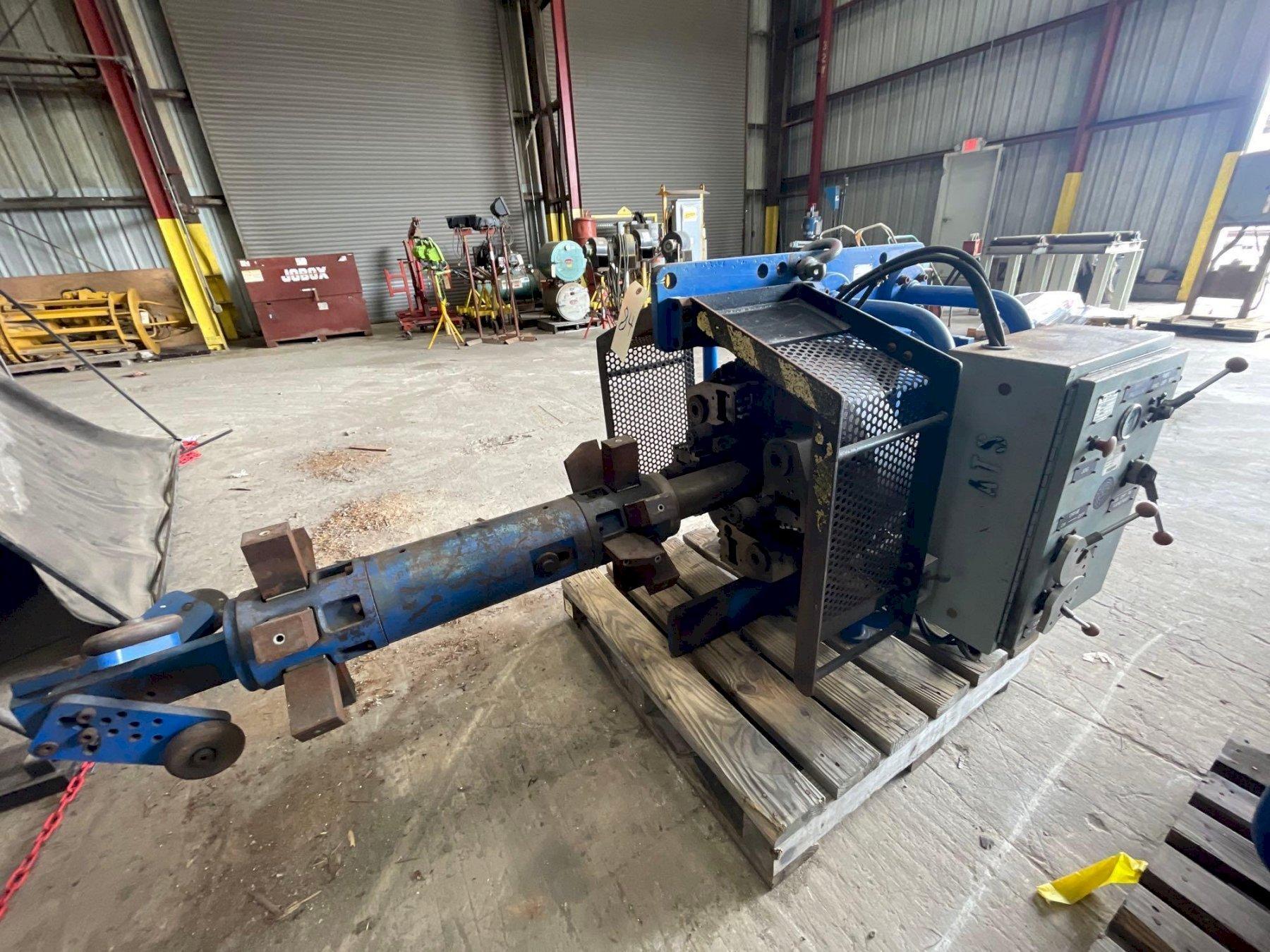

Used, Tri Tool Model PFM 816 Pipe Beveler with Hydraulic Power Unit (Model HPU75-60/5)
Brand
TRI TOOL
Model
PFM 816
Type
Pipe Bevelers
Stock #
19987
Condition
Used
Year
Status
For Sale
Location
Houston, Texas
United States
Specifications
Equipped With

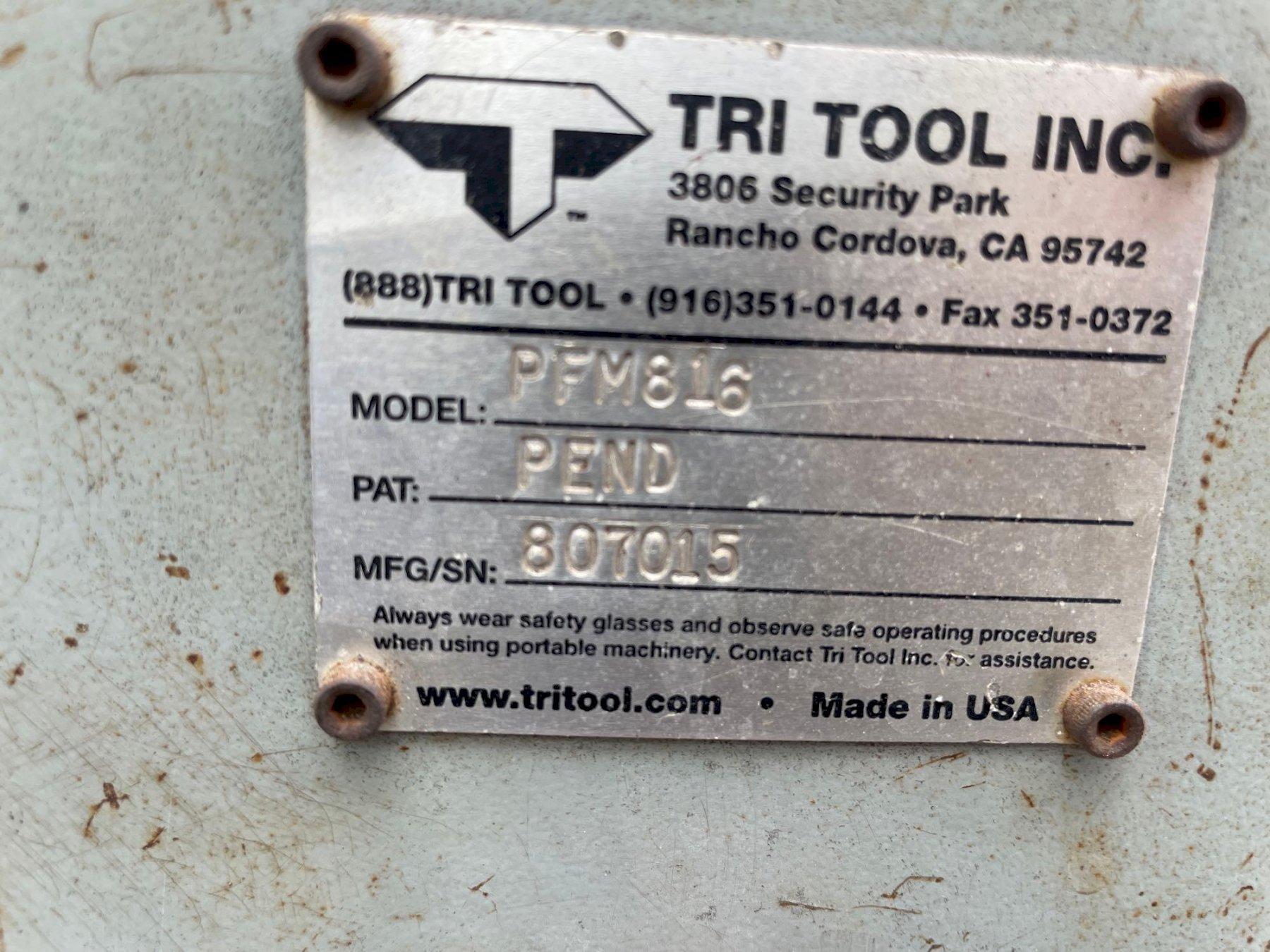

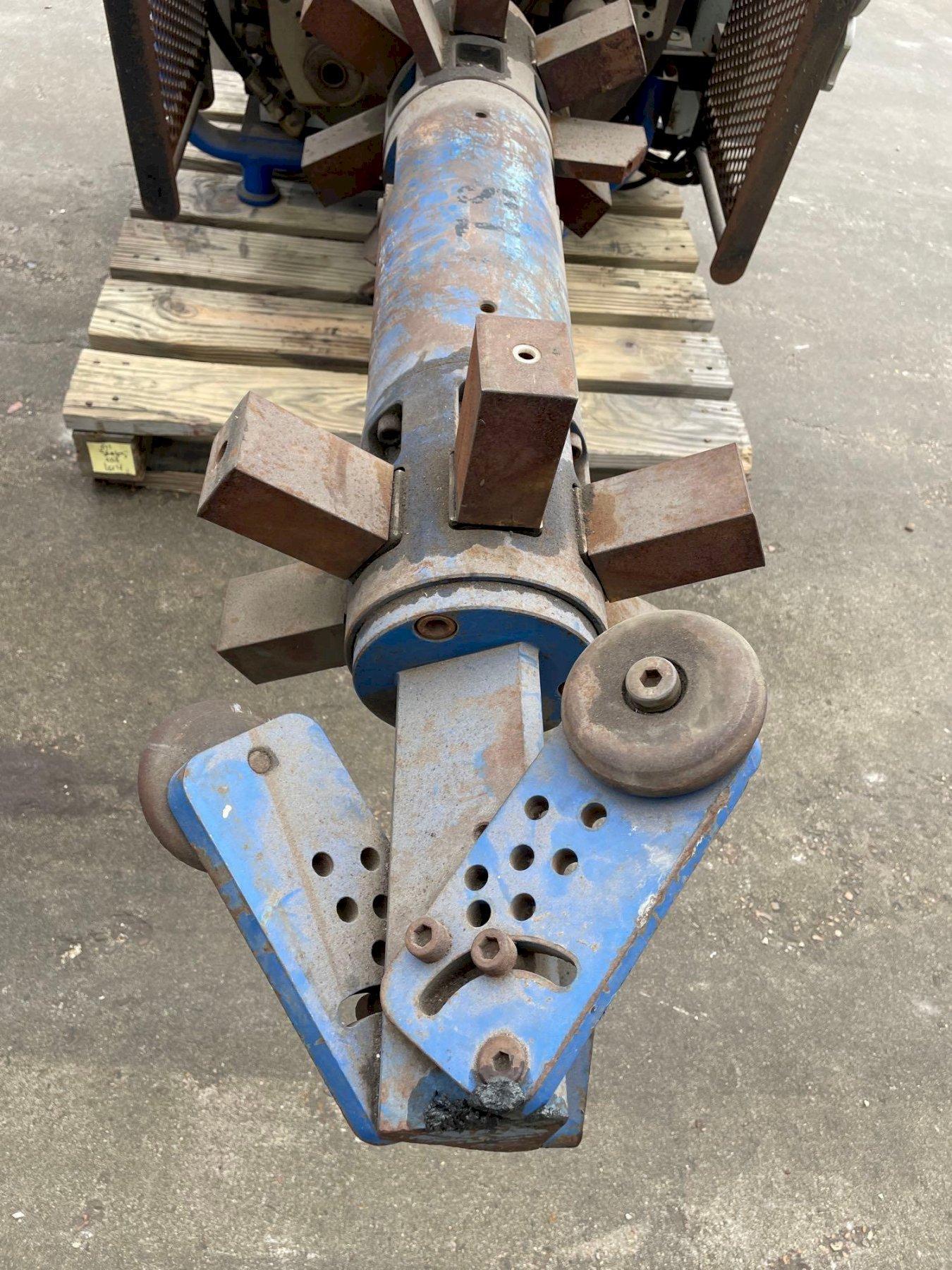

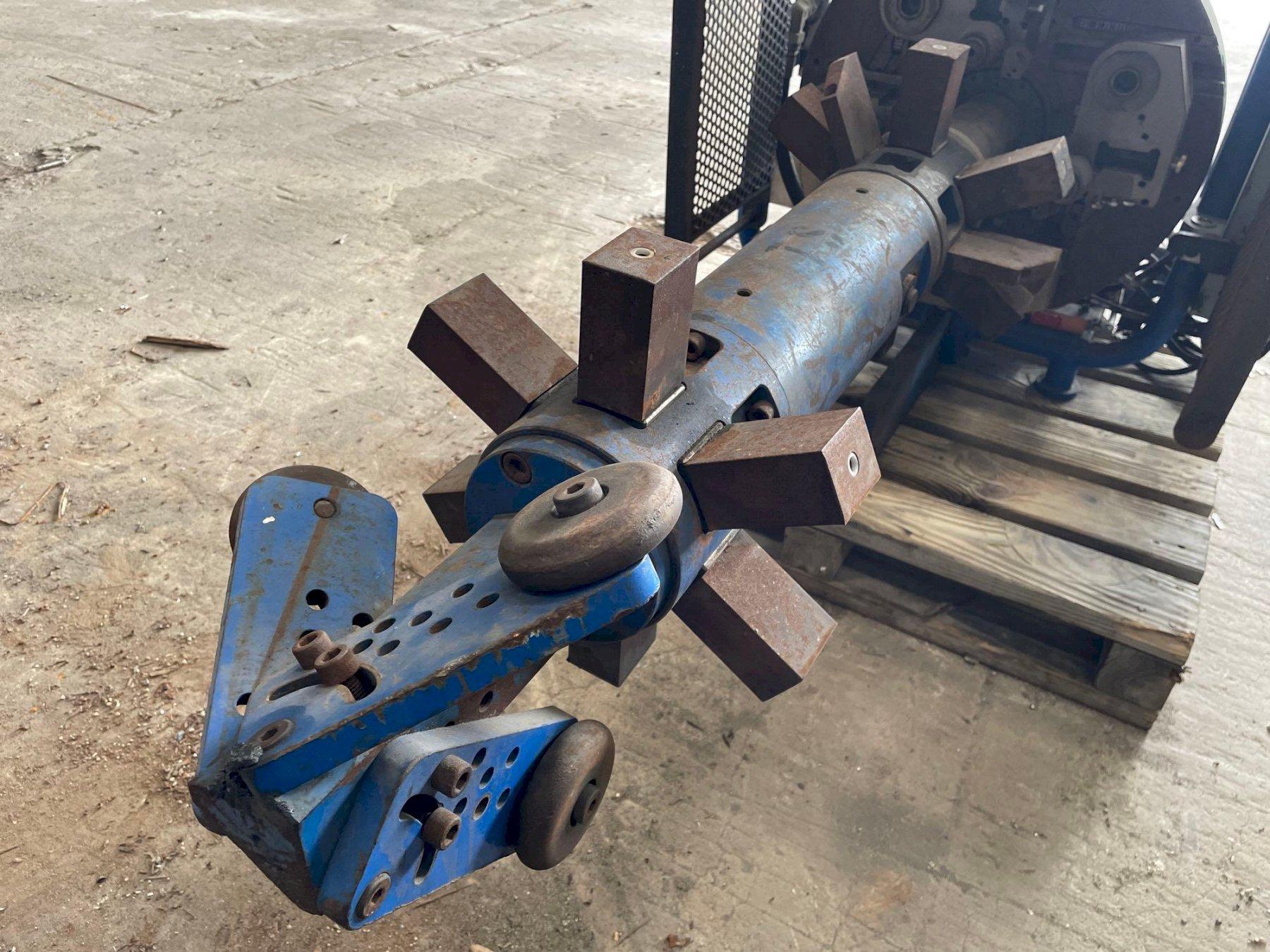

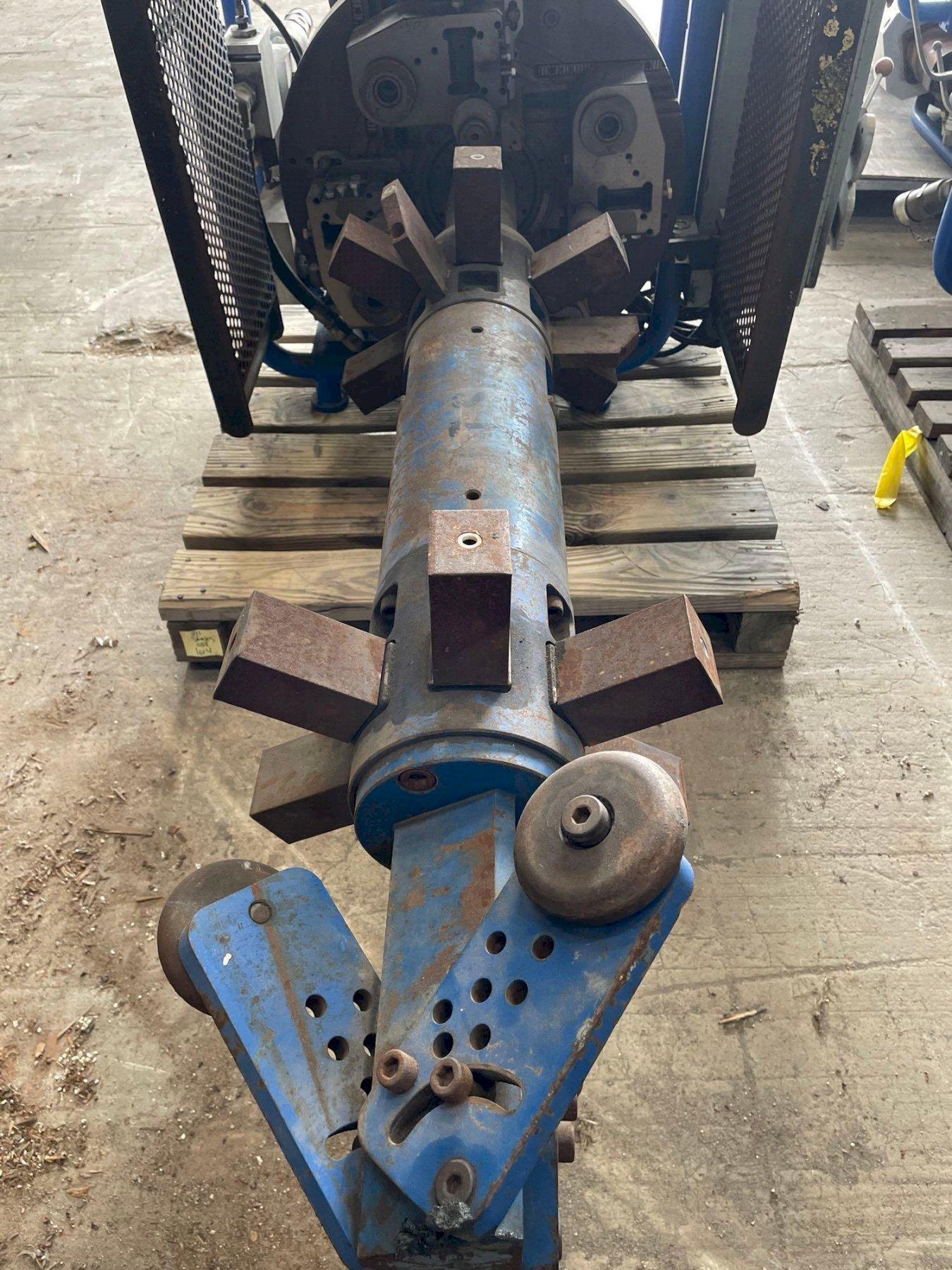

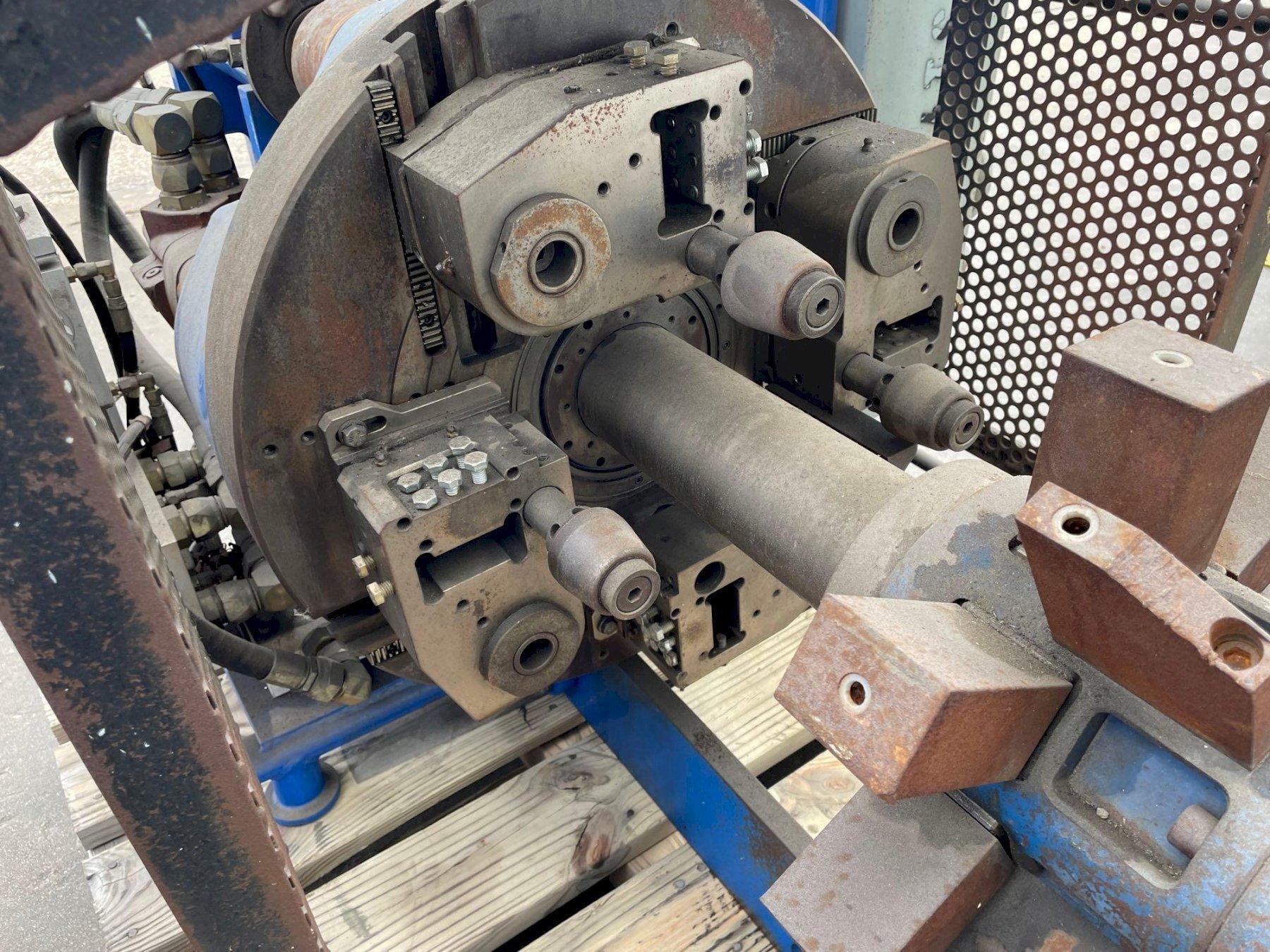

Tri Tool Pipe Beveler
Model PFM 816
S/N 807015
I.D. Mounting: 7.200" - 15.941"
O.D. Machining (max.): 16.000"
Wall Thickness: 1.600"
Feed Rate (recommended): 0.006 ipm
Axial Feed: 5.500"
Clamping Force (@ 2000 psi): 40,000 Lbs.
Machine weight (approx.): 2640 Lbs.
Cutting Head Toolbit Slots: 4
Rotating Head Dia.: 24"
Machine Dims: 79" x 43.34" x 39.9" High

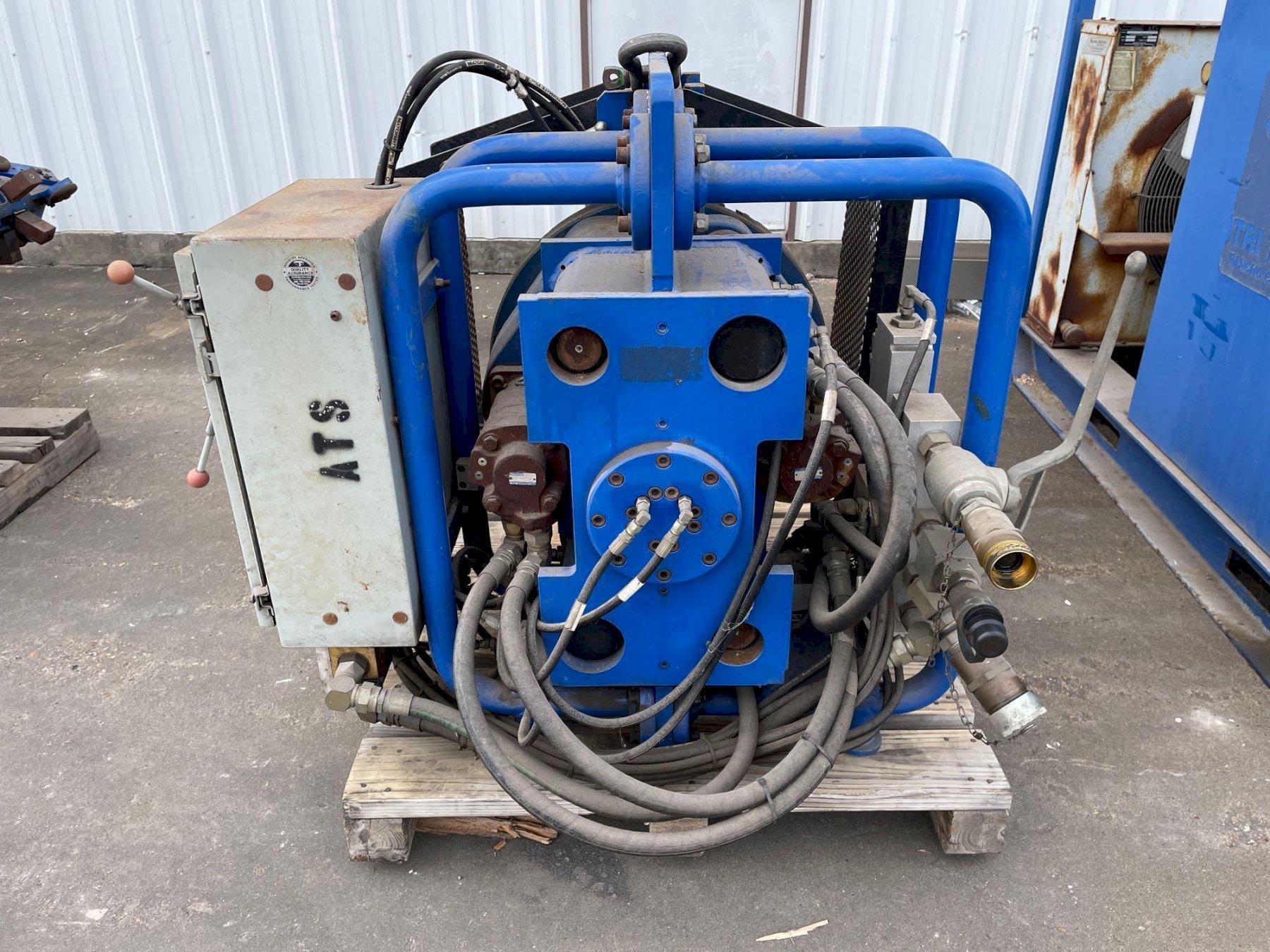

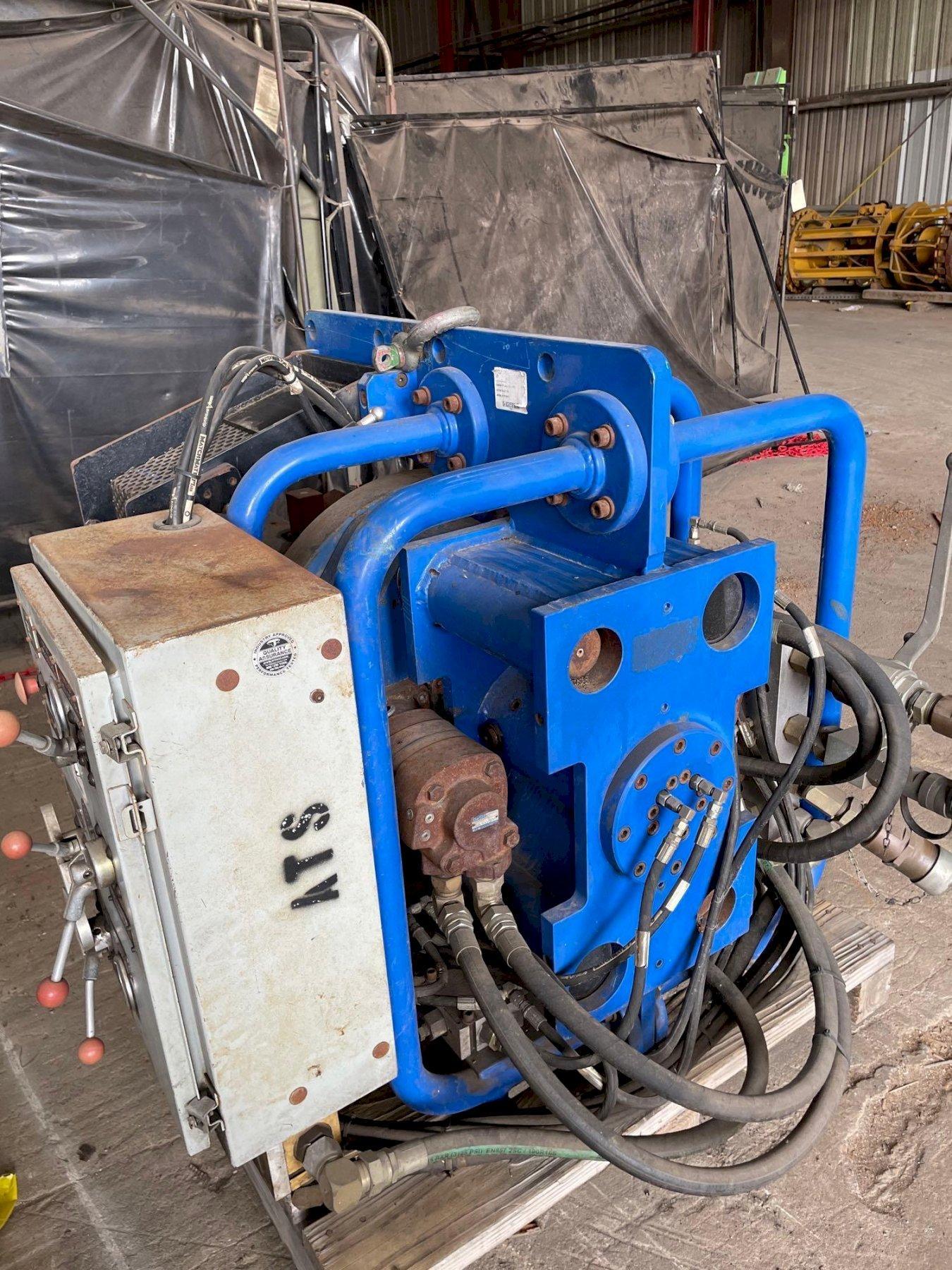

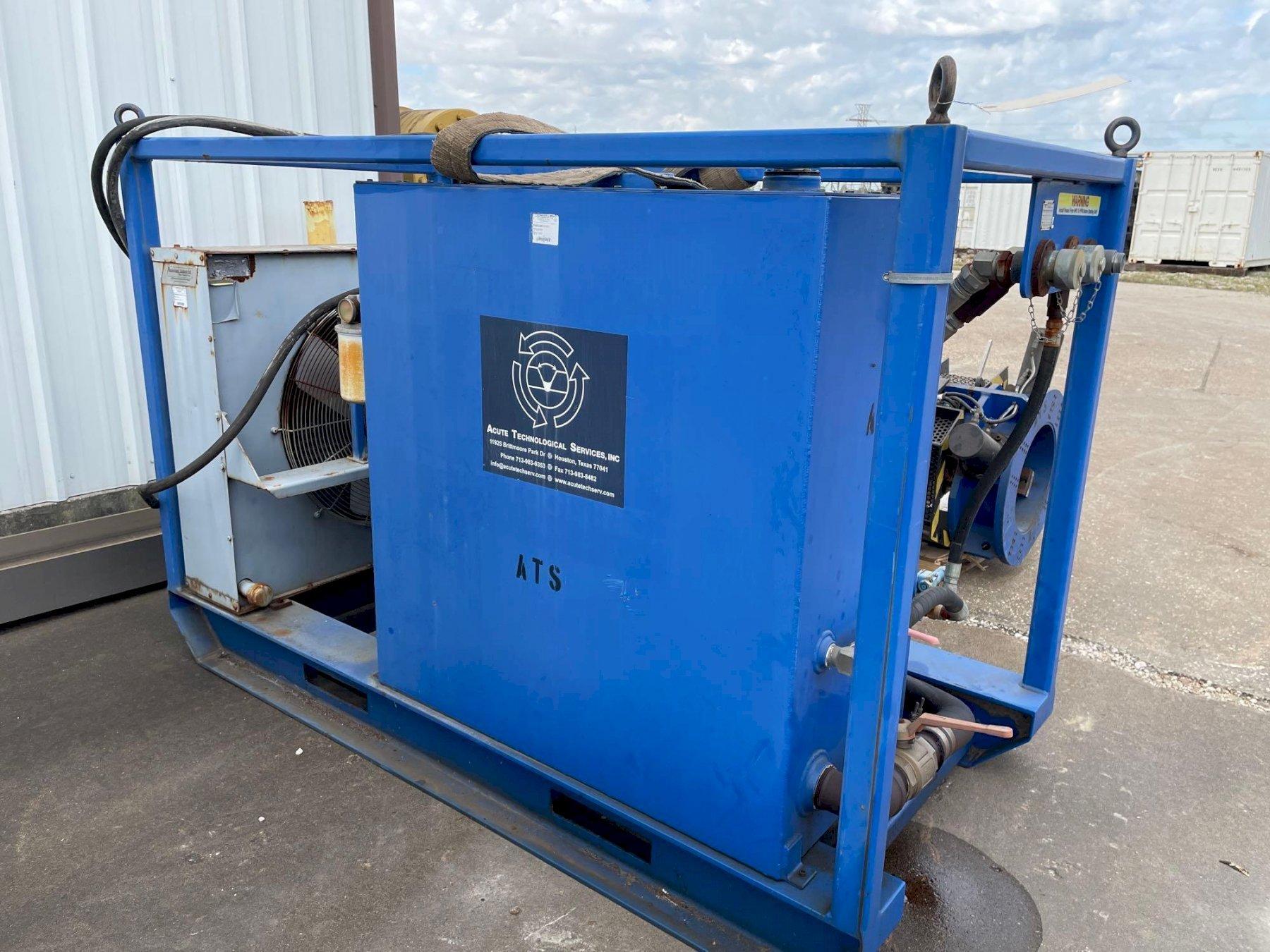

Hydraulic Power Unit, Model 75-60/5
75 HP Motor
Hydraulic Power Req.: Primary (60 gpm @ 2000 psi) / Secondary (5 gpm @ 2000 psi)
Hydraulic Fluid Reservoir: 140 gal.
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
