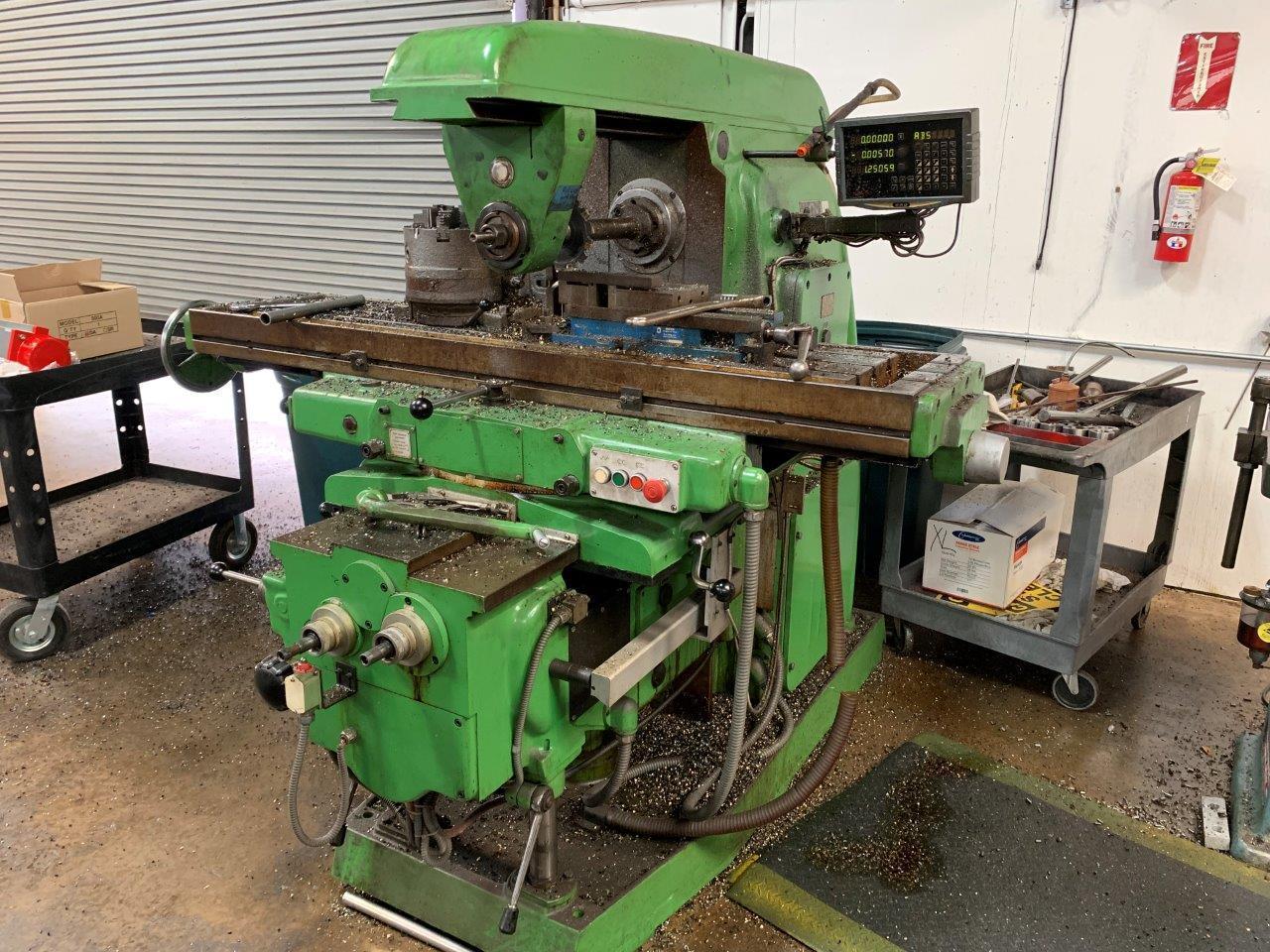

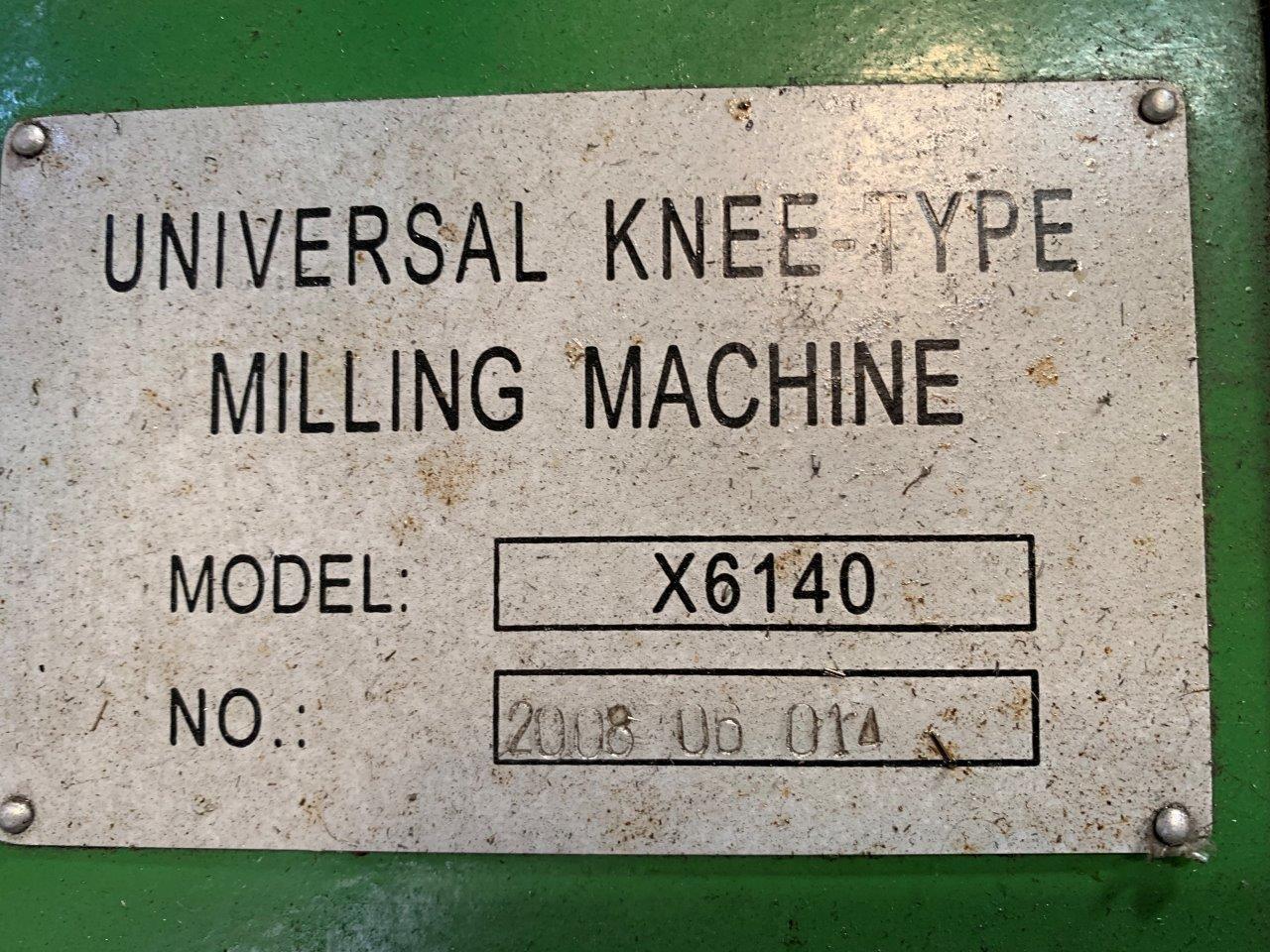

USED, VANGUARD MODEL X6140 UNIVERSAL KNEE TYPE HORIZONTAL MILLING MACHINE
Brand
VANGUARD
Model
X6140
Type
Millers, Horizontal, Universal
Stock #
19199
Condition
Used
Year
2008
Status
For Sale
Location
Houston, Texas
United States
Specifications
Equipped With
TABLE SIZE: 67" X 15.7"
T-SLOTS: 3 (0.7" AT 3.5" CENTERS)
TABLE LOAD CAPACITY: 1,760 LBS.
TABLE SWIVEL: ±45 DEG.
TABLE LONGITUDINAL TRAVEL: 35.4" MANUAL / 34.6" AUTO
TABLE CROSS TRAVEL: 12.4" MANUAL / 11.8" AUTO
TABLE VERTICAL TRAVEL: 14.96" MANUAL / 14.17" AUTO
SPINDLE SPEEDS: (18) 30 - 1500 RPM
SPINDLE MOTOR: 15 HP
SPINDLE TAPER: ISO 50
TABLE CENTER TO COLUMN SURFACE: 10" - 22.4"
HORIZONTAL SPINDLE AXIS TO TABLE: 1.2" - 16.1"
SPINDLE AXIS TO RAM SURFACE: 7.48"
RAM TRAVEL: 27.5"
LONGITUDINAL FEEDS: (18) 0.925 - 46.5 IPM
CROSS FEEDS: (18) 0.925 - 46.5 IPM
VERTICAL FEEDS: (18) 0.315 - 15.5 IPM
LONGITUDINAL / CROSS RAPID TRAVERSE: 90 IPM
VERTICAL RAPID TRAVERSE: 30.3 IPM
FEED MOTOR: 4 HP
COOLANT MOTOR: 0.17 HP
OAD (APPROXIMATE): 101" X 85" X 70" HIGH
WEIGHT (APPROXIMATE): 8,470 LBS.
EQUIPPED WITH:
3-AXIS DRO
HORIZONTAL SPINDLE WITH ARBOR SUPPORT
POWER FEEDS ALL AXES
UNIVERSAL SWIVELING TABLE
COOLANT PUMP AND PIPING
