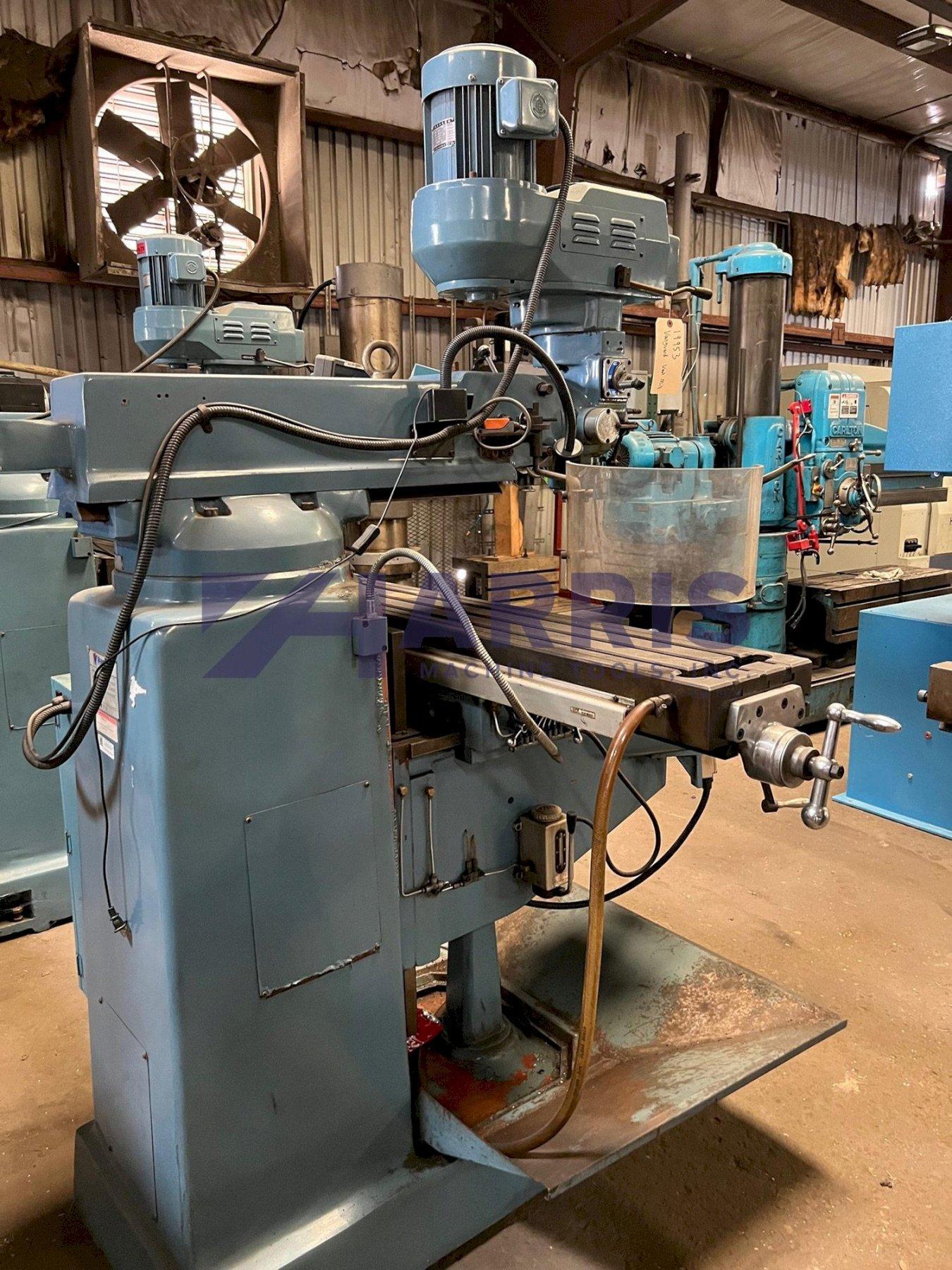

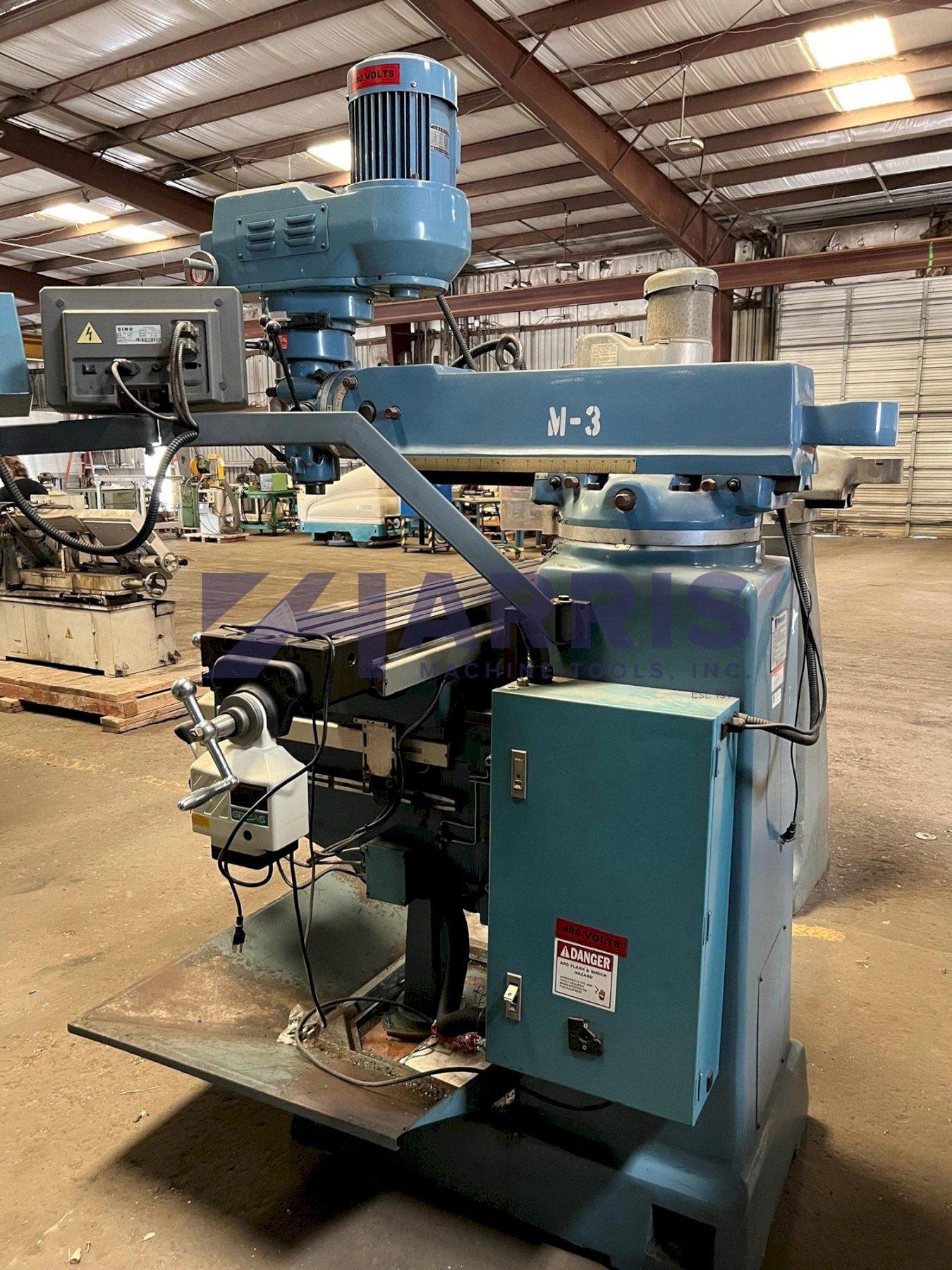

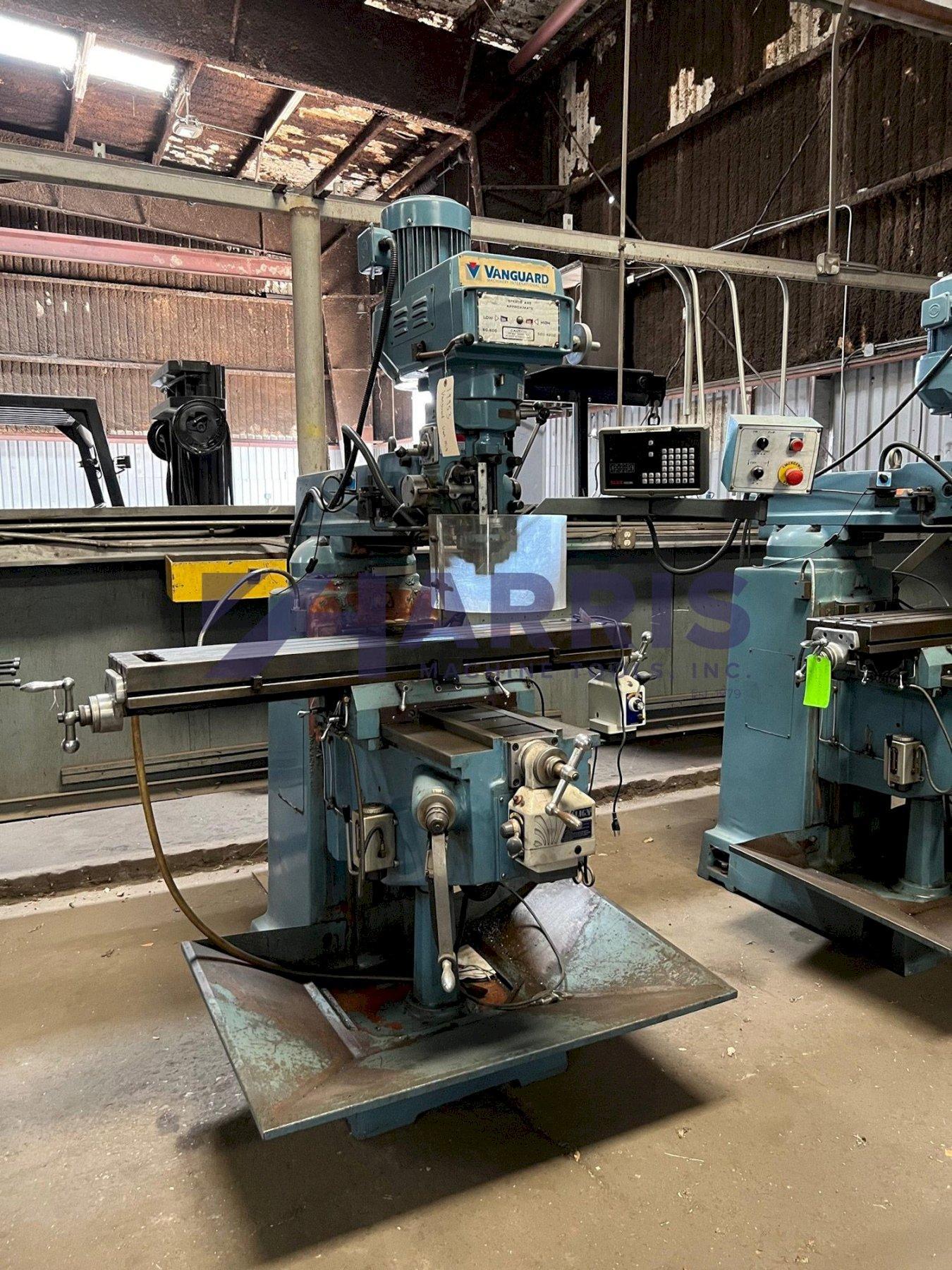

Used, Vanguard SM-4VS Vertical Milling Machine
Brand
VANGUARD
Model
SM-4VS
Type
Knee Mills
Stock #
19953
Condition
Used
Year
Status
For Sale
Location
Houston, Texas
United States
Specifications
Equipped With
Table Size: 54" x 10"
Table Longitudinal Travel: 36"
Table Cross Travel: 16-1/2"
Knee Vertical Travel: 16-1/2"
Spindle Speeds: 60 - 4200 RPM (VAR.)
Spindle Taper: R-8
Quill Travel: 5"
Quill Diameter: 3-3/8"
Quill Feed Rates: 0.0015, 0.003, 0.006 IPR
Ram Travel: 22-3/4"
Milling Head Tilt (F-B): +/- 45 Deg.
Milling Head Swivel (L-R): +/- 90 Deg.
Table to Spindle Distance: 0" - 16-1/2"
Column to Spindle Distance: 4" - 27"
Spindle Motor: 3 HP
OAD (Approximate): 79" x 67" x 96" High
Weight (Approximate): 3,000 lbs.
Equipped With:

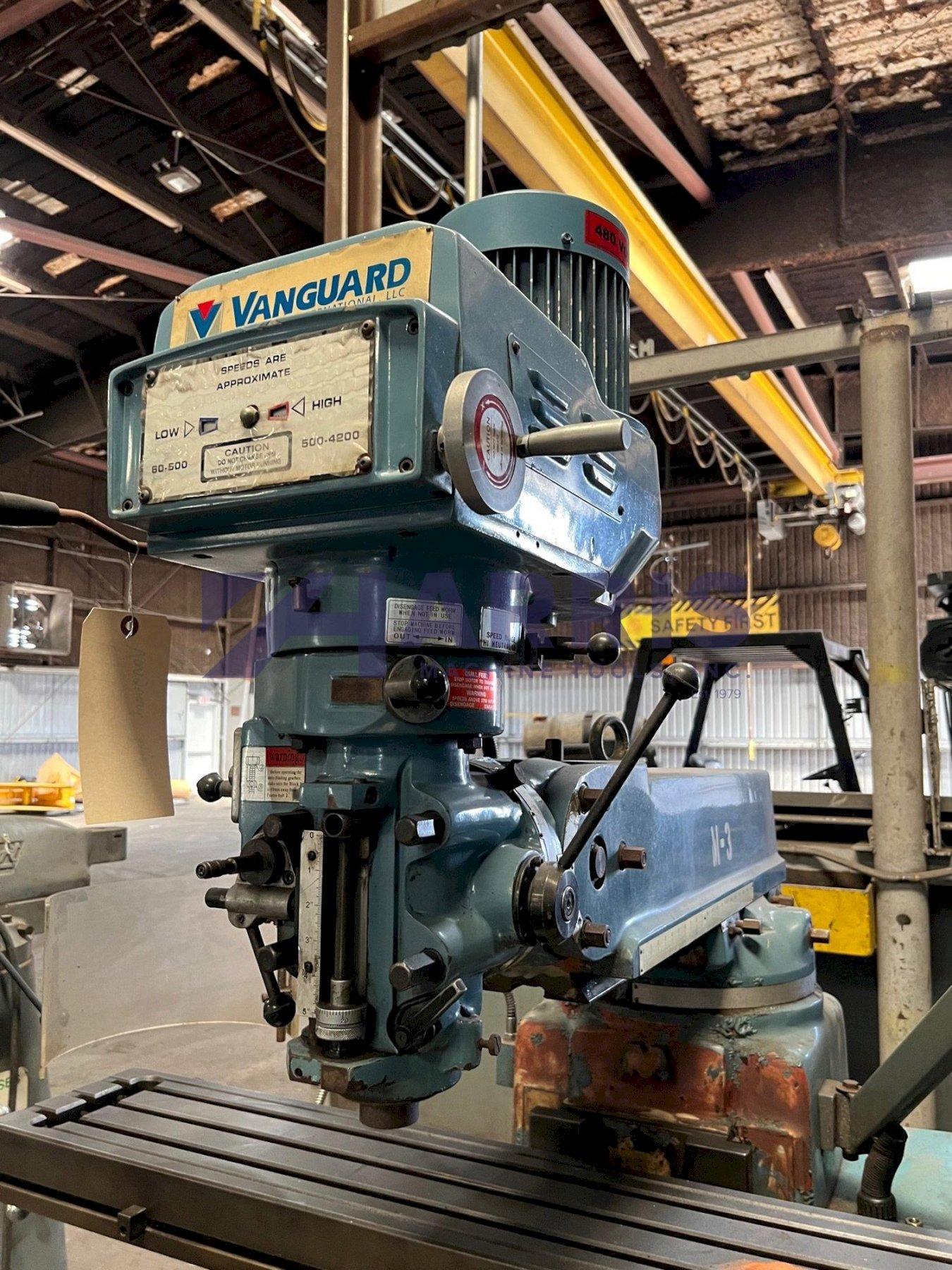

Variable Speed Head

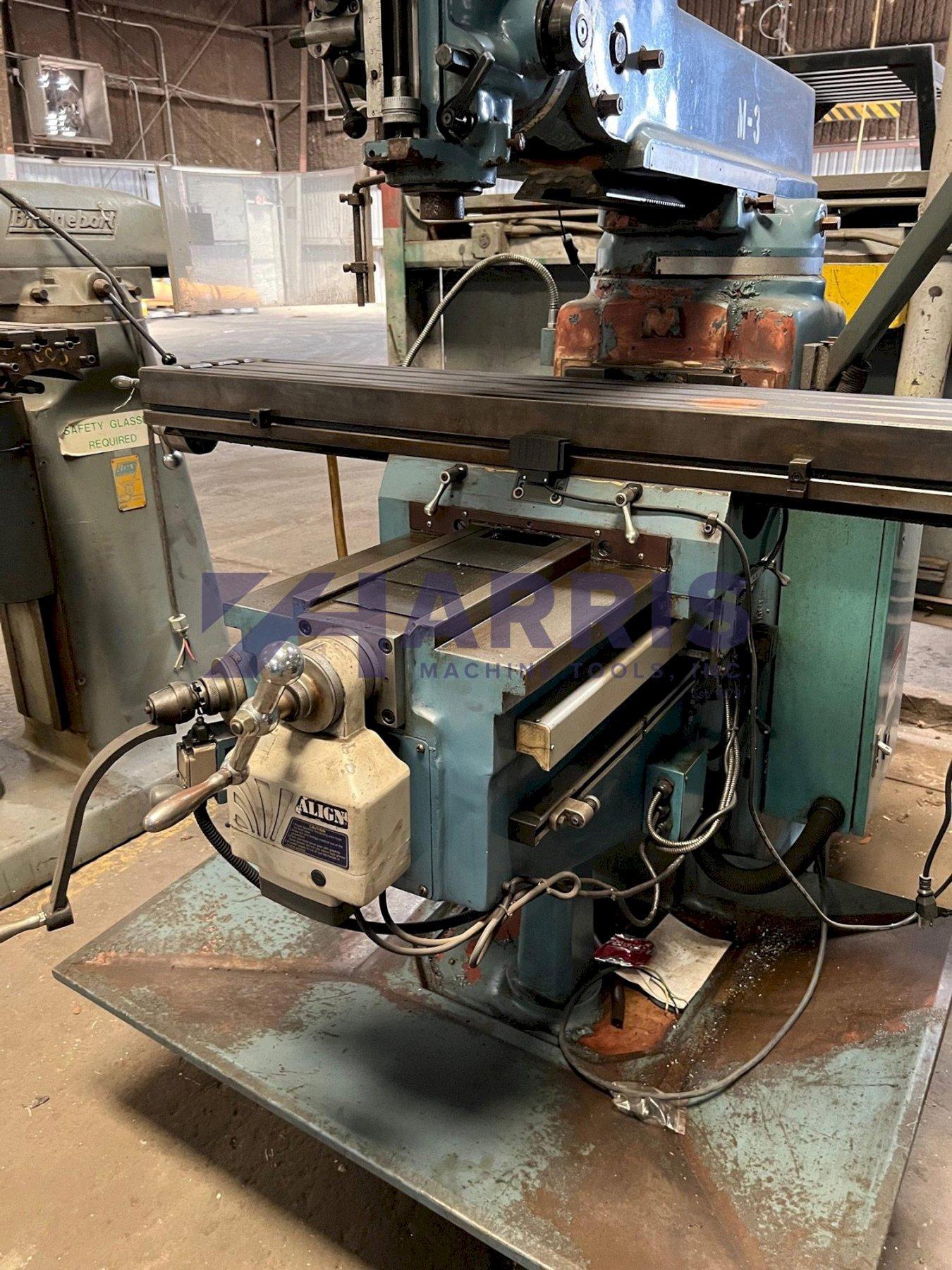

Power Table Feed (Longitudinal and Cross)
Power Knee Elevation
Power Draw Bar
Way Covers
Coolant System
Box Ways
Splash Pan Base
Note: All Specifications Subject to Verification
